Bocklet

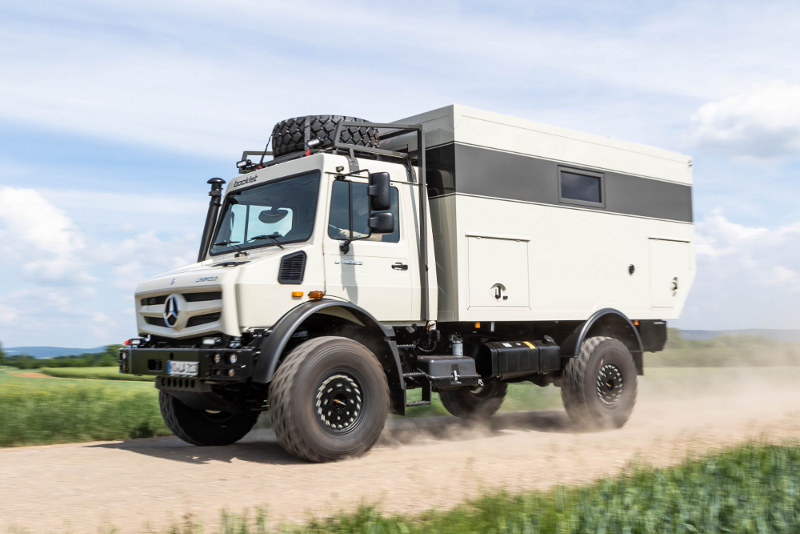

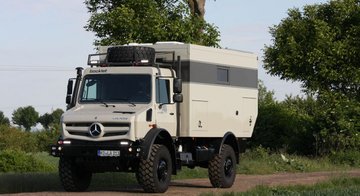

Dakar U690
| Chassis | Unimog 4023 |
| Wheelbase | 3850 mm |
| GVW | 9.800 kg |
| L x W x H | 6870 mm x 2340 mm x 3500 mm |
Technical Data
Chassis
| Chassis | Unimog 4023 |
| Wheelbase | 3850 mm |
| GVW | 9.800 kg |
| Engine | 4-Zylinder Turbodiesel |
| Capacity | 5132 |
| Engine power | 170 kW / 231 PS |
Body
| frost bridge free GRP- Sandwich-Construction | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

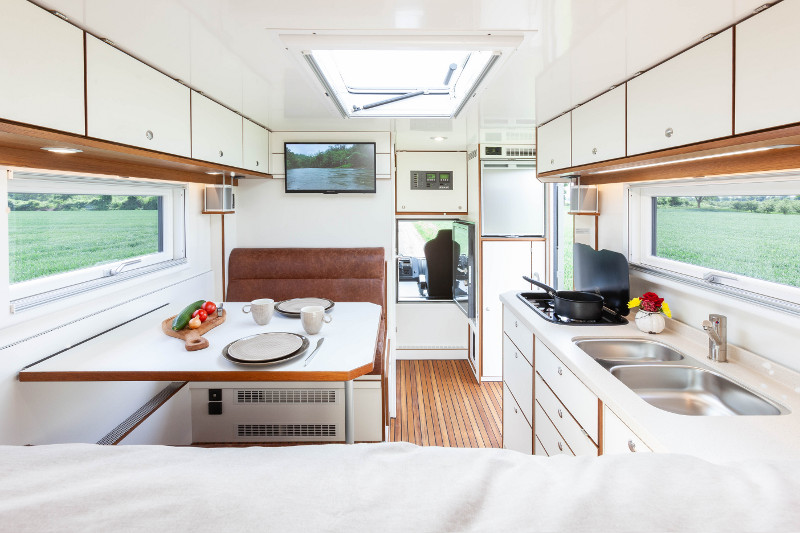

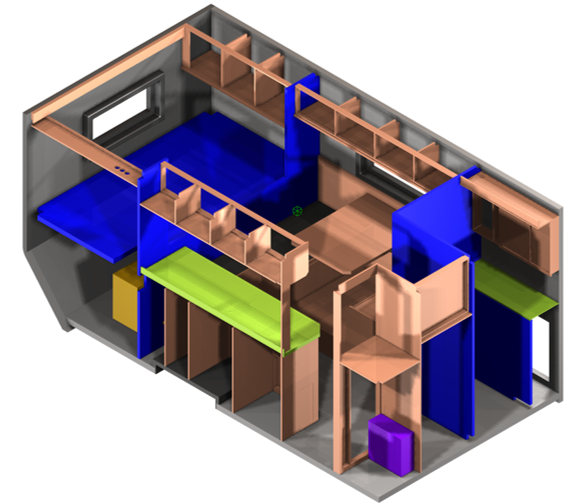

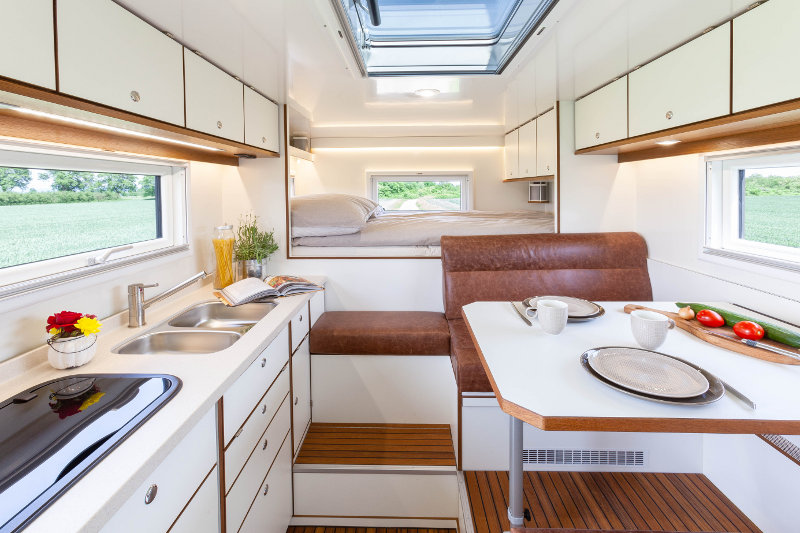

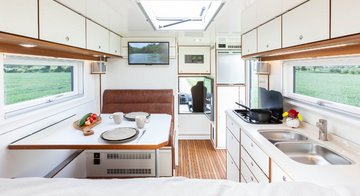

Interior
| Length | 4250 mm |
| Width | 2200 mm |
| Height | 1950 mm |
| Seats with belt | - |
| Front bed | - |
| Rear bed | 2000 x 1350 mm |
Specifications
Chassis and body
- All wheel drive
- Diff Lock Front and Rear
- Fueltank app. 300l
- Radio /CD /
- Comfort seats
- Integrated tire control system
- Observation cam front and rear
- Roof carrier and spare wheel carrier
- Three Pont mounted GRP body construction
- Cover layer 2 mm, rowing mesh
- frostbridge free bocklet doors and hatches
- storage compartment under bed, full width
- glas windows
- skylight glas over seating area

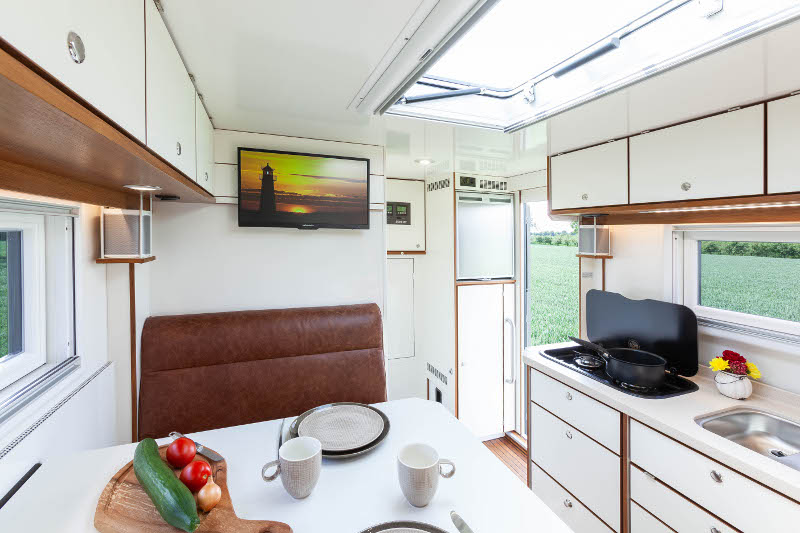

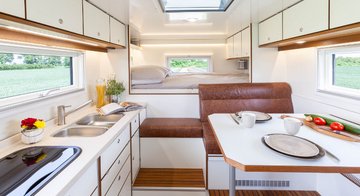

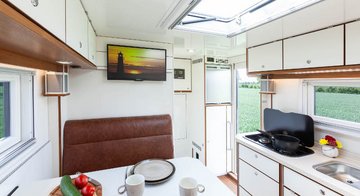

Interior and options
- Furniture in Teak/ white combination
- Drawers with Soft Slide-In, Push Locks Inox
- Doppelfloor with storage in seating area
- Diesel powered - air heating
- Gas- air heating with boiler
- Batteriecapacity 2x160Ah Lithium Ionen Batteries
- Automaticlcharger 24 V / 50 A
- Inverter 2 kW
- Controllpanel
- Lightning LED-powered
- Cassette toilette with SOG
- Haushaltsarmaturen mit Einhebelmischer
- Kocher 2-flames, Double sink
- fridge 85 l
- countertop in mineralstone
- Radio CD / Bluetooth
- Tanks inside and heated:
- fresh water 220l
- grey water 110l
