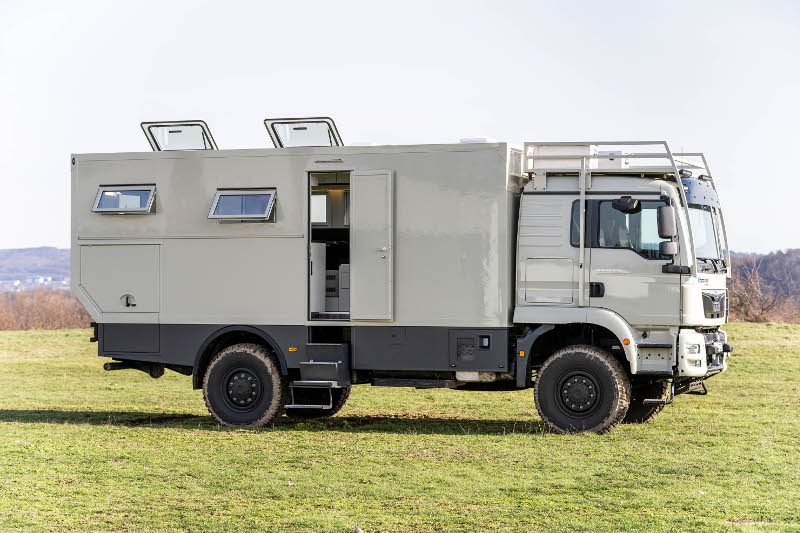

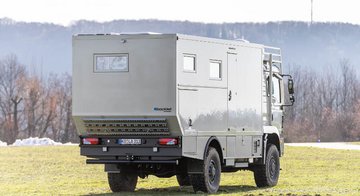

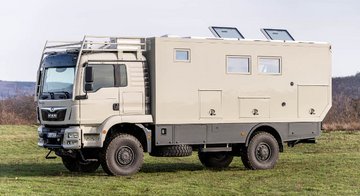

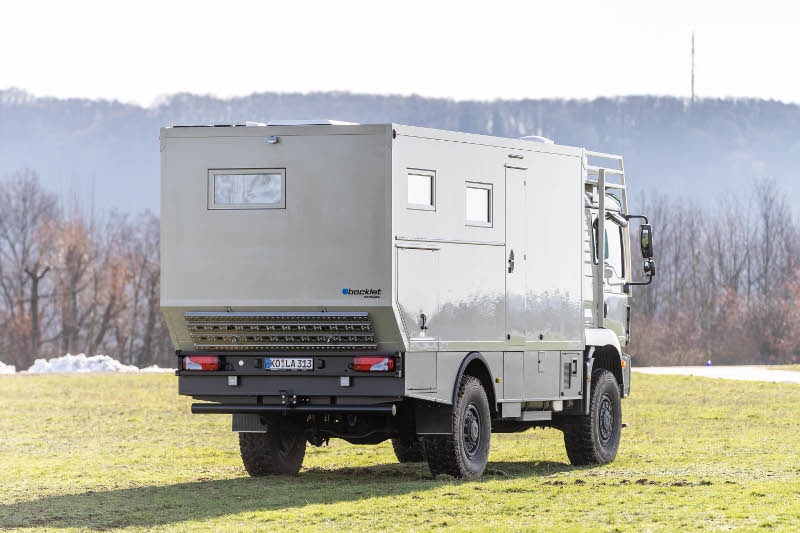

Bocklet
Dakar 858
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4500 mm |
| GVW | 17.500kg |
| L x W x H | 8580 x 2500mm x 3800 mm |
Technical Data
Chassis
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4500 mm |
| GVW | 17.500kg |
| Engine | 6-Cylinder Turbodiesel |
| Capacity | 6871 |
| Engine power | 235/320 |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 51 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

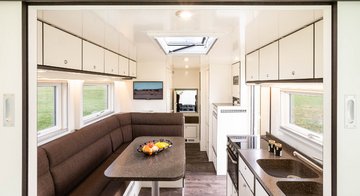

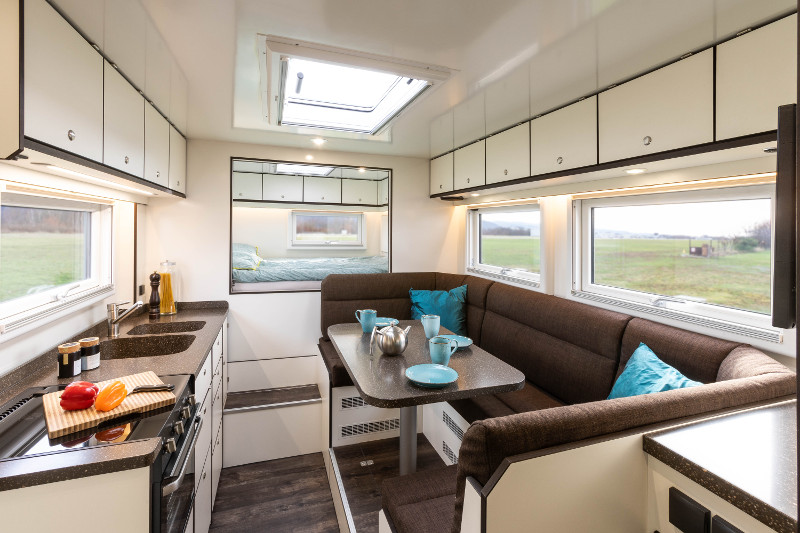

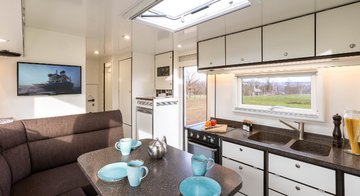

Interior
| Length | 6000 mm |
| Width | 2400 mm |
| Height | 2100 mm |
| Seats with belt | 4 |
| Front bed | - |
| Rear bed | 2000 x 1600 mm |
Specifications

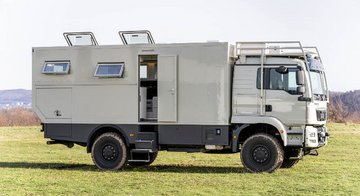

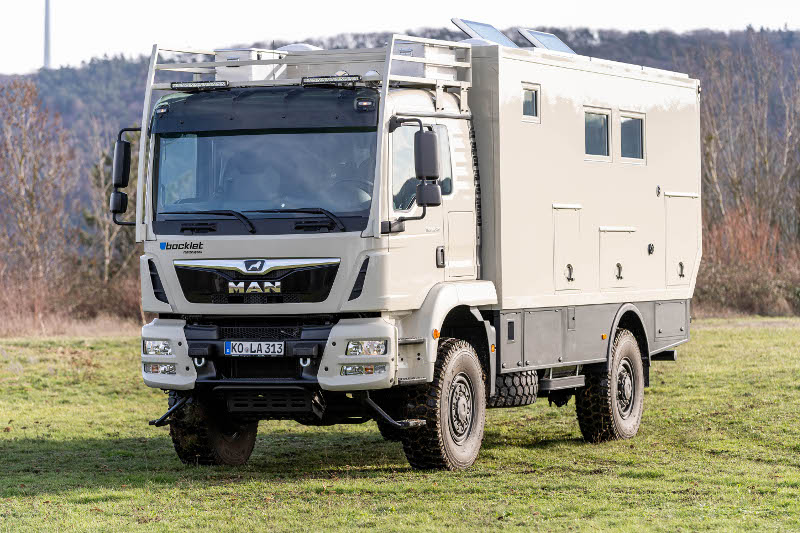

Chassis and body
- MAN 13.290 4x4
- engageable all-wheel drive
- Diff-lock rear axle
- Diff-lock front axle
- Fuel tank ca. 600l
- comfort seats
- air condition
- rear view camera
- 4 seats in cab
- GRP body construction
- Cover layer 3 mm, rowing mesh
- frostbridge free bocklet doors and hatches
- storage compartment under bed, full width
- glas windows
- glas skylights

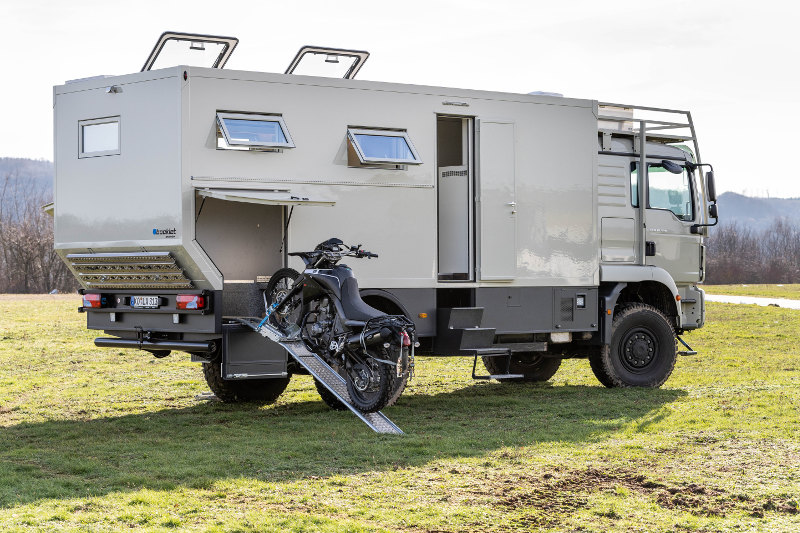

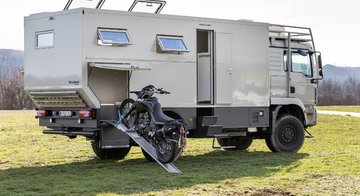

- special design to realize spacious garage for motorbike or bycicles
- Side protection design
- electric and automatic staircase
- pass to driver cab with lockable door
- roof carrier with storage boxes

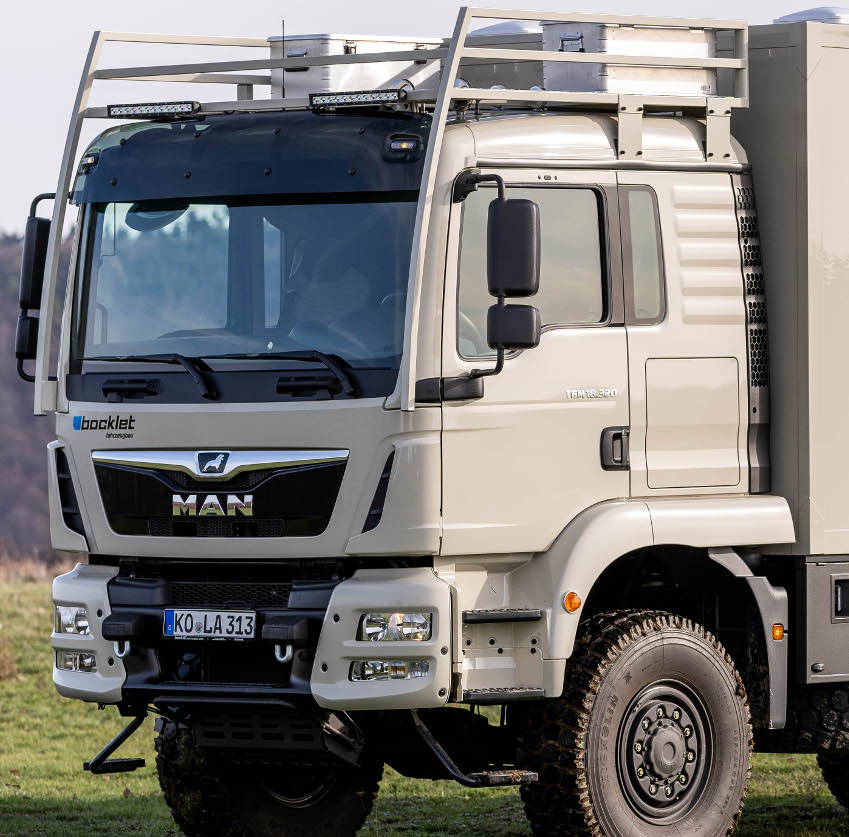

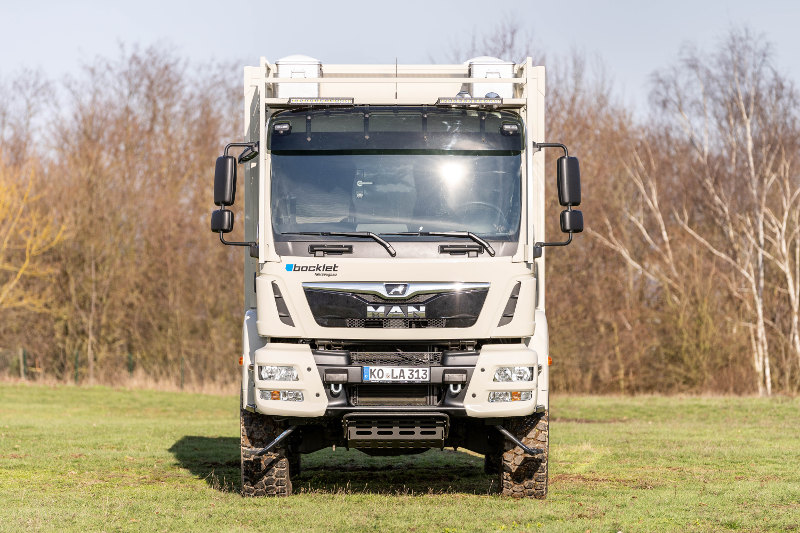

- Light carrier with LED Bars on cab

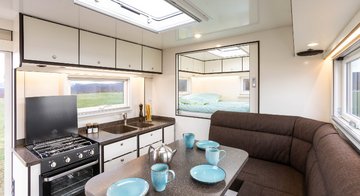

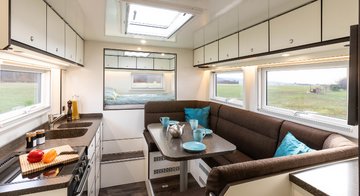

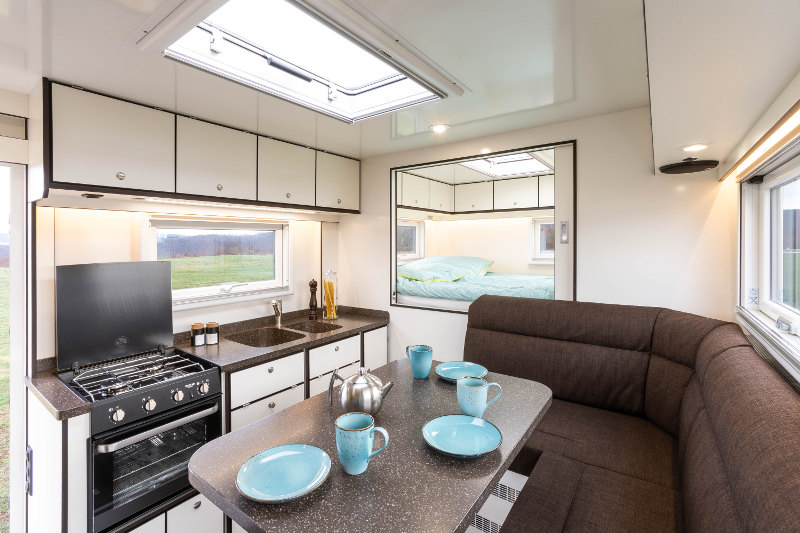

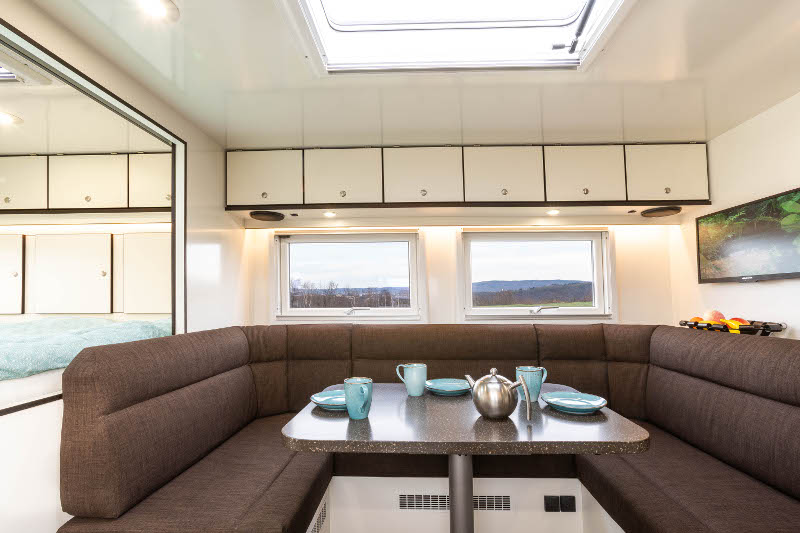

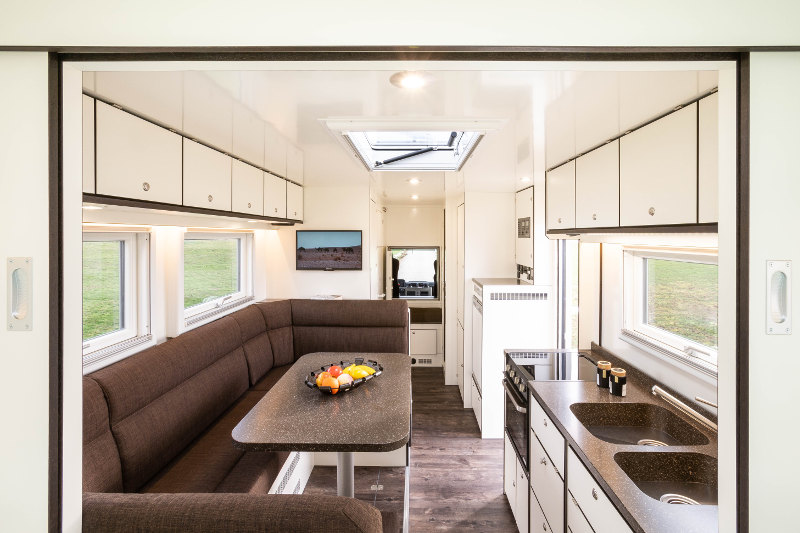

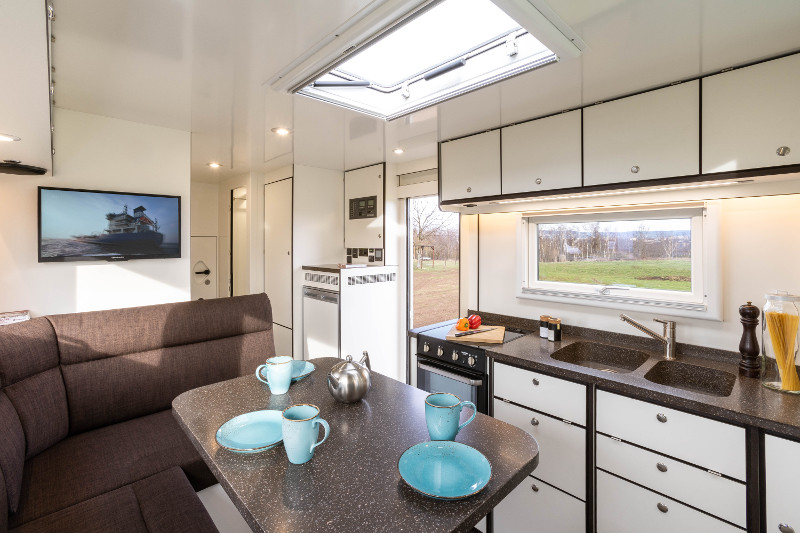

Interior and options
- furniture made of 16mm wood, white / oak combination
- drawers with Soft Slide-In

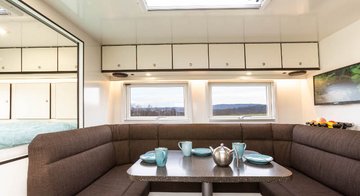

- fabric cover seating area
- double floor in seating area
- Diesel - air heating
- Gas- warm water heating with electric power option
- Batteriecapacity 4x220Ah AGM
- Automaticharger 24 V / 50 A
- Inverter 2 kW
- control panel
- LED lightning
- Vacuum toilet
- white-armature with single-leve
- 3-flams stove with oven
- Fridge 110l
- Countertops mineral stone
- Radio CD / Bluetooth
- Tanks inside and frost free:
- freshwater 500l
- grey water 250l
- black water 210l
- automatic Satelite TV system with LED TV
- aircondition in rear body
