Bocklet
Dakar 835

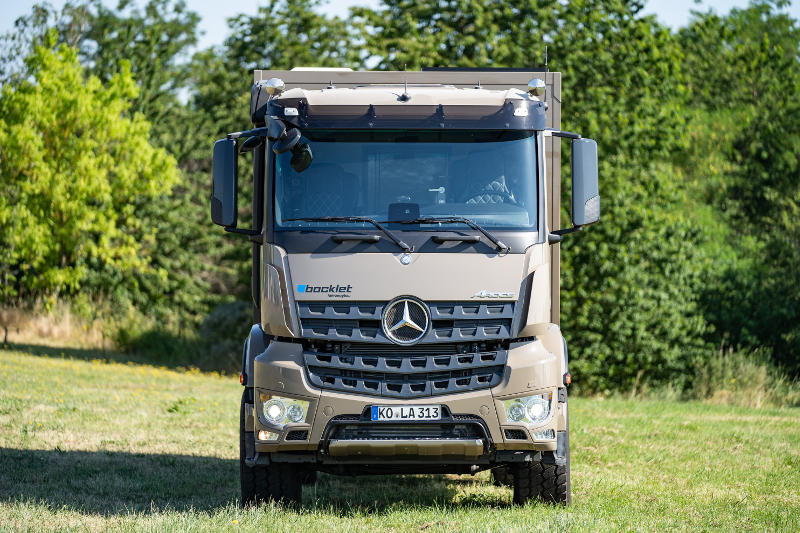

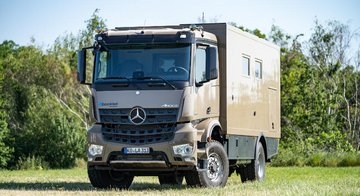

ChassisMB Arocs 1851 BL HAD
Wheelbase4500 mm
GVW18.000kg
L x W x H8360 mm x 2500mm x 3750 mm

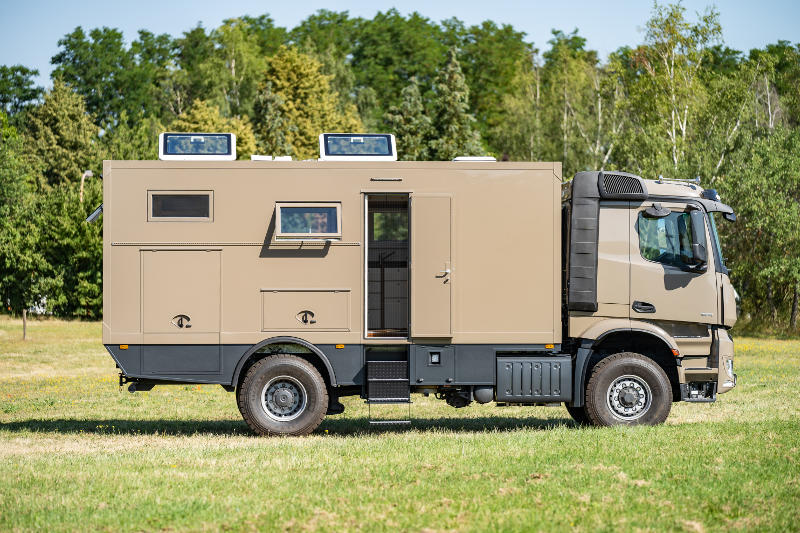

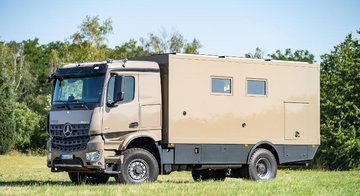

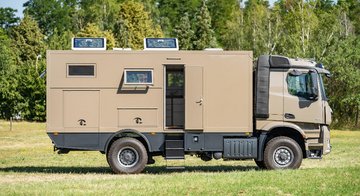

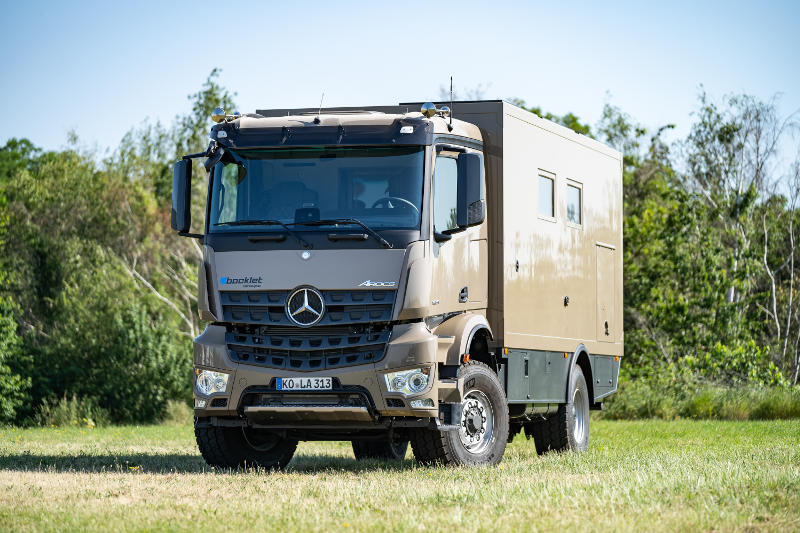

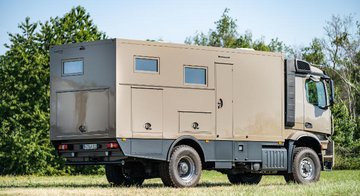

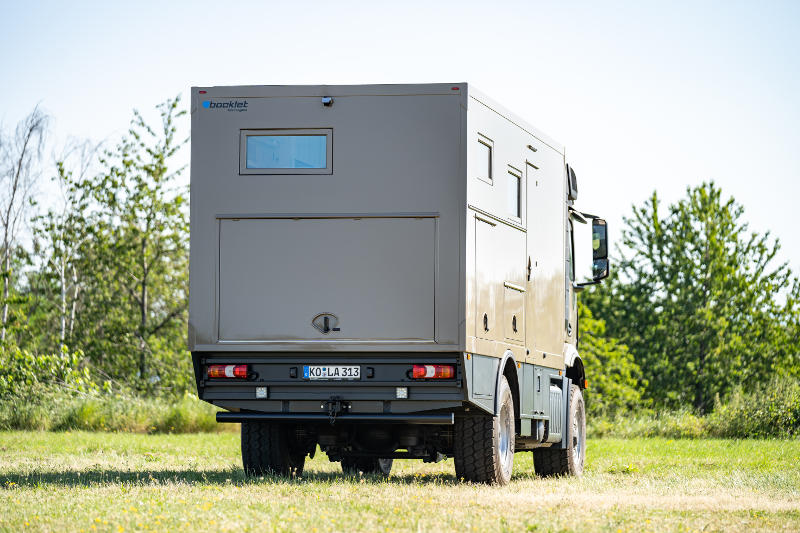

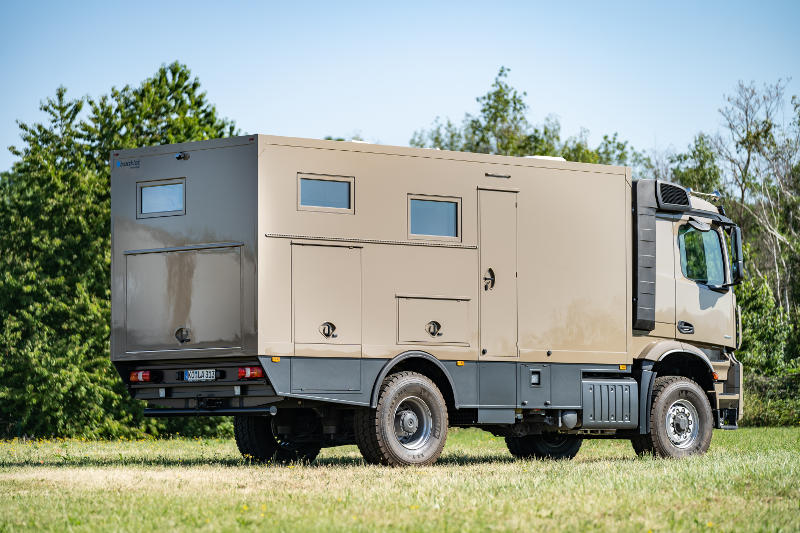

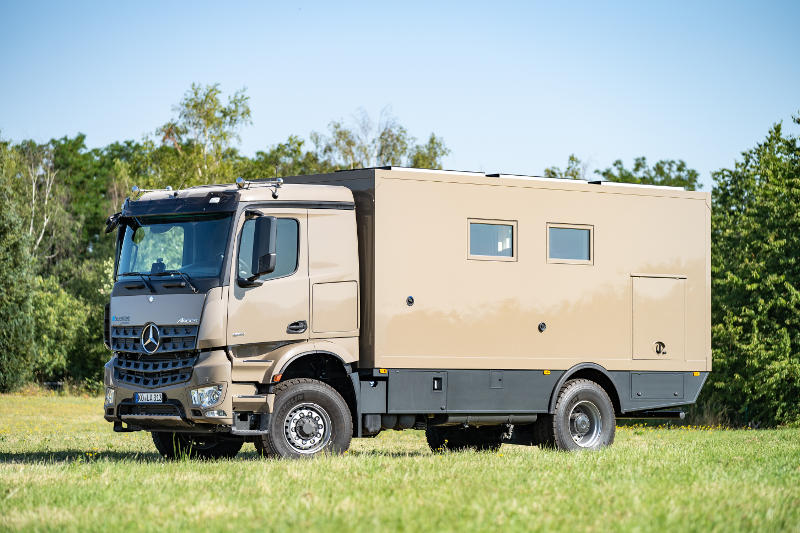

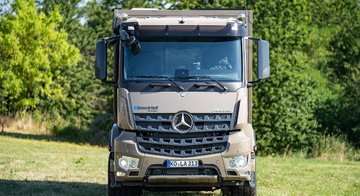

Based on a MB Arocs 1851 chassis, a very comfortable motorhome with generous rear garage and many great details was created. The Daimler engine and the automatic gearbox are beyond any doubt, the hydrostatic auxiliary drive (HAD) of the front axle provides additional traction off-the-road. The bright furniture surfaces in the living area provide a generous feeling of space, the combination with teak surfaces ensures well-being comfort. The bed area is oiled in stone pine. For sport and equipment there is a lot of storage room and transport areas available. In addition to a garage for a large scooter bikes find their protected from dirt and access indoor space.



Technical Data

Chassis

ChassisMB Arocs 1851 BL HAD
Wheelbase4500 mm
GVW18.000kg
Engine6-Cylinder Turbodiesel
Capacity6871
Engine power231/290

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness51 mm
Roof thickness50 mm
Bottom thickness60 mm

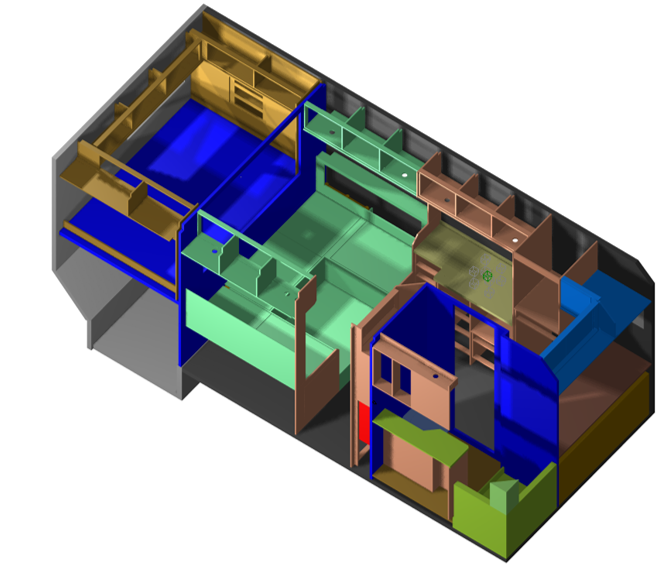

Interior

Length5830 mm
Width2400 mm
Height2250 mm
Seats with belt2
Front bed-
Rear bed2000 x 1800 mm



Specifications

Chassis and body

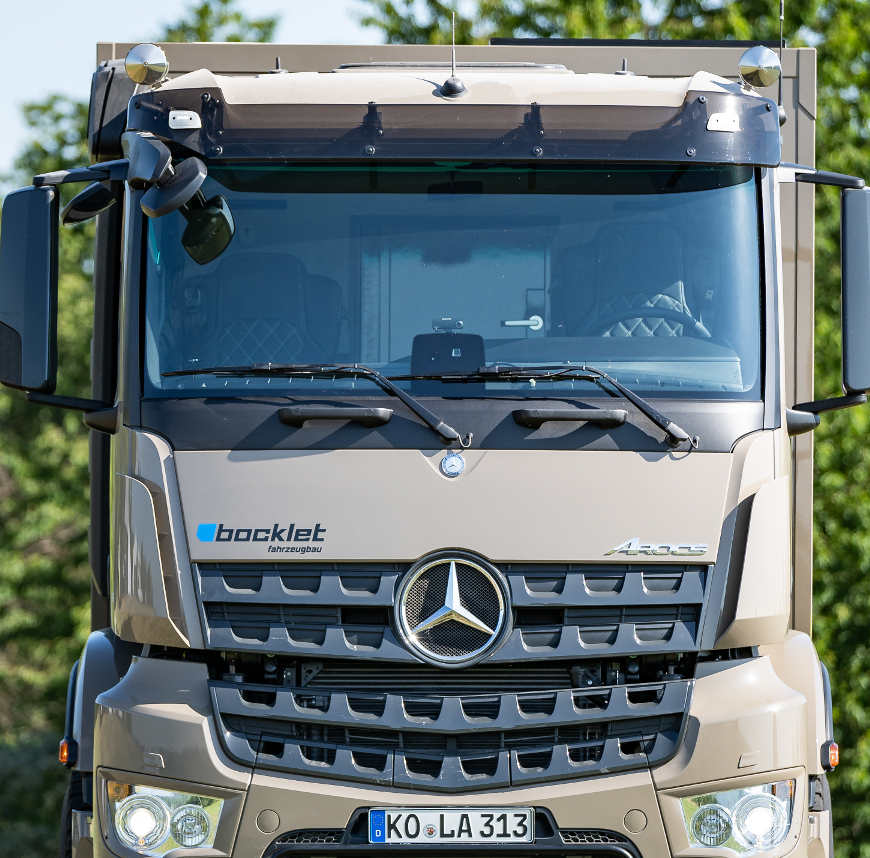

  • MB Arocs 1851 HAD
  • engageable all-wheel drive
  • Fuel tank ca. 500l
  • comfort seats
  • air condition
  • rear view camera
  • GRP body construction
  • Cover layer 3 mm, rowing mesh
  • frostbridge free bocklet doors and hatches

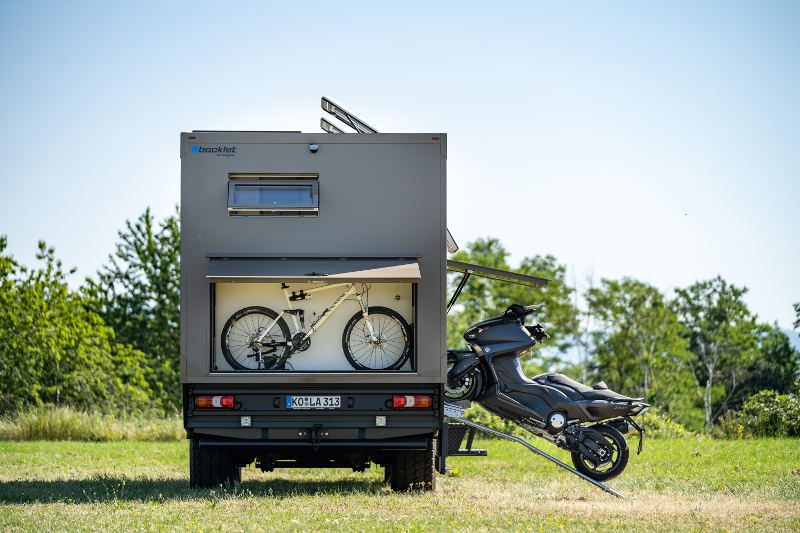

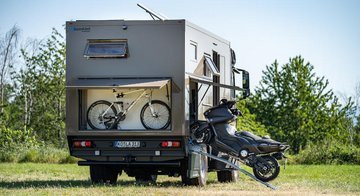

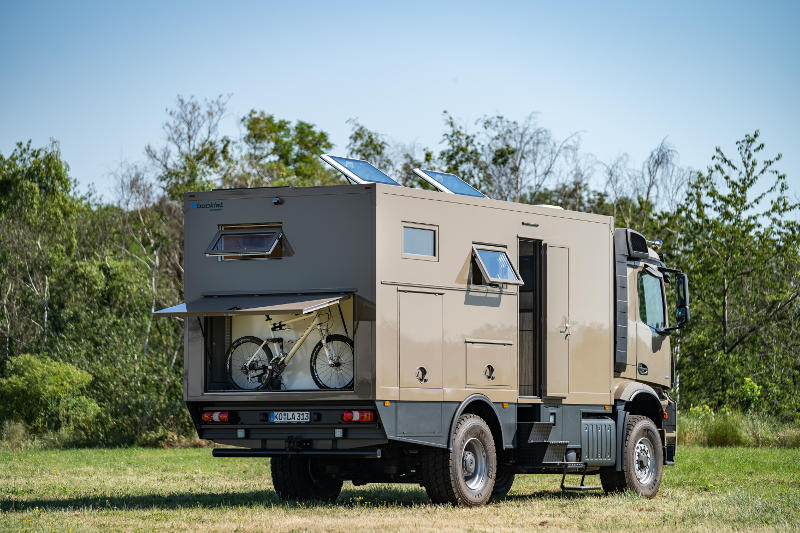

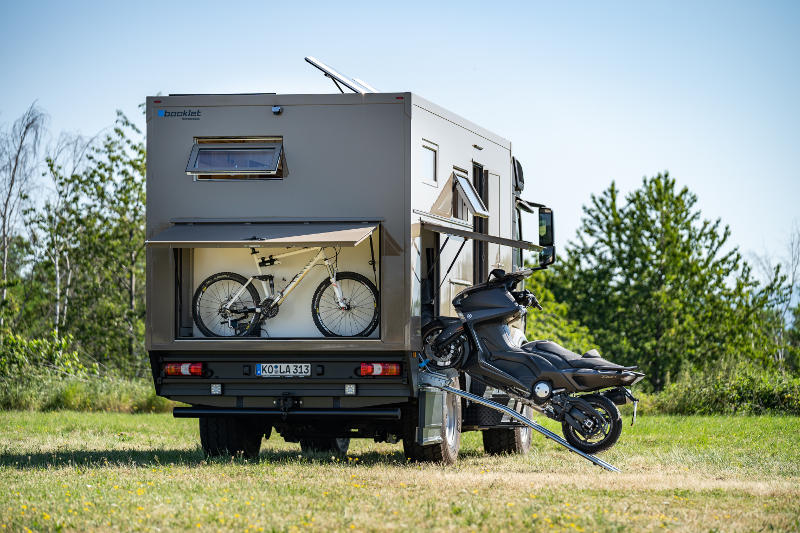

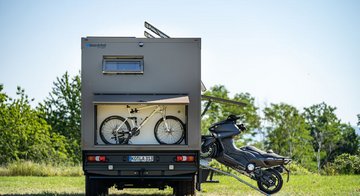

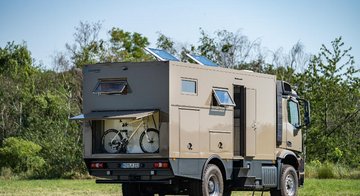

  • special design to realize spacious garage for motorbike or bycicles
  • storage compartment under bed for scooter
  • 2nd storage compartment for two bikes
  • glas windows
  • glas skylights
  • Side protection design
  • electric and automatic staircase
  • pass to driver cab with lockable door
  • Light carrier with LED Bars on cab

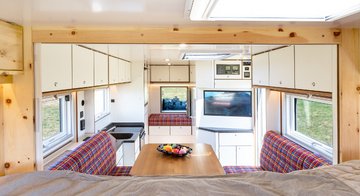

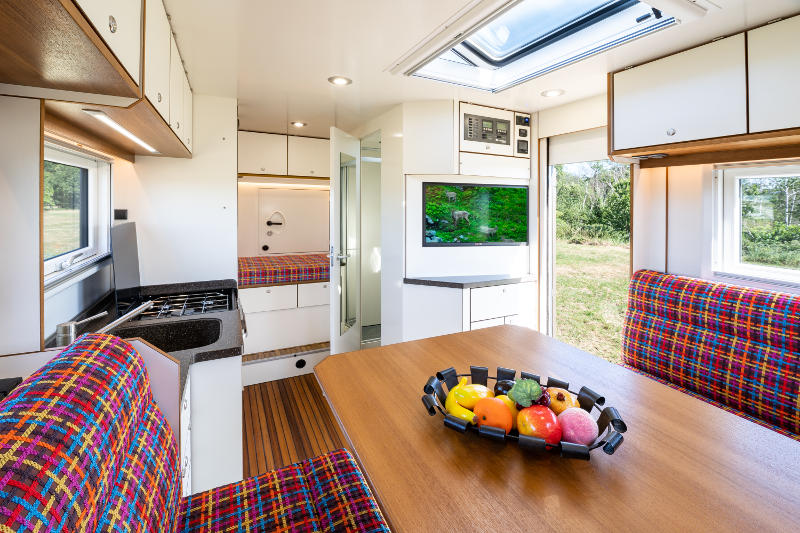

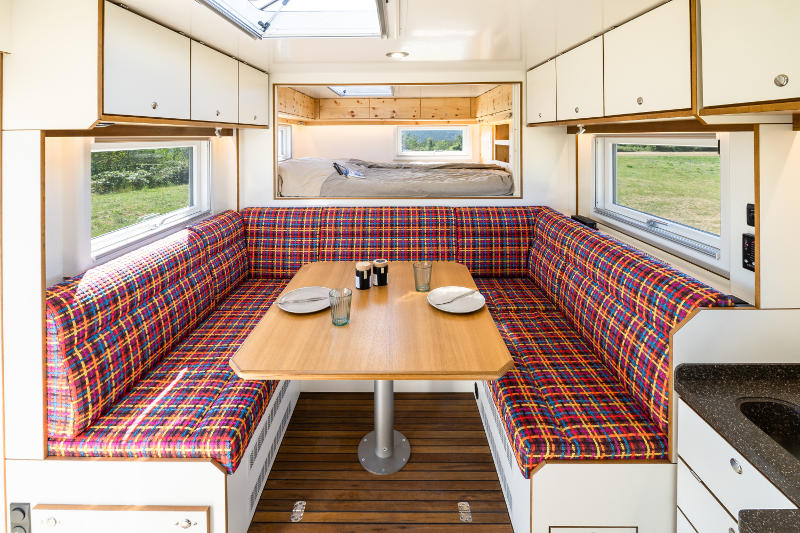

Interior and options

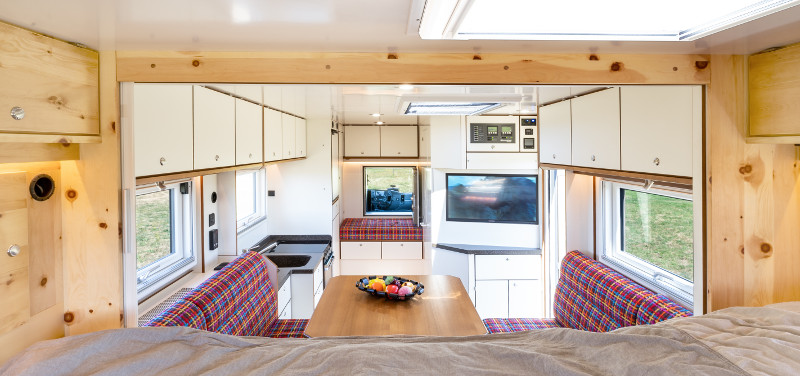

  • furniture made of 16mm wood, white / teak combination
  • Drawers with Soft Slide-In

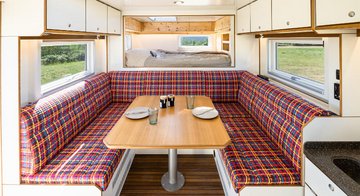

  • fabric cover seating area
  • double floor in seating area
  • Diesel -  air heating
  • Gas- warm water heating with electric power option
  • Batteriecapacity 4x160Ah Lithium Ion Batteries
  • Automaticharger 24 V / 50 A
  • Inverter 3 kW
  • gastank 50l and gasbottle 11kg
  • control panel
  • LED lightning
  • Vacuum toilet
  • white-armature with single-leve

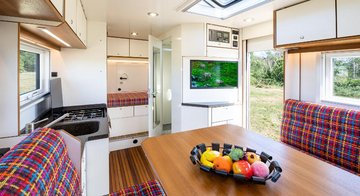

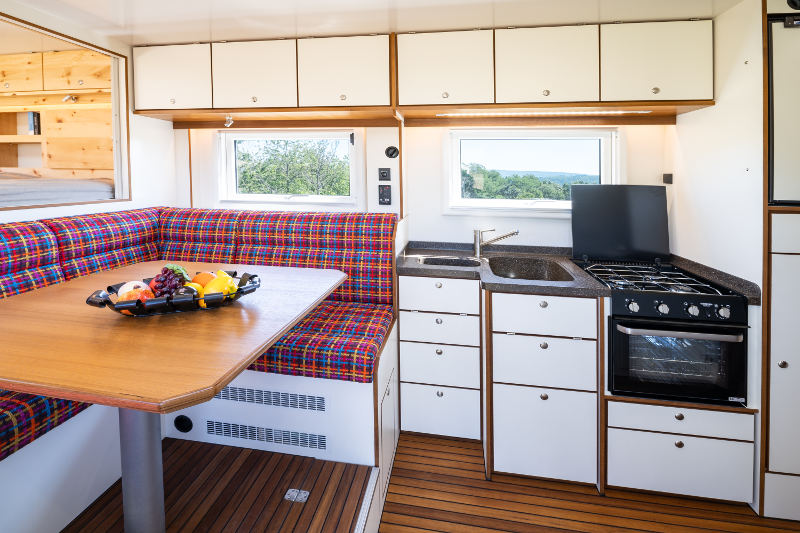

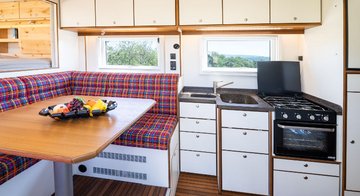

  • 3-flams stove with oven
  • Fridge 140l
  • Cooler 29l
  • Countertops mineral stone
  • Radio CD / Bluetooth
  • Tanks inside and frost free:
  • freshwater 500l
  • grey water 250l
  • black water 200l
  • automatic Satelite TV system with LED TV
  • aircondition in rear body
