Bocklet
Dakar 825

ChassisMAN TGM 13.290 4x4
Wheelbase4250 mm
GVW13.000kg
L x W x H8250 mm x 2400mm x 3610 mm

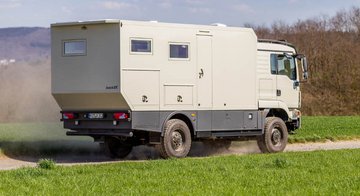

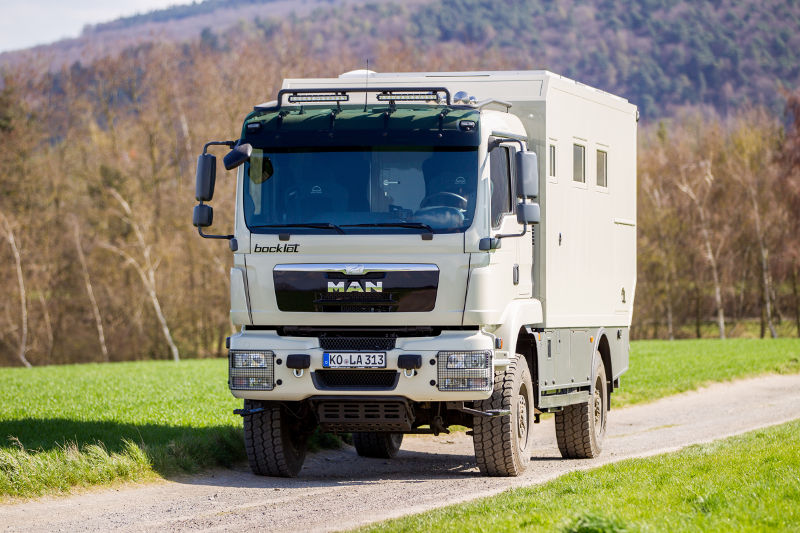

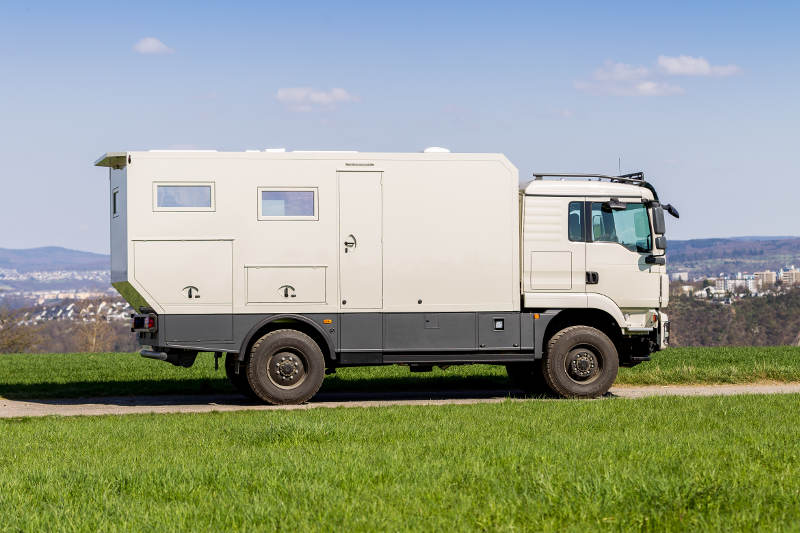

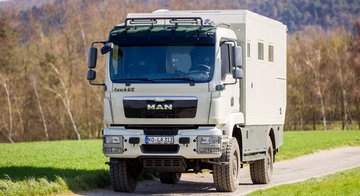

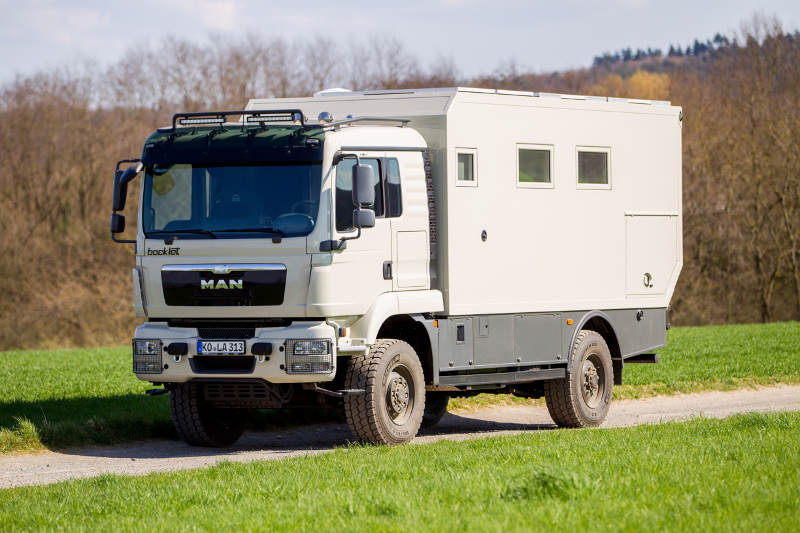

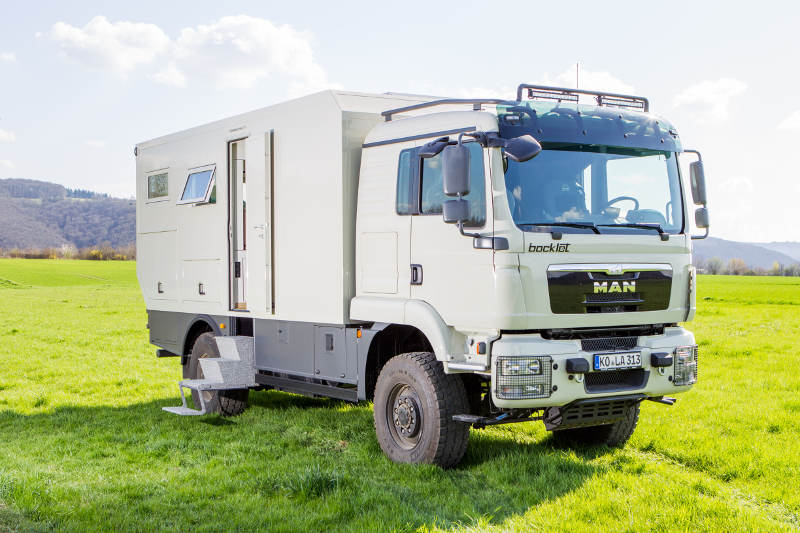

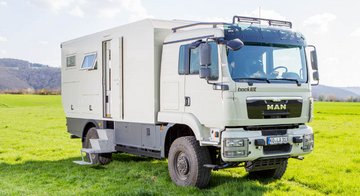

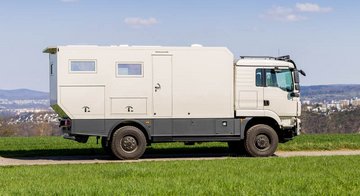

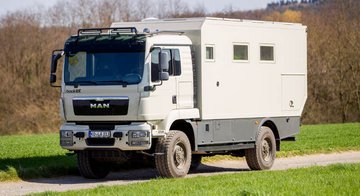

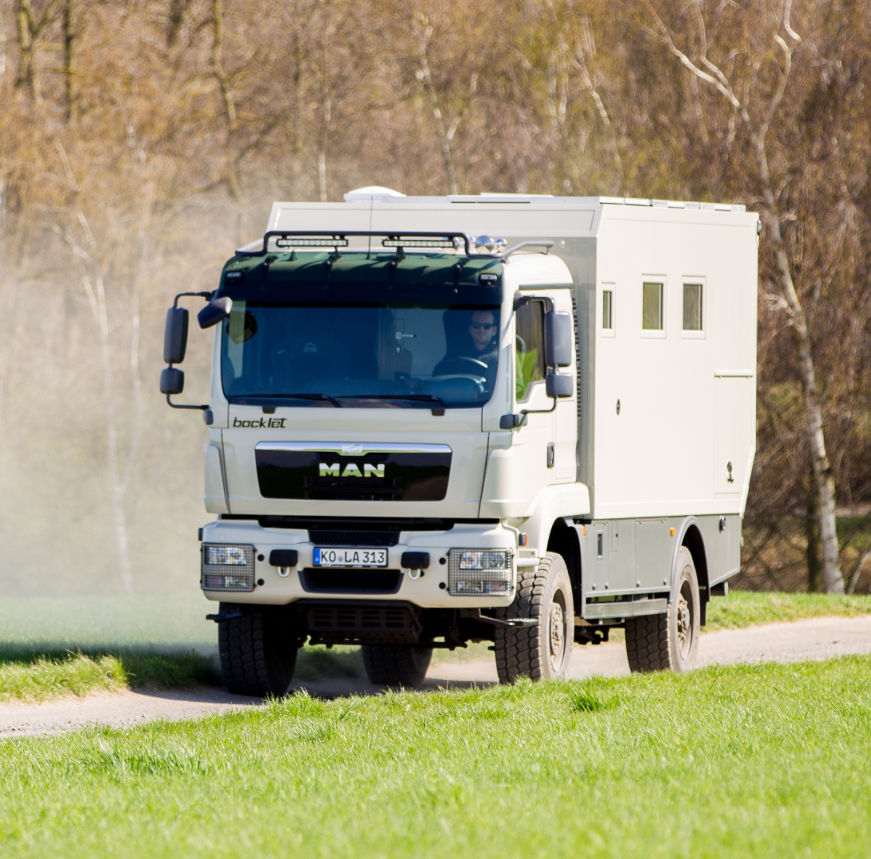

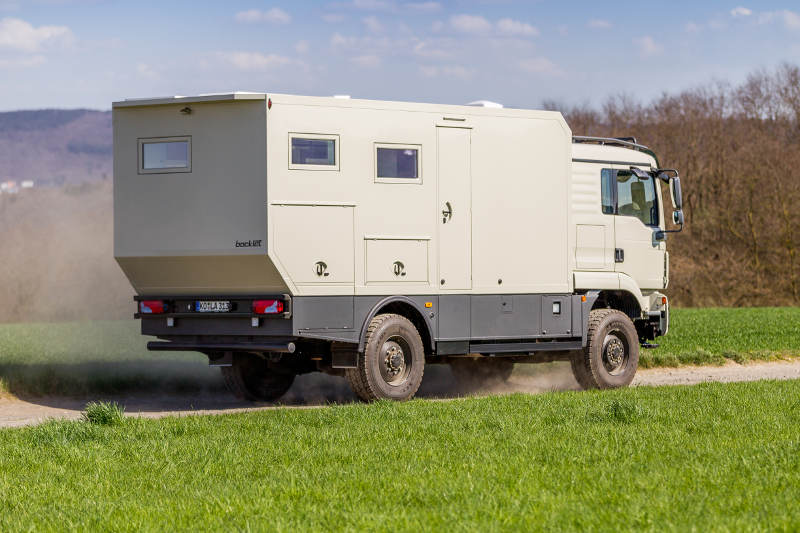

Based on a MAN TGM 4x4 chassis, a sporty, family-friendly long-distance motorhome with a spacious rear garage and many great details has been created. The cot can optionally be extended into the shower to become a full-size third bed, or in a two-person configuration this space is available for additional cupboards.



Technical Data

Chassis

ChassisMAN TGM 13.290 4x4
Wheelbase4250 mm
GVW13.000kg
Engine6-Zylinder Turbodiesel
Capacity6871
Engine power231/290

Body

cold bridge-free GRP sandwich construction
Wall thickness51 mm
Roof thickness50 mm
Bottom thickness60 mm

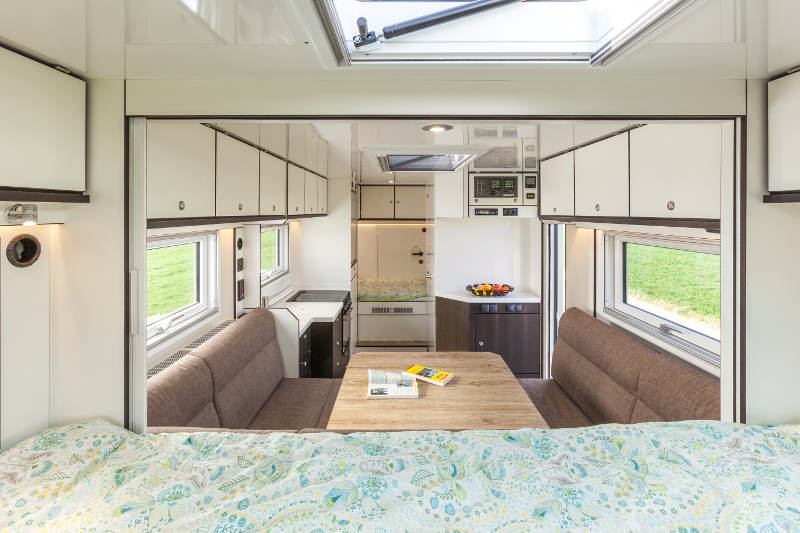

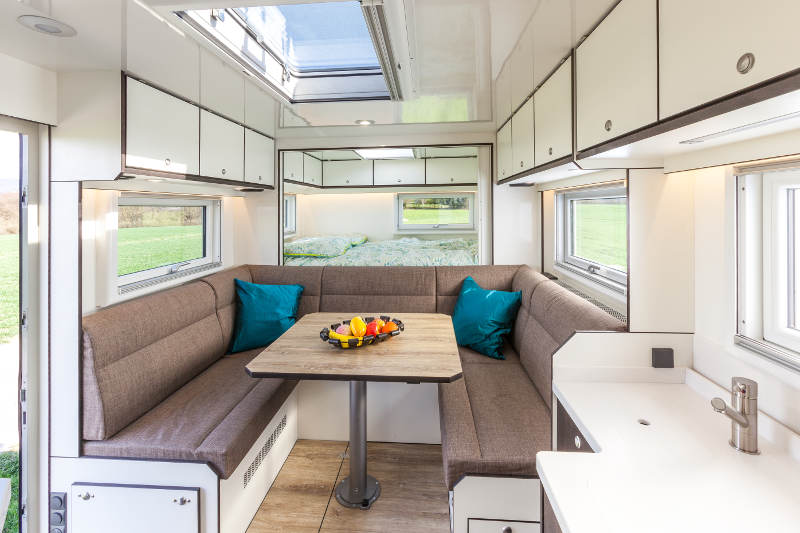

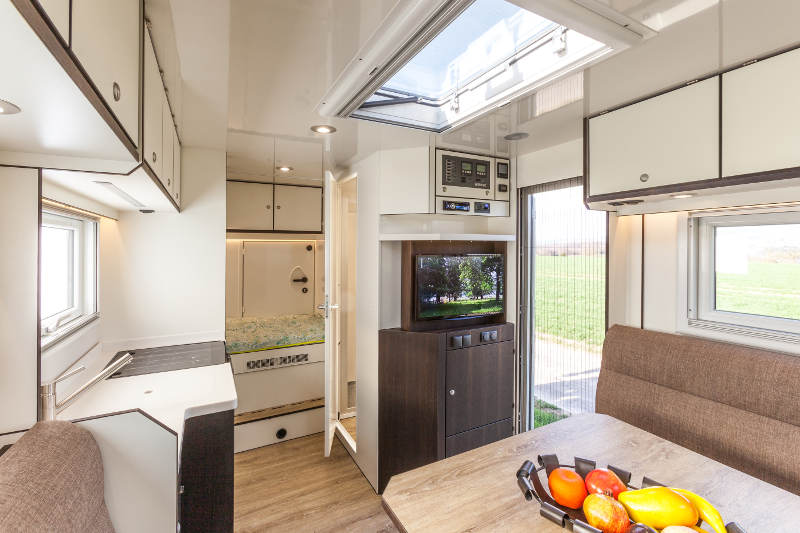

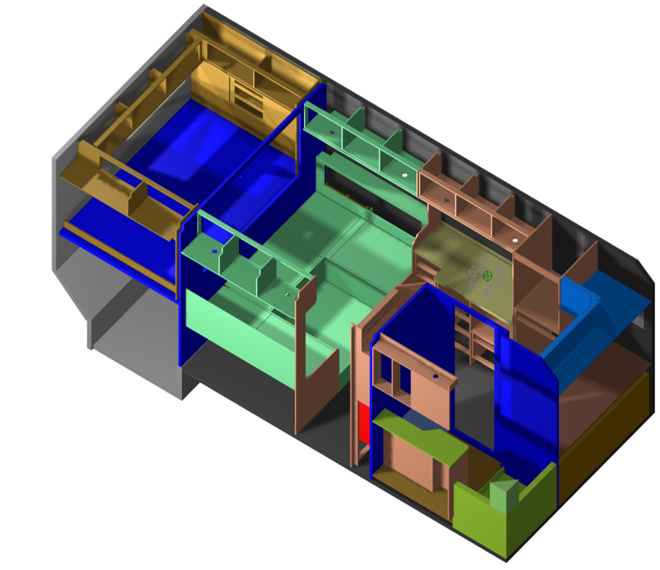

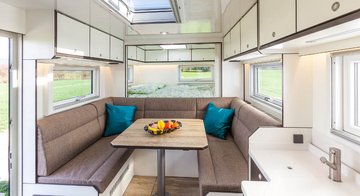

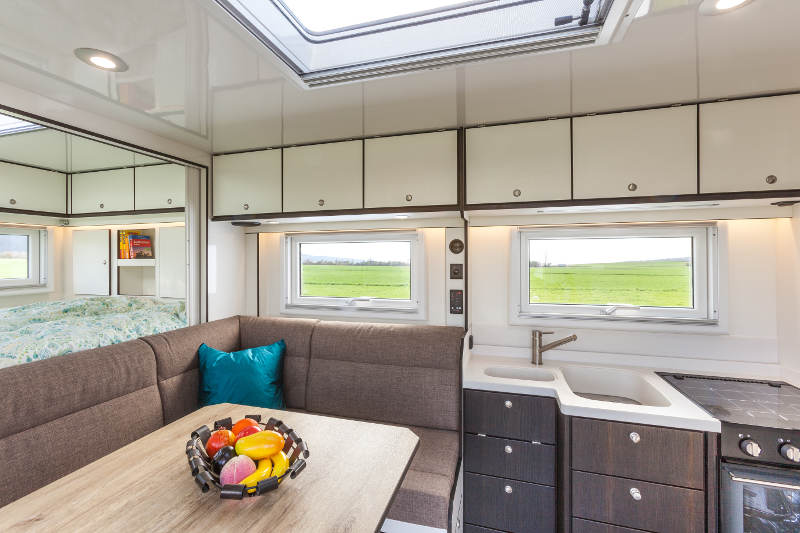

Interior

Length5400 mm
Width2360 mm
Height2100 mm
Seats with belt4
Front bed650x1500 mm
Rear bed2000 x 1400 mm



Specifications

Chassis and body

  • MAN 13.290 4x4
    •     Selectable all-wheel drive
    •     Differential lock rear axle
    •     Differential lock front axle
    •     Fuel tanks approx. 600l
    •     Comfort seats
    •     Rear view camera
    •     4 seats in the driver's cab
    •     cold bridge free GFK-sandwich construction
    •     wall / floor thickness 51 / 60 mm
    •     Top layer 3 mm, fabric-reinforced
    •     cold-bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multiple locking system

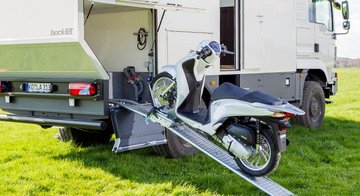

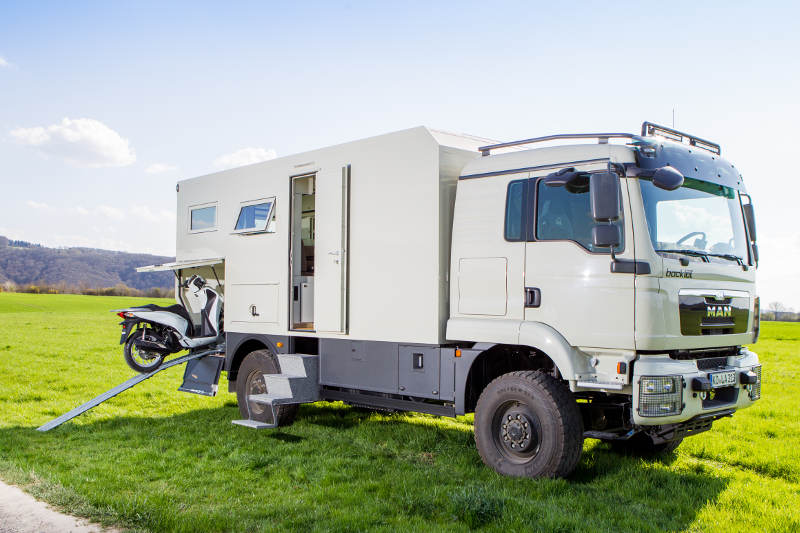

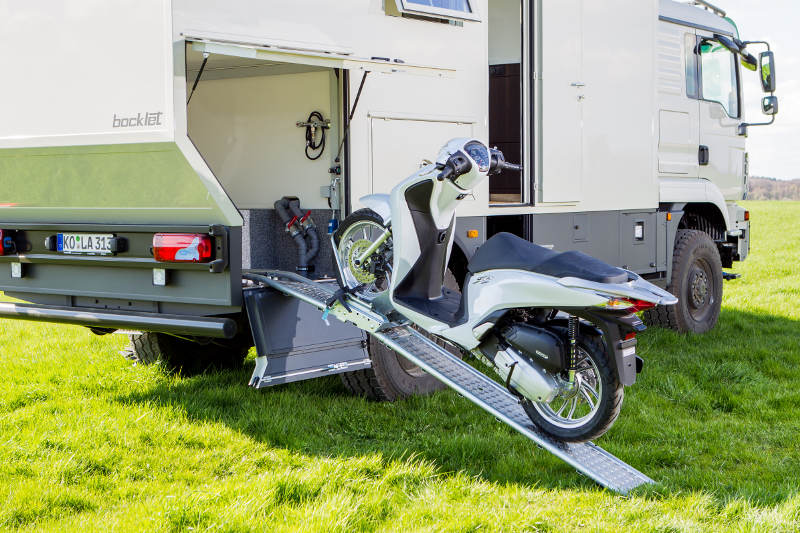

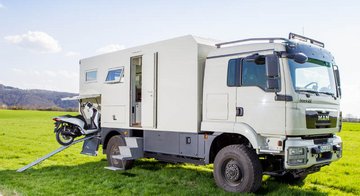

    •     Rear lowering with large storage garage for bicycles or motorbike / scooter
    •     Side skirts
    •     Electric entrance step with automatic control
    •     Real glass hinged windows
    •     Genuine glass roof hatches
    •     Roof vent
    •     Cab passage with lockable door
    •     Lamp holder with LED bars on driver's cab

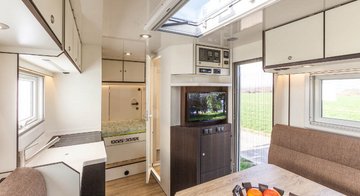

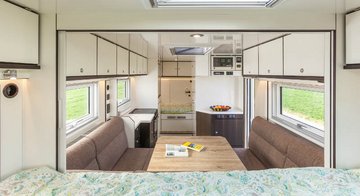

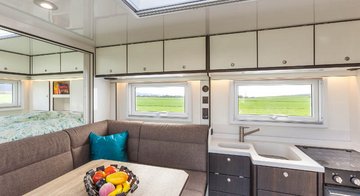

Interior and options

  • Furniture combination white with real wood smoked oak
        Drawer pulls with soft slide-in, stainless steel push-buttons
        Seat upholstery fabric cover
        Double floor in bench area
        Diesel hot air heating
        Gas hot-water heating with boiler and electric cartridge
        Battery capacity 4x220Ah AGM
        Automatic charger 24 V / 50 A
        Inverter 2 kW
        Solar panel 780W
        Control panel with ampere-hour meter
        Lighting LED lights
        Household fittings with single-lever mixer

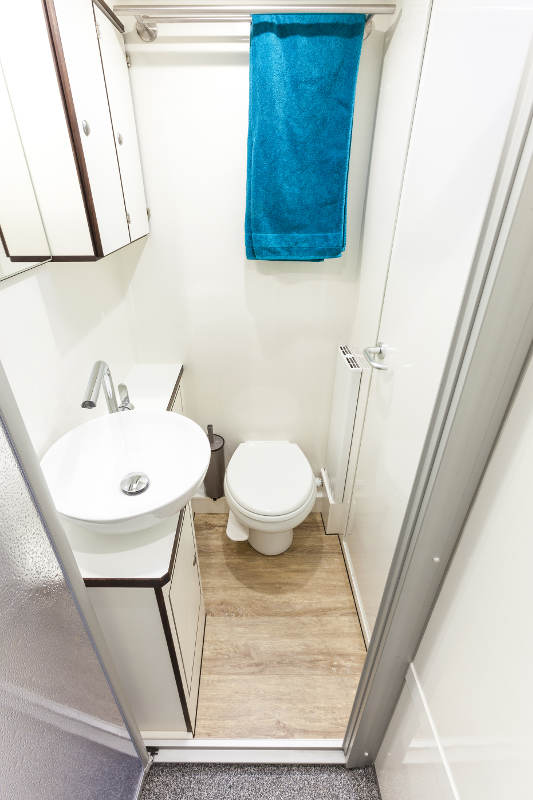

        Vacuum tank toilet
        3-burner cooker with oven
        Compressor fridge 140 l
        Compressor cooler 30l
        Kitchen worktop and sideboard in mineral stone
        Radio CD / Bluetooth
        Tanks inside and heated
        Fresh water tank 500
        Waste water tank 250l
        Black water 210l
        Automatic SAT system and LED TV
        Air conditioner in the superstructure
