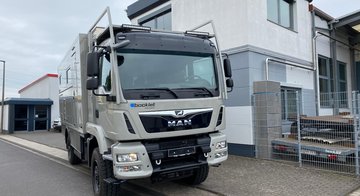

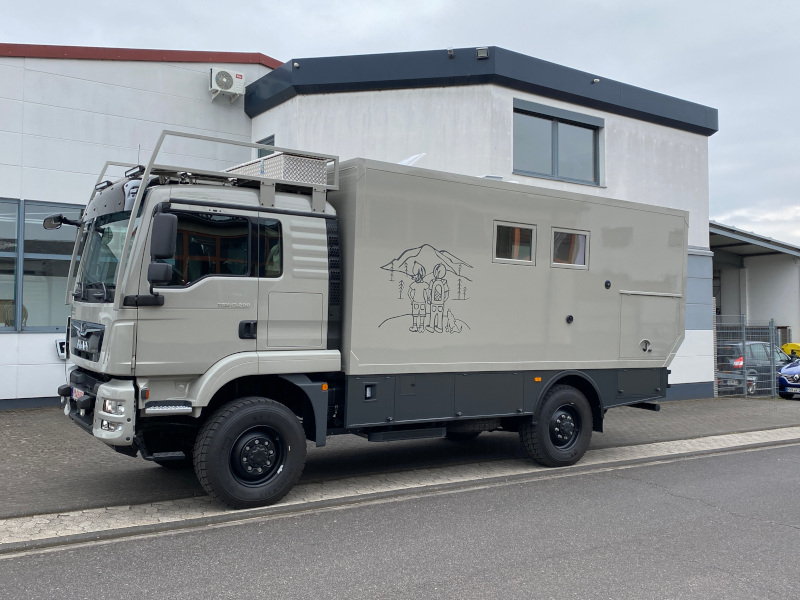

Bocklet

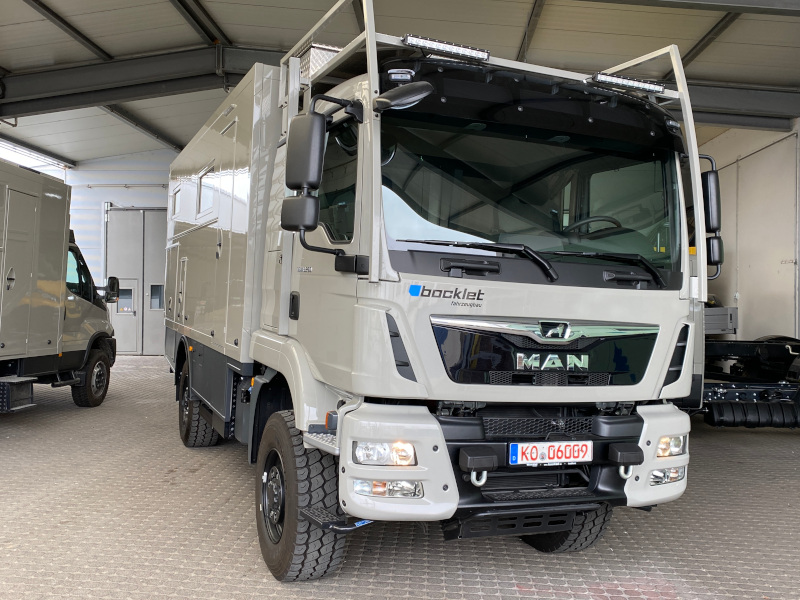

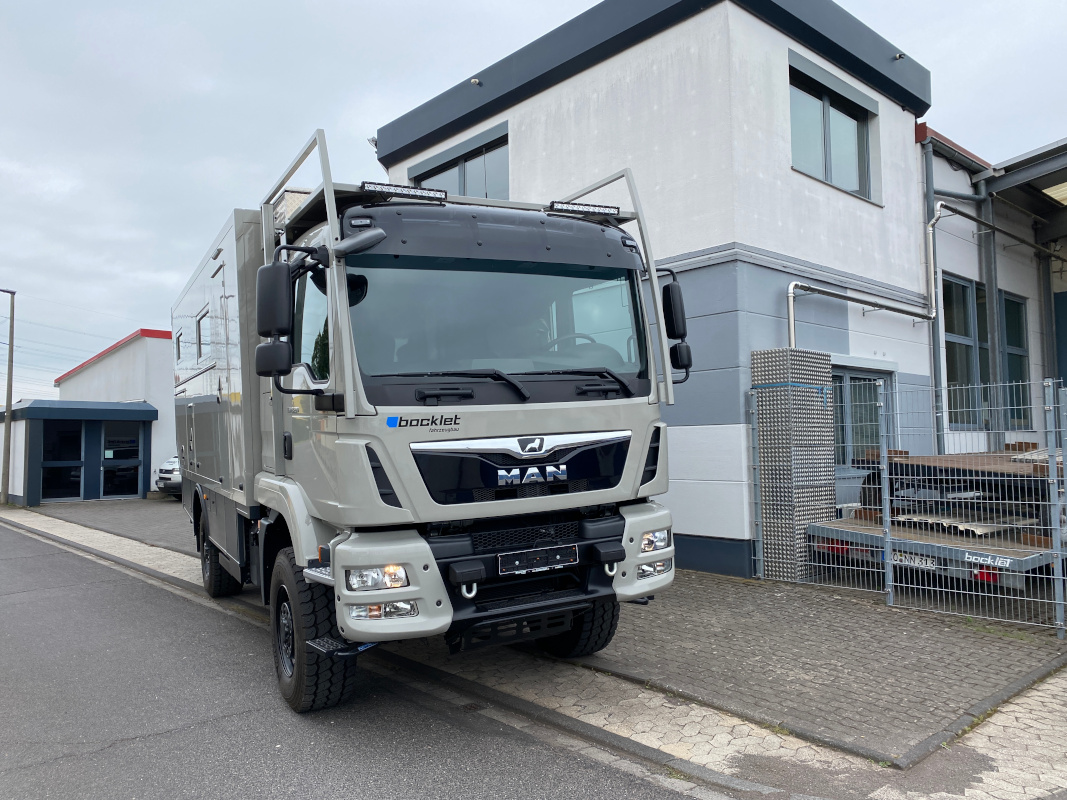

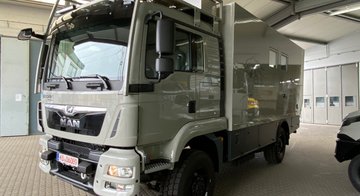

Dakar 808
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4250 |
| GVW | 13.000 |
| L x W x H | x x |

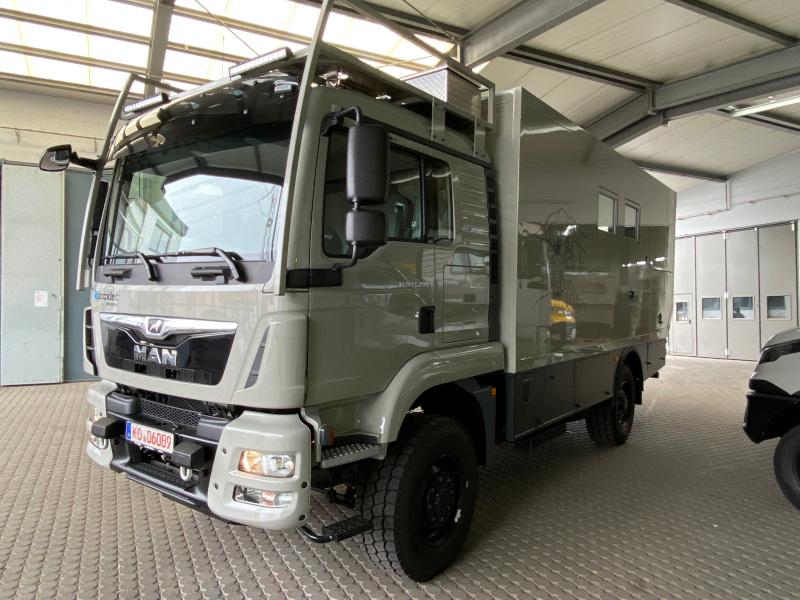

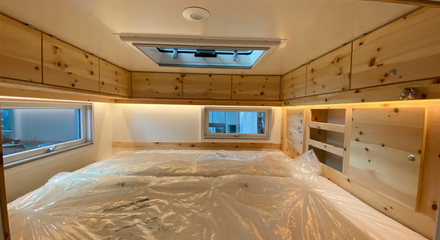

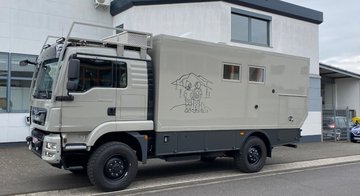

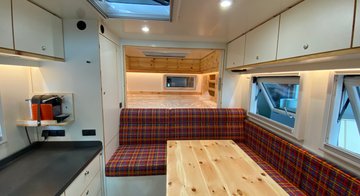

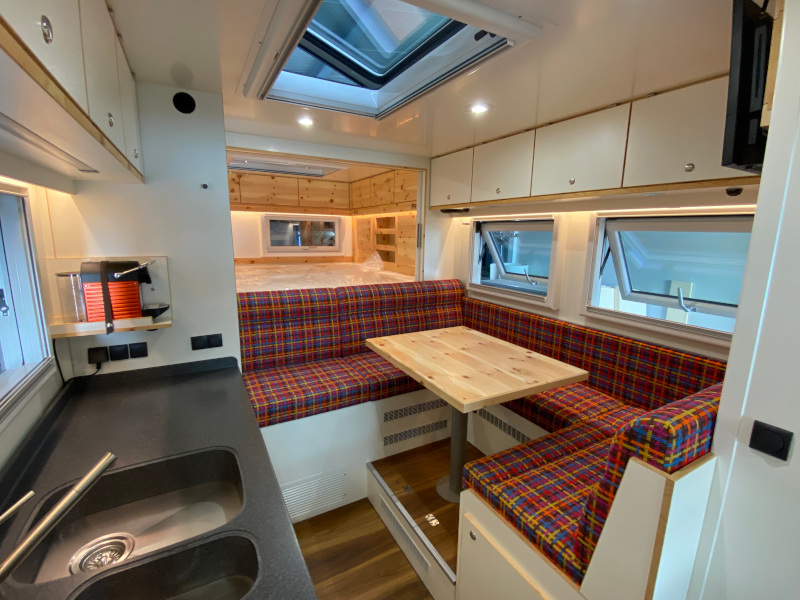

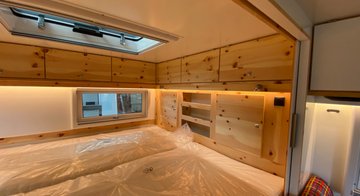

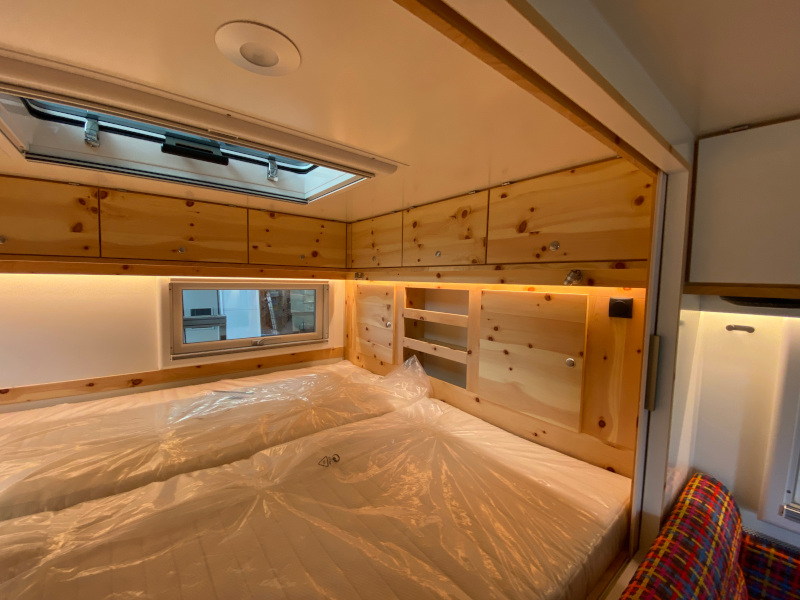

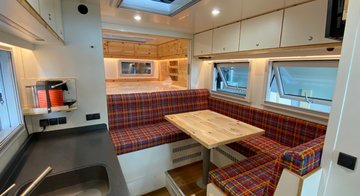

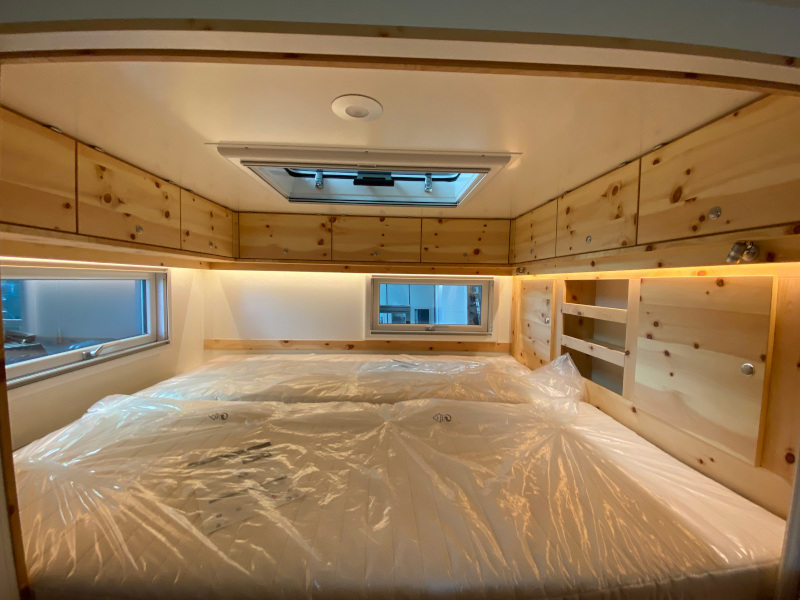

The Dakar 808 is absolutely suitable for long-distance travelling and is an all-terrain vehicle that has been individually customised. The interior combines state-of-the-art living comfort with cosy, homely furnishings. The sleeping cabin is completely designed with fragrant Swiss stone pine veneer, the surfaces are treated twice with Swiss stone pine oil. In the living area, the furniture surfaces are coated with easy-care plastic. With the two-wheelers stored in the specially manufactured rear garage, travelling to remote parts of the world becomes an unforgettable adventure.
Technical Data
Chassis
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4250 |
| GVW | 13.000 |
| Engine | 6-cylinder-Diesel |
| Capacity | 6900 |
| Engine power | 213 |
Body
| GRP sandwich construction without cold bridges | |
| Wall thickness | 51 |
| Roof thickness | 51 |
| Bottom thickness | 60 |

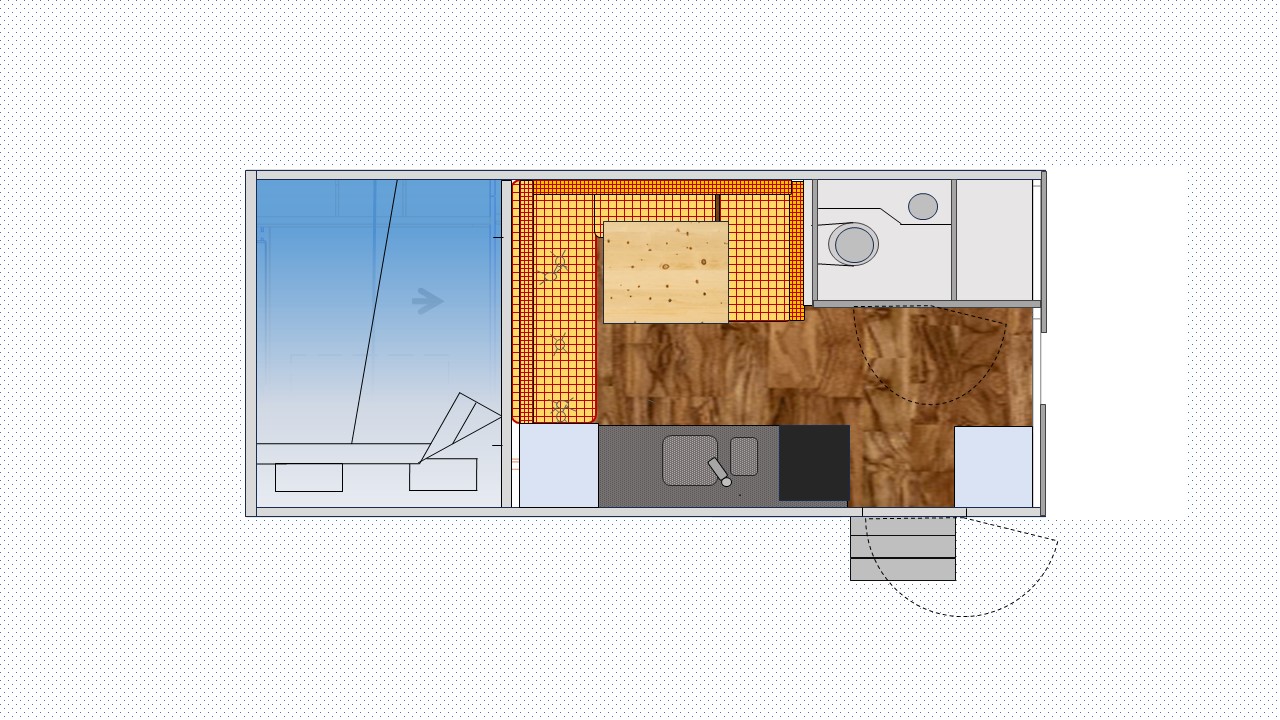

Interior
| Length | 5550 |
| Width | 2350 |
| Height | 2150 |
| Seats with belt | 2 |
| Front bed | |
| Rear bed | 2 |
Specifications
Chassis and body
All-wheel driveDifferential lock rear axle
Differential lock front axle
Additional fuel tank 300 litres
Comfort seats
Radio CD / Navigation
Rear view camera, heated
Air conditioning
GRP sandwich construction with no cold bridges
3 mm top layer, fabric-reinforced
Cold bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multi-point locking system

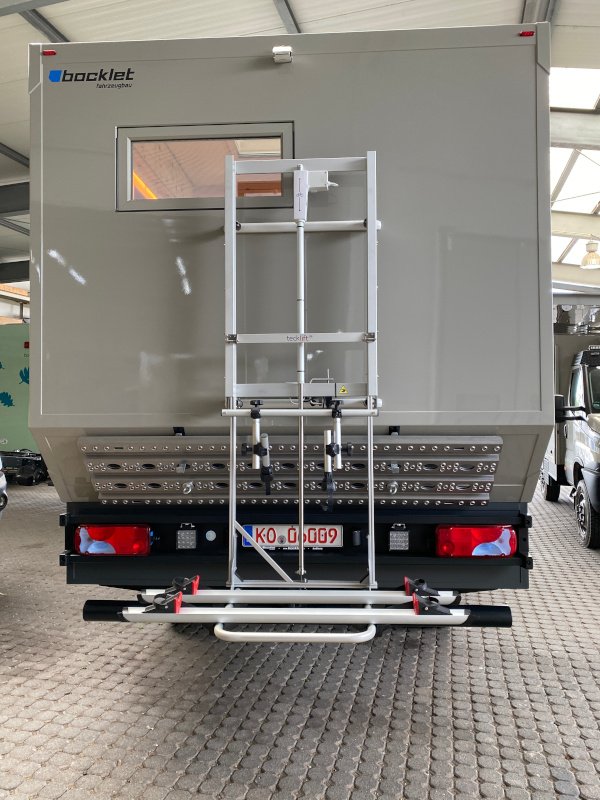

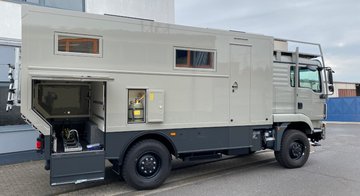

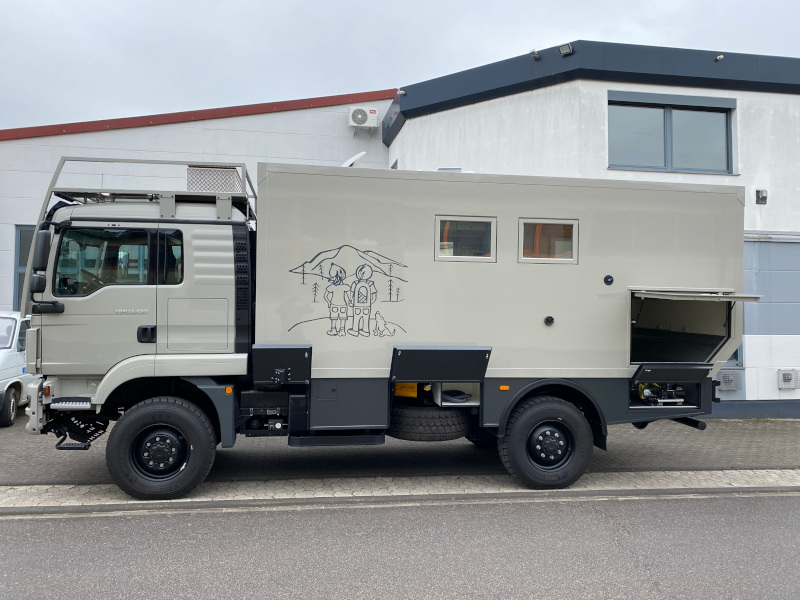

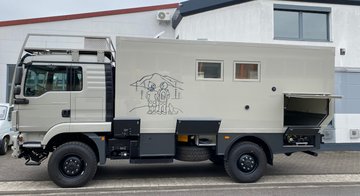

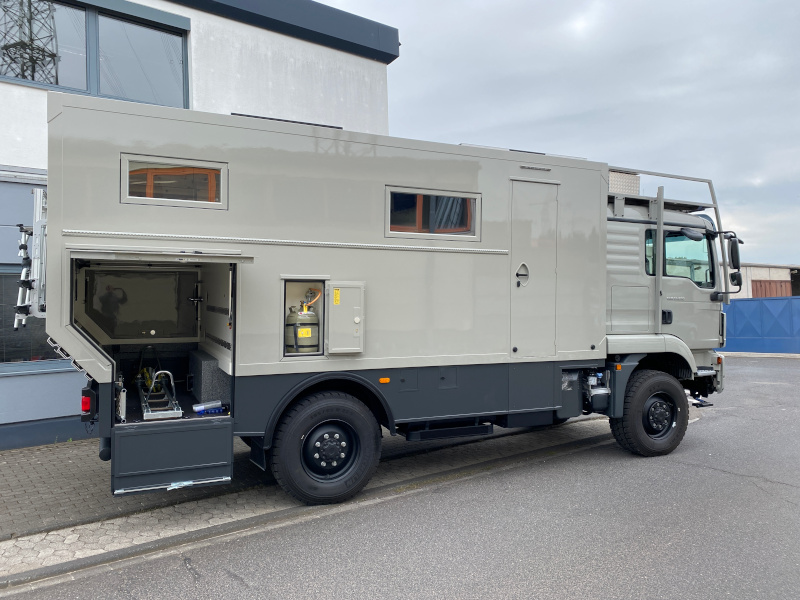

External garage under rear bed, motorbike retraction system with electric winch
Electric access step with automatic control
KCT real glass hinged window
Cab access with lockable door

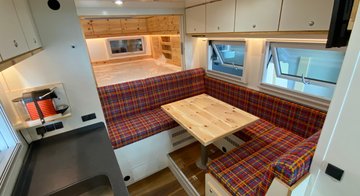

Interior and options
Furniture construction with real wood veneer Swiss stone pine and plasticSeat upholstery with fabric cover
Gas-fuelled hot water heating
Diesel hot air heating
Engine heat exchanger
Air conditioning
Battery capacity 440 Ah
Automatic charger 24 V / 70 A
Sine wave inverter 3 kW
Solar system 720 WP
Control panel with ampere-hour counter
Energy-saving lights and LED spotlights
Vacuum toilet
Household taps with single-lever mixer

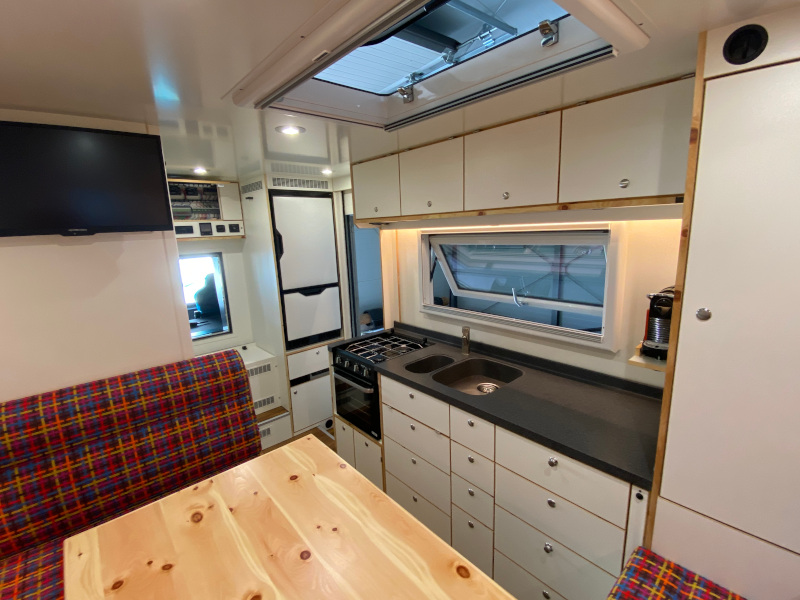

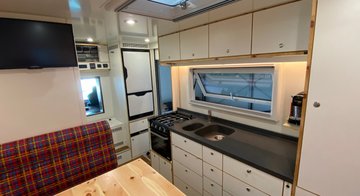

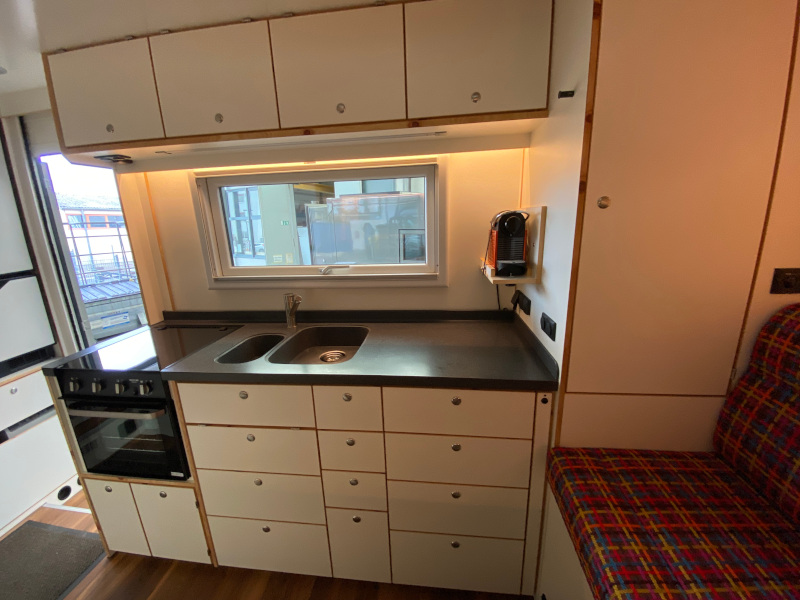

3-burner cooker
Compressor refrigerator 110 litres

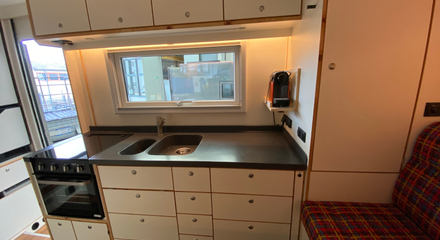

Kitchen worktop and washbasin in mineral stone design

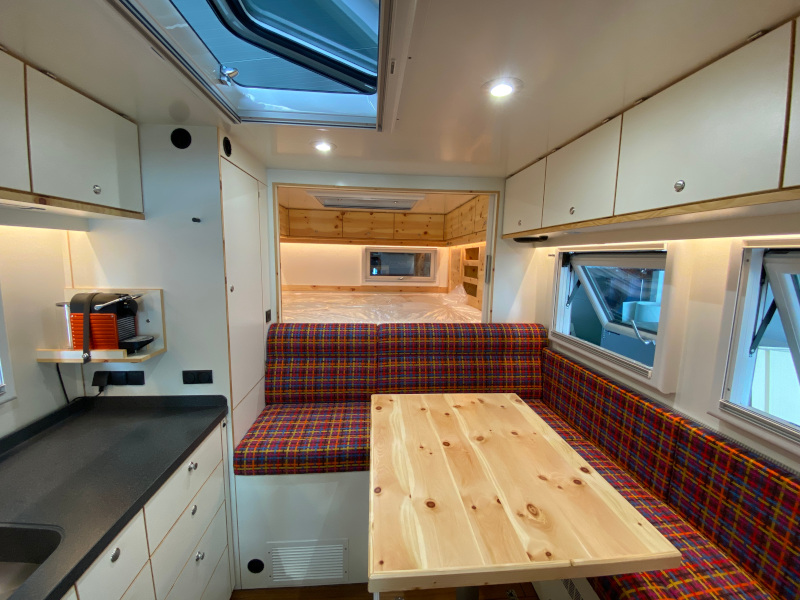

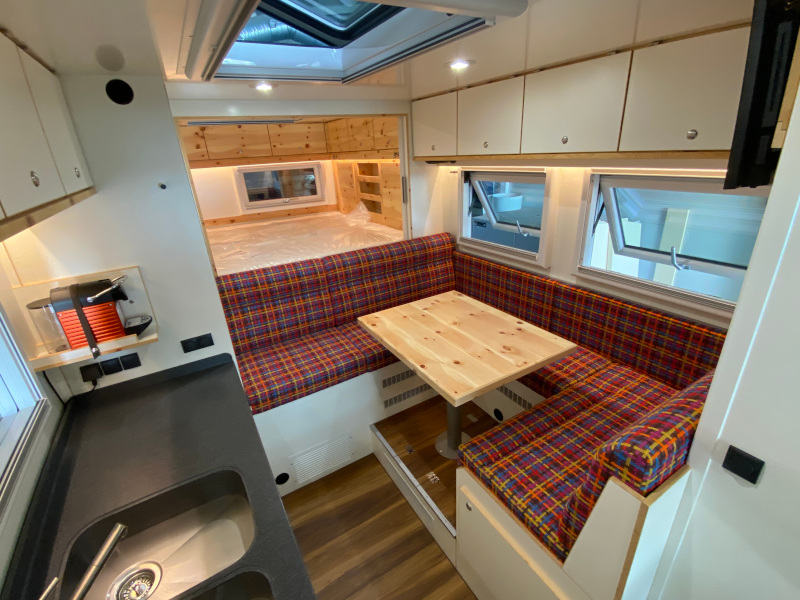

Dining table in Swiss stone pine veneer.
Tanks inside and heated:
- Fresh water tank 400 litres
- Waste water tank 200 litres
- Holding tank with chopper 150 litres
