Bocklet
Dakar 807
| Chassis | MAN TGM 13 290 |
| Wheelbase | 4250mm |
| GVW | 13000kg |
| L x W x H | 8070 mm x 255 mm x 3750 mm |

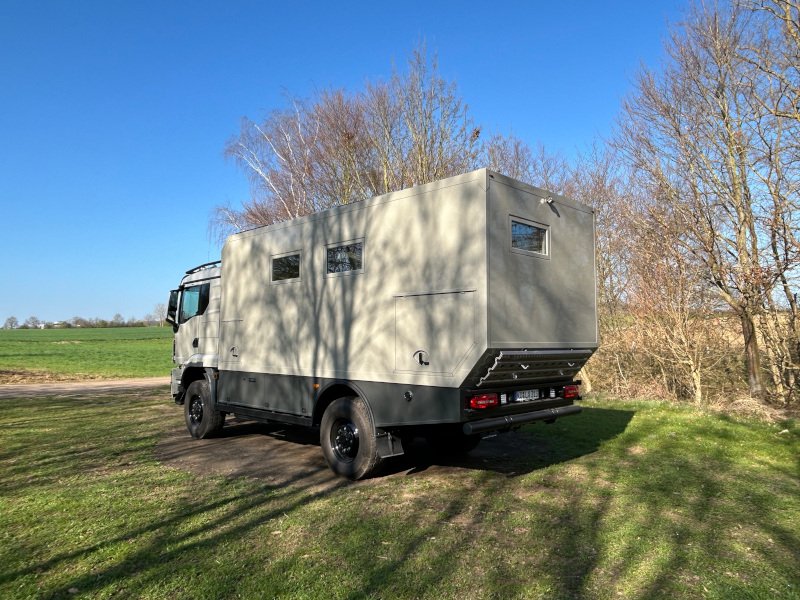

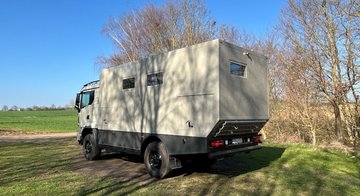

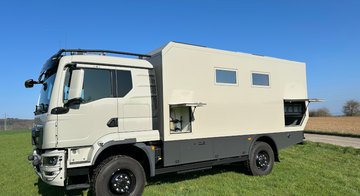

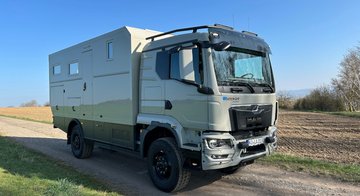

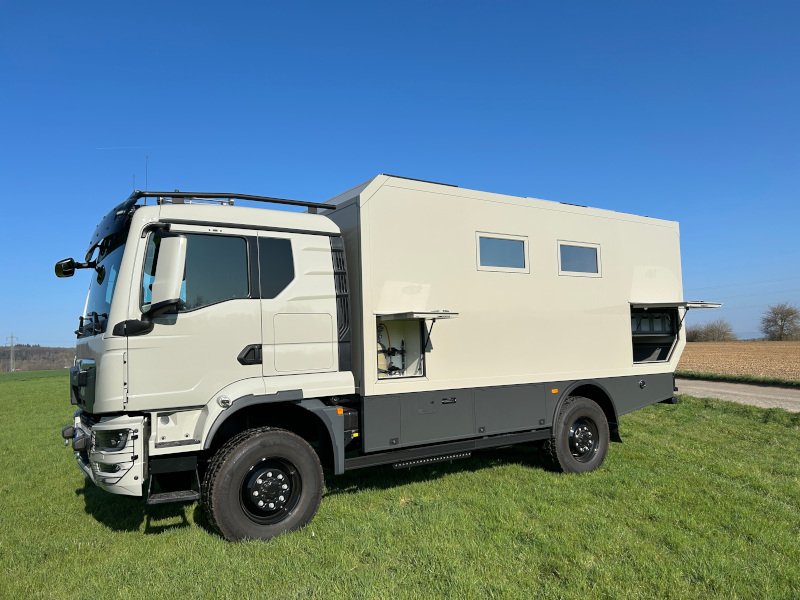

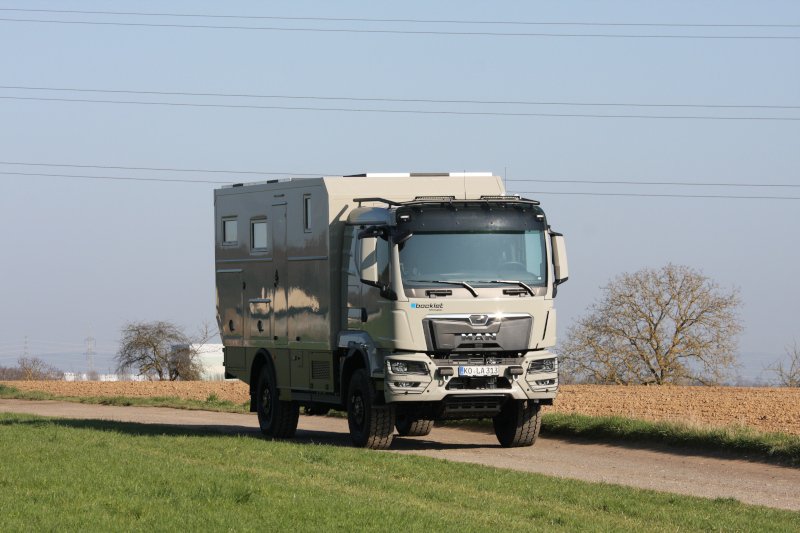

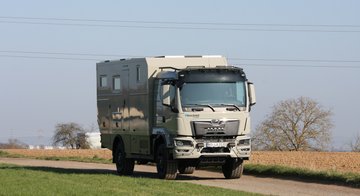

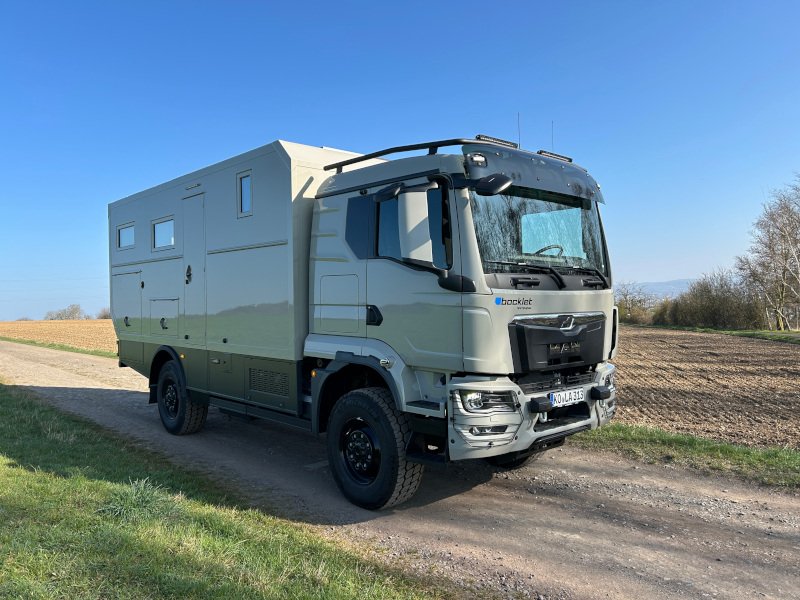

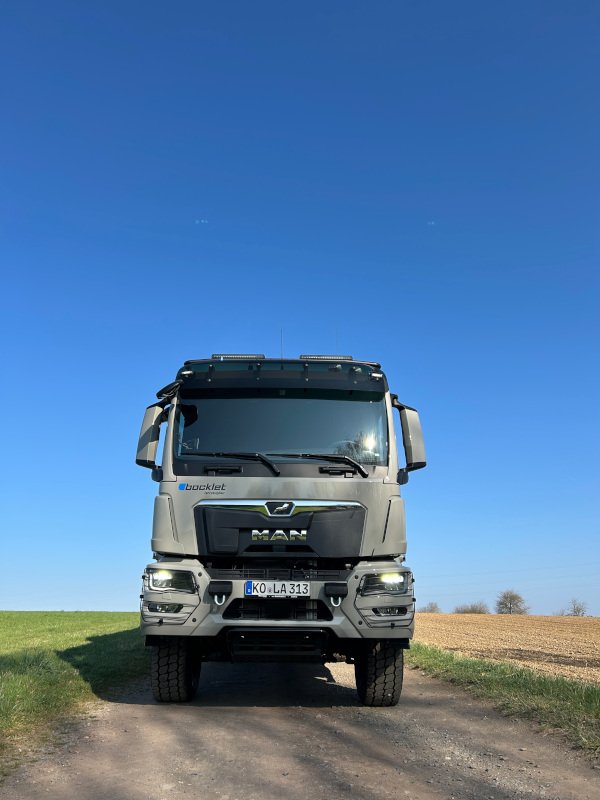

Technology that goes further - the Bocklet long-distance motorhome on MAN TGM 4x4
This long-distance motorhome is based on the powerful MAN TGM 4x4 - an all-wheel drive chassis designed for the most demanding terrain. In combination with a highly functional body, it sets new standards in terms of long-term mobility.
The equipment impresses with practical technology: an electric cable winch and an intelligent retraction system in the rear garage make it easy to transport a bicycle. The integrated solar system in combination with a generously dimensioned fresh water tank and a self-sufficient energy supply allows for long-lasting independence - even away from civilization.

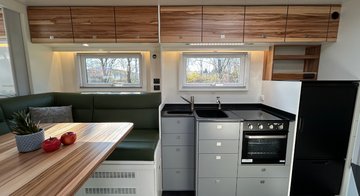

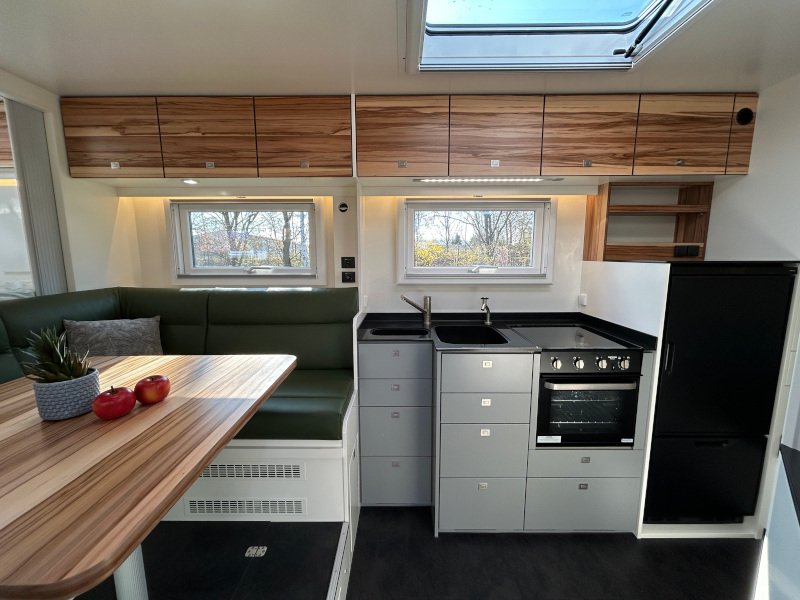

The interior combines modern materials with functionality: gray, hard-wearing painted surfaces combined with high-quality real wood veneer in satin walnut for a pleasant indoor climate. The powerful air conditioning system and well thought-out room layout round off the technical concept.
A motorhome for true self-sufficiency - robust, well thought-out, uncompromising.
Technical Data
Chassis
| Chassis | MAN TGM 13 290 |
| Wheelbase | 4250mm |
| GVW | 13000kg |
| Engine | 6-cylinder-Diesel |
| Capacity | 6900 ccm |
| Engine power | 290 PS |
Body
| cold bridge-free GRP sandwich construction | |
| Wall thickness | 51 mm |
| Roof thickness | 51 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 5580 mm |
| Width | 2350 mm |
| Height | 2200 mm |
| Seats with belt | 2 |
| Front bed | |
| Rear bed | 2 |
Specifications
Chassis and body
- All-wheel drive
- Differential lock rear axle
- Differential lock front axle
- Additional fuel tank, total capacity 520L
- Comfort seats
- Radio CD / navigation
- Rear view camera, heated
- Air conditioning
- Cold bridge-free GRP sandwich body
- Top layer 3 mm, fabric-reinforced
- Cold bridge-free Bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multi-point locking

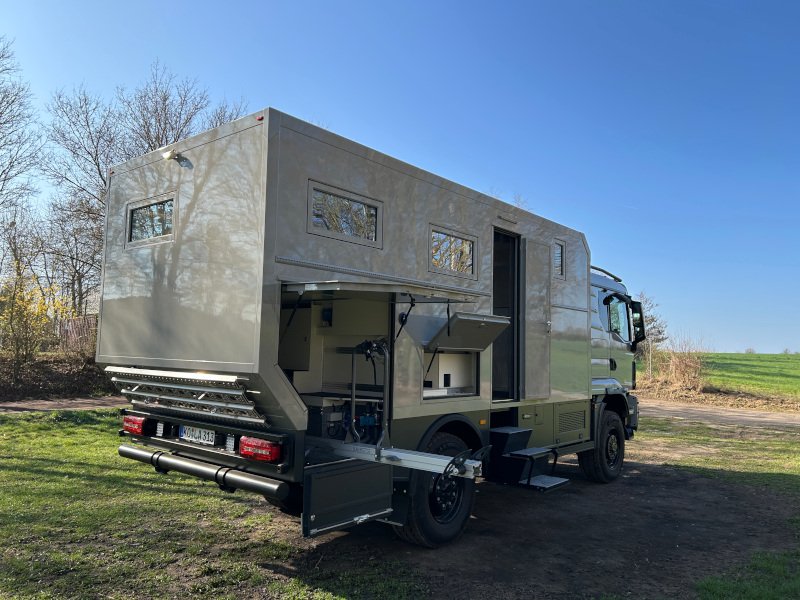

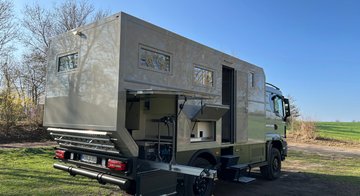

- External garage under rear bed, bicycle entry system with electric winch
- Electric access step with automatic control
- KCT Real glass hinged window
- KCT Real glass roof window
- Cab access with lockable door
- Cab roof rack with LED bars
Interior and options

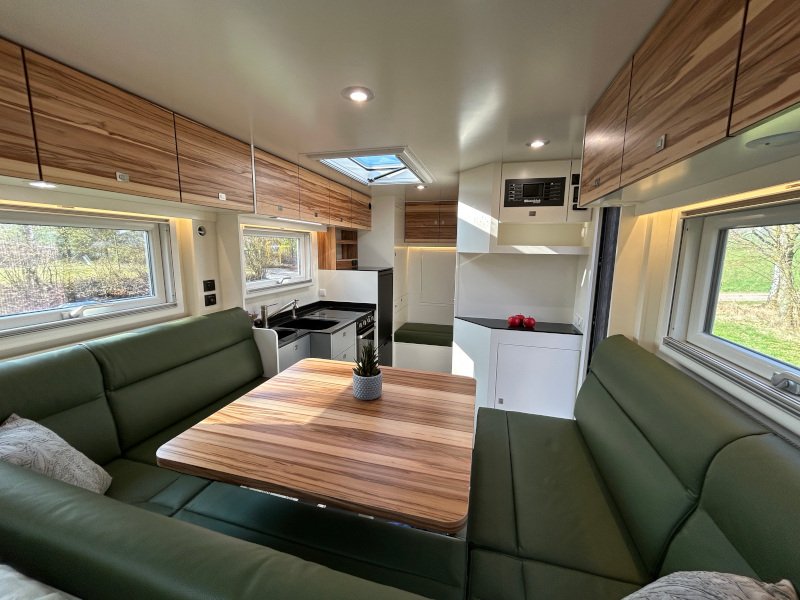

- Furniture construction with walnut satin real wood veneer and lacquered surfaces

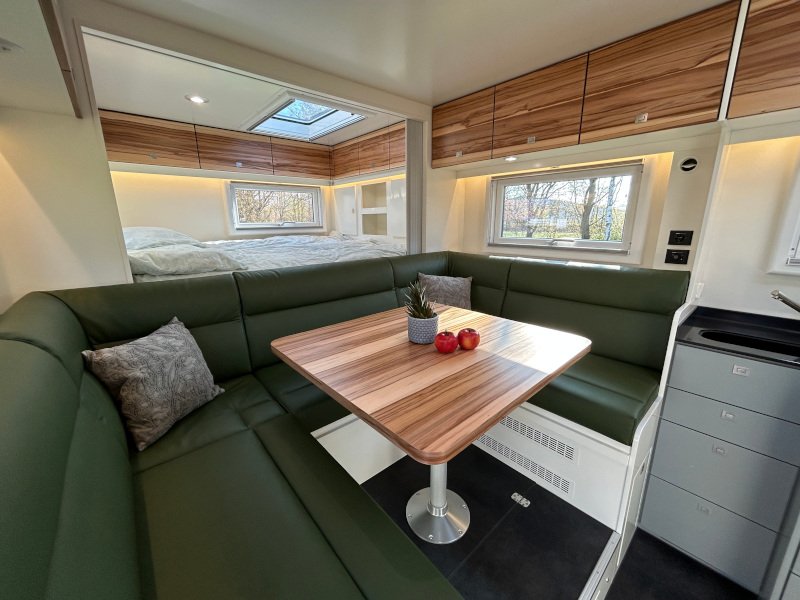

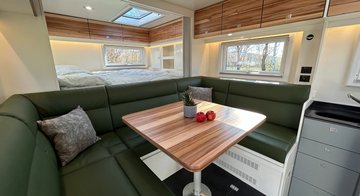

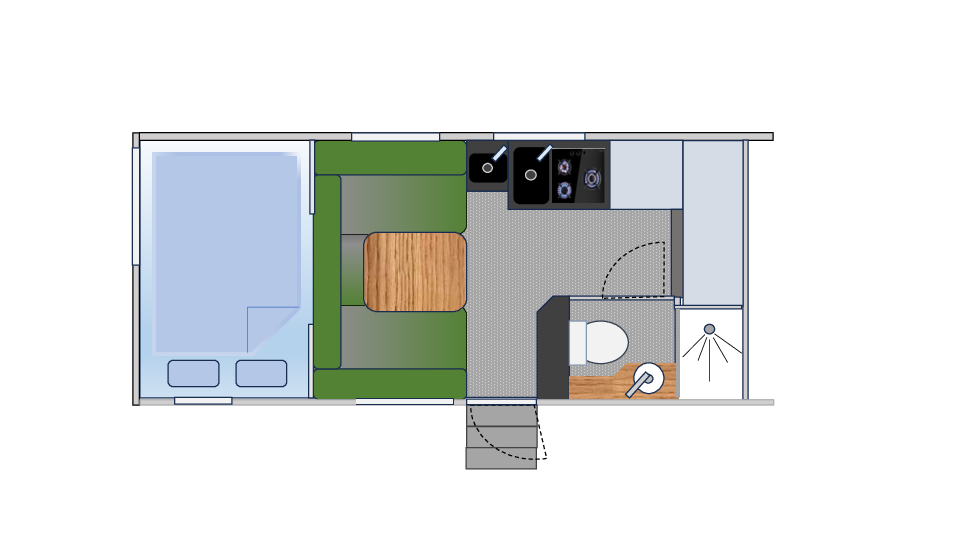

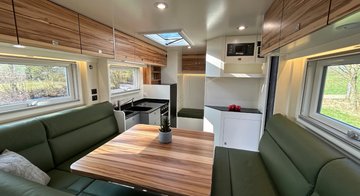

- Rear bed with transverse U-shaped seating group in front
- Seat upholstery in genuine leather
- Gas-powered ALDE 3020 hot water heater with E cartridge
- 70L built-in gas tank with
- Diesel hot air heater 2Kw
- Air conditioning underfloor
- Battery capacity 400 Ah 24V (approx. 9. 5 kWh)
- Automatic charger 24 V / 70 A
- Sine wave inverter 3 kW
- Solar system 1500 WP with MPPT control

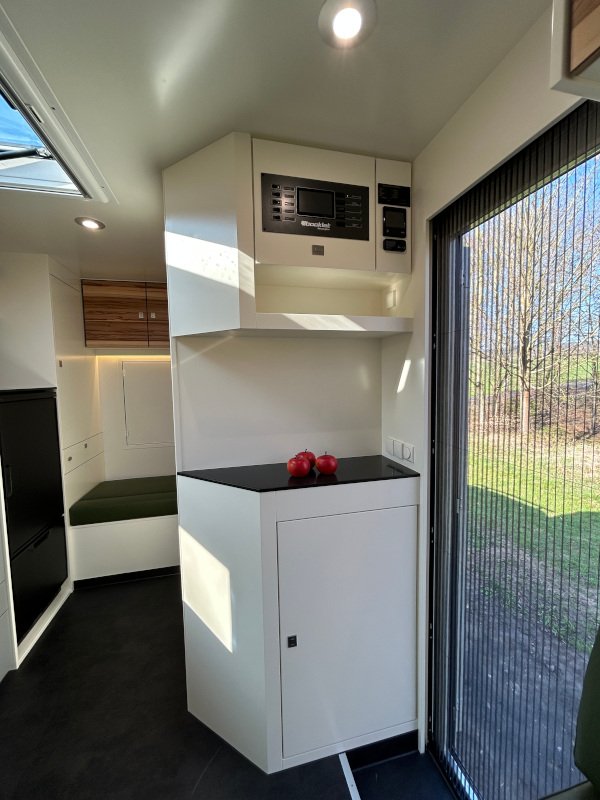

- Control panel with ampere-hour counter
- Energy-saving lights and LED spotlights
- gas powered cooker and stove

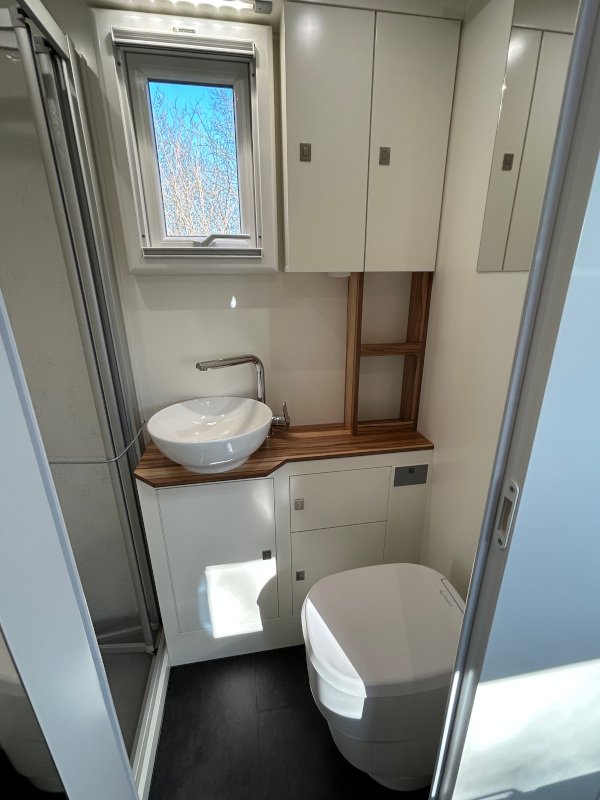

- Bathroom in 30mm GRP sandwich construction, washbasin with attached washbasin, separate shower with folding shower door and shower suction pump

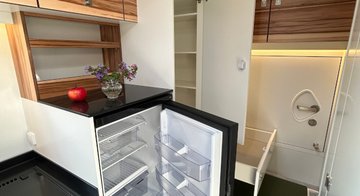

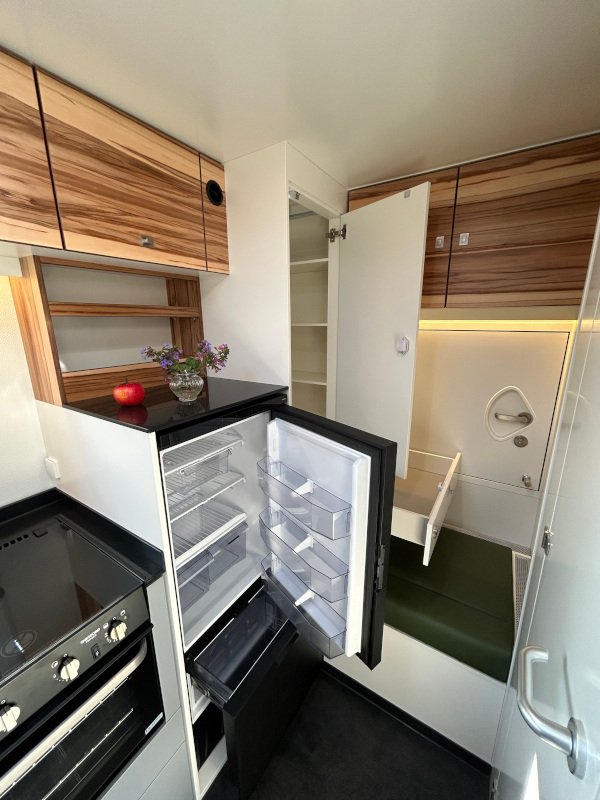

- Raised refrigerator
- Kitchen worktop in mineral stone design and double sink with stainless steel base
- Fresh water tank approx. 400l
- Waste water tank approx. 250l
