Bocklet

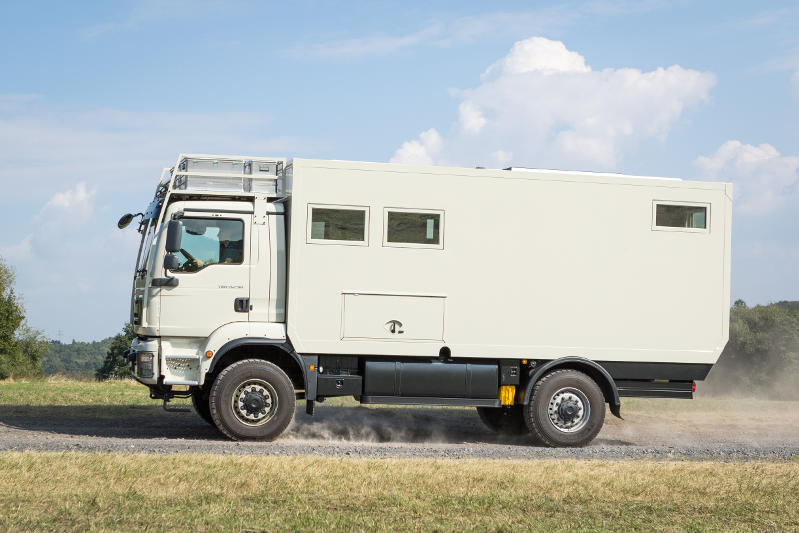

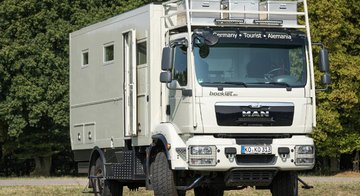

Dakar 795

ChassisMAN TGM 13.290 4x4
Wheelbase4200 mm
GVW13.000kg
L x W x H7950 mm x 2520mm x 3770mm

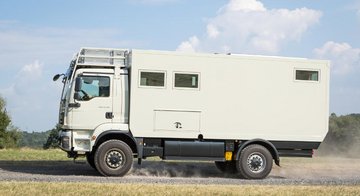

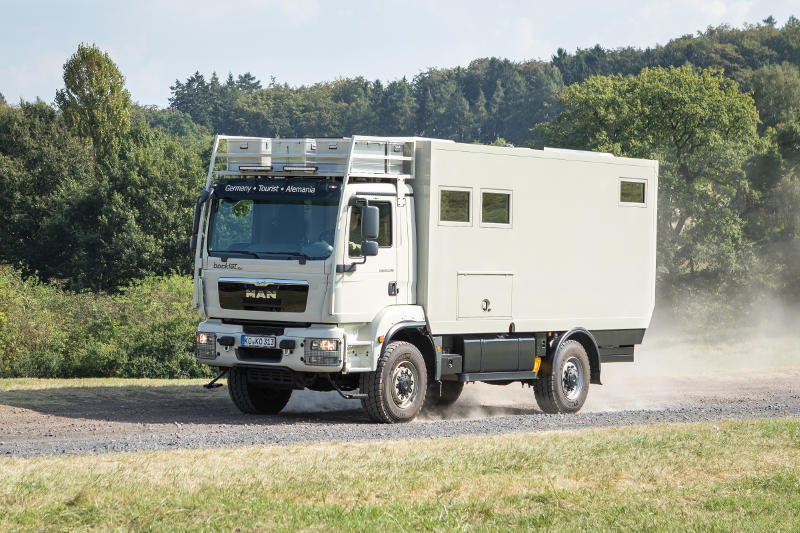

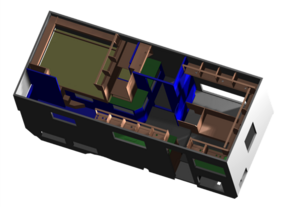

MAN TGM 4x4 mit Zwei-Raum Wohnkonzept. Darüberhinaus verfpgt dieses Fahrzeug über eine maßgeschneiderte PKW Garage im Heck. Einzigartig bei einer Aussenlänge von weniger als 8m. Dieses innovative Grundrisskonzept überzeugt mit hervorragender technischer Ausstattung und angenehmen Raumkonzept



Technical Data

Chassis

ChassisMAN TGM 13.290 4x4
Wheelbase4200 mm
GVW13.000kg
Engine6-cylinder Turbodiesel
Capacity6871
Engine power231/290

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness51 mm
Roof thickness50 mm
Bottom thickness60 mm

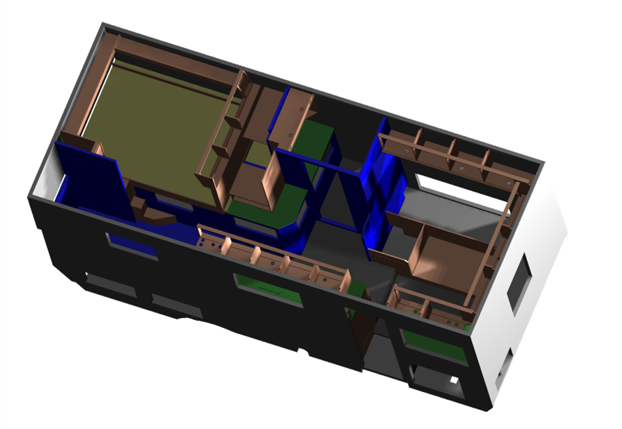

Interior

Length5950 mm
Width2420 mm
Height2200 mm
Seats with belt2
Front bed-

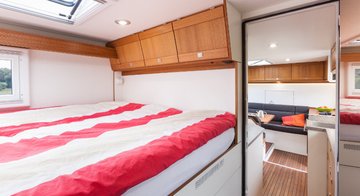

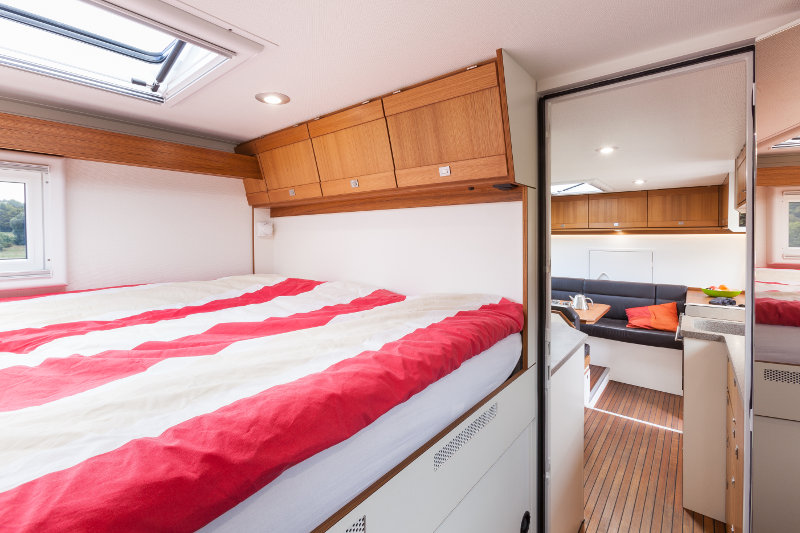

Rear bed2000 x 1400 mm



Specifications

Chassis and body

  • MAN 13.290 4x4
  • engageable all-wheel drive
  • Diff-lock rear axle
  • Diff-lock front axle
  • Fuel tank app. 730l
  • Comfort seats
  • Air condition
  • Rear view camera
  • 2 comfort seats
  • GRP body construction
  • Cover layer 3 mm, rowing mesh
  • frostbridge free bocklet doors and hatches
  • glas windows
  • glas skylights

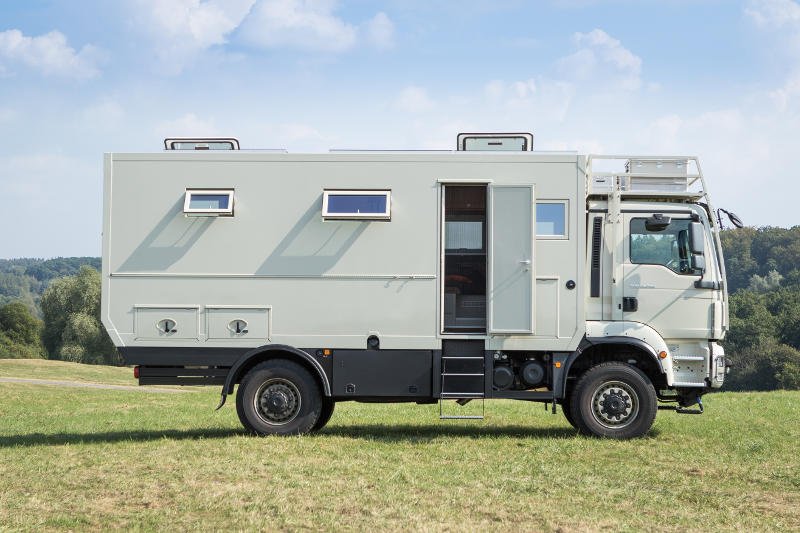

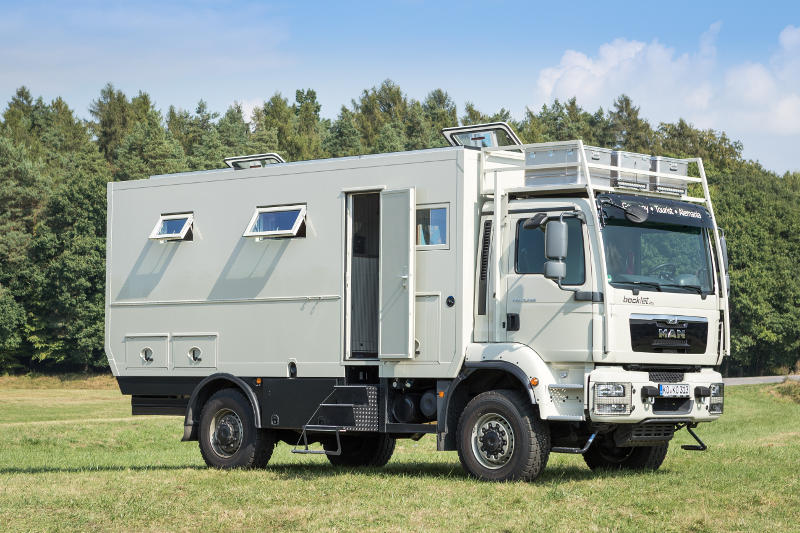

  • electric and automatic staircase
  • pass to driver cab with lockable door

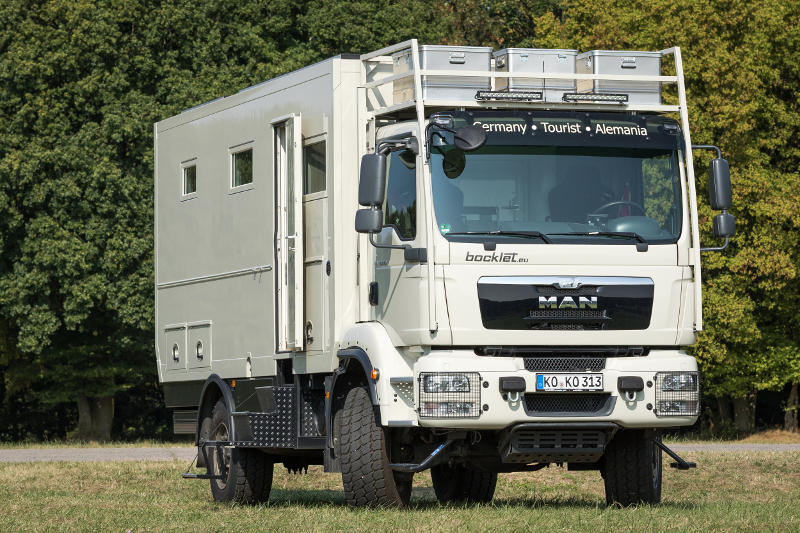

  • Roof carrier with boxes and LED Bars on cab

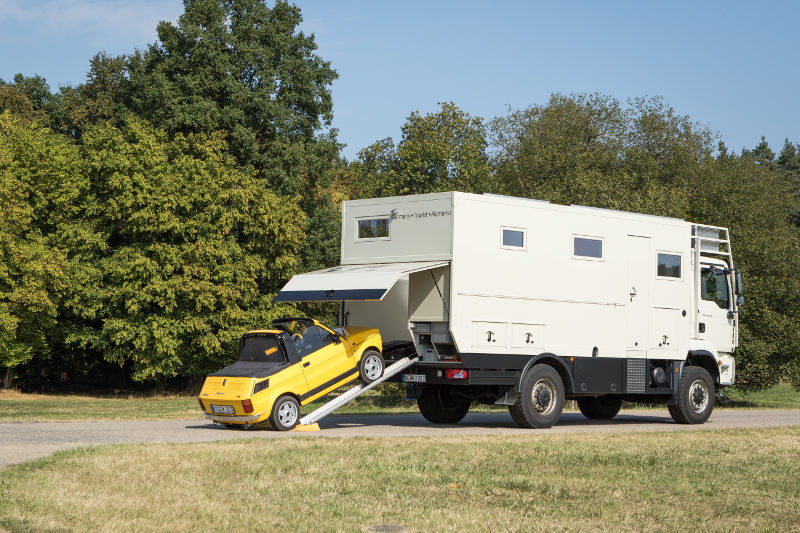

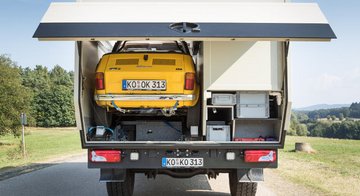

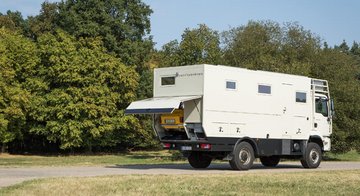

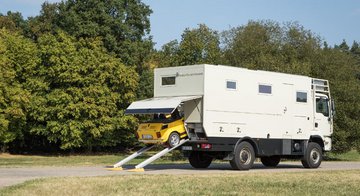

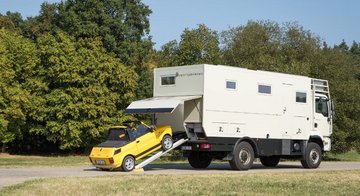

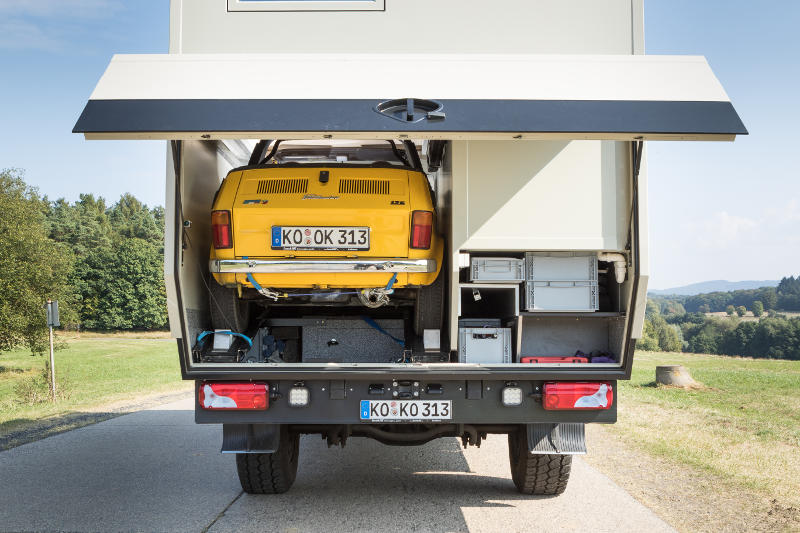

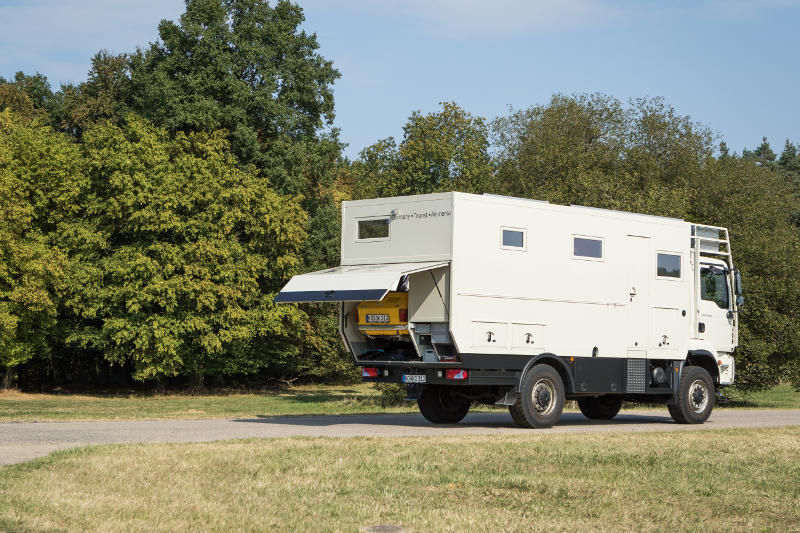

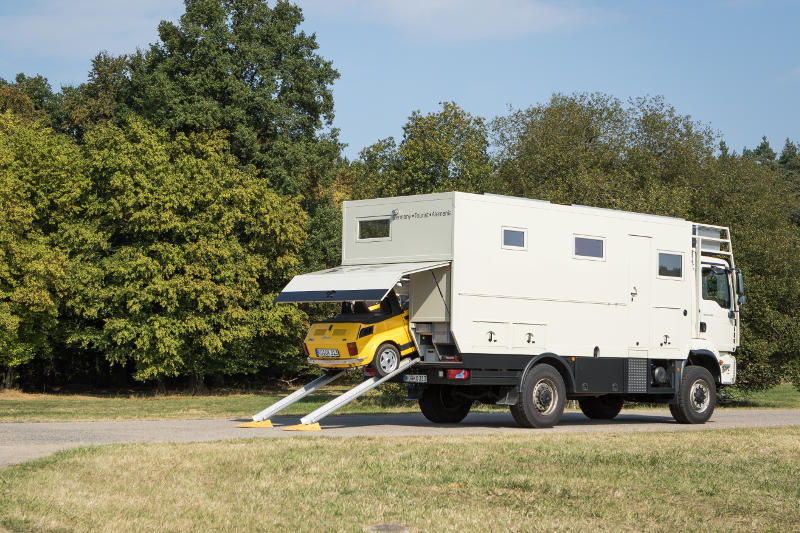

  • rear garage for Fiat passenger car with mounting system and winch

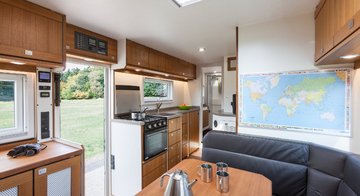

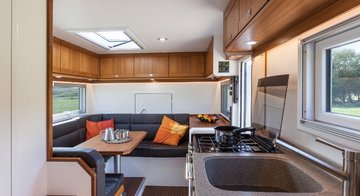

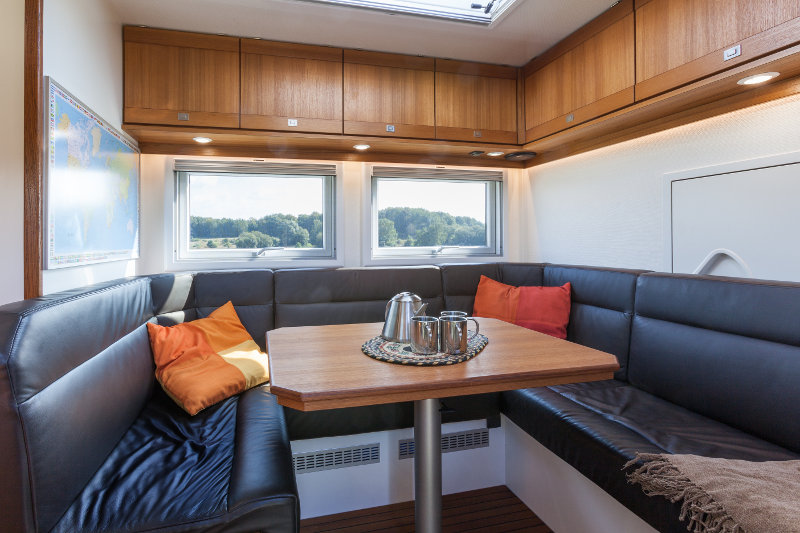

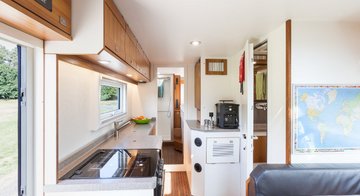

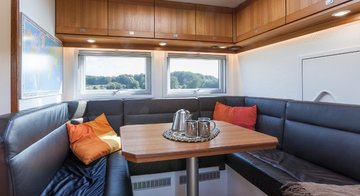

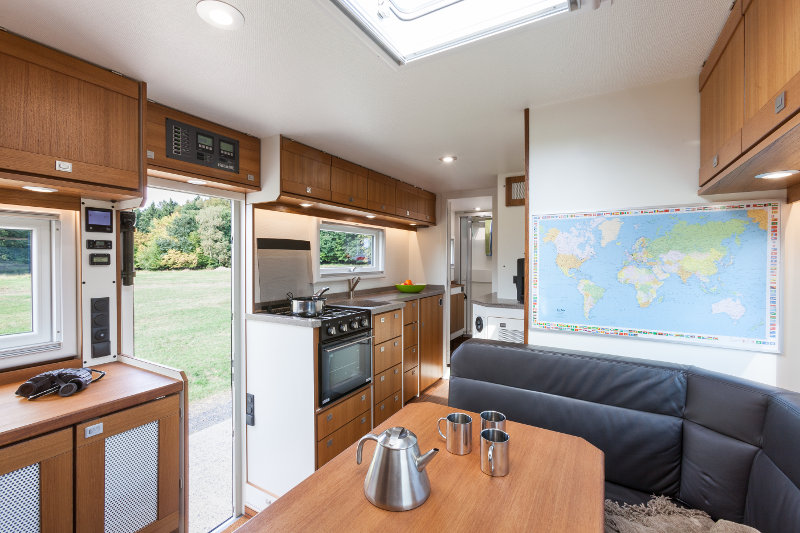

Interior and options

  • Furniture teak vener
  • Seat cover leather
  • Gas- warmwater heating system with E-option
  • Diesel-warm air heating system
  • Diesel warmwater heating system
  • Battery capacity 880 Ah
  • Automatic charger 24 V / 50 A 90-270V
  • Inverter 2000 W
  • Solar installation 1320W
  • Air condition for rear body
  • control panel
  • LED lightning
  • Tank Toilet system
  • Tanks inside and heated
  • Fresh water 410 l
  • Grey water 270 l
  • Black water  220 l
  • white-armature with single-lever

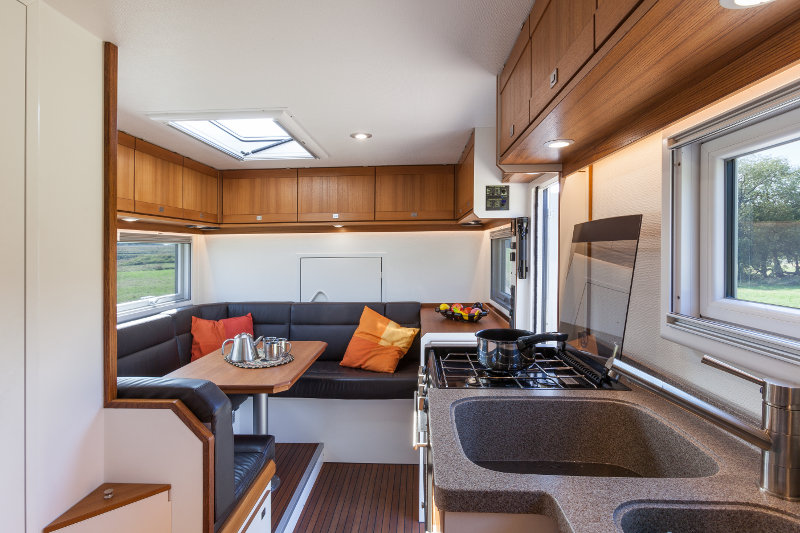

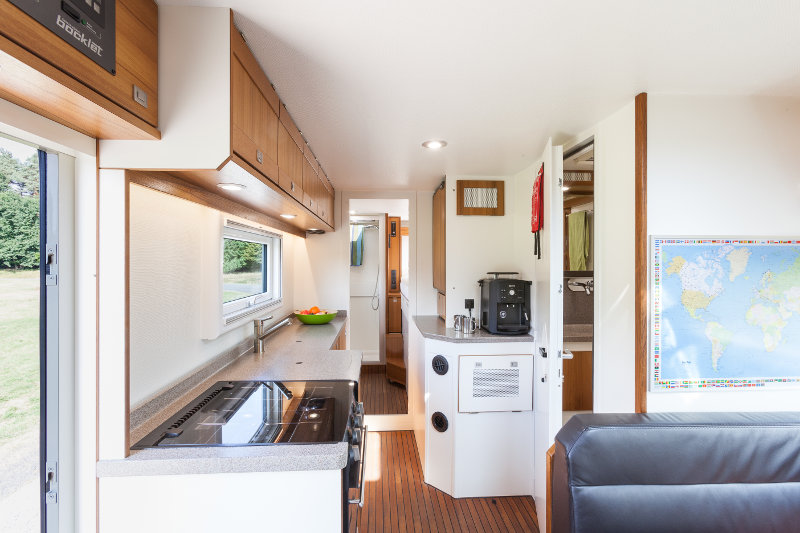

  • 3-flame stove and oven
  • copressor fridge 140l and 30l freezer
  • countertop kitchen and bath in mineral stone
