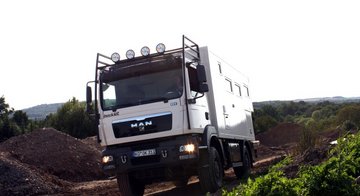

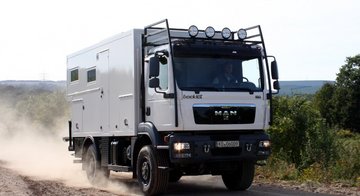

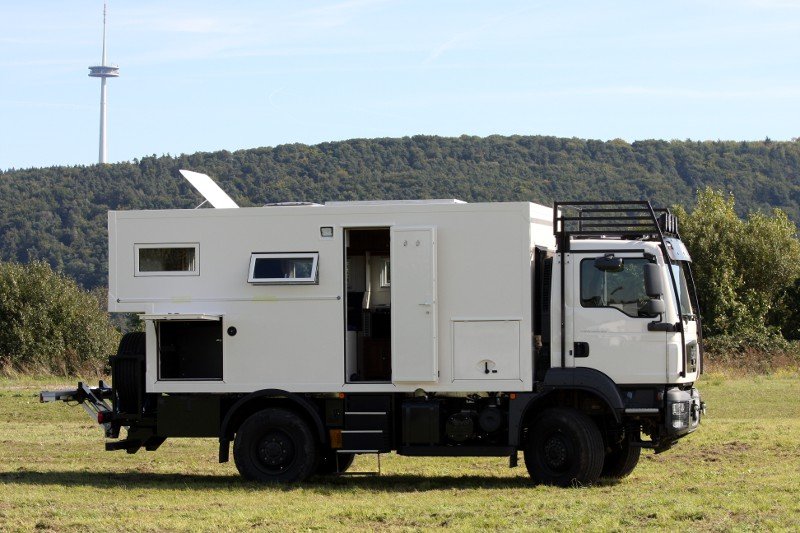

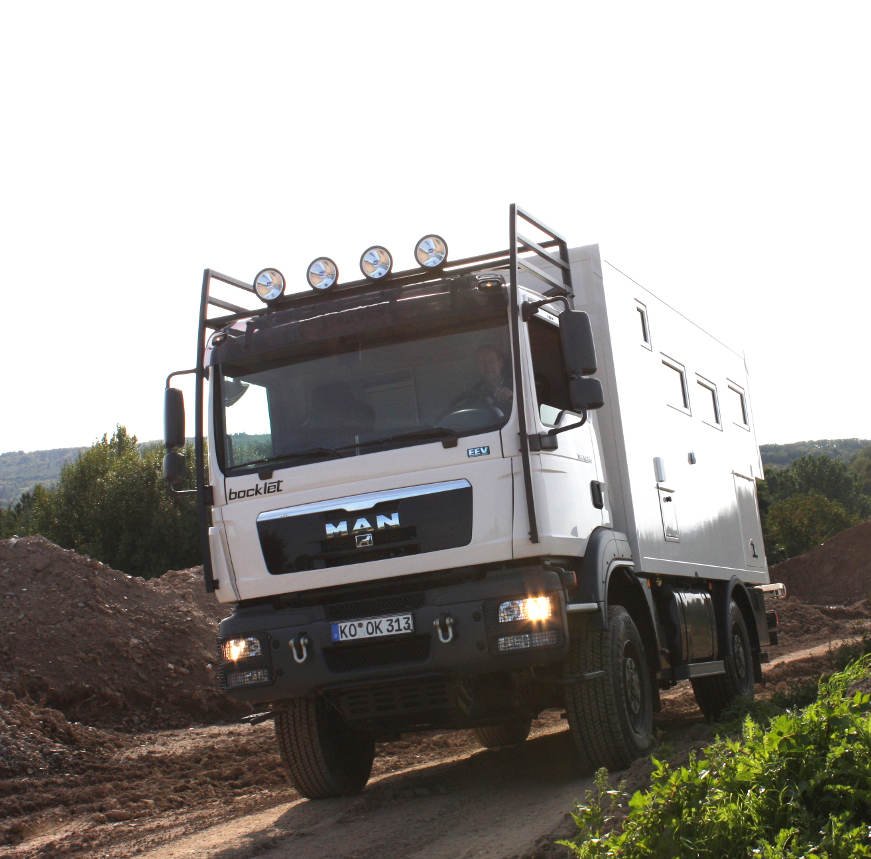

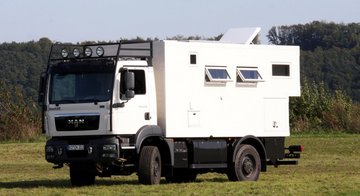

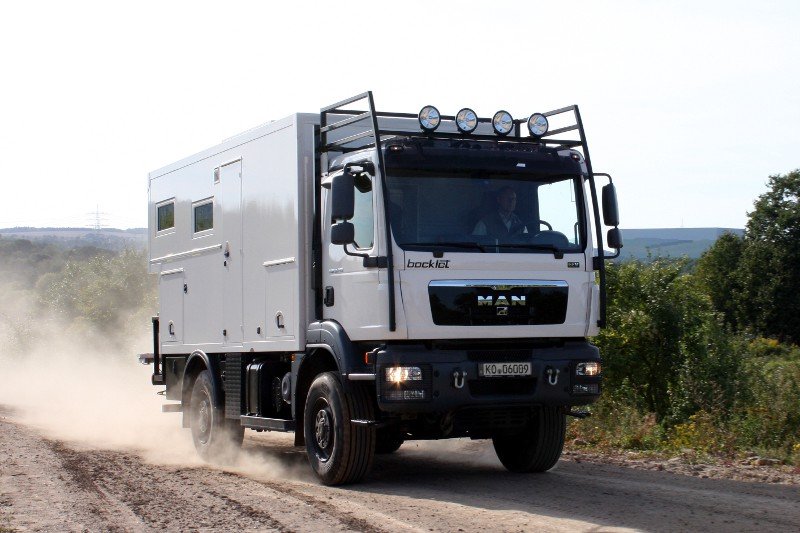

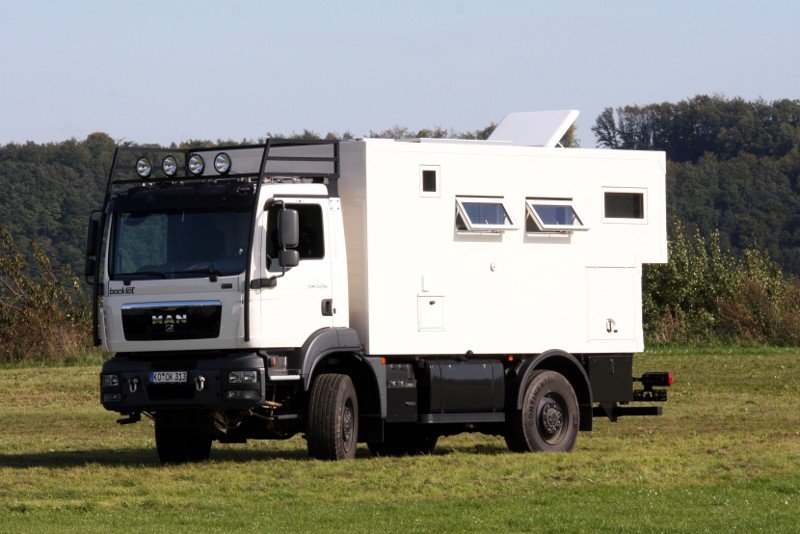

Bocklet

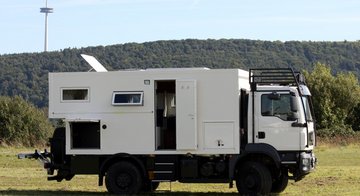

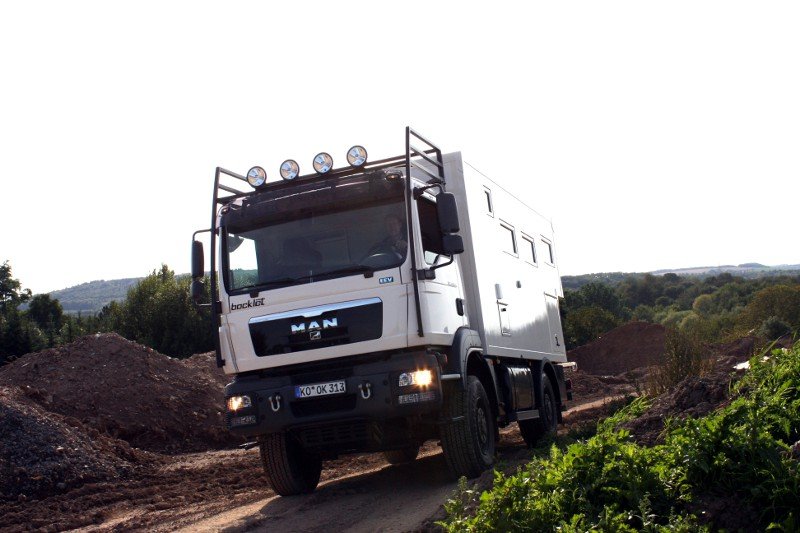

Dakar 740
| Chassis | MAN TGM 13.290 |
| Wheelbase | 3650 mm |
| GVW | 13.000 kg |
| L x W x H | 7400 mm x 2450 mm x 3700 mm |
Technical Data
Chassis
| Chassis | MAN TGM 13.290 |
| Wheelbase | 3650 mm |
| GVW | 13.000 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | 6871 ccm |
| Engine power | 213 kW / 290 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 51 mm |
| Roof thickness | 51 mm |
| Bottom thickness | 60 mm |

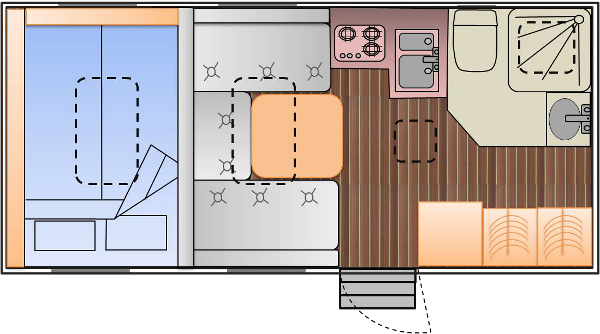

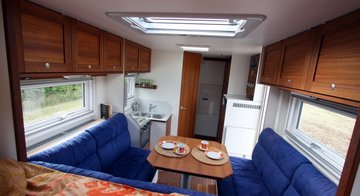

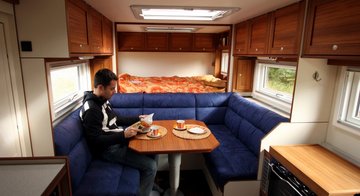

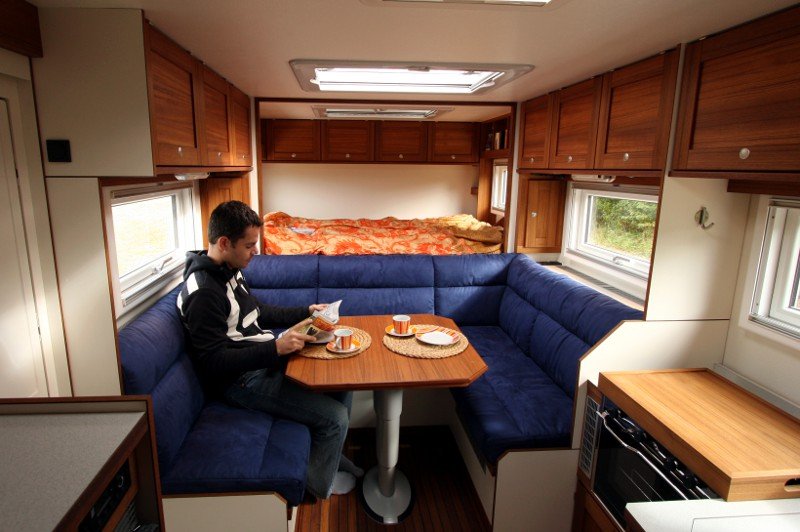

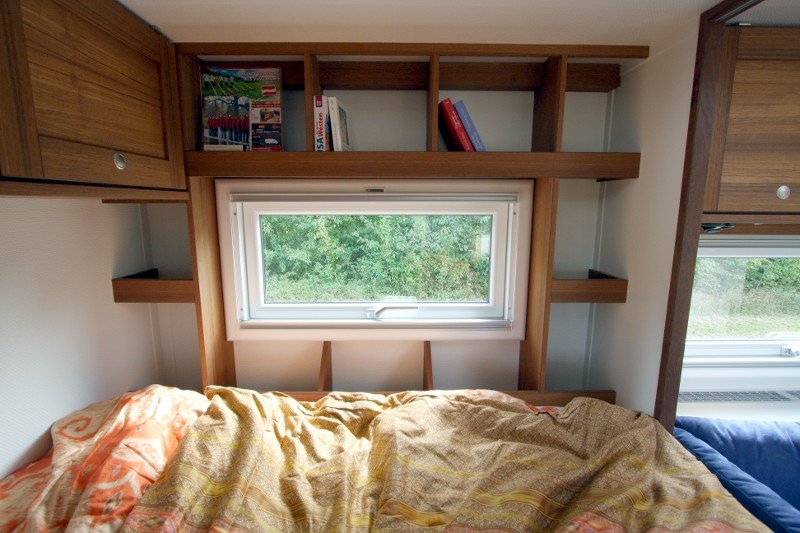

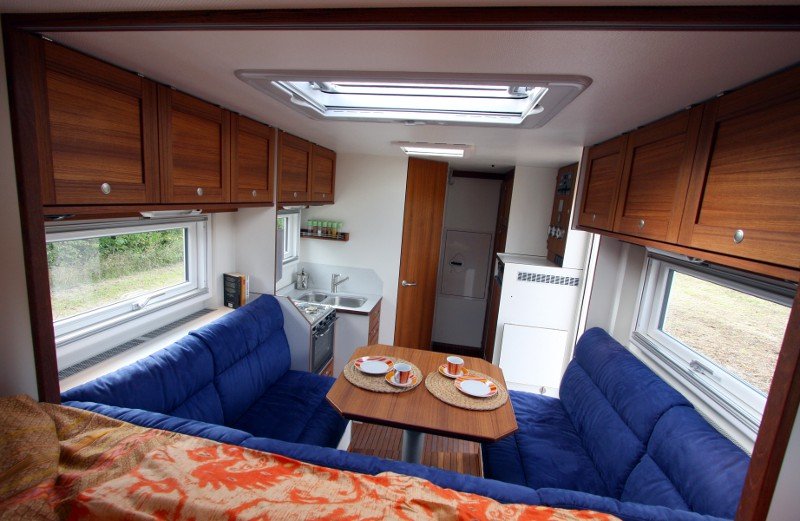

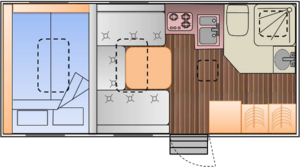

Interior
| Length | 5200 mm |
| Width | 2300 mm |
| Height | 2100 mm |
| Seats with belt | 2 with 3-point belt |
| Front bed | - |

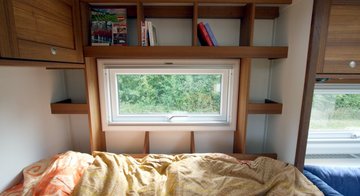

| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- all-wheel-drive
- diff-lock rear axle
- diff-lock front axle
- fuel tank 675 l
- comfort seats
- radio CD / navigation
- rear view camera
- air conditoner
- free of thermal bridges
- cover layer 3 mm
- bocklet doors and hatches, free of thermal bridges
- outer storrage space beneath rear-bed, GRP-storrage case
- electric and automatic staircase
- KCT hardglas swing-out windows
- skylight Heki 1
- skylight Mini Heki
- skylight Gebo
- pass to driver cab with lockable door
- roof carrier
- spare-wheel carrier pivoted
Interior and options
- furniture made of 16mm wood, veneer teak
- seat cushion cover alcantara
- diesel heater
- water heater
- battery capacity 440Ah
- automatic charger 24 V / 70 A
- inverter 3000 W
- solar panels 350 W
- control panel
- energy saving spot lights, LED-spot lights
- porcelain cassette toilett with SOG-air vent
- white-armature with single-lever

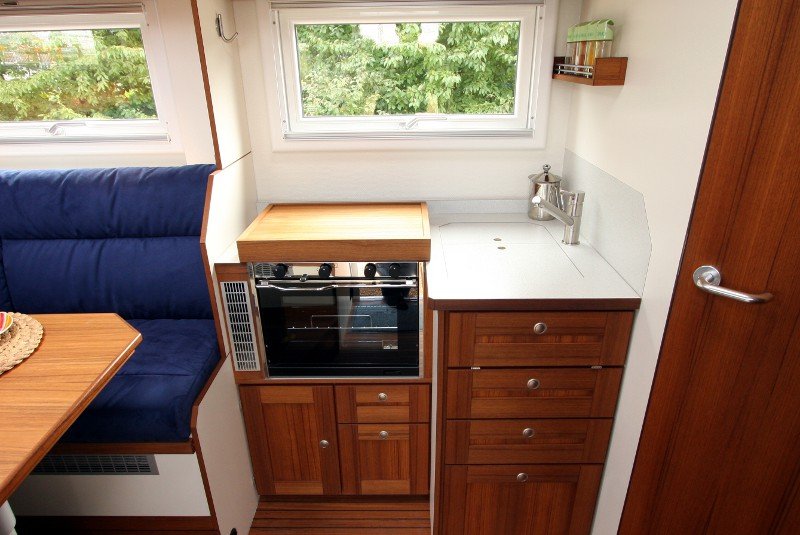

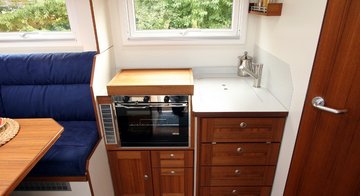

- 3-flame stove
- oven
- compressor fridge 110 l
- TFT 19"
- all tanks inside and heated:
- freshwater 430l
- waste water 220l
