Bocklet
Dakar 720L
| Chassis | MAN LAEC 10.220 |
| Wheelbase | 3560 mm |
| GVW | 10.000 kg |
| L x W x H | 7200 mm x 2350 mm x 3500 mm |
Technical Data
Chassis
| Chassis | MAN LAEC 10.220 |
| Wheelbase | 3560 mm |
| GVW | 10.000 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | 6871 ccm |
| Engine power | 162 kW / 220 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

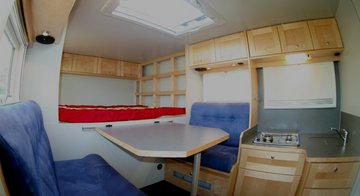

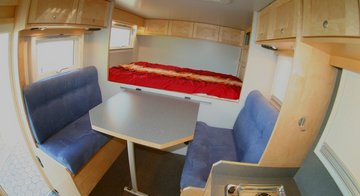

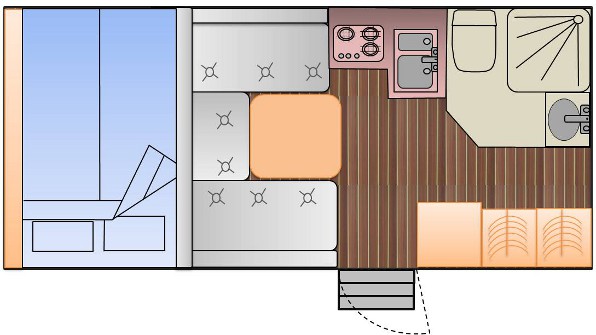

Interior
| Length | 5100 mm |
| Width | 2200 mm |
| Height | 1950 mm |
| Seats with belt | - |
| Front bed | - |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- all-wheel-drive
- diff-lock rear axle
- diff-lock front axle
- ABS
- fuel tank 600 l
- comfort seats
- radio CD / navigation
- rear view camera
- air conditoner
- free of thermal bridges
- cover layer 3 mm
- bocklet doors and hatches, free of thermal bridges
- outer storrage space on the side
- outer storrage space beneath rear-bed
- electric and automatic staircase
- KCT hardglas swing-out windows
- skylight Heki 1
- skylight Fan Tastic Vent
- roof carrier

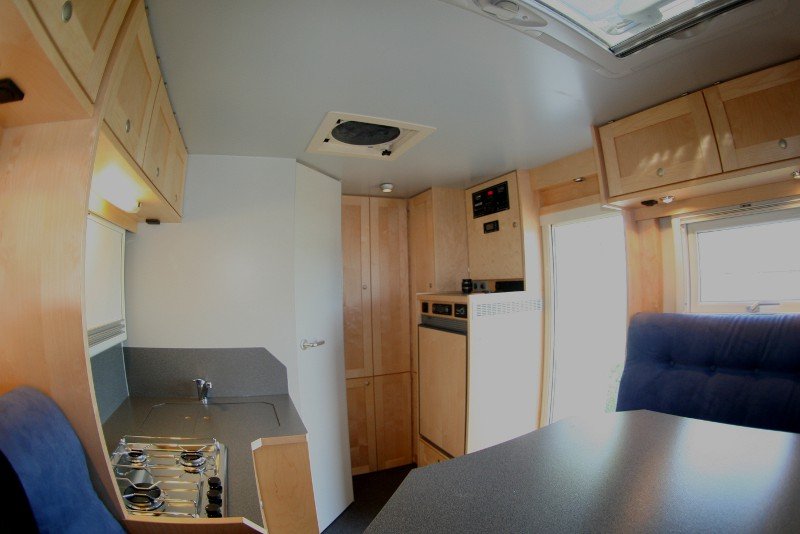

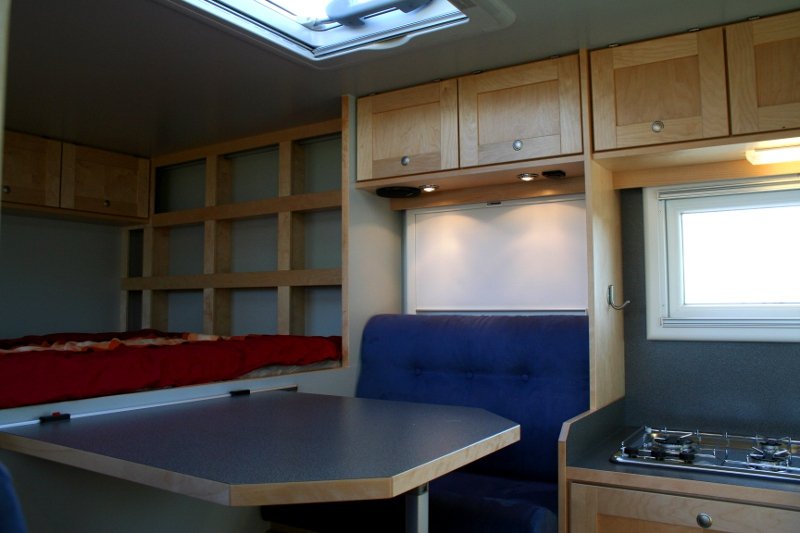

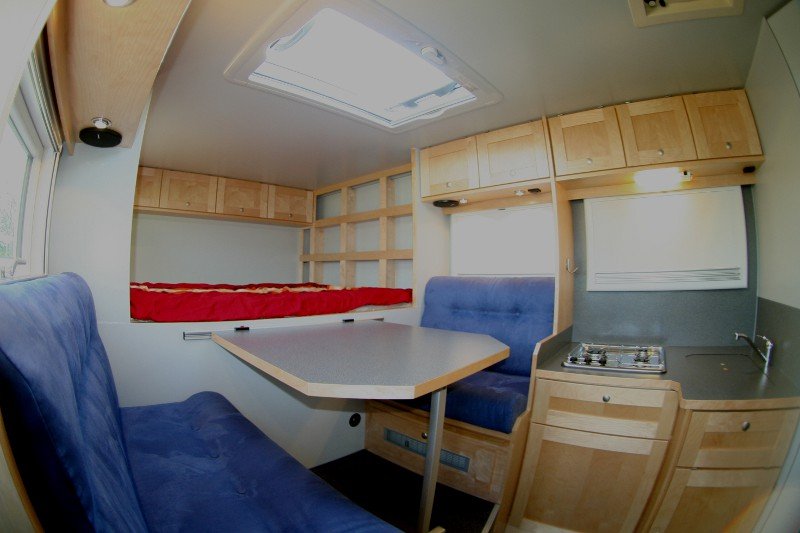

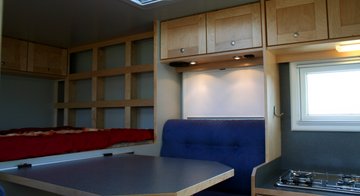

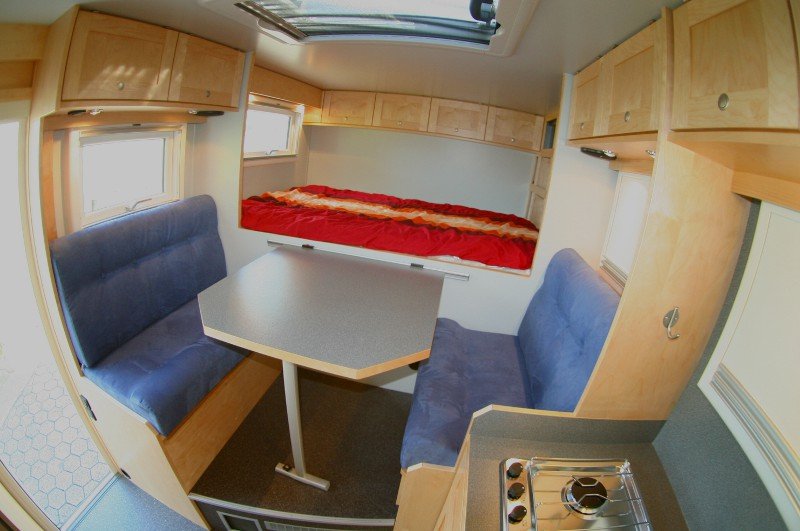

Interior and options
- furniture made of 16mm wood, veneer birch
- seat cushion
- diesel heater
- air heater
- water boiler 10 l
- battery capacity 440Ah
- automatic charger 24 V / 70 A
- inverter 3000 W
- solar panels 220 W
- control panel
- energy saving spot lights with dimmer
- cassette toilett
- white-armature with single-lever
- 3-flame stove
- oven
- compressor fridge 110 l
- all tanks inside and heated:
- freshwater 300l
- waste water 200l
