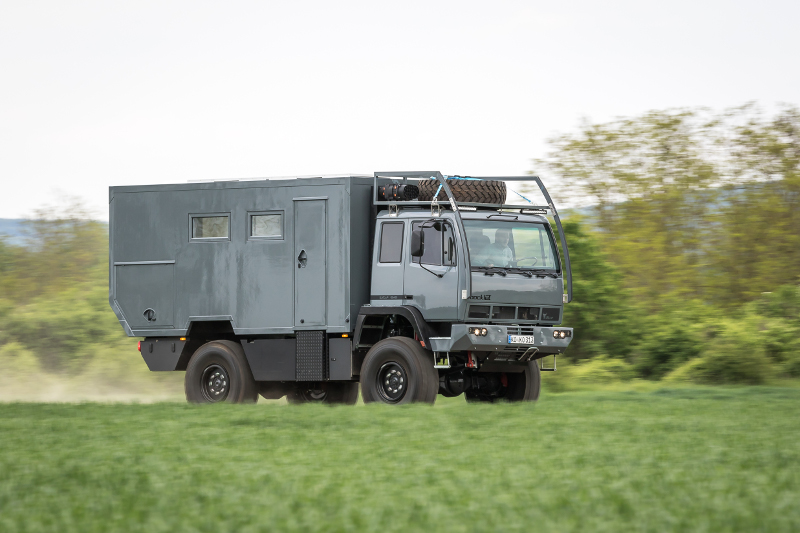

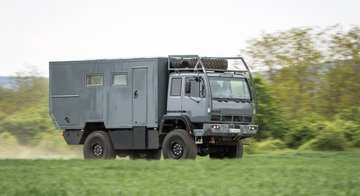

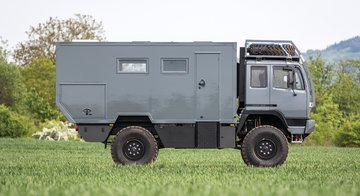

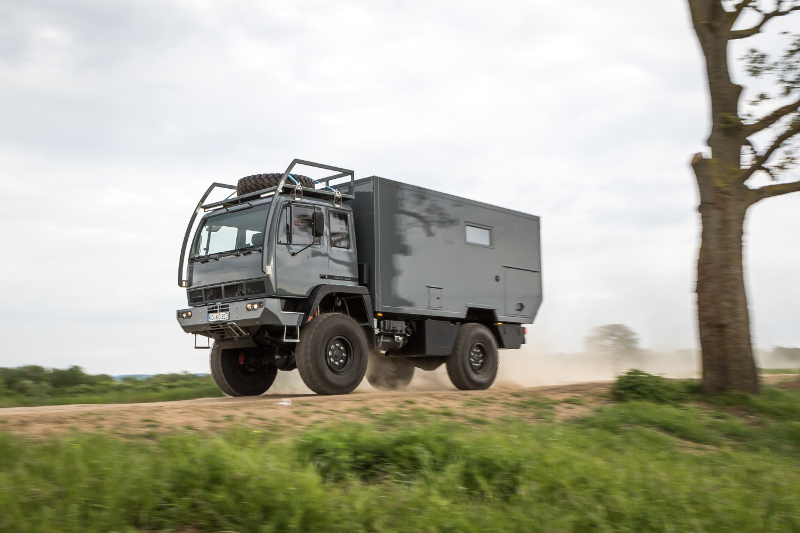

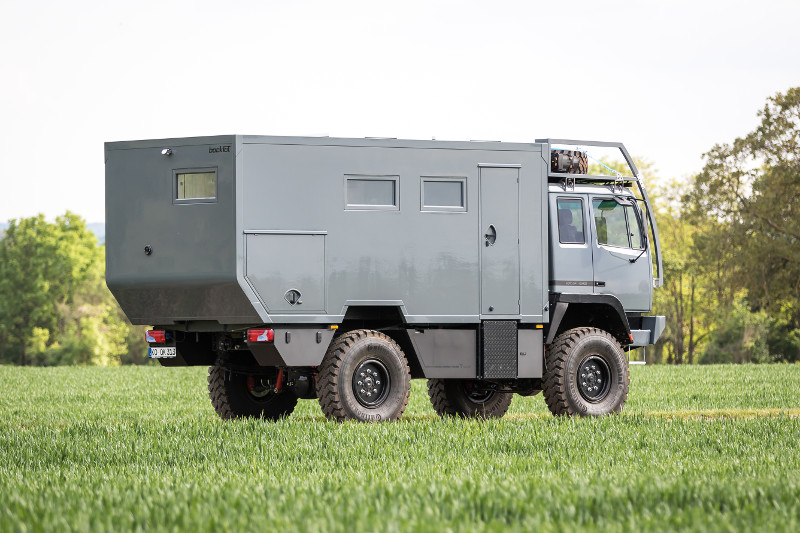

Bocklet

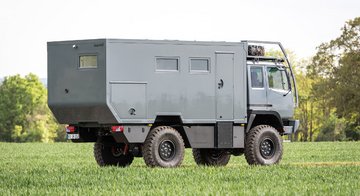

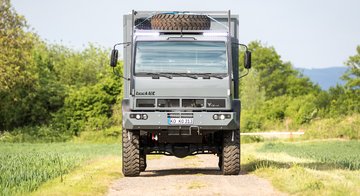

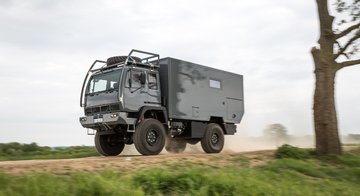

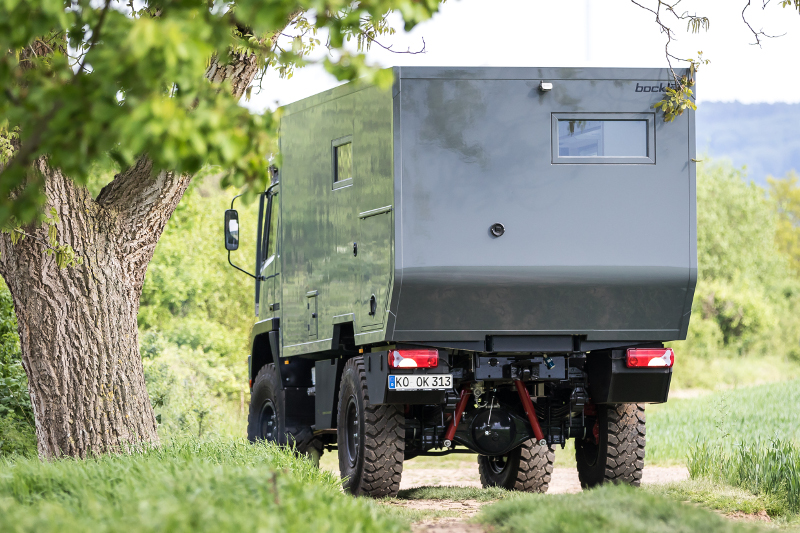

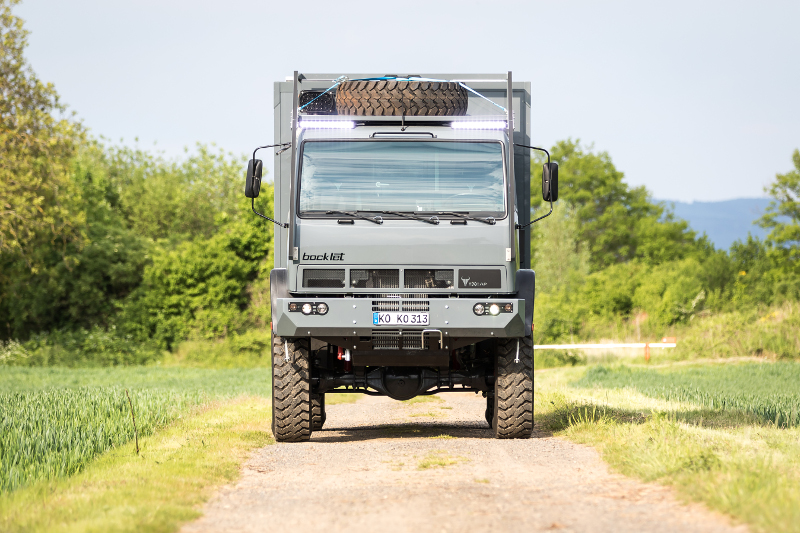

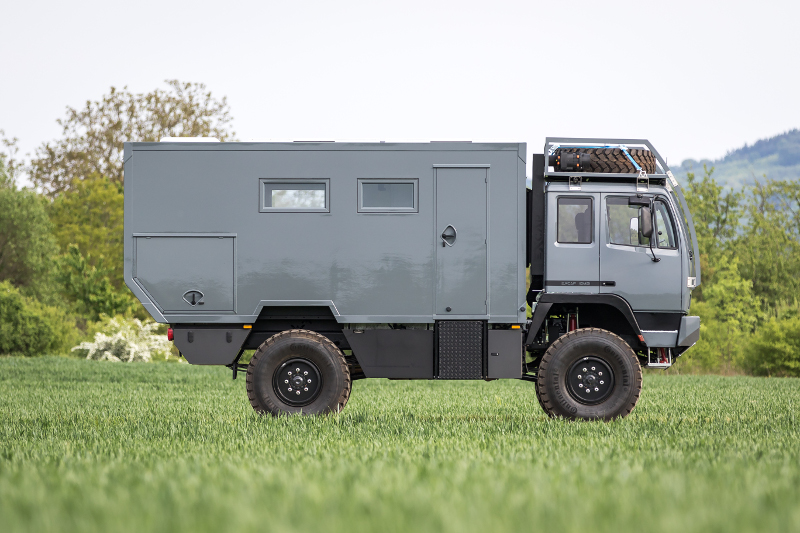

Dakar 700
| Chassis | Steyr 12M18 |
| Wheelbase | 3500 mm |
| GVW | 11.500kg |
| L x W x H | 7000 mm x 2460mm x 3550 mm |
Technical Data
Chassis
| Chassis | Steyr 12M18 |
| Wheelbase | 3500 mm |
| GVW | 11.500kg |
| Engine | 6 Cylinder Turbo Diesel |
| Capacity | 6000ccm |
| Engine power | ca. 210 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

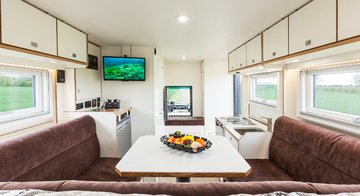

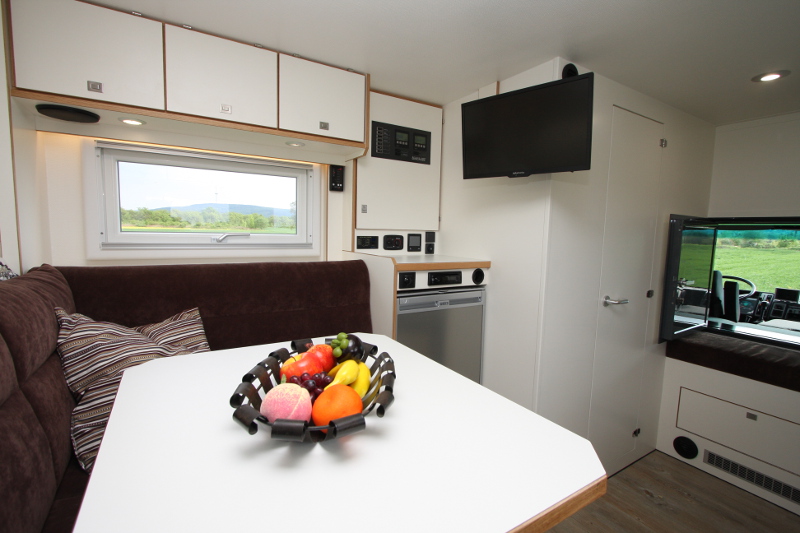

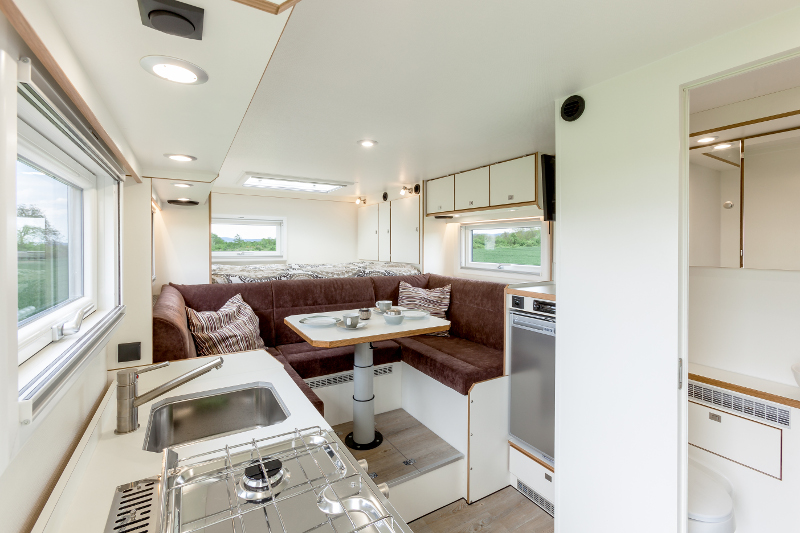

Interior
| Length | 4700 mm |
| Width | 2360 mm |
| Height | 2000 mm |
| Seats with belt | - |
| Front bed | - |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- GRP body construction
- Cover layer 3 mm, rowing mesh
- frostbridge free bocklet doors and hatches
- storage compartment under bed, full width
- KCT glas windows
- KCT skyight over seating area
- All wheel drive
- Diff Lock Front and Rear
- Fueltank app. 600l
- Radio /CD /
- Comfort seats, heated
- Observation cam rear side
- Roof carrier and spare wheel carrier
- Storage boxes

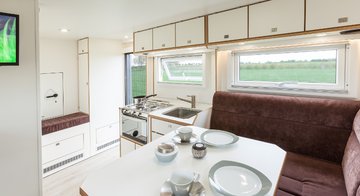

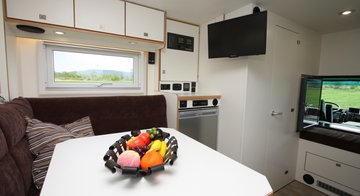

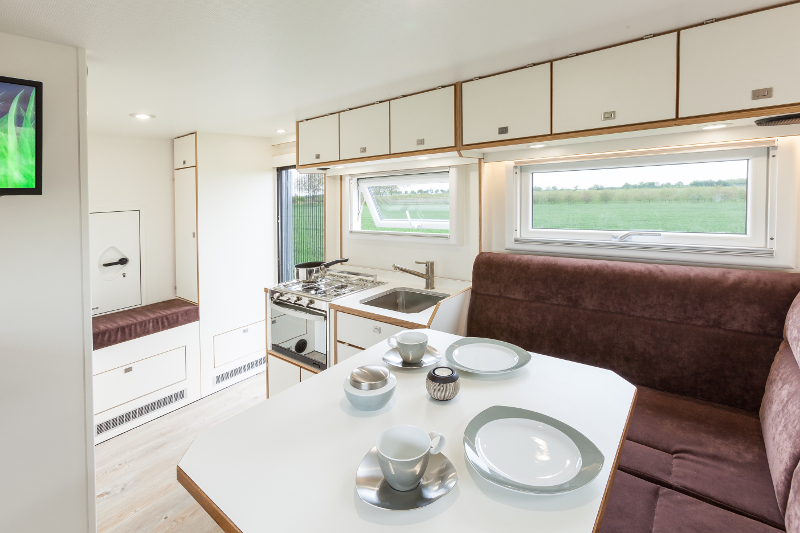

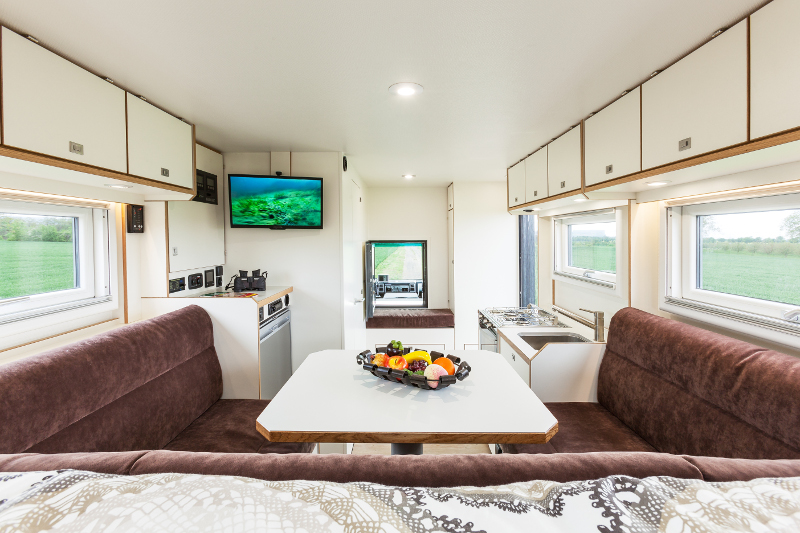

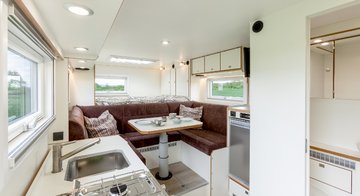

Interior and options
- Furniture in white/oak combination
- Drawers with Soft Slide-In, Push Locks Inox
- Doublelfloor with storage in seating area
- Diesel powered - air heating
- Gas- powered water heating with boiler
- Batteriecapazity 2x220Ah AGM Batteries
- Automaticlcharger 24 V / 50 A
- Inverter 2 kW
- Controllpanel
- Lightning LED-powered
- Cassette toilette with SOG
- Kocher 2-flames with oven
- fridge 110 l
- countertop in HPL
- Radio CD / Bluetooth
- Tanks inside and heated:
- fresh water 365l
- grey water 190l - aircondition
- TV and automatic SAT
