Bocklet
Dakar 693E
| Chassis | Iveco Daily 70S18HA8WX |
| Wheelbase | 3780mm |
| GVW | 7000 kg |
| L x W x H | 6930 mm x 2200 mm x 3200 mm |

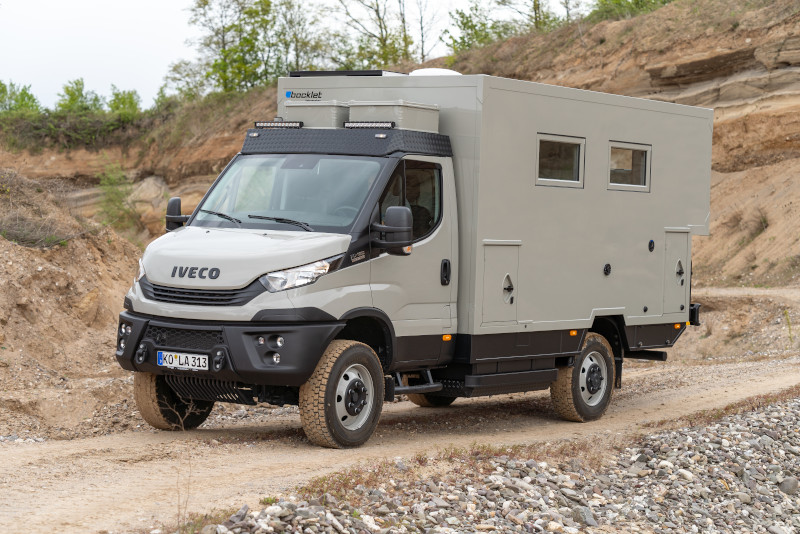

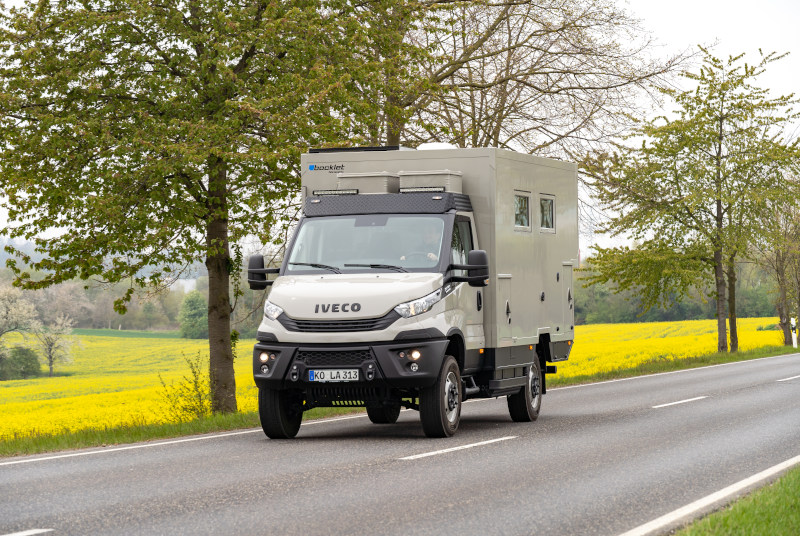

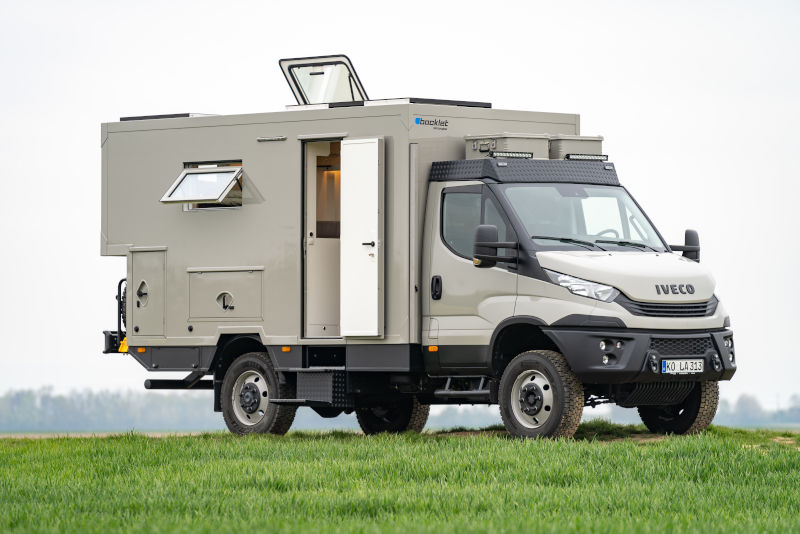

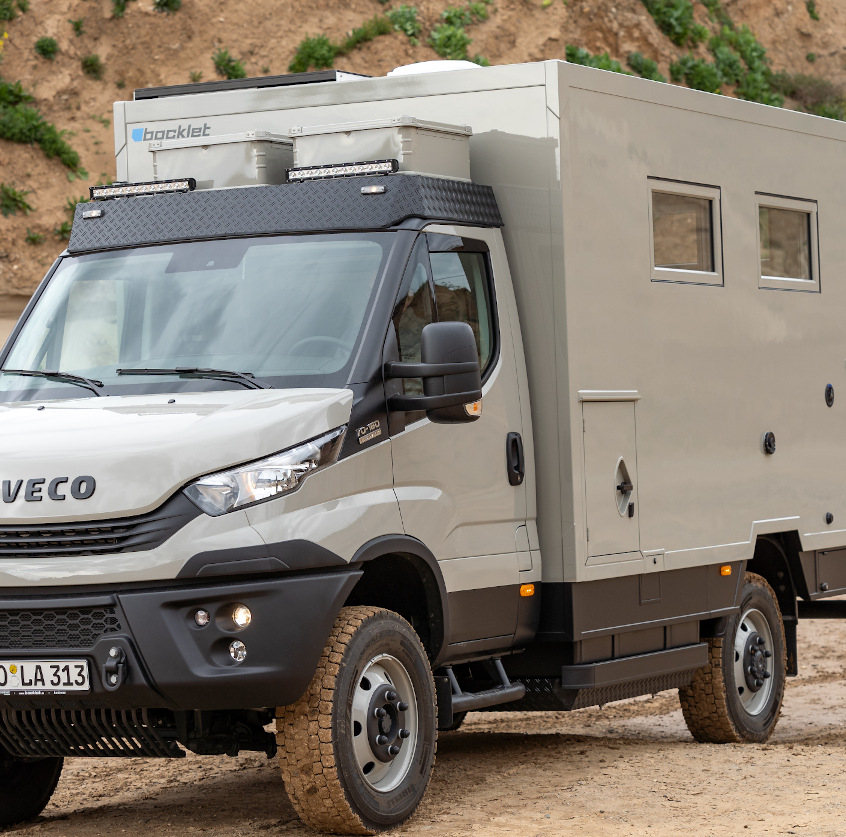

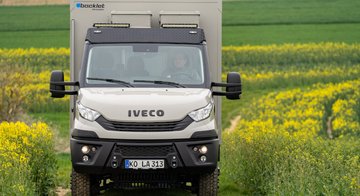

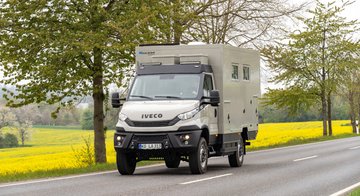

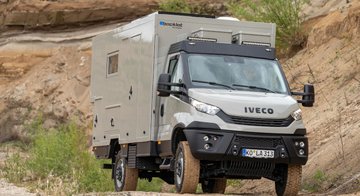

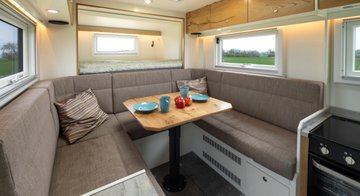

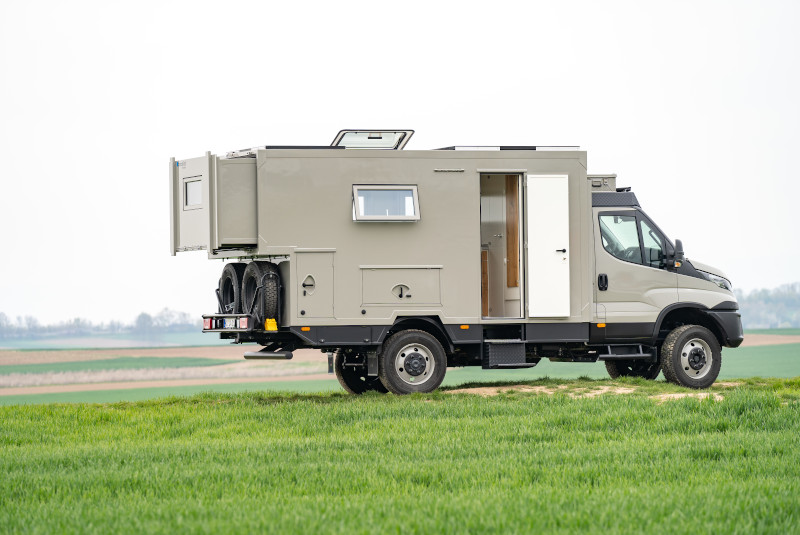

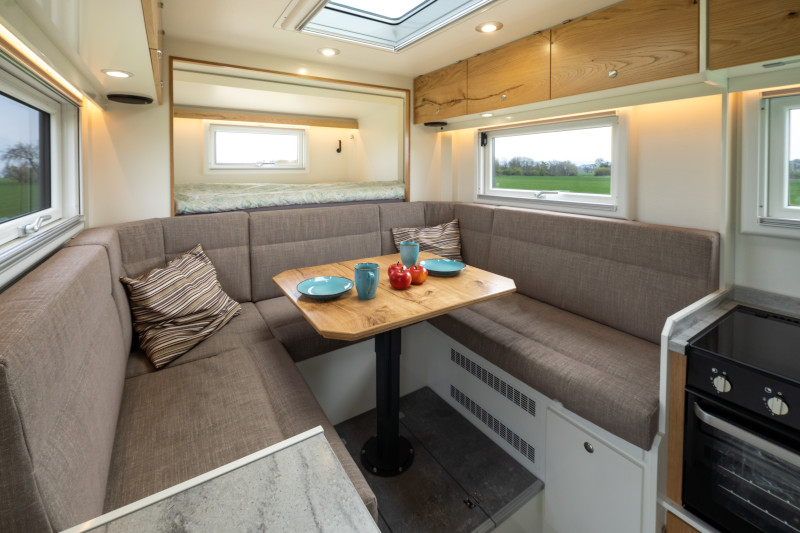

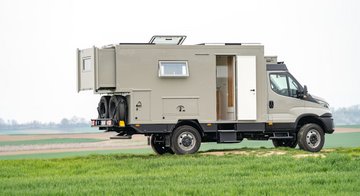

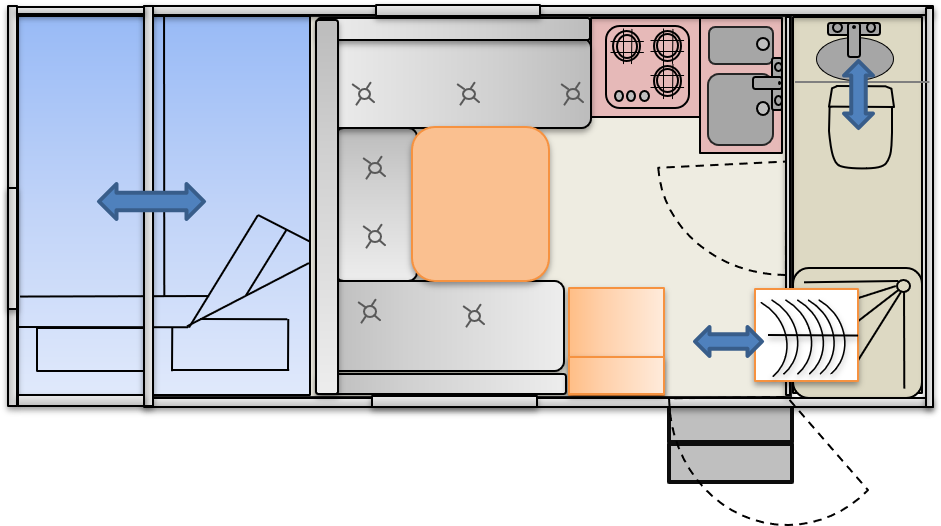

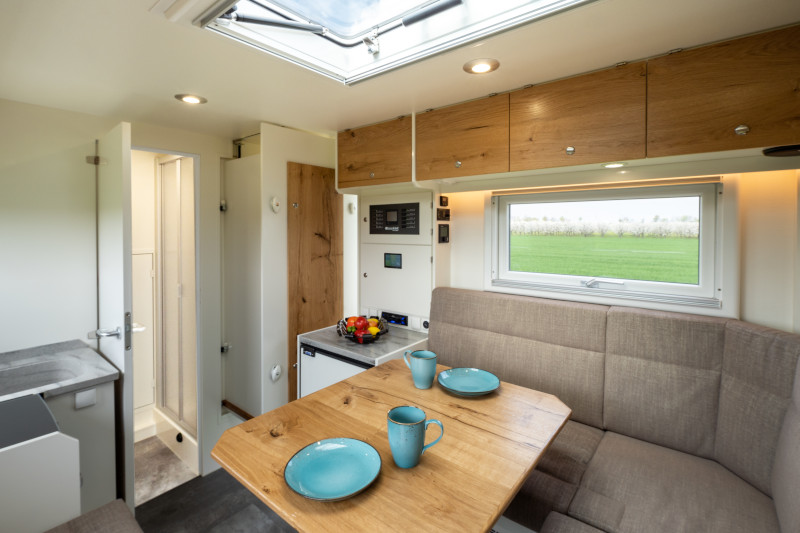

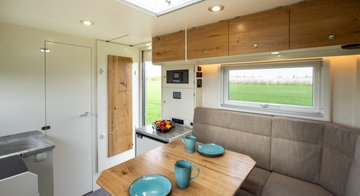

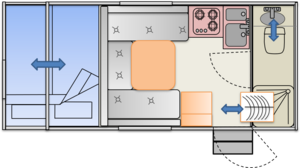

A clever concept with compact external dimensions is our Daka693E. With the rear slide out, first built in this form in 2009, the feeling of space is noticeably increased when the vehicle is extended and stationary. The fixed rear bed invites you to linger, as does the spacious seating area of this expedition camper. Another highlight: the wardrobe from the shower can be moved to enlarge the front cabin area to a small bathroom.
Technical Data
Chassis
| Chassis | Iveco Daily 70S18HA8WX |
| Wheelbase | 3780mm |
| GVW | 7000 kg |
| Engine | 4 Cylinder Turbodiesel |
| Capacity | 2998 ccm |
| Engine power | 132 kW / 180 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 4250/4850 mm |
| Width | 2100 mm |
| Height | 2060 mm |
| Seats with belt | - |
| Front bed | - |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- All wheel drive
- gear reduction
- automatic gearbox
- Fuel tank 250 l
- Comfort seats
- Radio bluetooh
- Rear view camera
- GRP body construction
- Cover layer 2 mm, rowing mesh
- frostbridge free bocklet doors and hatches

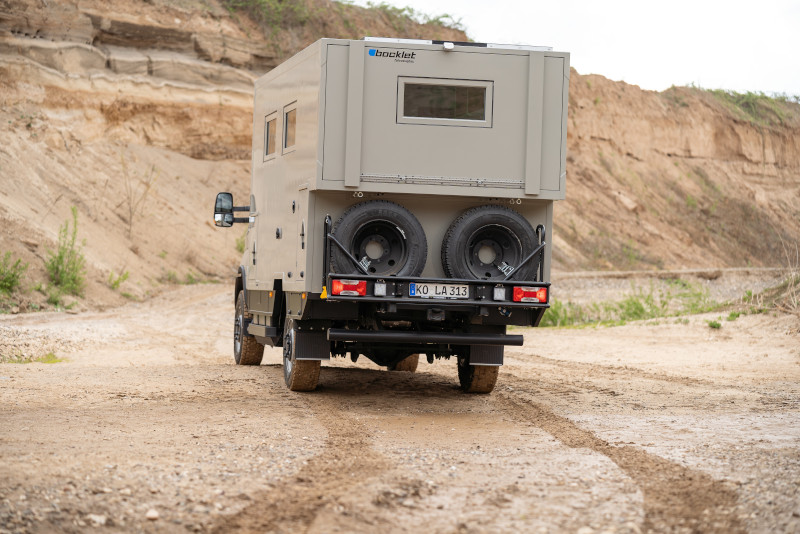

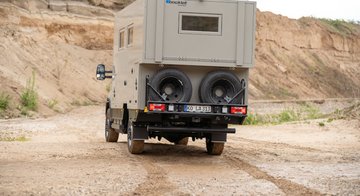

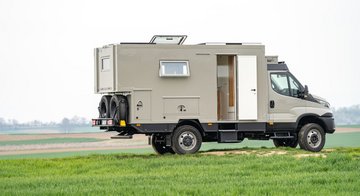

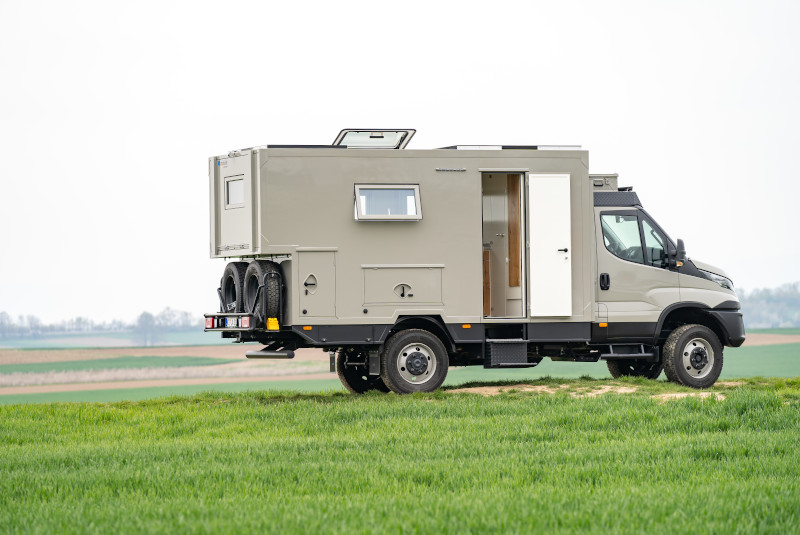

- fully insulated rear slide-out
- Rear storage compartment under bed
- spare wheel carrier
- electric and automatic staircase
- pass to driver cab with lockable door
- glas windows
- glas skylights

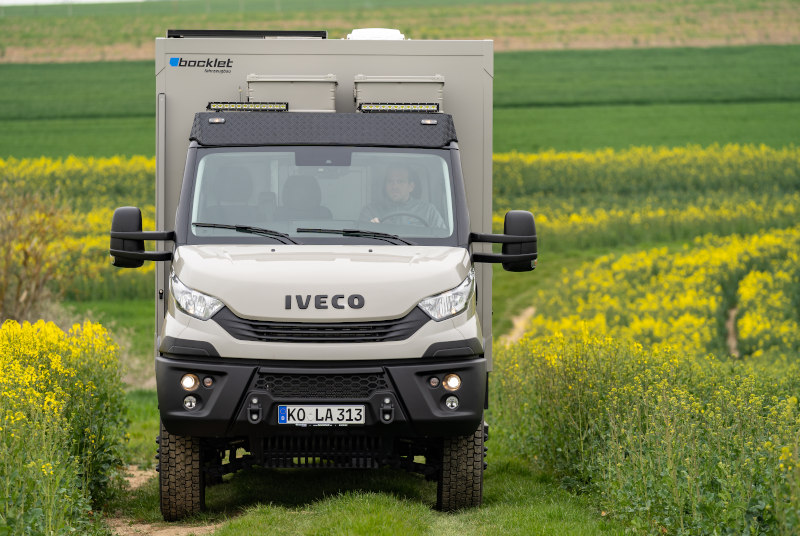

- roof carrier with LED light bar

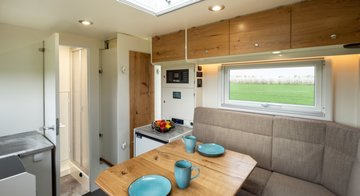

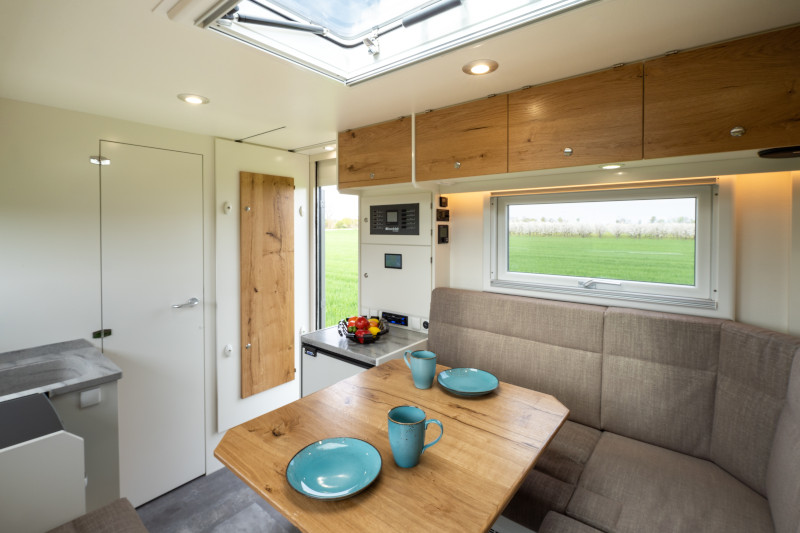

Interior and options
- Furniture in oak veneer
combined with painted surfaces - Seat cover fabric
- Double floor in seating area
- Diesel-airheating with hot water device
- Battery capacity 210Ah Lithium
- Automatic charger 12 V / 50 A
- Inverter 2 kW
- Solar installation 720 W
- control panel
- LED lightning
- composting toilet
- white-armature with single-leve

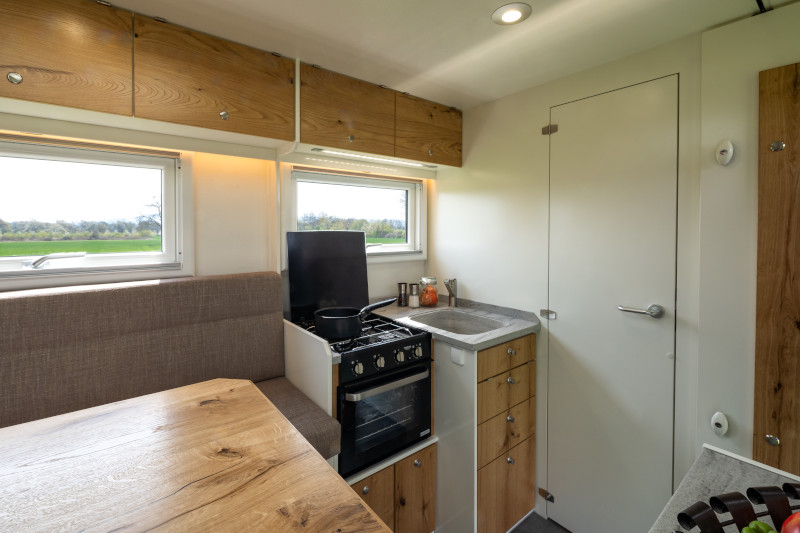

- 3-flams stove with oven
- Fridge 130 l
- Tanks inside and heated:
- Freshwater 220l
- Greywater 110l
- Gasbottles 2x11 kg
- Automatic tv satelite system
