Bocklet
Dakar 658
| Chassis | Iveco Daily 4X4 70S18HA8WX |
| Wheelbase | 3780 |
| GVW | 7.000 |
| L x W x H | 6580 x 2350 x 3150 |

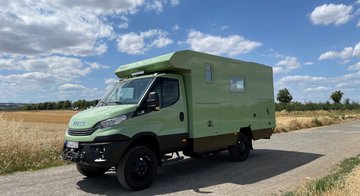

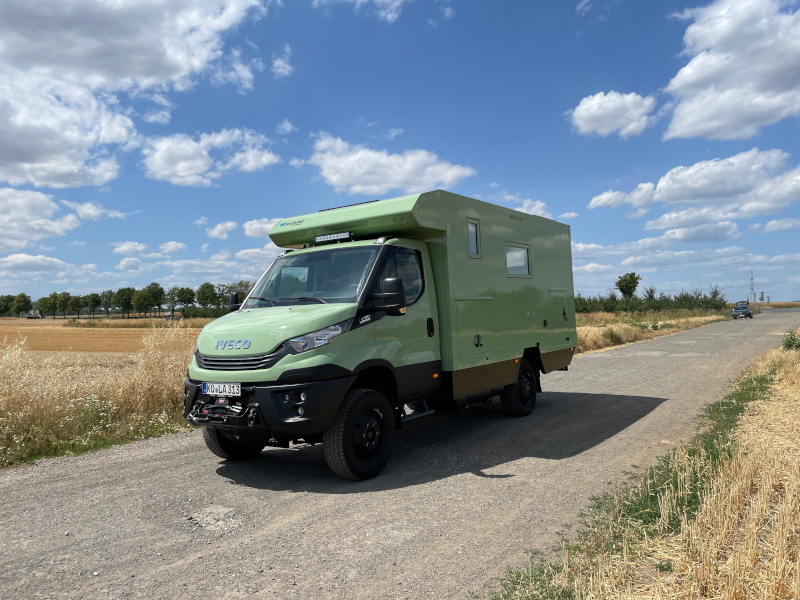

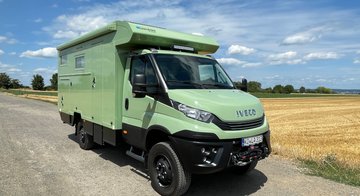

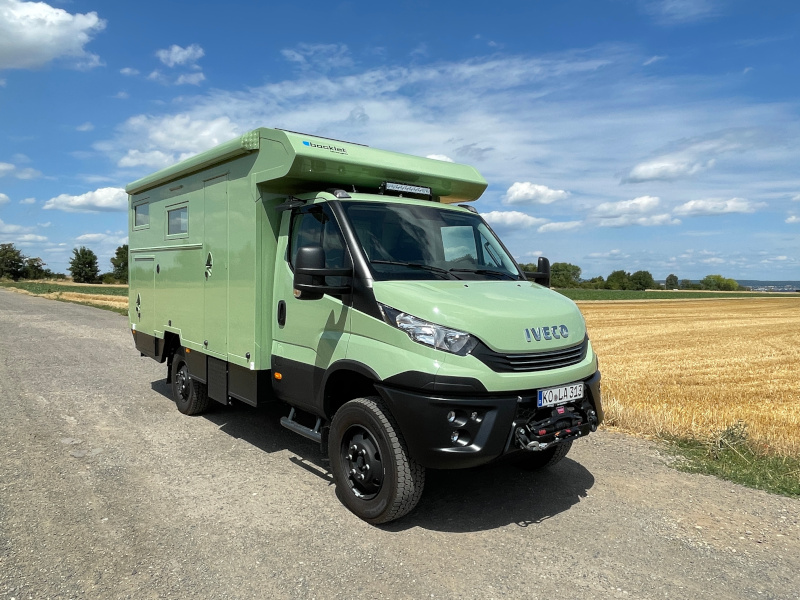

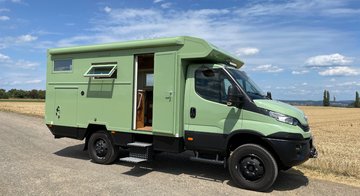

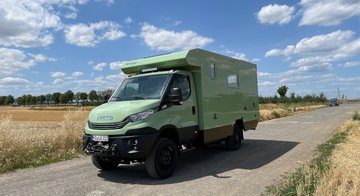

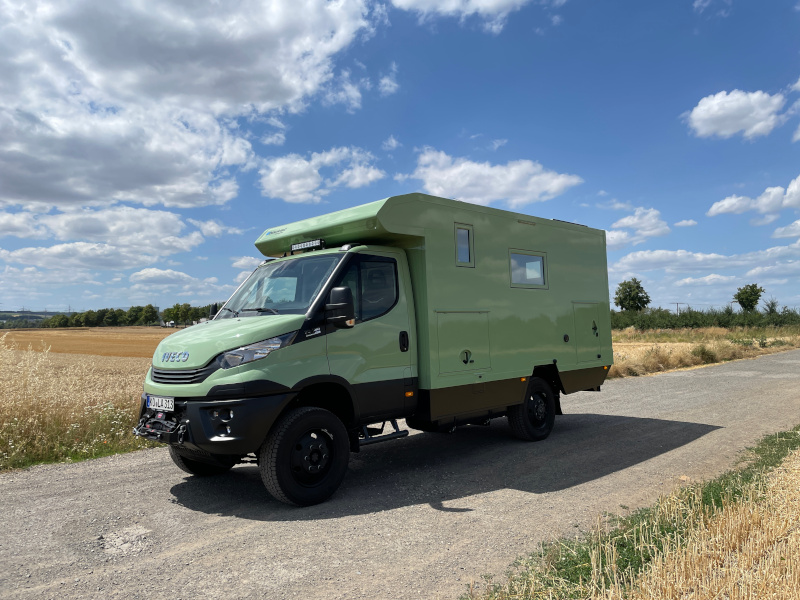

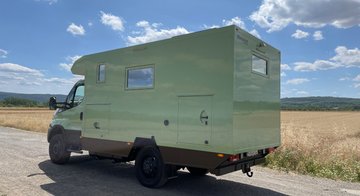

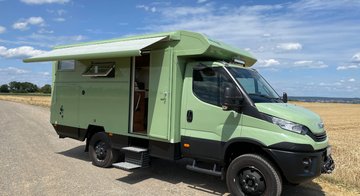

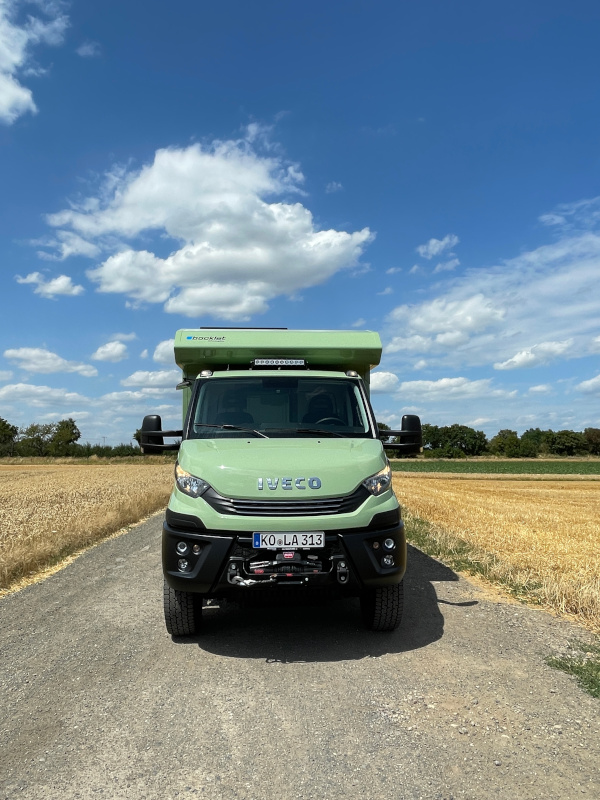

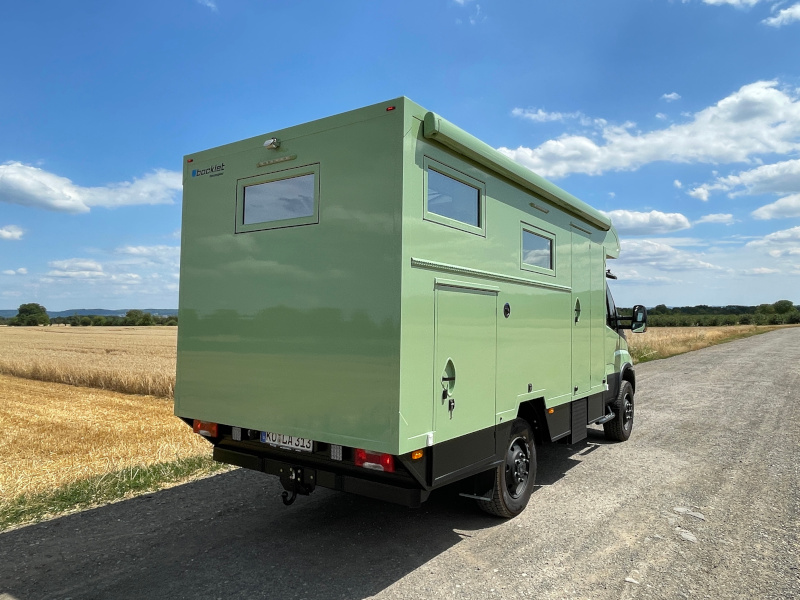

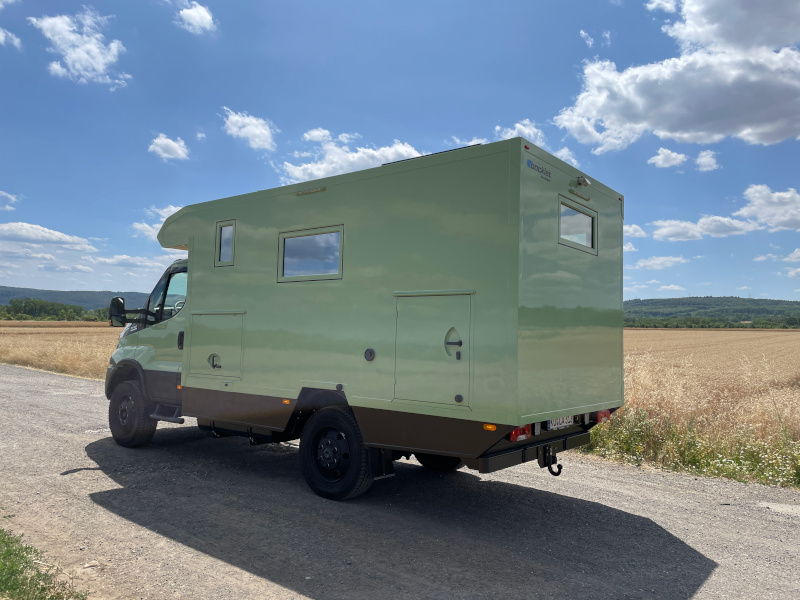

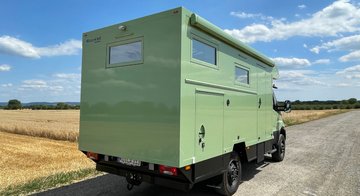

Based on an Iveco Daily 4X4, a compact, all-terrain motorhome has been created for individual travel all over the world. The transverse rear bed can be converted into two fully-fledged single beds in just a few simple steps. There is a large, lowered garage at the rear for carrying bicycles. Generous storage space in the alcove offers room for the important things for a well-planned long-distance trip. This Bocklet long-distance motorhome is manufactured and equipped to the highest technical and craftsmanship standards.
Technical Data
Chassis
| Chassis | Iveco Daily 4X4 70S18HA8WX |
| Wheelbase | 3780 |
| GVW | 7.000 |
| Engine | 4 Zylinder |
| Capacity | 2998 |
| Engine power | 132/179 |
Body
| cold bridge-free GRP sandwich construction | |
| Wall thickness | 50 |
| Roof thickness | 50 |
| Bottom thickness | 60 |
Interior
| Length | 4200 |
| Width | 2100 |
| Height | 2000 |
| Seats with belt | 2 |
| Front bed | |
| Rear bed | Fixed rear bed, convertible to two single beds |
Specifications
Chassis and body
- All-wheel drive
- Differential lock rear axle
- Differential lock front axle
- Fuel tank 250L in aluminum design
- Comfort seats
- Bluetooth radio
- Reversing camera, with 5" color monitor, electric locking cap and heating
- Cold bridge-free GRP sandwich construction
- 2 mm top layer, fabric-reinforced
- Cable winch in the front bumper
- cold bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multi-point lock

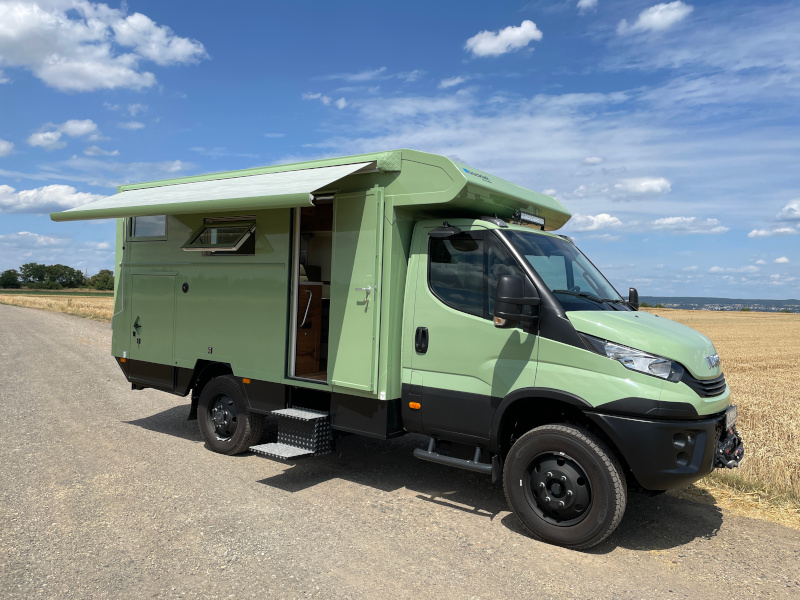

- Side wall awning painted in body color

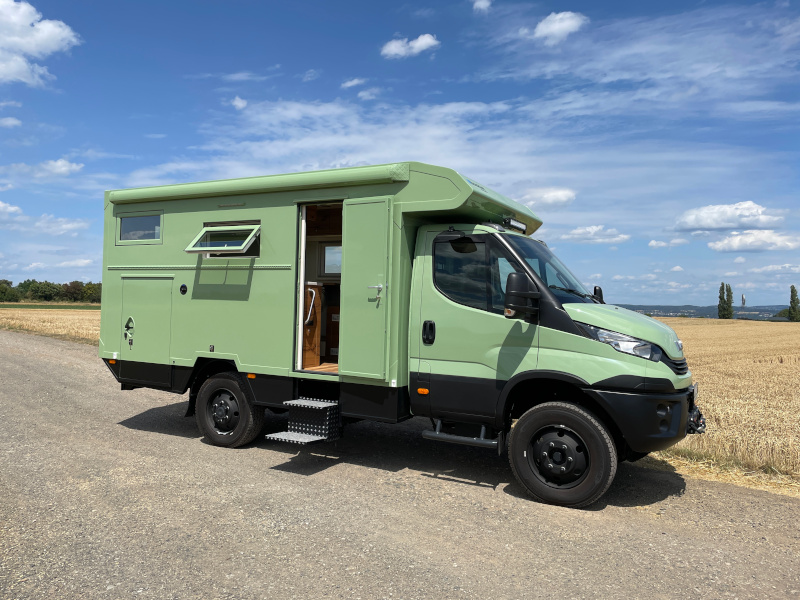

- Electric entrance step with automatic control
- Real glass hinged windows
- Real glass roof hatches
- Cab access with lockable door

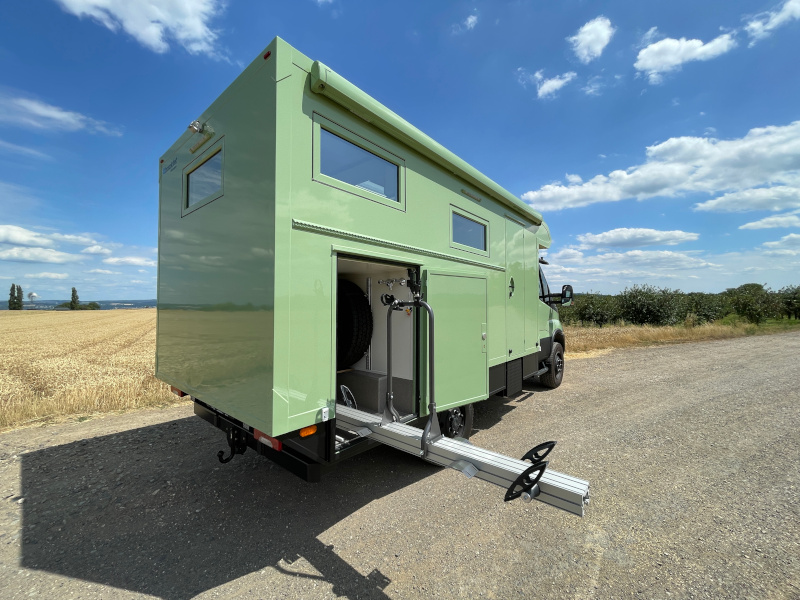

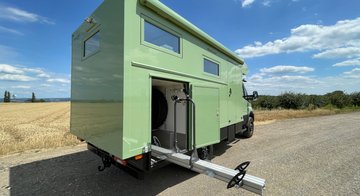

- SlideMove installed in rear garage with 2 pairs of wheel wells
- Spare wheel attachment on the inside
- LED ambient lighting

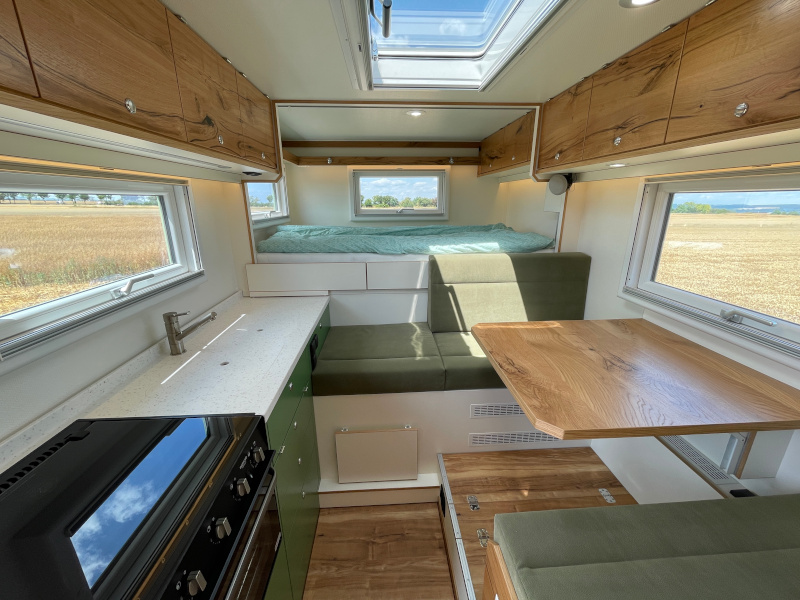

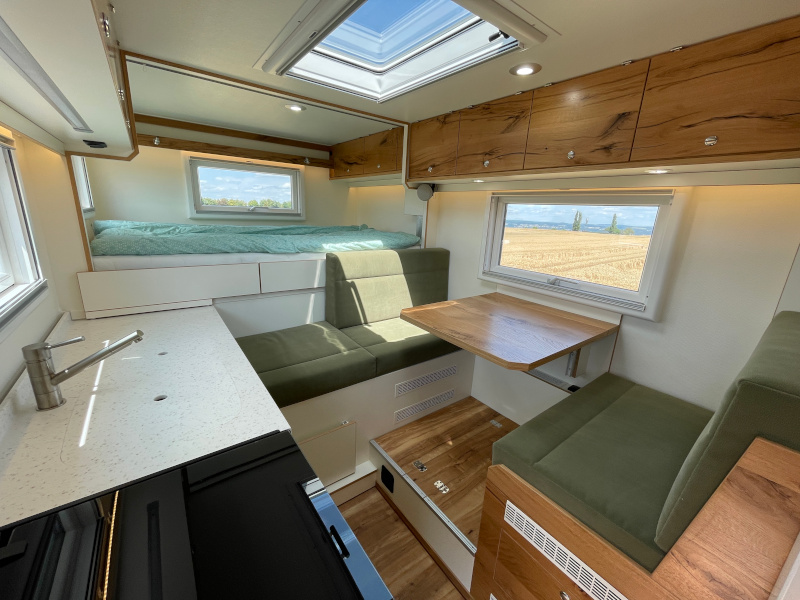

Interior and options

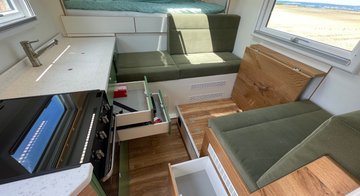

- Furniture interior in a mix of wild oak real wood veneer, white CPL surfaces and green lacquered surfaces

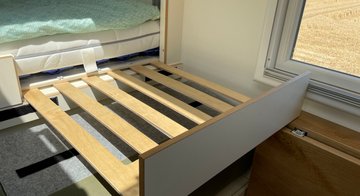

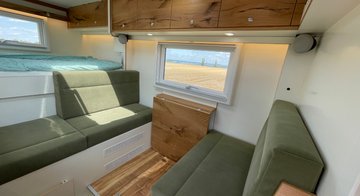

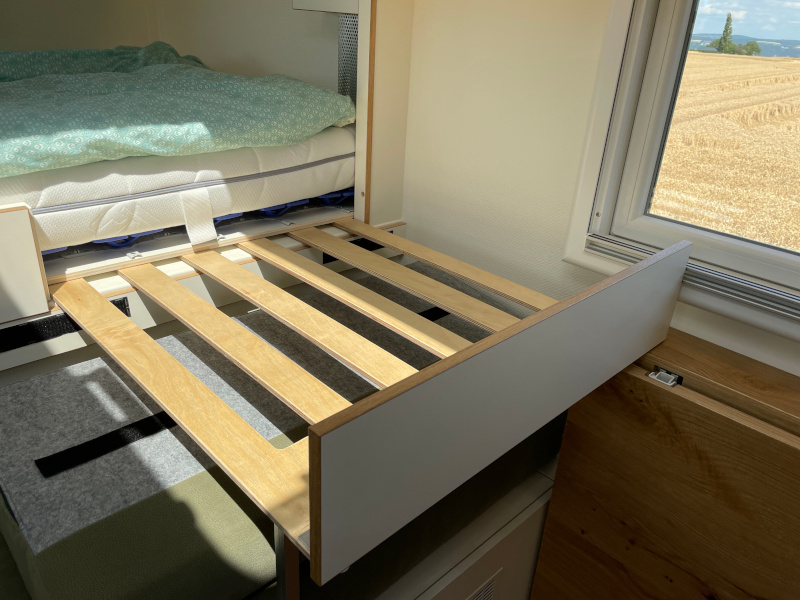

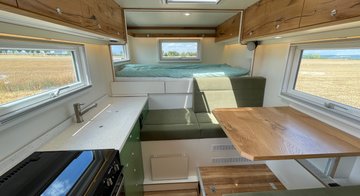

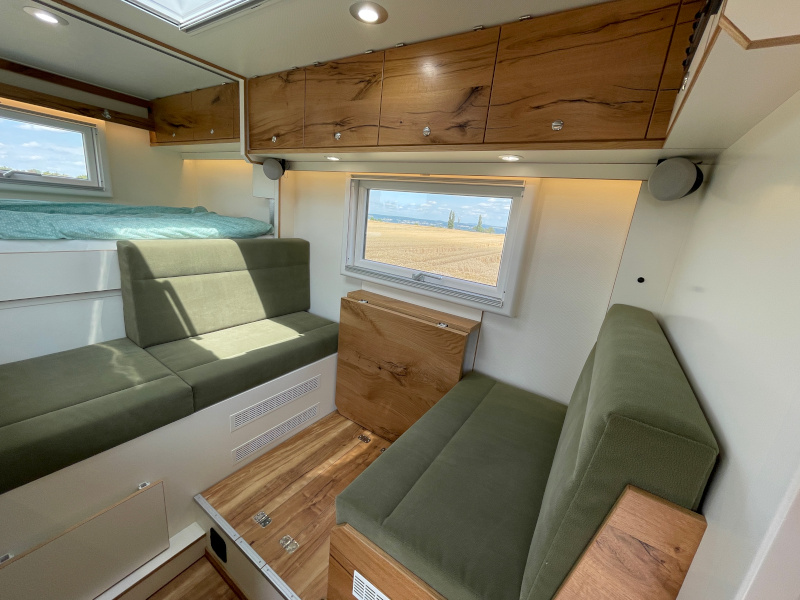

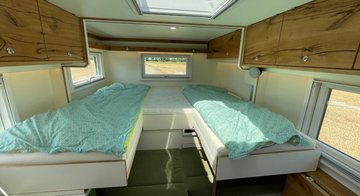

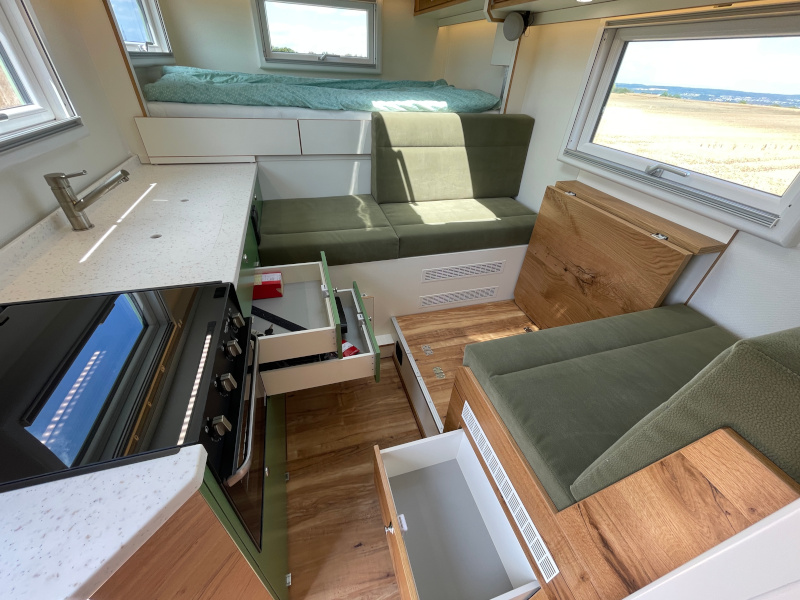

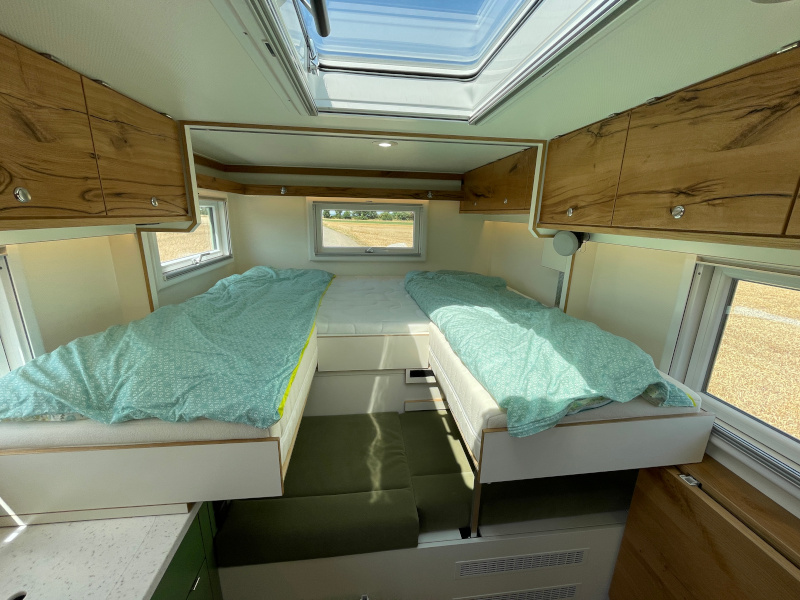

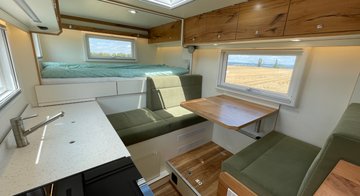

- Fixed rear bed with dinette seating group in front. Rear bed with two pull-outs can be converted into lengthways beds
- Seat upholstery with fabric cover
- Double floor in the bench seat area
- Gas-powered hot water heater with electric cartridge
- Additional diesel heater hot air
- Battery capacity 2x330Ah lithium batteries with BMS
- Automatic charger 12V /80 A
- Charging booster 70A
- Inverter 1500W
- PV system 720WP
- Control panel with ampere-hour meter
- LED lighting spots, ceiling spots, indirect
- Household taps with single-lever mixer
- Stove 3-burner
- Gas oven with grill

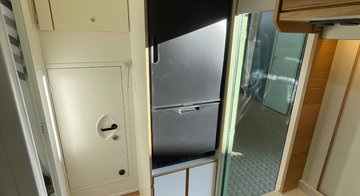

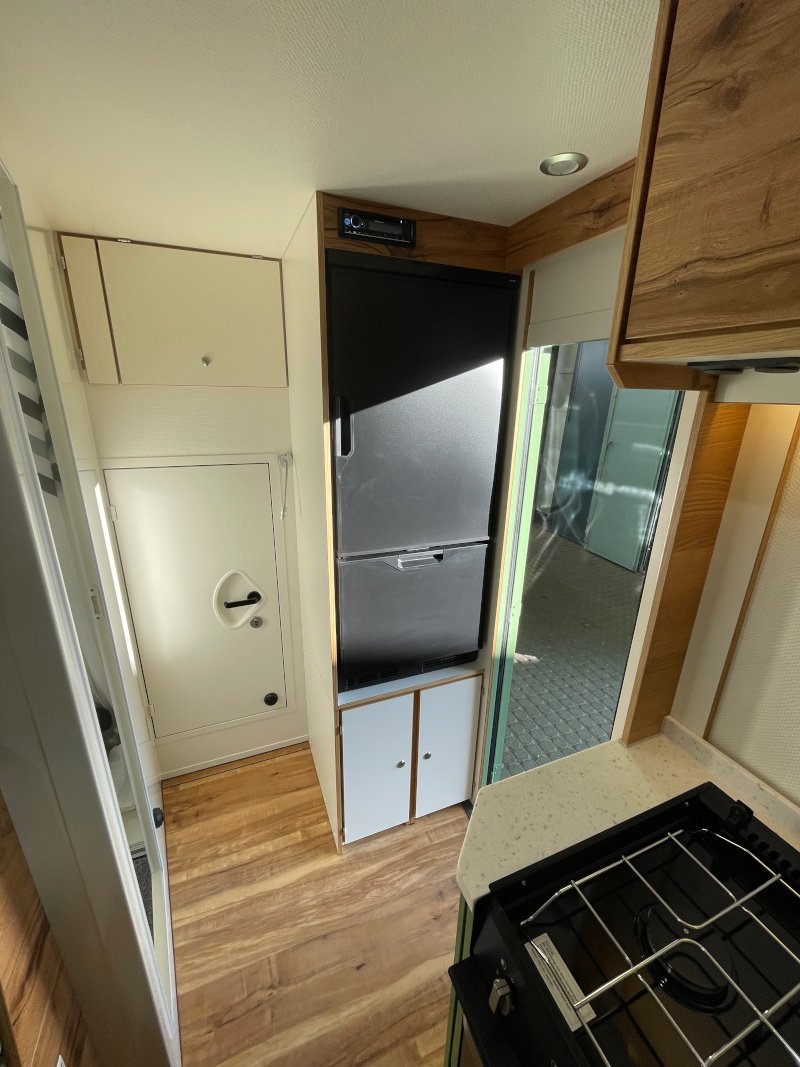

- Compressor fridge with separate ice compartment
- Tanks inside and heated:
- Fresh water tank approx. 220l
- Waste water tank approx. 100l
- Bathroom with washbasin and small countertop basin, mirror cabinet on outer wall and custom-made shower tray with anti-slip coating
- Separating toilet with ventilation
