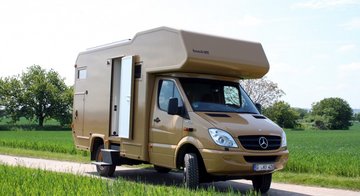

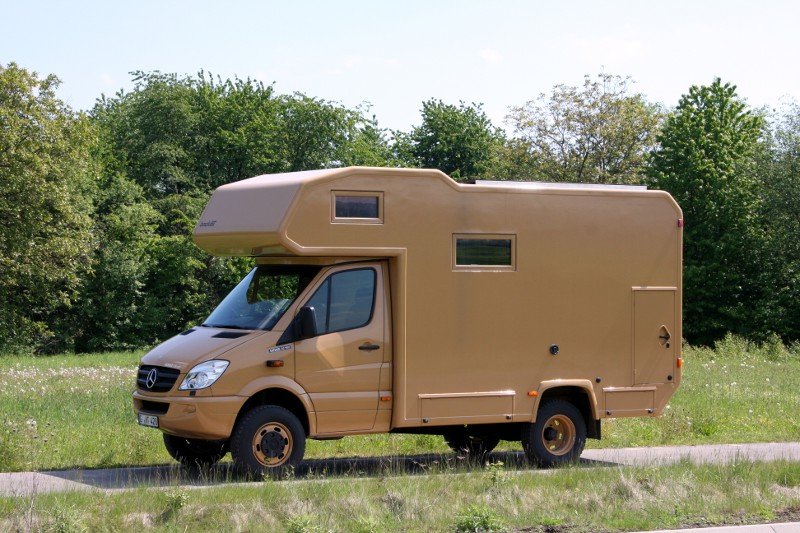

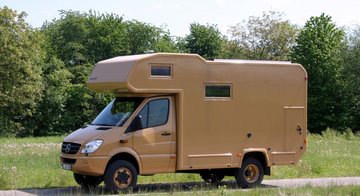

Bocklet

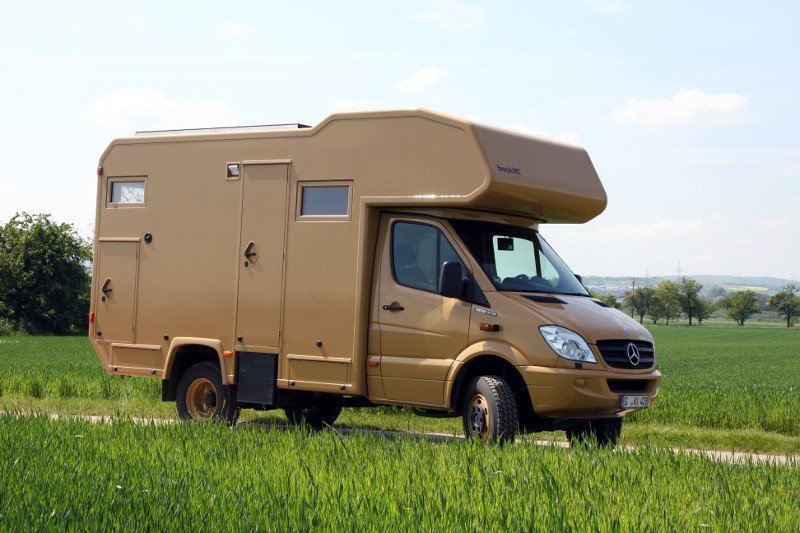

Dakar 640
| Chassis | Mercedes-Sprinter |
| Wheelbase | 3665 mm |
| GVW | 5300 kg |
| L x W x H | 6400 mm x 2180 mm x 3550 mm |
Technical Data
Chassis
| Chassis | Mercedes-Sprinter |
| Wheelbase | 3665 mm |
| GVW | 5300 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | 2987 ccm |
| Engine power | 140/190 kW/PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

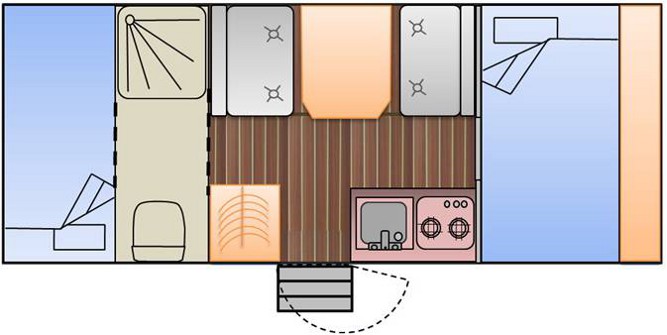

Interior
| Length | 3875 mm |
| Width | 2050 mm |
| Height | 2250 mm |
| Seats with belt | - |

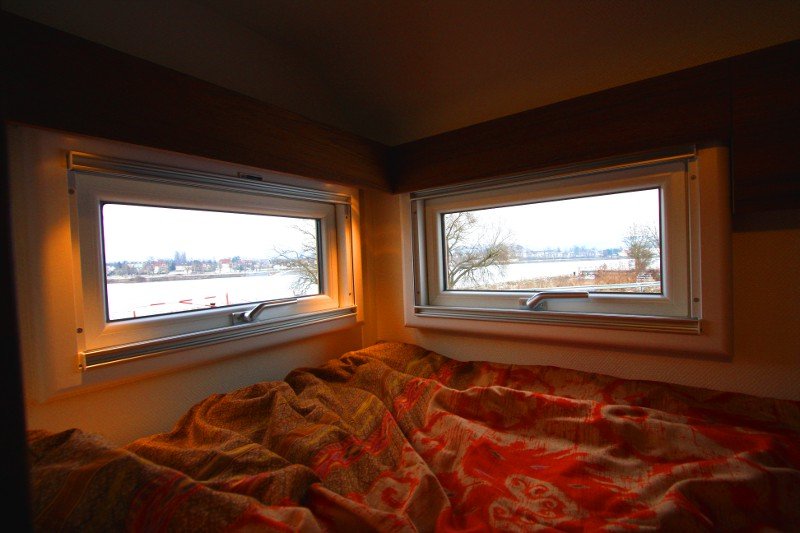

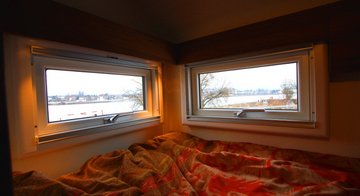

| Front bed | 2000 x 1100 mm |
| Rear bed | 850 x 2000 mm |
Specifications
Chassis and body
- ABS
- fuel tank 100 l
- permanent 4WD
- off-road gear reduction
- vehicle lift - up with single wired rear axle
- font / rear axle lock
- comfort seats
- radio CD
- double rear view camera
- air conditioner
- free of thermal bridges
- bocklet doors and hatches, free of thermal bridges
- frontwall in 50 mm GRP sandwich-construction with lockable door
- electric and automatic staircase
- hardglas swing-out windows
- skylight Heki 1
- skylight Fan Tastic Vent
- outer storage space on the side
- double-floor
- heated rear storage

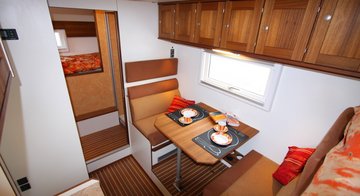

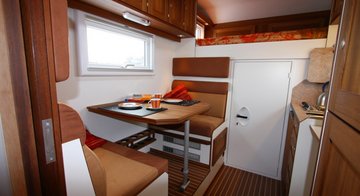

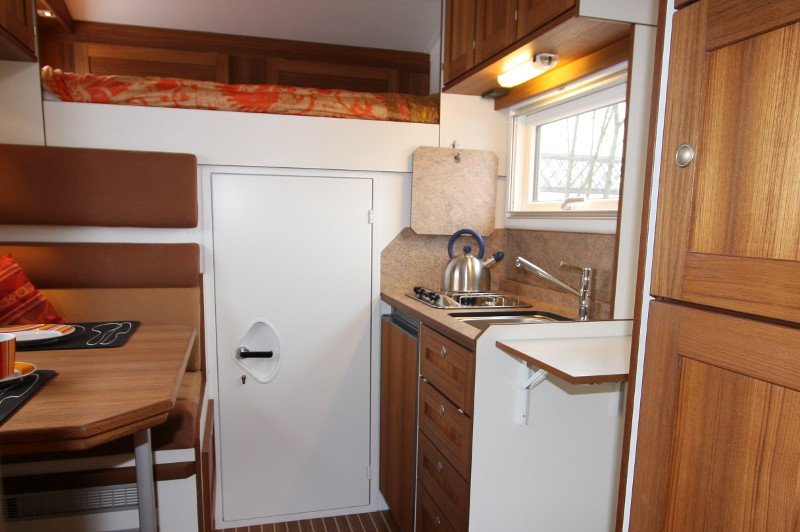

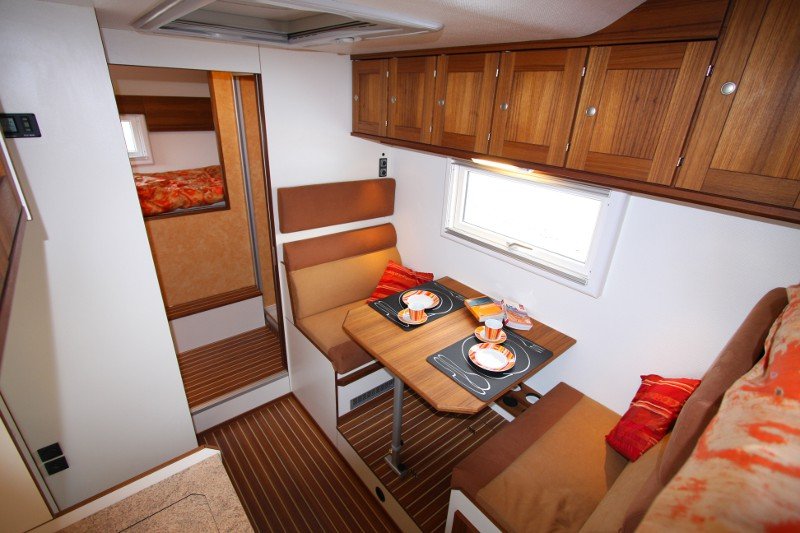

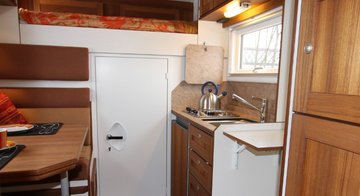

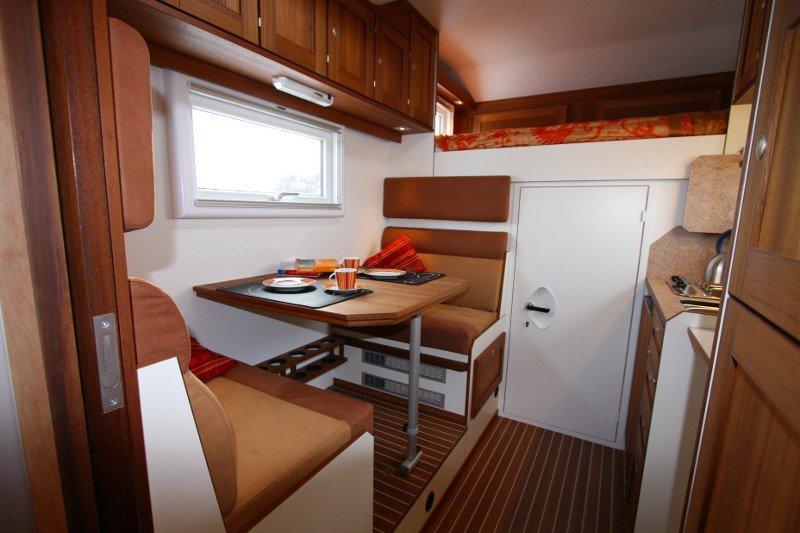

Interior and options
- furniture made of 16mm wood, veneer teak
- seat cushion cover Alcantara
- bottom cover team laminat
- Truma Gas heater
- battery capacity 440Ah, Gel
- automatic charger 12 V / 50 A
- inverter 2000 W
- solar panels 330 W
- control panel
- energy saving spot lights width dimmer
- porcelain toilet with tank
- bath with sliding door, shower with sliding door
- white-armature with single-lever
- 2-flame stove
- Fridge 90 l
- formica coated kitchen work top
- all tanks inside and heated:
- freshwater 300 l
- waste water 150 l
- retention tank 120 l
- gastank 60 l
