Bocklet

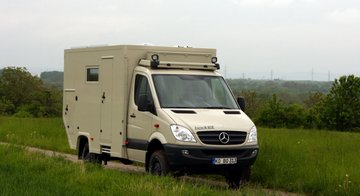

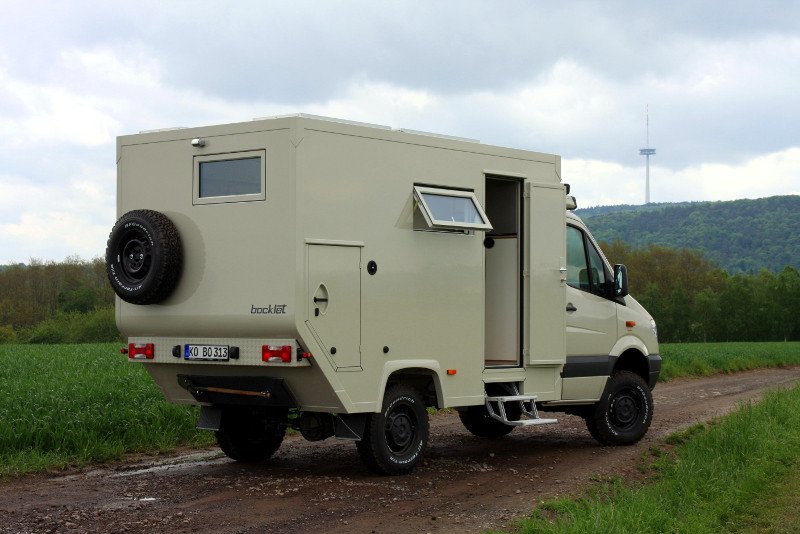

Dakar 615
| Chassis | Mercedes-Benz Sprinter 316 4x4 |
| Wheelbase | 3665 mm |
| GVW | 3.800 kg |
| L x W x H | 6100 mm x 2180 mm x 3050 mm |
Technical Data
Chassis
| Chassis | Mercedes-Benz Sprinter 316 4x4 |
| Wheelbase | 3665 mm |
| GVW | 3.800 kg |
| Engine | 4 Cylinder Turbodiesel |
| Capacity | 2143 ccm |
| Engine power | 120/163 kW/PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

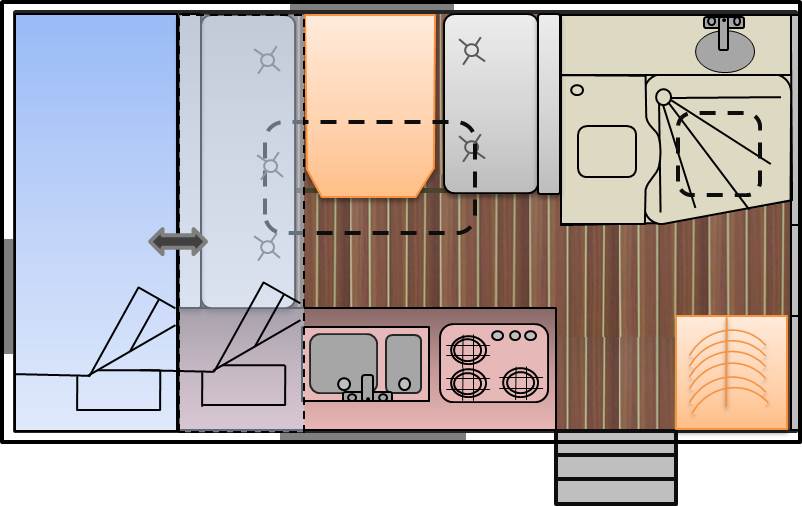

Interior
| Length | 3550 mm |
| Width | 2050 mm |
| Height | 1950 mm |
| Seats with belt | 2 mit Dreipunktgurt |
| Front bed | - |

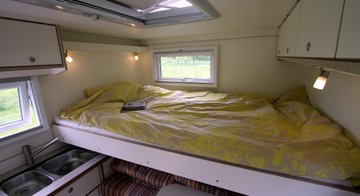

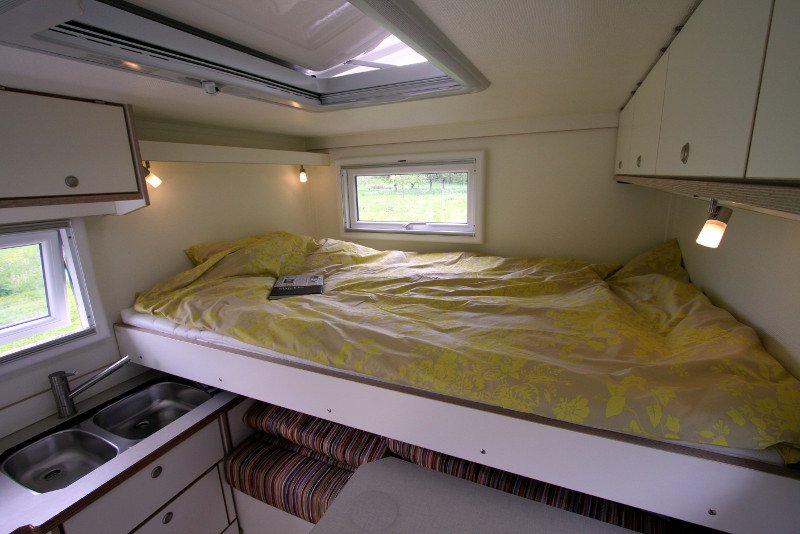

| Rear bed | 2000 x 1350 mm |
Specifications
Chassis and body
- all-wheel-drive
- diff-lock rear axle
- fuel tank 100 l
- comfort seats
- radio CD
- rear view camera
- free of thermal bridges
- cover layer 2mm
- bocklet doors and hatches, free of thermal bridges
- outer storrage space on the side
- outer storrage space beneath rear bed
- electric and automatic stair case
- KCT hardglas swing-out windows
- skylight seitz Heki 1
- skylight Gebo
- pass to driver cab with lockable door
- roof carrier with swing-out
- Dachluke Fan Tastic Vent
- sand plate
- storrage box on roof carrier

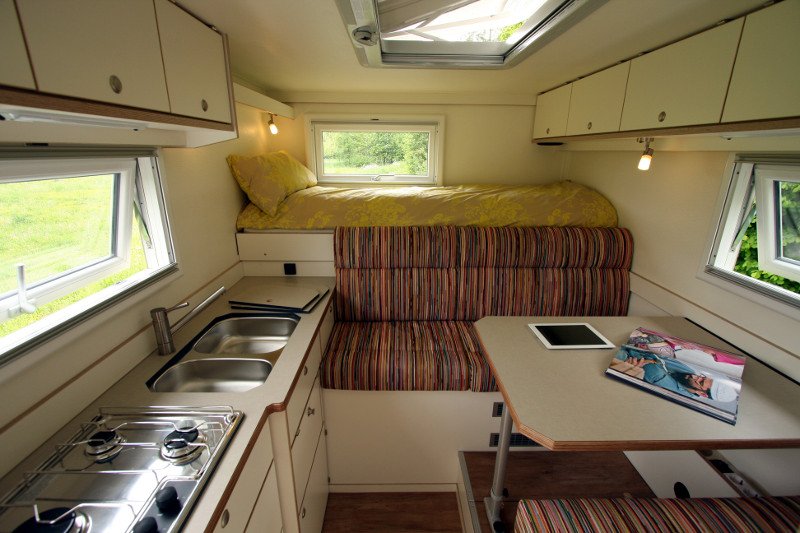

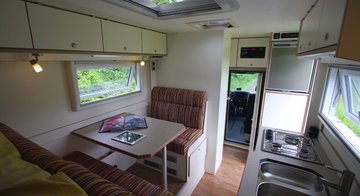

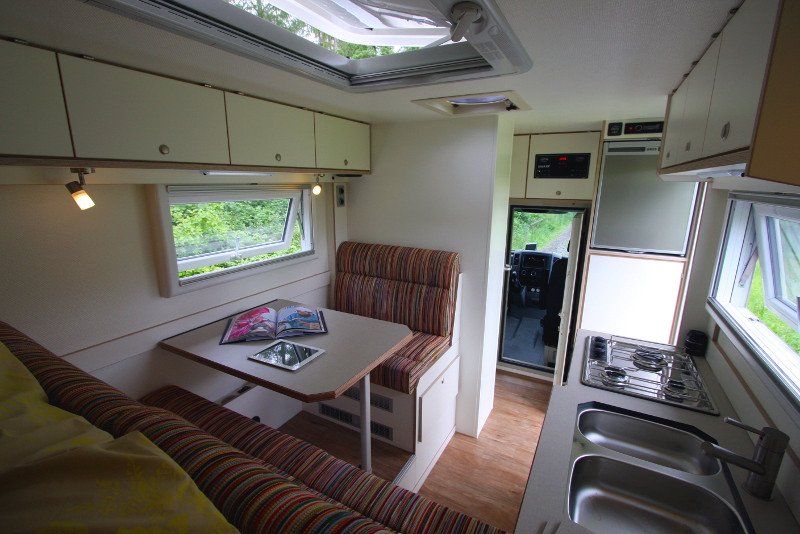

Interior and options
- furniture made of 16mm wood, veneer teak
- seat cushion cover Alcantara
- double-floor in seating area
- gas heater Truma Combi C4E
- battery capacity 220Ah
- automatic charger 12 V / 50 A
- inverter 1200 W
- solar panels 330 W
- control panel
- energy saving lights and LED lights
- cassette toilett
- white-armature with single-lever
- 3-flame stove
- compressor fridge 80 l
- all tanks inside and heated:
- freshwater 200l
- waste water 115l
