Bocklet

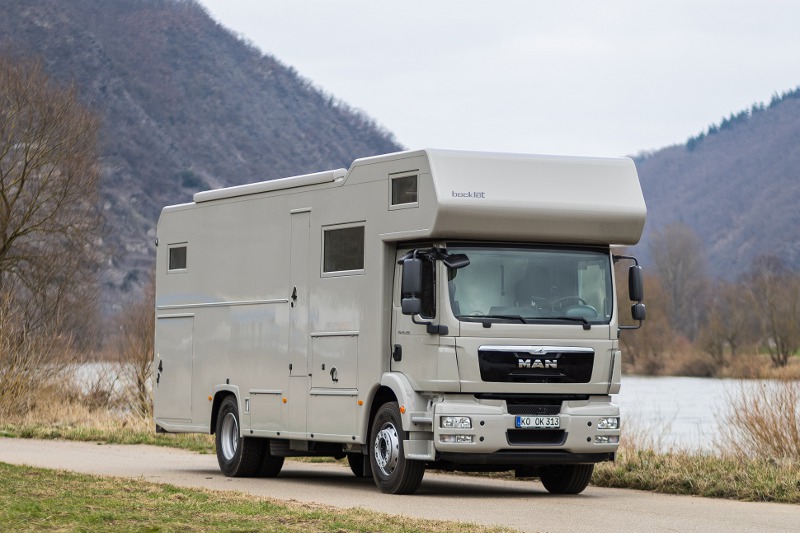

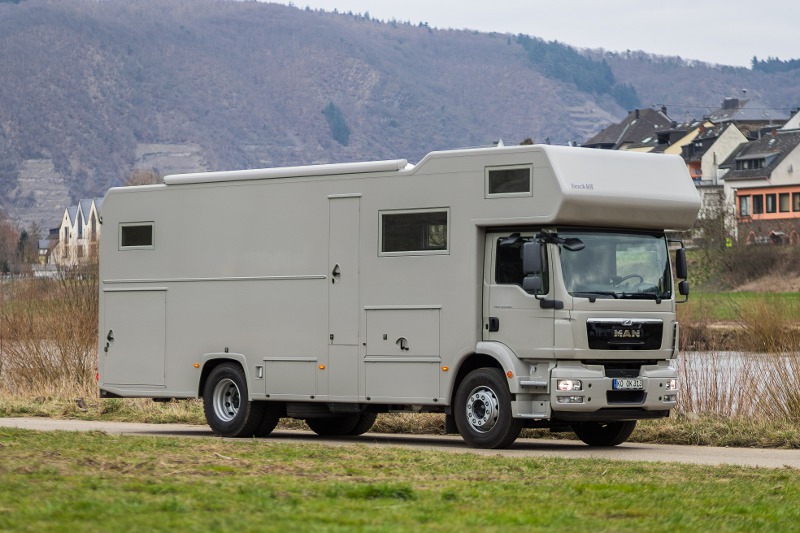

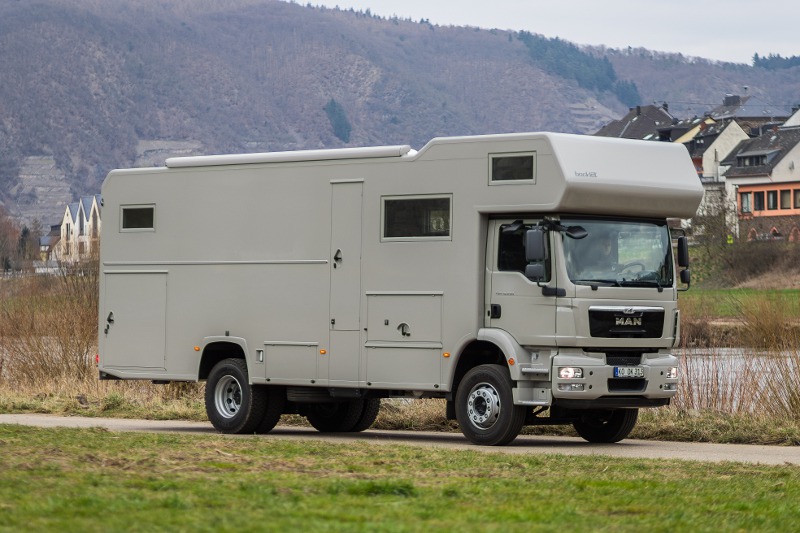

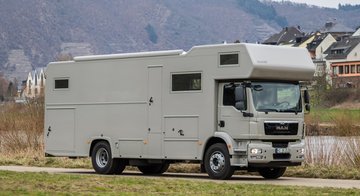

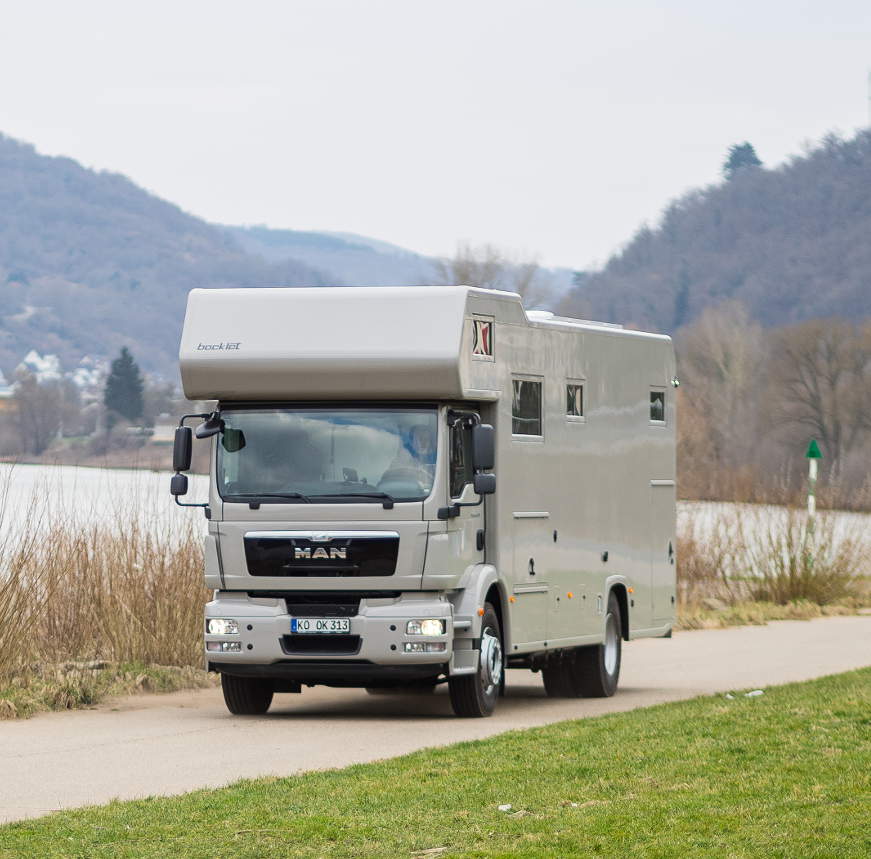

Ando 950HG

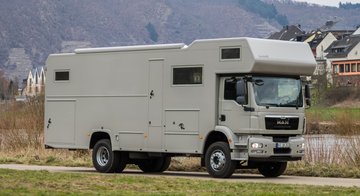

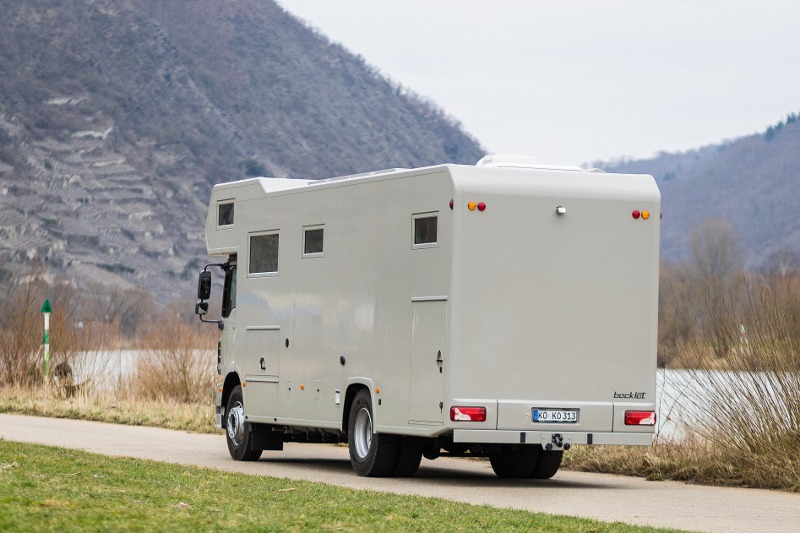

ChassisMAN TGM 18.290
Wheelbase5075
GVW18.000kg
L x W x H9530 x 2550 mm x 3800mm




Technical Data

Chassis

ChassisMAN TGM 18.290
Wheelbase5075
GVW18.000kg
Engine6 Zylinder Turbodiesel
Capacity6400 ccm
Engine power205 kW / 294 PS

Body

GRP body construction
Wall thickness50 mm
Roof thickness50 mm
Bottom thickness60 mm

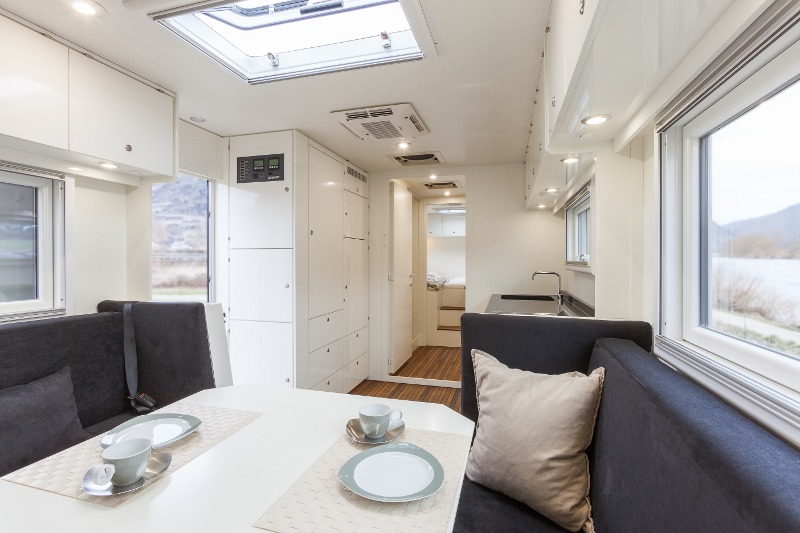

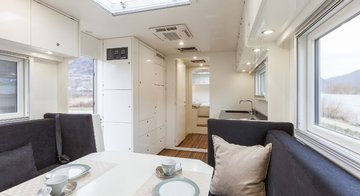

Interior

Length7800 mm
Width2400 mm
Height2040 mm
Seats with belt4 mit seat belts
Front bed2000 x 1600 mm

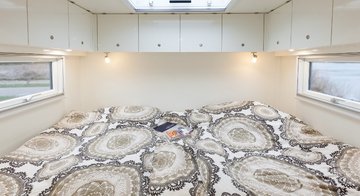

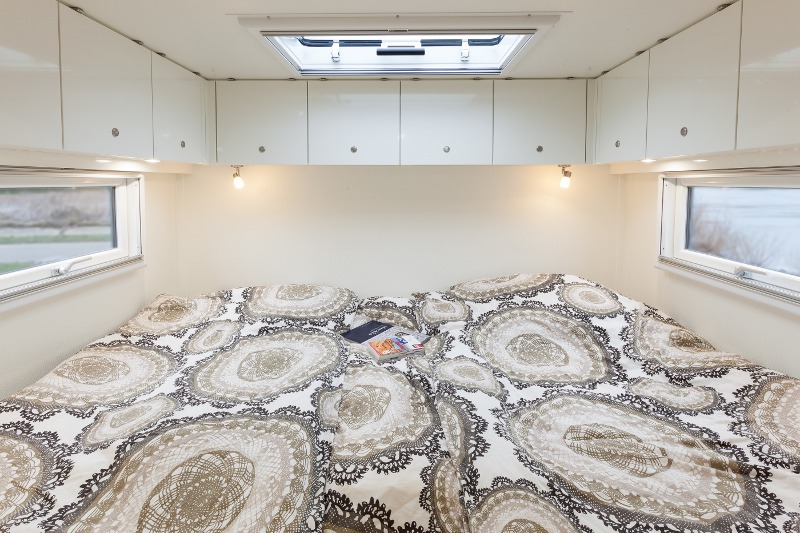

Rear bed2000 x 2200 mm



Specifications

Chassis and body

  • MAN Truck chassis 4x2
  • Rear towing device
  • Diff lock rear axle
  • Air suspension front /rear
  • Fuel tank 600 l
  • Comfort seats
  • Radio CD / navigation systems
  • Rear view camera
  • Aircondition
  • GRP body construction
  • Cover layer 3 mm, rowing mesh
  • frostbridge free bocklet doors and hatches
  • storage compartment under bed, full width
  • electric and automatic staircase
  • glas windows
  • glas skylights
  • electric vents
  • outer storage compartments

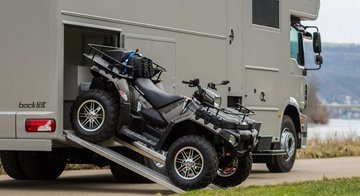

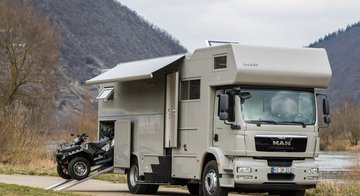

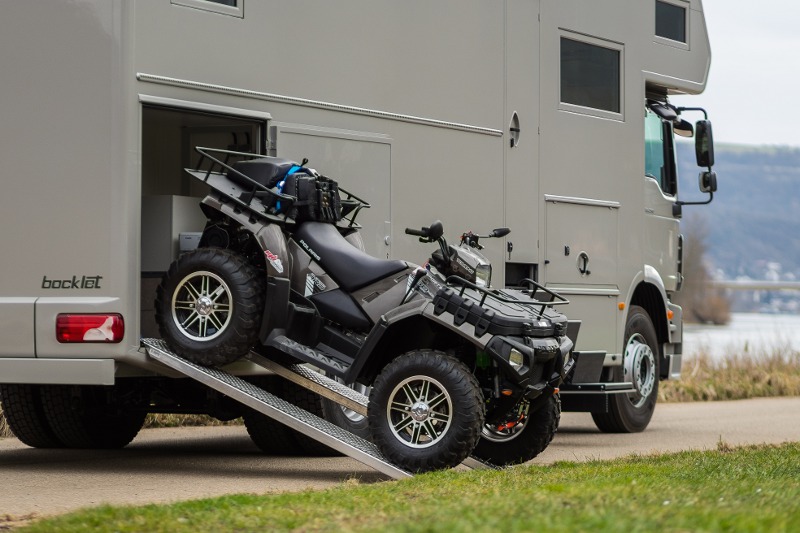

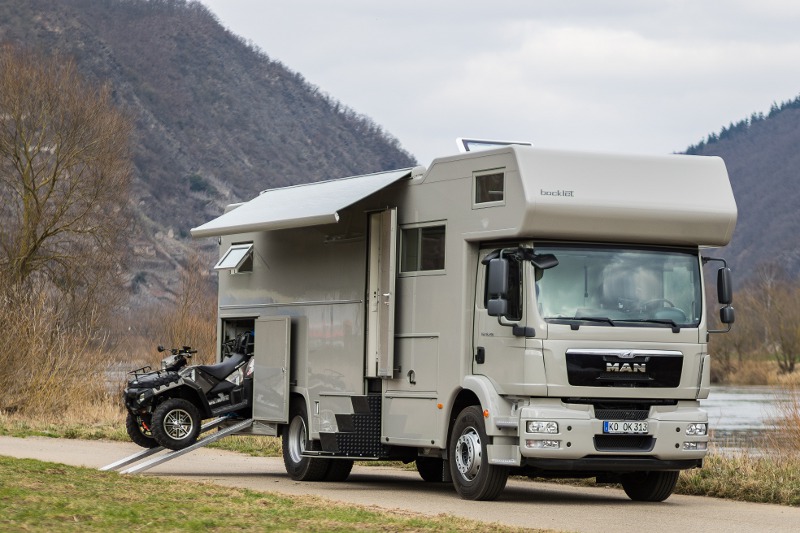

  • Quad garage underneath bed
  • pass to driver cab with lockable door

Interior and options

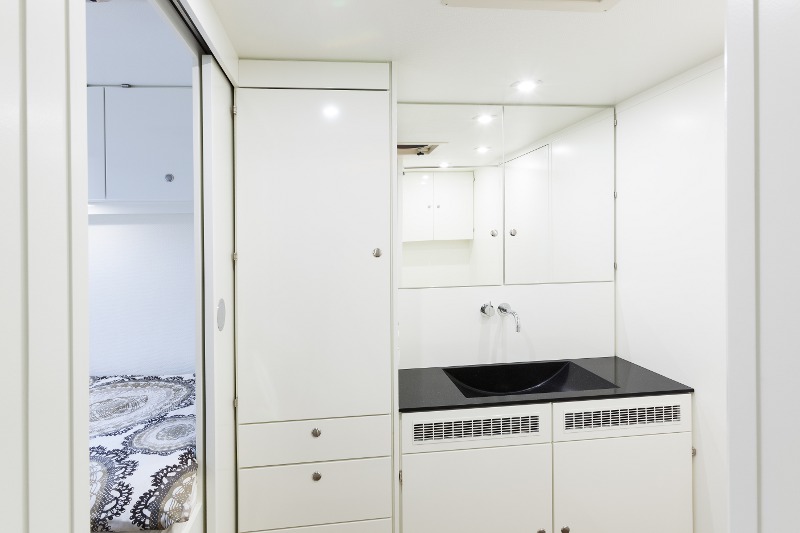

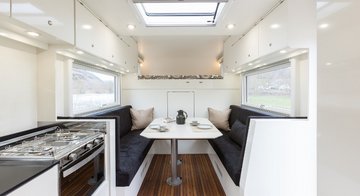

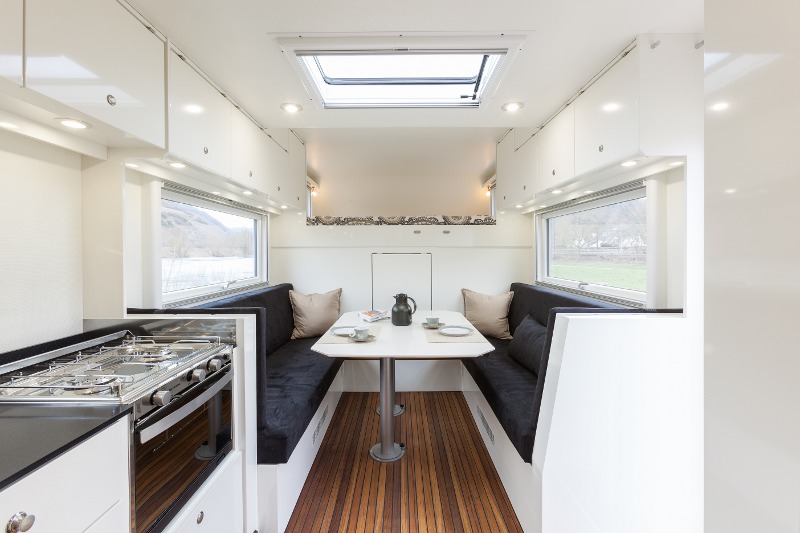

  • Furniture white painted
  • Teak floor
  • Seat cover micro fibre
  • Double floor with storage options
  • Gas Warmwaterheating
  • Heat exchanger
  • Battery capacity 880 Ah /12V
  • Automatic charger 24 V / 100 A
  • Inverter 3 KW
  • Solar installation 570 W
  • 2 Air condition for body
  • control panel
  • LED lightning

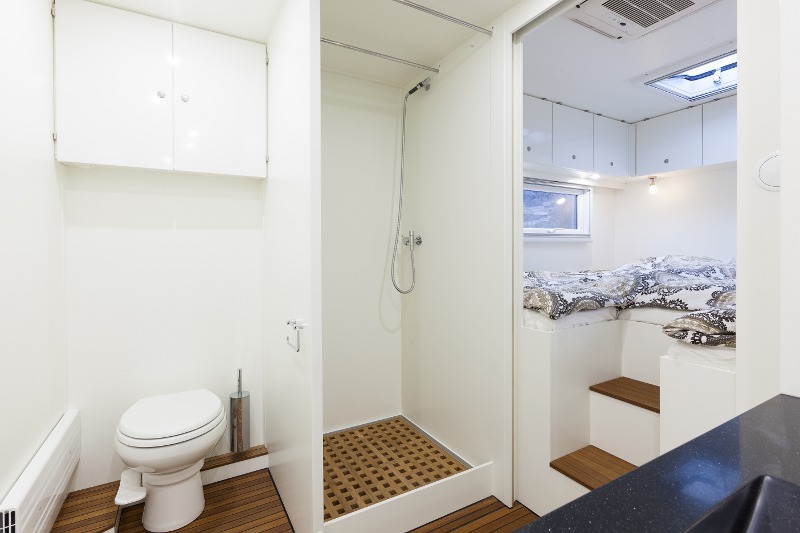

  • Vacuum toilet

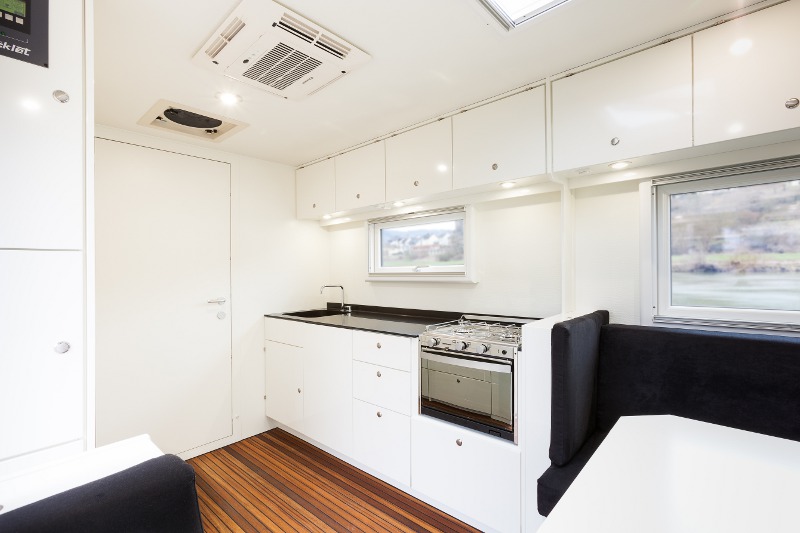

  • 3-flams stove with oven
  • Fridge 170l with 40l freezer
  • Dish washer
  • Washing machine
  • Tanks inside and heated:
  • Fresh water 450l
  • Grey water 300l
  • Black water 150l
