Bocklet
Ando 780

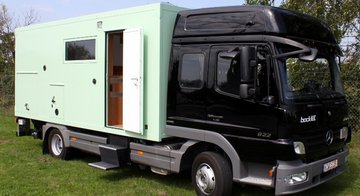

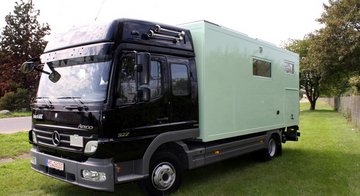

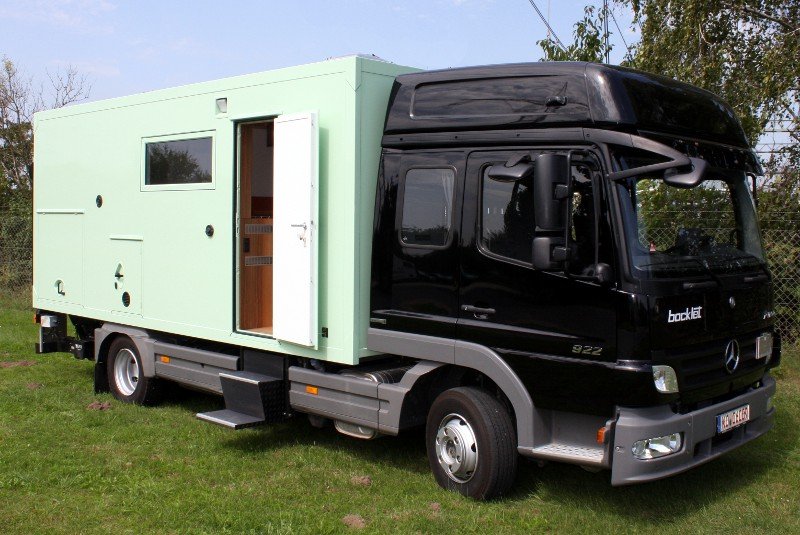

| Chassis | Mercedes-Benz Atego 922 |
| Wheelbase | 4220 mm |
| GVW | 9.500 kg |
| L x W x H | 7800 mm x 2420 mm x 3250 mm |
Technical Data

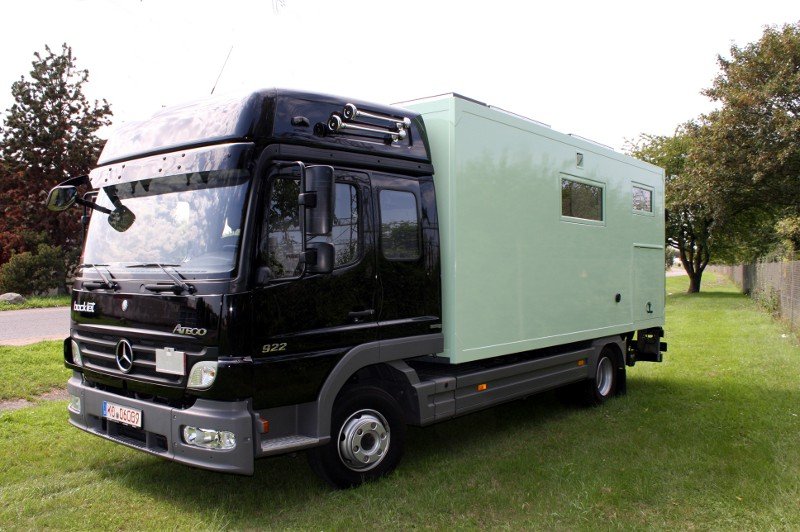

Chassis
| Chassis | Mercedes-Benz Atego 922 |
| Wheelbase | 4220 mm |
| GVW | 9.500 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | 6871 ccm |
| Engine power | 160 kW / 218 PS |

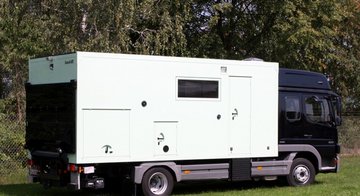

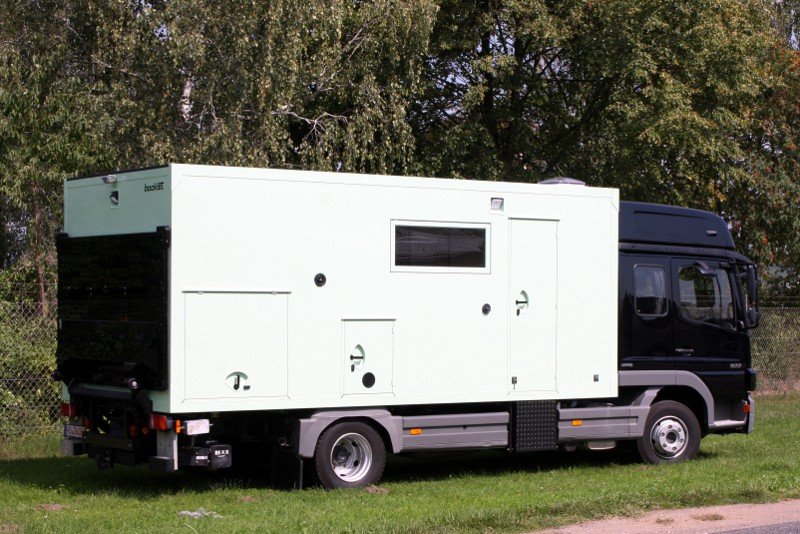

Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

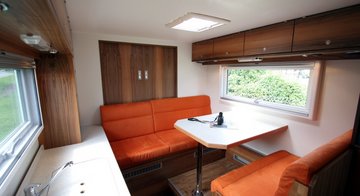

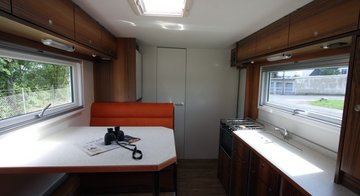

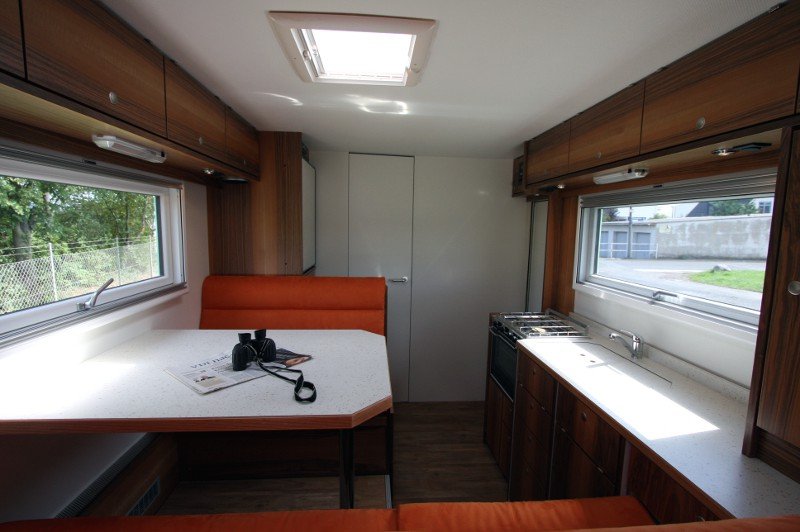

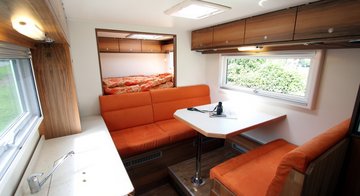

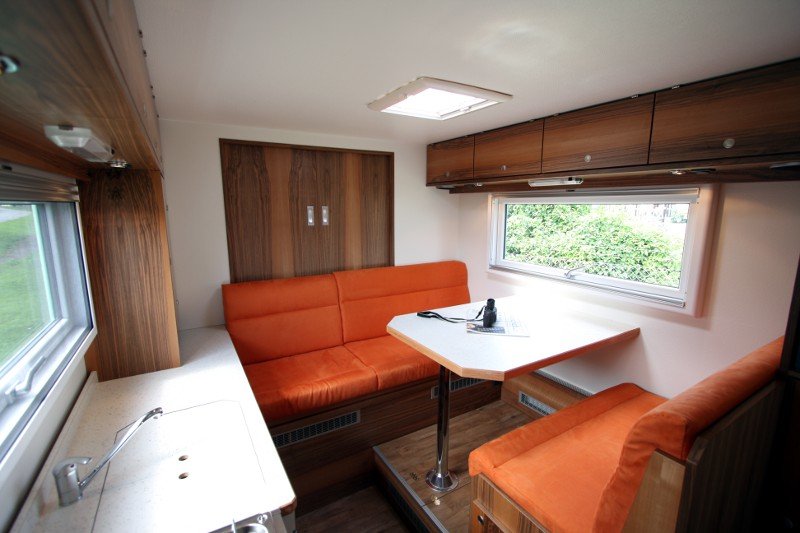

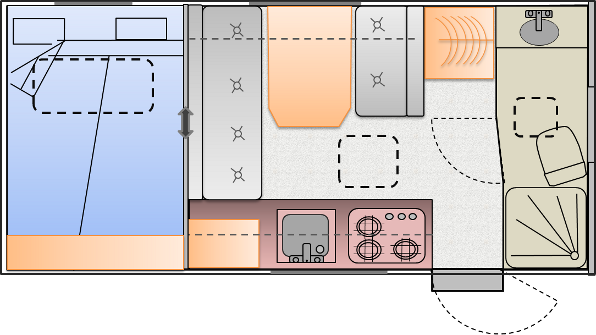

Interior
| Length | 5100 mm |
| Width | 2300 mm |
| Height | 2050 mm |
| Seats with belt | 4 with 3-point belt |
| Front bed | - |

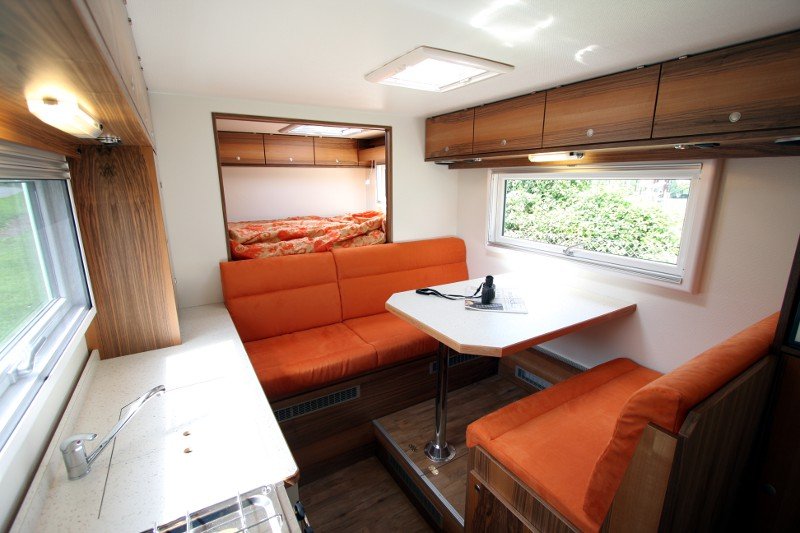

| Rear bed | 2000 x 1600 mm |
Specifications
Chassis and body
- fuel tank 180 l
- seats-/ to lie combination
- air conditioner
- park heating
- comfort seats
- radio CD
- rear view camera
- free of thermal bridges
- bocklet doors and hatches, free of thermal bridges
- outer storrage space on the side
- outer storrage space beneath rear bed
- electric and automatic staircase
- KCT hardglas swing-out windows
- skylight Heki 1
- skylight Fan Tastic Vent
- pass to driver cab with lockable door
Interior and options
- furniture made of 15mm wood, veneer walnut
- seat cushion cover microfibre
- water heater
- battery capacity 440Ah
- automatic charger 24 V / 24 A
- inverter 1600 W
- solar panels 330 W
- control panel
- energy saving spot lights with dimmer
- porcelain vacuum toilett
- white-armature with single-lever

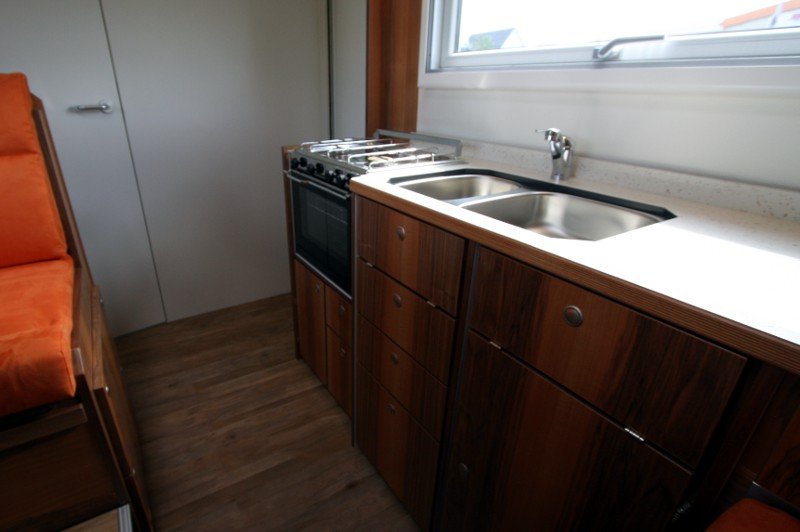

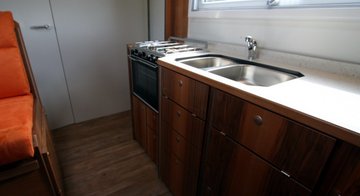

- 3-flame stove
- oven
- compressor frídge 110 l
- all tanks inside and heated:
- freshwater 300l
- waste water 200l
- retention tank 150l
