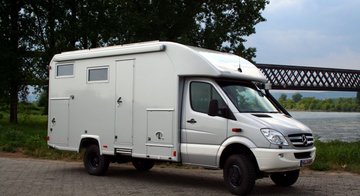

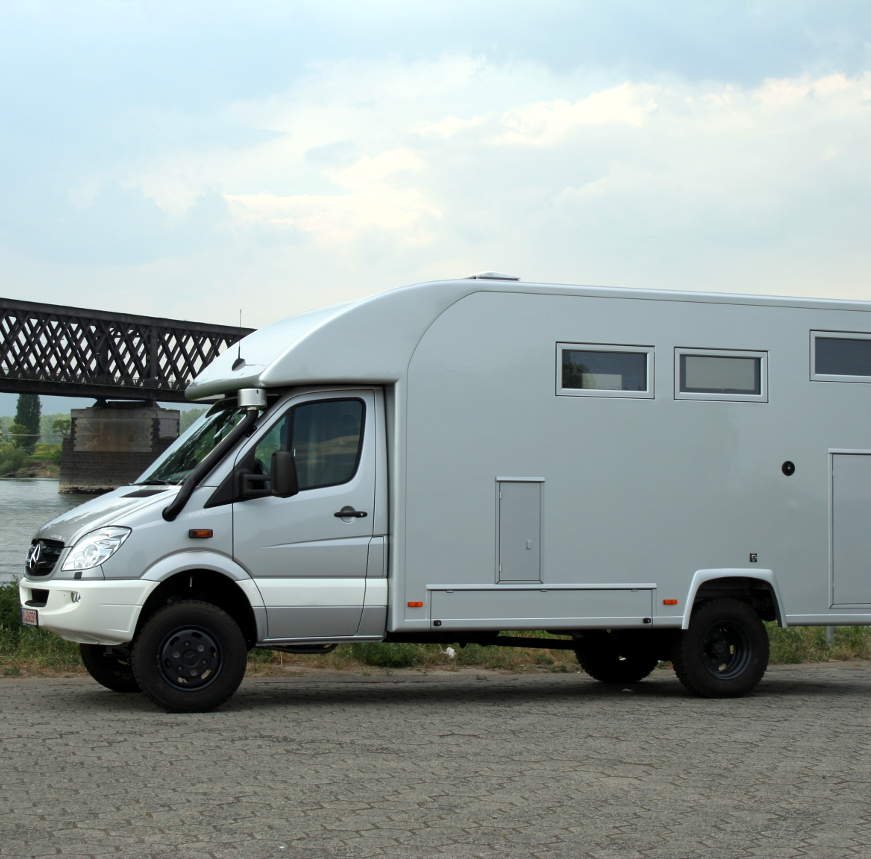

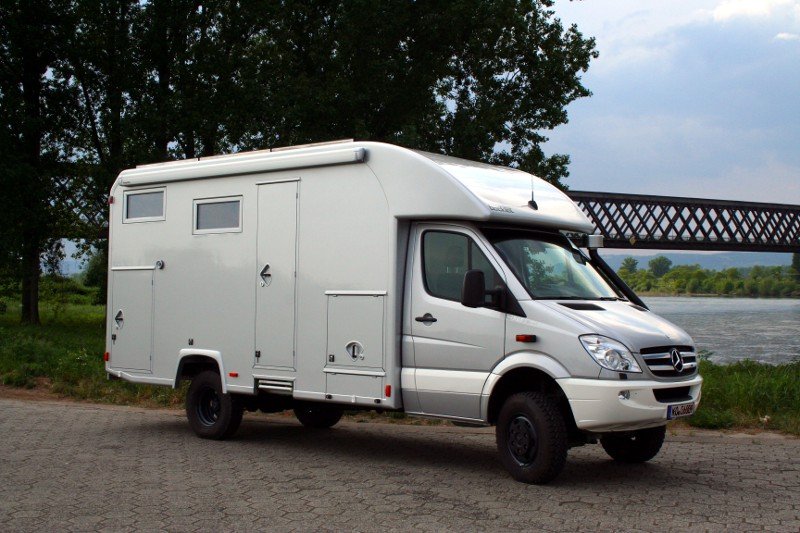

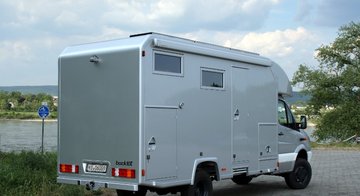

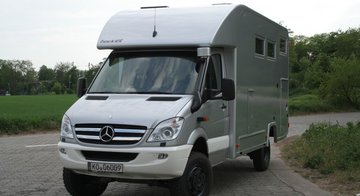

Bocklet
Ando 730
| Chassis | Mercedes-Benz 518 CDI |
| Wheelbase | 4325 mm |
| GVW | 5.000 kg |
| L x W x H | 7300 mm x 2180 mm x 3350 mm |
Technical Data

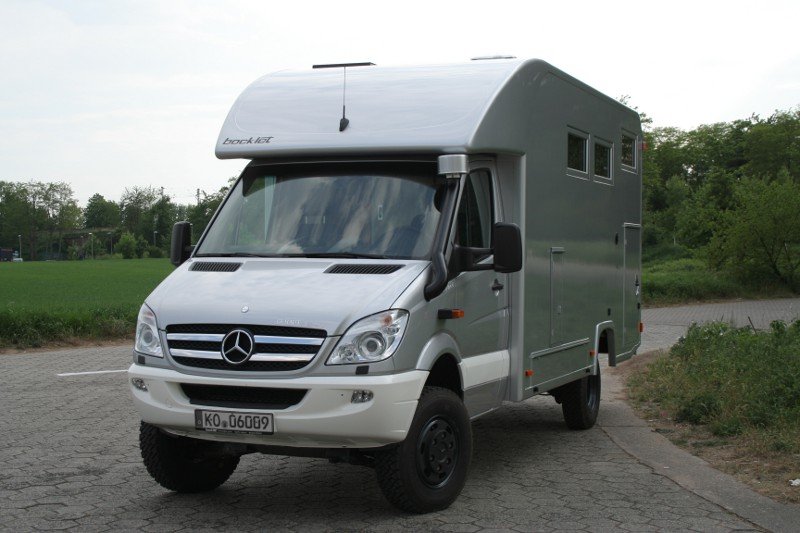

Chassis
| Chassis | Mercedes-Benz 518 CDI |
| Wheelbase | 4325 mm |
| GVW | 5.000 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | 2980 ccm |
| Engine power | 135 kW / 184 PS |

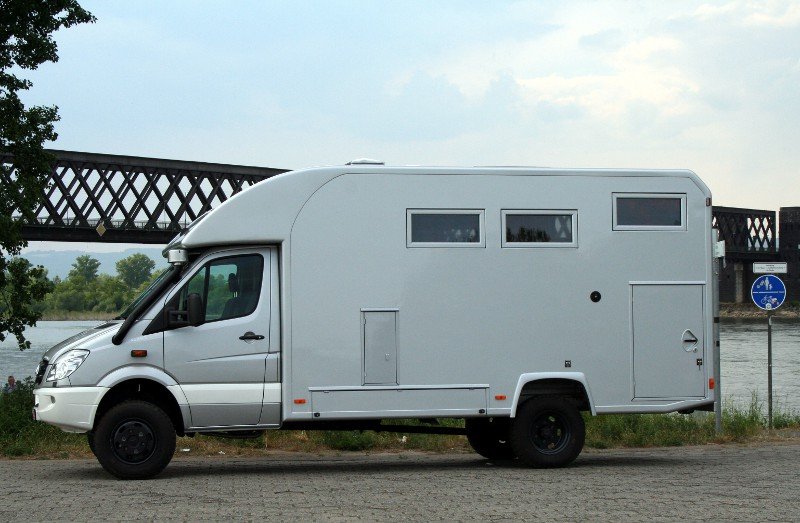

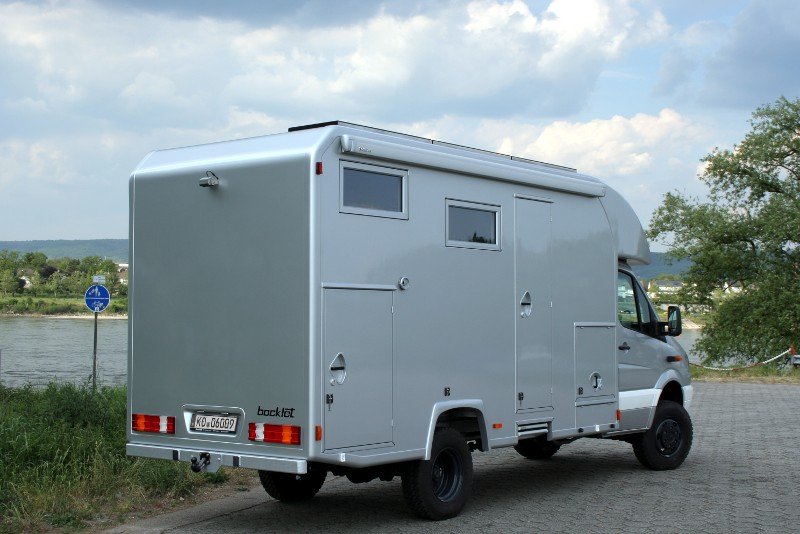

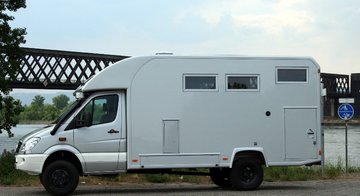

Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

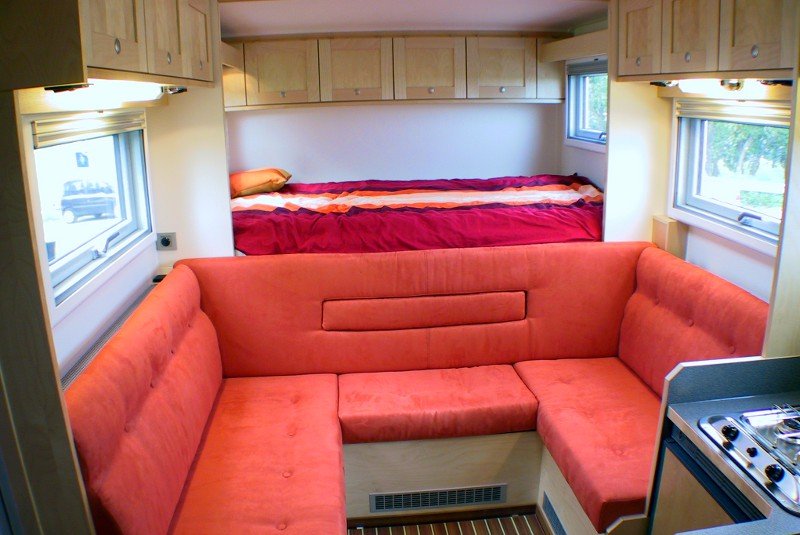

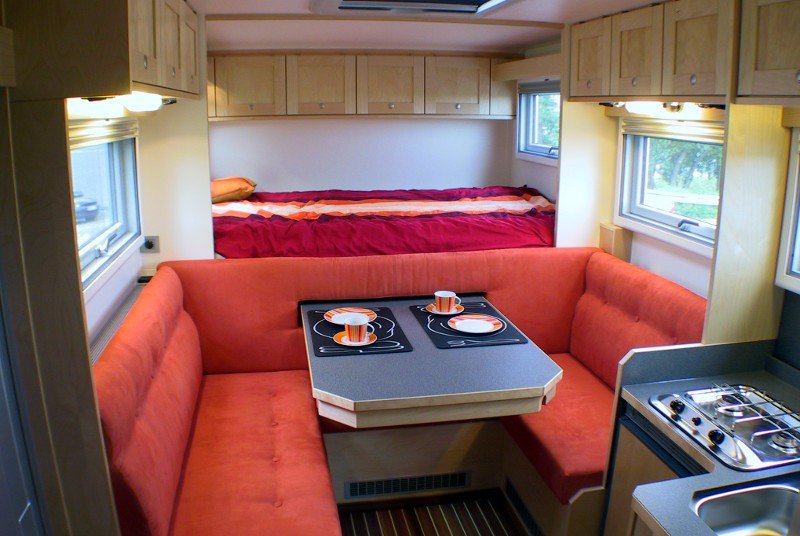

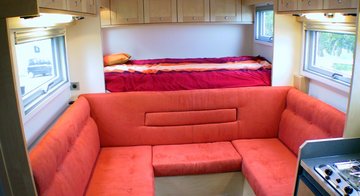

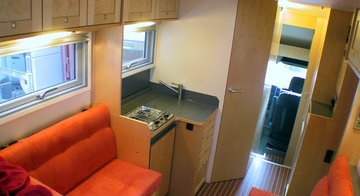

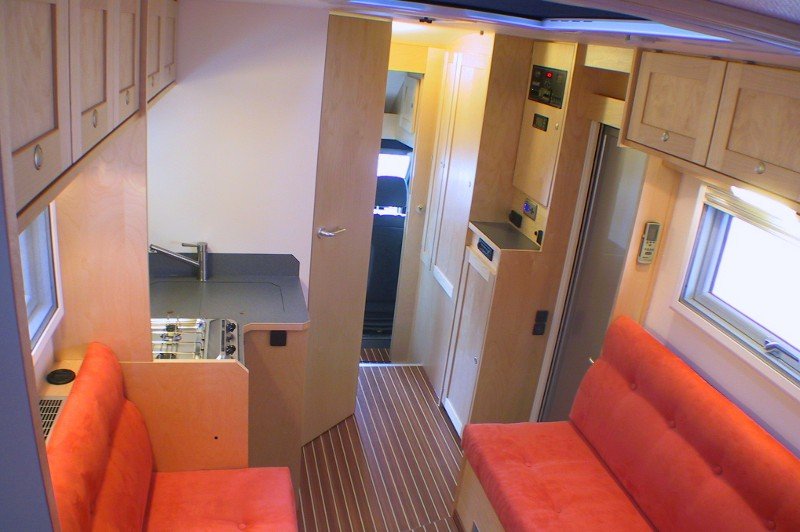

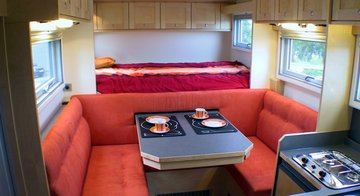

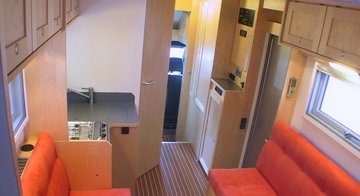

Interior
| Length | 4650 mm |
| Width | 2050 mm |
| Height | 2000 mm |
| Seats with belt | 2 with 3-point belt |
| Front bed | - |
| Rear bed | 2000 x 1350 mm |
Specifications
Chassis and body
- towing device
- diff-lock rear axle
- diff-lock front axle
- fuel tank 100 l
- comfort seats
- radio CD
- rear view camera
- free of thermal bridges
- bocklet doors and hatches, free of thermal bridges
- electric and automatic staircase
- KCT hardglas swing-out windows
- skylight Heki 1
- skylight Fan Tastic Vent
- outer storrage space on the side
- outer storrage space beneath
- pass to driver cab with lockable door

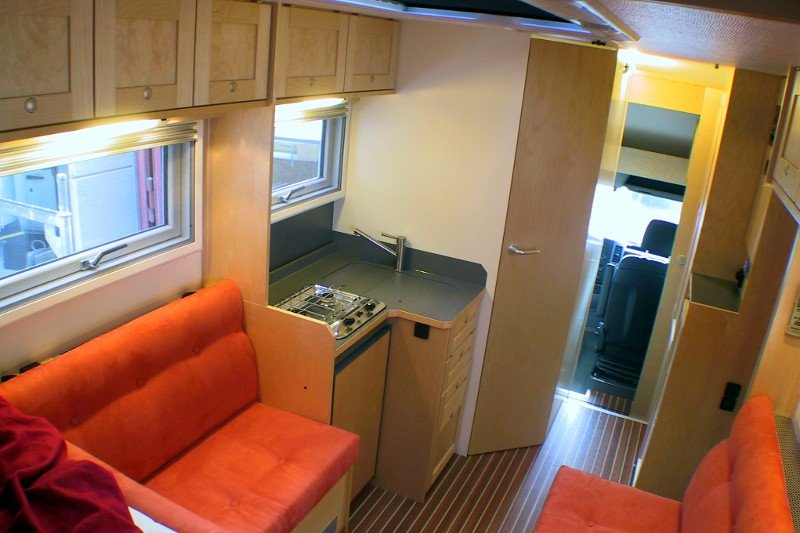

Interior and options
- furniture made of 16mm wood, veneer birch
- seat cushion cover alcantara
- double-floor
- Gas heater
- engine heat exchanger
- battery capacity 220Ah
- automatic charger 12 V / 50 A
- inverter 3000 W
- solar panels 255 W
- control panel
- energy saving spot lights with dimmer
- cassette toilett
- white-armature with single-lever
- 2-flame stove
- compressor fridge 90 l
- all tanks inside and heated:
- freshwater 260l
- waste water 200l
