Bocklet
Ando 680
| Chassis | Iveco Daily 70C21 All Road |
| Wheelbase | 3750 mm |
| GVW | 70000 |
| L x W x H | 6800 x 2370 x 3550 mm |

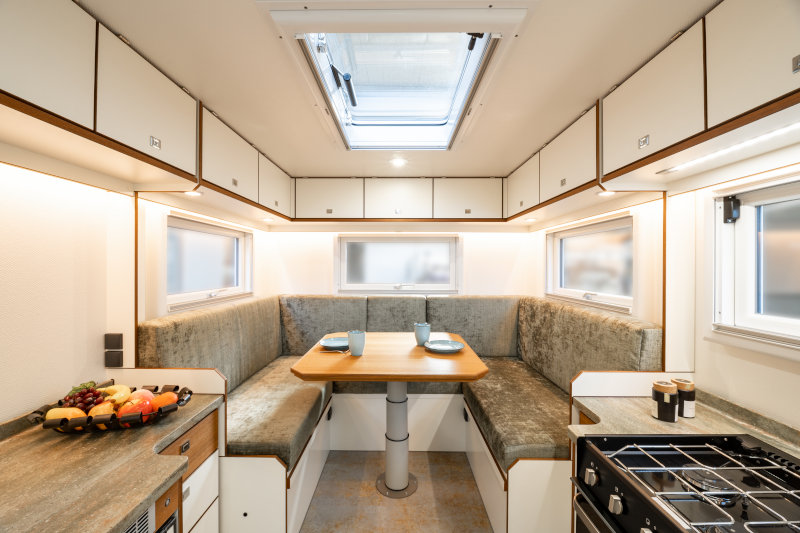

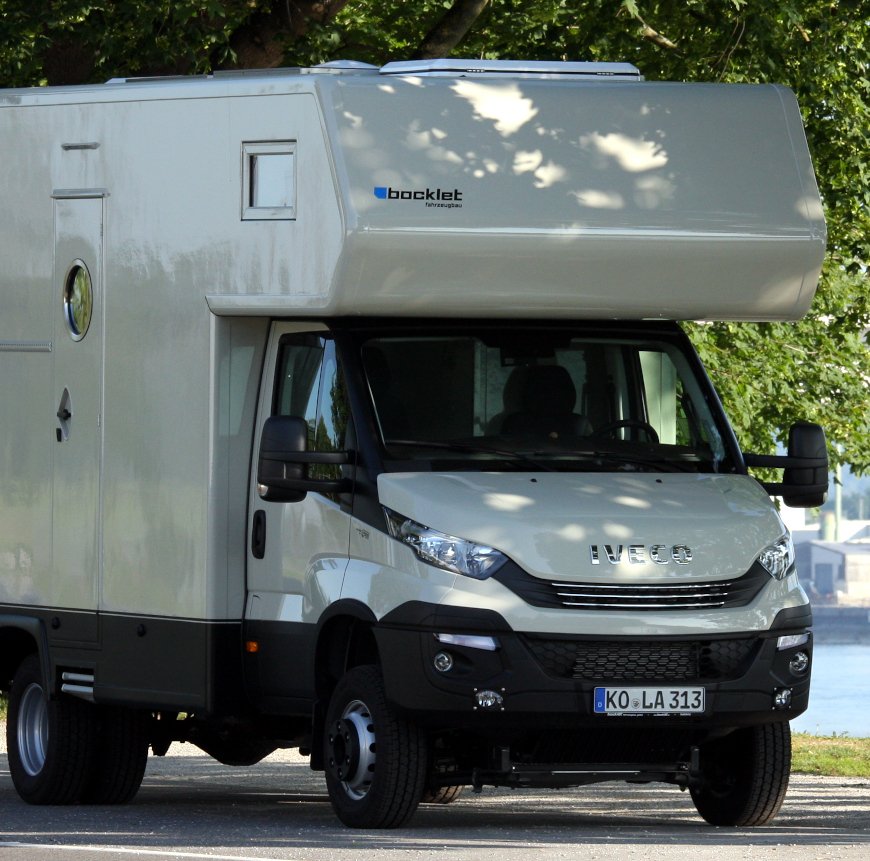

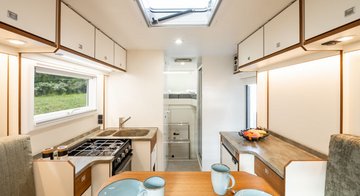

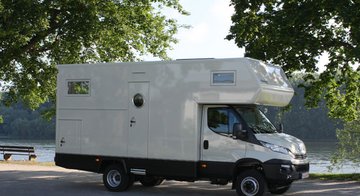

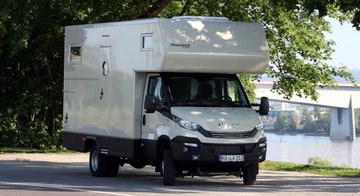

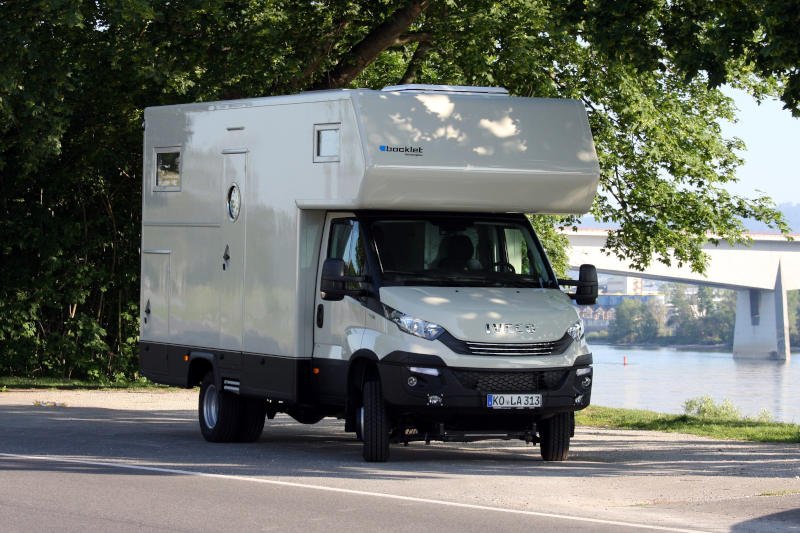

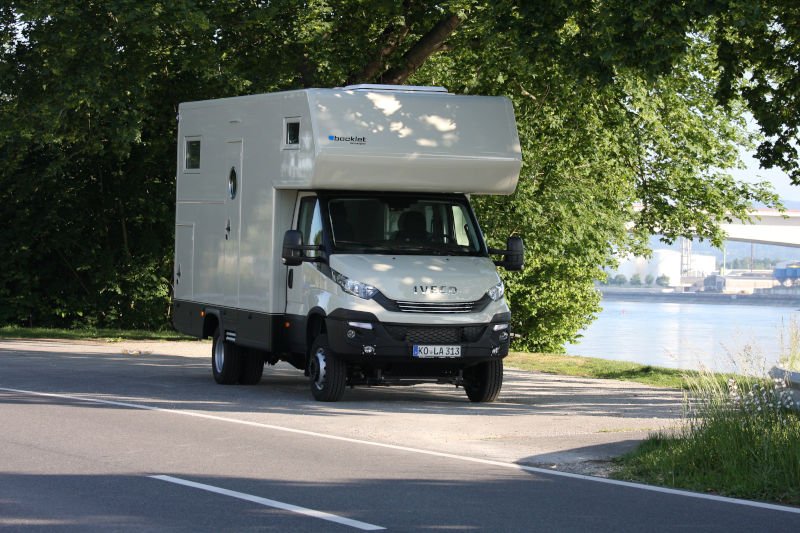

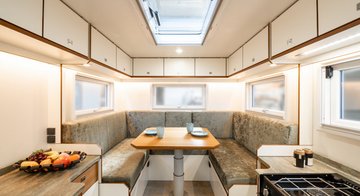

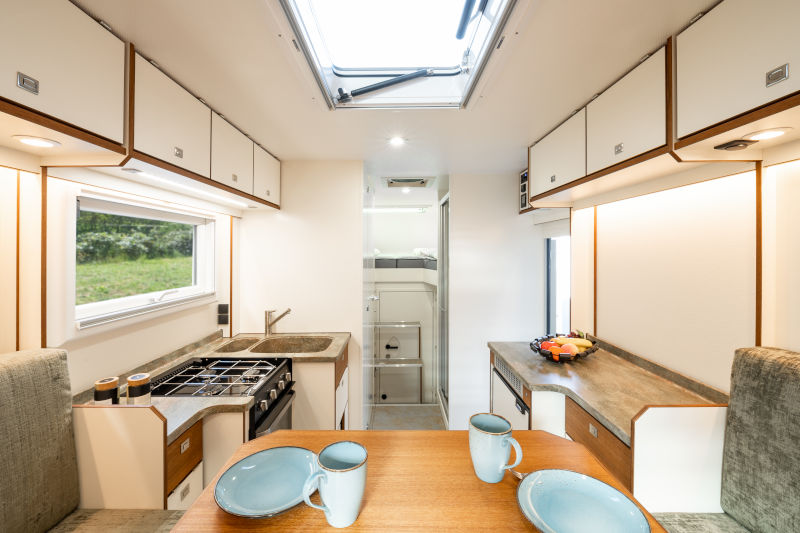

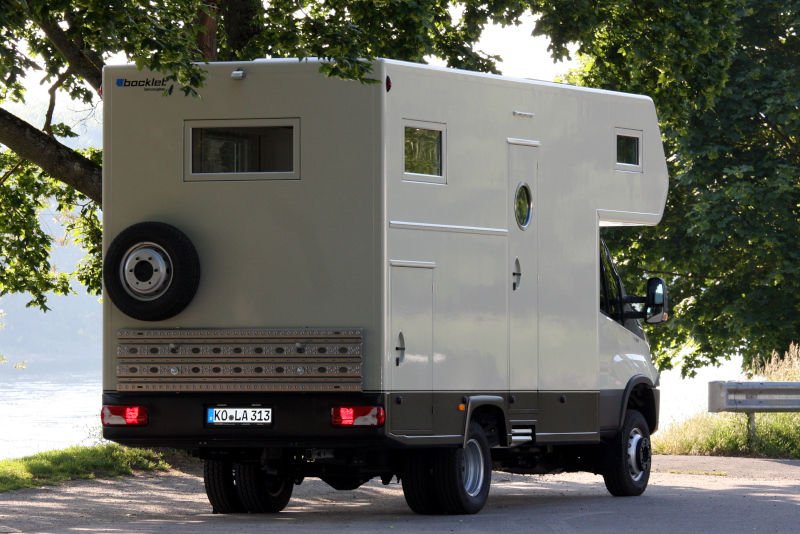

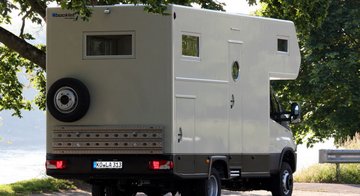

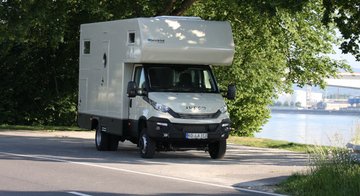

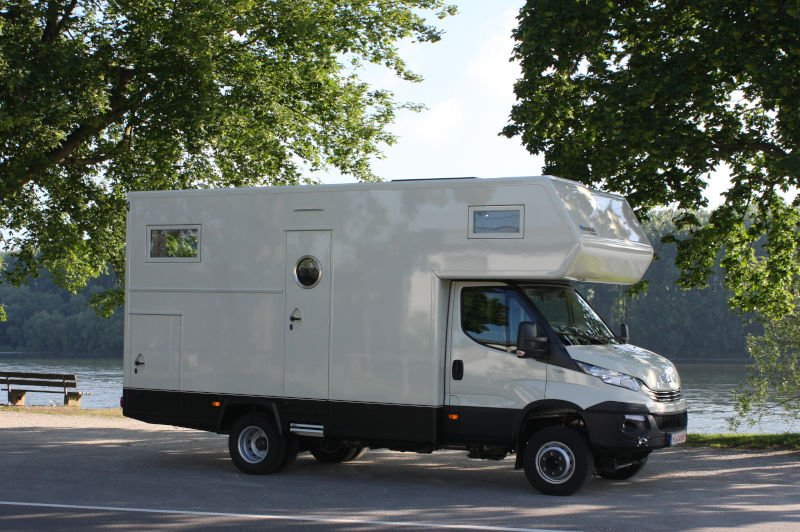

Iveco Daily, here in the all-road 4x4 version with the medium-long wheelbase: the classic layout with rear round seating area and longitudinal beds in the alcove. The kitchen block on the driver's side and a sideboard with a refrigerator on the opposite side. The separate washbasin and toilet area with the shower opposite can be separated from the rest of the living room by a swing door.
Technical Data
Chassis
| Chassis | Iveco Daily 70C21 All Road |
| Wheelbase | 3750 mm |
| GVW | 70000 |
| Engine | 4 Zylinder Turbodiesel |
| Capacity | 2998 ccm |
| Engine power | 150 kW / 205 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 4220 mm |
| Width | 2200 mm |
| Height | 2400 mm |
| Seats with belt | 2 |
| Front bed | 2100 x 2000 mm |
| Rear bed | - |
Specifications
Chassis and body
- All-wheel drive
- Fuel tank 170 l
- Automatic gear
- Diff-Lock rear axle
- Comfort seats
- Rear view camera
- Air condition
- GRP body construction
- Cover layer 3 mm, rowing mesh
- frostbridge free bocklet doors and hatches
- lockable pass through Door
- electric and automatic staircase
- glas windows
- glas skylights
- electric vent
- Storage compartments underneath body floor
- heated storage garage
Interior and options
- All furniture white CPL covered
- Partly teak wood surface for drawers
- beds in driving direction with stairs
- Seat cover cushion
- floor coverin vynil
- Double floor
- Gas Warmwater heating
- Diesel powered air heating
- Battery capacity 420Ah, Lithium Ionen
- Inverter 2000VA
- Charger 80A
- Booster
- Solar installation 700WP
- control panel
- LED lightning
- Separation toilet with electric vent
- Bathroom in GRP sandwich construction
- white-armature with single-lever
- 3-flame stove and oven
- Gastank 70l
- Fridge 140 l
- Tanks inside and heated:
- Fresh water 280l
- Grey water 1180l
