Bocklet

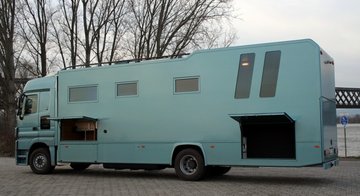

Ando 1200

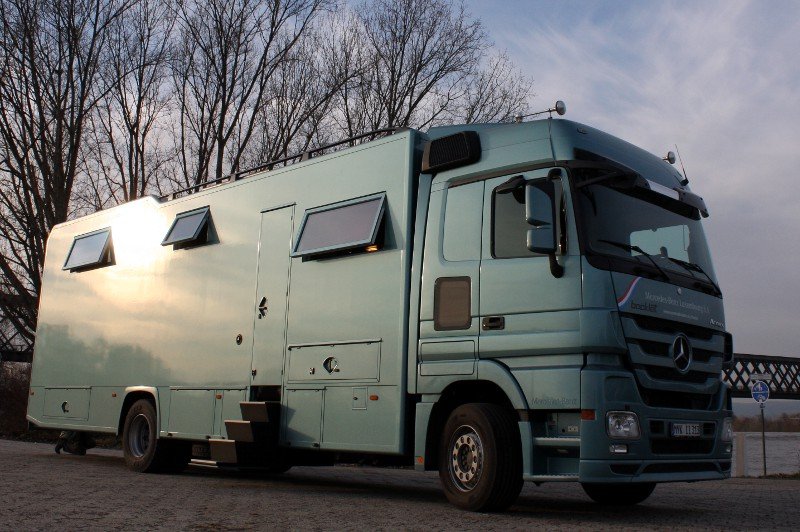

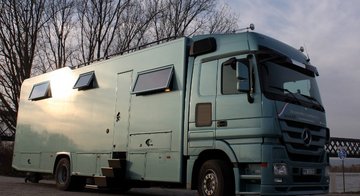

| Chassis | Mercedes-Benz Actros 1841LL |
| Wheelbase | 6100 mm |
| GVW | 16.000 kg |
| L x W x H | 12000 mm x 2500 mm x 4000 mm |
Technical Data
Chassis
| Chassis | Mercedes-Benz Actros 1841LL |
| Wheelbase | 6100 mm |
| GVW | 16.000 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | |
| Engine power | 300 kW / 408 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

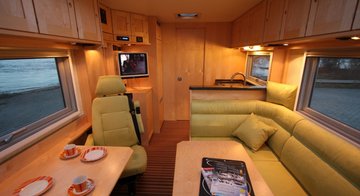

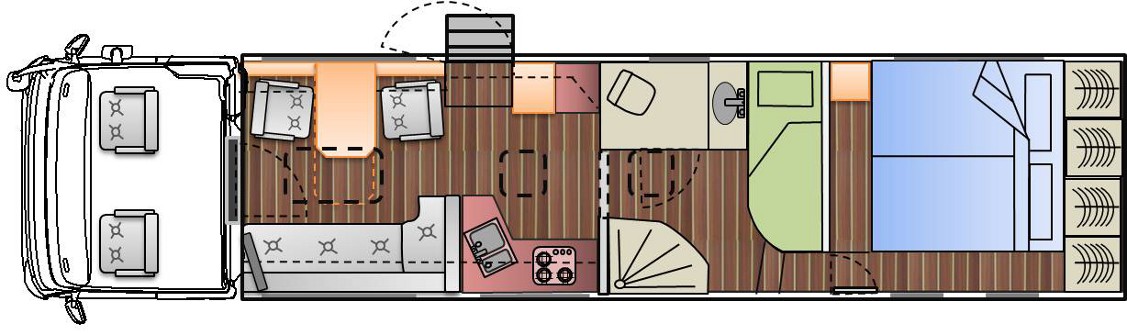

Interior
| Length | 9100 mm |
| Width | 2400 mm |
| Height | 2680 mm |
| Seats with belt | 4 with 3-point belt |
| Front bed | - |

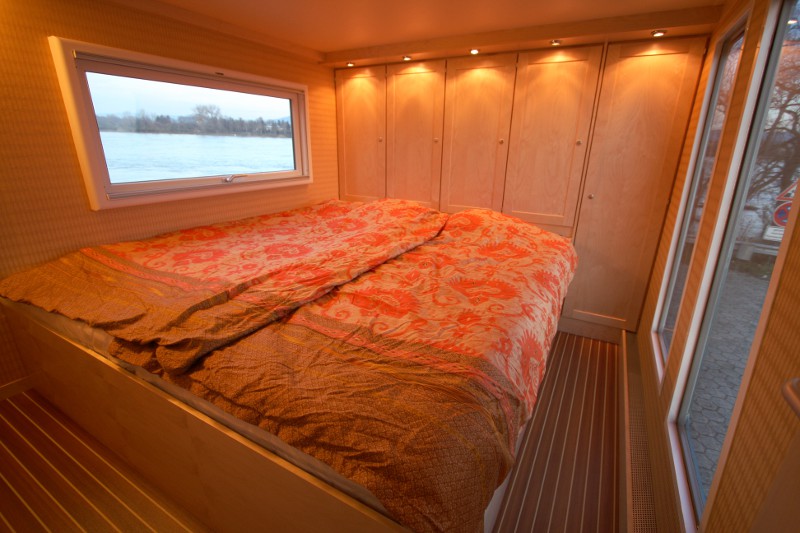

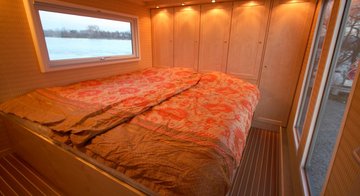

| Rear bed | 2000 x 2000 mm |
Specifications
Chassis and body
- mega-space cabin
- air-suspension front axle- and rear axle
- fuel tank 990 l
- comfort-air-seats
- radio CD
- rear view camera
- air conditoner
- free of thermal bridges
- cover layer 3 mm
- bocklet doors and hatches, free of thermal bridges

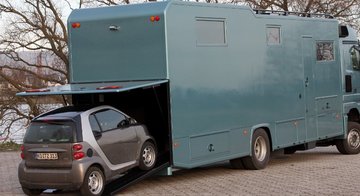

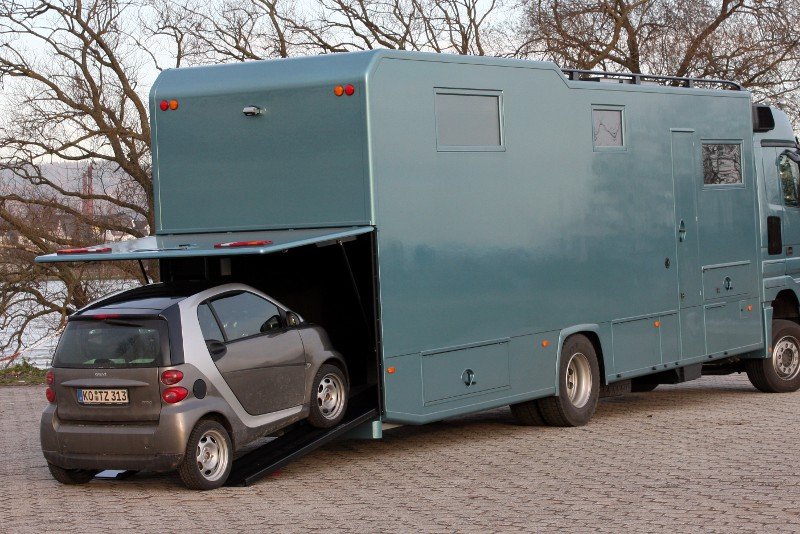

- passinger car rear garage with winch and ramp
- electric and automatic staircase
- KCT hardglas swing-out windows
- panorama skylight
- roof vent
- pass to driver cab with rolling shutter
- air conditoner 3150 W
- spare-wheel carrier pivoted

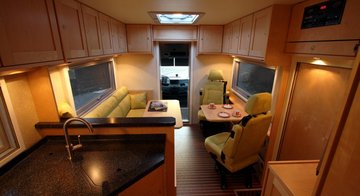

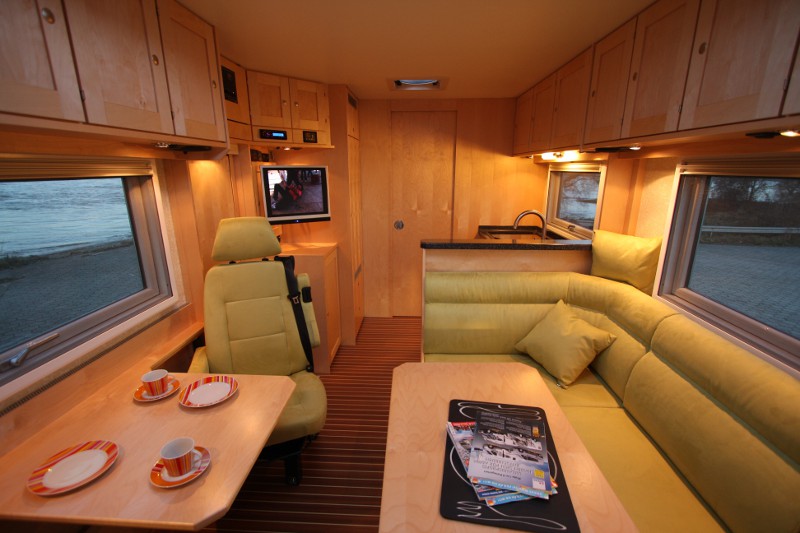

Interior and options
- furniture made of 16mm wood, veneer birch
- seat cushion cover alcantara

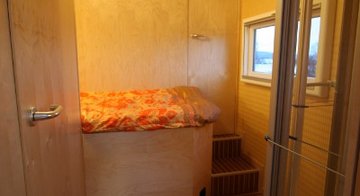

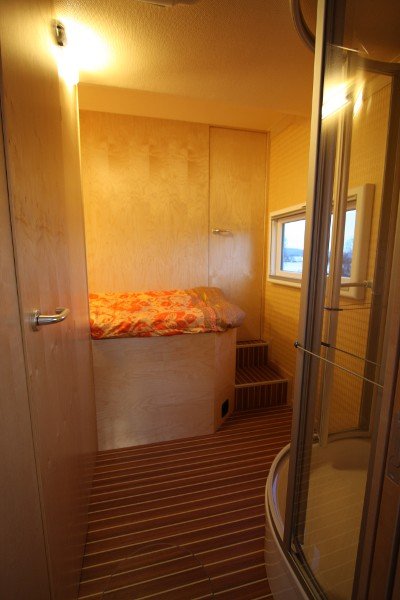

- Additional-bed 1850 x 700 mm
- diesel heater
- water heater
- battery capacity 440Ah
- automatic charger 24 V / 70 A
- inverter 3000 W
- solar panels 360 W
- control panel
- energy saving spot lights, spot lights with dimmer
- porcelain vacuum toilett
- white-armature with single-lever
- 3-flame stove
- oven
- compressor fridge 110 l
- TFT 19" with internet device
- washing machine 3 kg
- diesel generator 2500 W
- corian work disk
- all tanks inside and heated:
- freshwater 500l
- retention tank 200l
- waste water 300l
