Bocklet

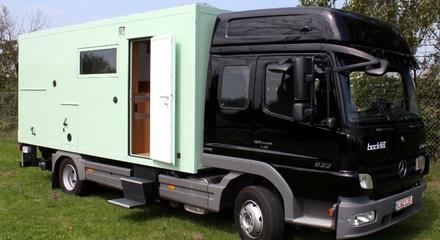

Ando 780

Chassis Mercedes-Benz Atego 922
Wheelbase 4220 mm
GVW 9.500 kg
L x W x H 7800 mm x 2420 mm x 3250 mm





Technical Data

Chassis

Chassis Mercedes-Benz Atego 922
Wheelbase 4220 mm
GVW 9.500 kg
Engine 6 Cylinder Turbodiesel
Capacity 6871 ccm
Engine power 160 kW / 218 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

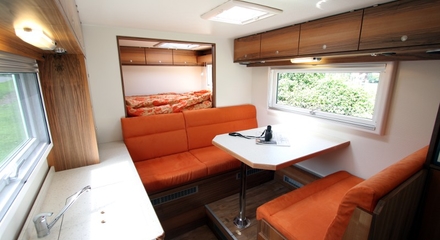

Interior

Length 5100 mm
Width 2300 mm
Height 2050 mm
Seats with belt 4 with 3-point belt
Front bed -
Rear bed 2000 x 1600 mm



Specifications

Chassis and body

  • fuel tank 180 l
  • seats-/ to lie combination
  • air conditioner
  • park heating
  • comfort seats
  • radio CD
  • rear view camera
  • free of thermal bridges
  • bocklet doors and hatches, free of thermal bridges
  • outer storrage space on the side
  • outer storrage space beneath rear bed
  • electric and automatic staircase
  • KCT hardglas swing-out windows
  • skylight Heki 1
  • skylight Fan Tastic Vent
  • pass to driver cab with lockable door


Interior and options

  • furniture made of 15mm wood, veneer walnut
  • seat cushion cover microfibre
  • water heater
  • battery capacity 440Ah
  • automatic charger 24 V / 24 A
  • inverter 1600 W
  • solar panels 330 W
  • control panel
  • energy saving spot lights with dimmer
  • porcelain vacuum toilett
  • white-armature with single-lever
  • 3-flame stove
  • oven
  • compressor frídge 110 l
  • all tanks inside and heated:
  • freshwater 300l
  • waste water 200l
  • retention tank 150l
