Bocklet
Dakar Z940

Chassis Mercedes Zetros 18.33
Wheelbase 4800 mm
GVW 18.000 kg
L x W x H 9360 mm x 2550 mm x 3950 mm





Technical Data

Chassis

Chassis Mercedes Zetros 18.33
Wheelbase 4800 mm
GVW 18.000 kg
Engine 6 Cylinder Turbodiesel
Capacity 7200 ccm
Engine power 250 kW / 340 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 51 mm
Roof thickness 51 mm
Bottom thickness 60 mm

Interior

Length 5350 mm
Width 2400 mm
Height 2050 mm
Seats with belt 2 with seat belt
Front bed -
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • all-wheel-drive
  • diff-lock rear axle
  • diff-lock front axle
  • fuel tank 800 l
  • comfort seats
  • radio CD / navigation
  • rear and front view cameras
  • air conditoner
  • automatic gear
  • hydraulic winch
  • free of thermal bridges
  • cover layer 3 mm
  • bocklet doors and hatches, free of thermal bridges
  • Au├čenstauraum unter Heckbett, Staukisten
  • electric and automatic staircase
  • KCT hardglas swing-out windows
  • skylights KCT in seating area and rear bed
  • skylight Gebo
  • pass to driver cab with lockable door
  • roof carrier with storage boxes
  • storage boxes under body

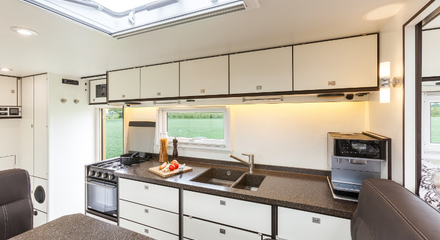

Interior and options

  • furniture made of 16mm wood, white / oak combination
  • seat cushion leather
  • water heater
  • Lithium batteries 24V 540Ah
  • 2x Mass Combi Ultra 3,5kW charger / inverter
  • solar panels 540 W
  • control panel
  • energy saving spot lights, LED-spot lights
  • vacuum toilett
  • white-armature with single-lever
  • 3-flame stove and oven
  • copressor fridge 130l and 65l freezer
  • countertop kitchen and bath in mineral stone
  • table top mineralstone
  • all tanks inside and heated:
    - freshwater app. 400l
    - waste water 260l
    - retention water 180l
