Bocklet

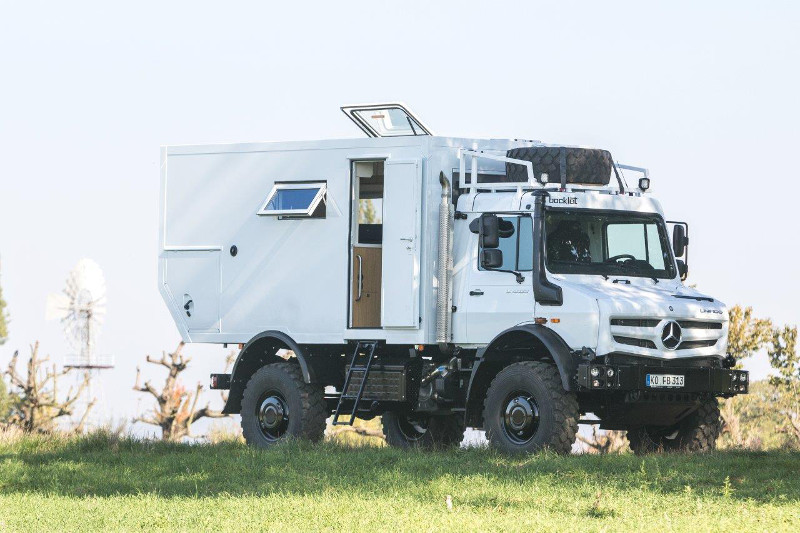

Dakar U690

Chassis Mercedes-Benz U4023
Wheelbase 3850 mm
GVW 8.800 kg
L x W x H 6900 mm x 2350 mm x 3500 mm




Technical Data

Chassis

Chassis Mercedes-Benz U4023
Wheelbase 3850 mm
GVW 8.800 kg
Engine OM 934LA
Capacity 5132
Engine power 170 kW / 231 PS

Body

frost bridge free GRP- Sandwich-Construction
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

Interior

Length 4350 mm
Width 2200 mm
Height 1950 mm
Seats with belt -
Front bed -
Rear bed 2000 x 1350 mm



Specifications

Chassis and body

  • All wheel drive
  • Diff Lock Front and Rear
  • Fueltank app. 300l
  • Radio /CD /
  • Comfort seats
  • Integrated tire control system
  • Observation cam front and rear
  • Roof carrier and spare wheel carrier
  • Three Pont mounted GRP body construction
  • Cover layer 2 mm, rowing mesh
  • frostbridge free bocklet doors and hatches
  • storage compartment under bed, full width
  • glas windows
  • skylight glas over seating area


Interior and options

  • Furniture in Oak/ white combination
  • Drawers with Soft Slide-In, Push Locks Inox
  • Doppelfloor with storage in seating area
  • Diesel powered  - air heating
  • Gas- air heating with boiler
  • Batteriecapazity 2x160Ah Lithium Ionen Batteries
  • Automaticlcharger 24 V / 50 A
  • Inverter 2 kW
  • Controllpanel
  • Lightning LED-powered
  • Cassette toilette with SOG
  • Haushaltsarmaturen mit Einhebelmischer
  • Kocher 2-flames, Double sink
  • fridge 85 l
  • countertop in mineralstone
  • Radio CD / Bluetooth
  • Tanks inside and heated:
     - fresh water 220l
     - grey water 110l
