Bocklet

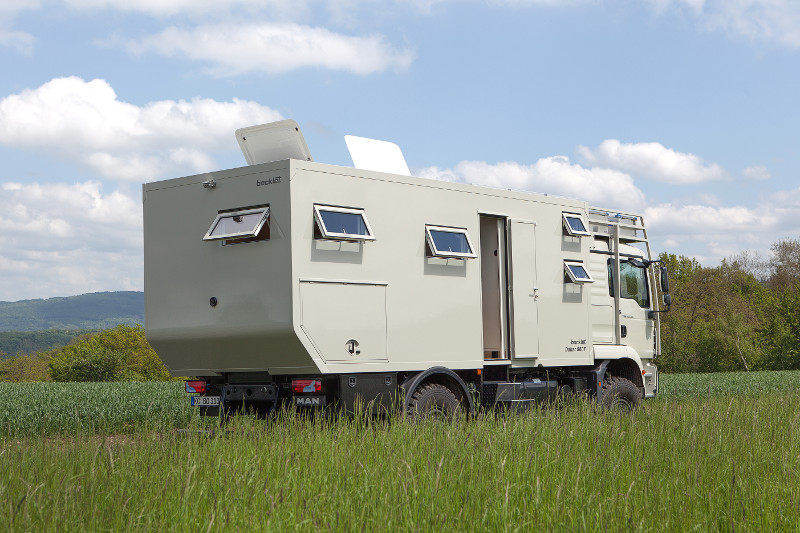

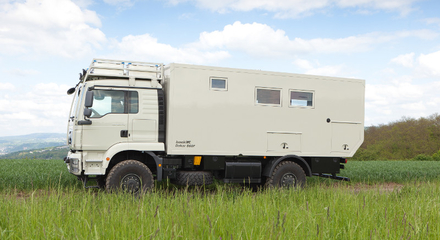

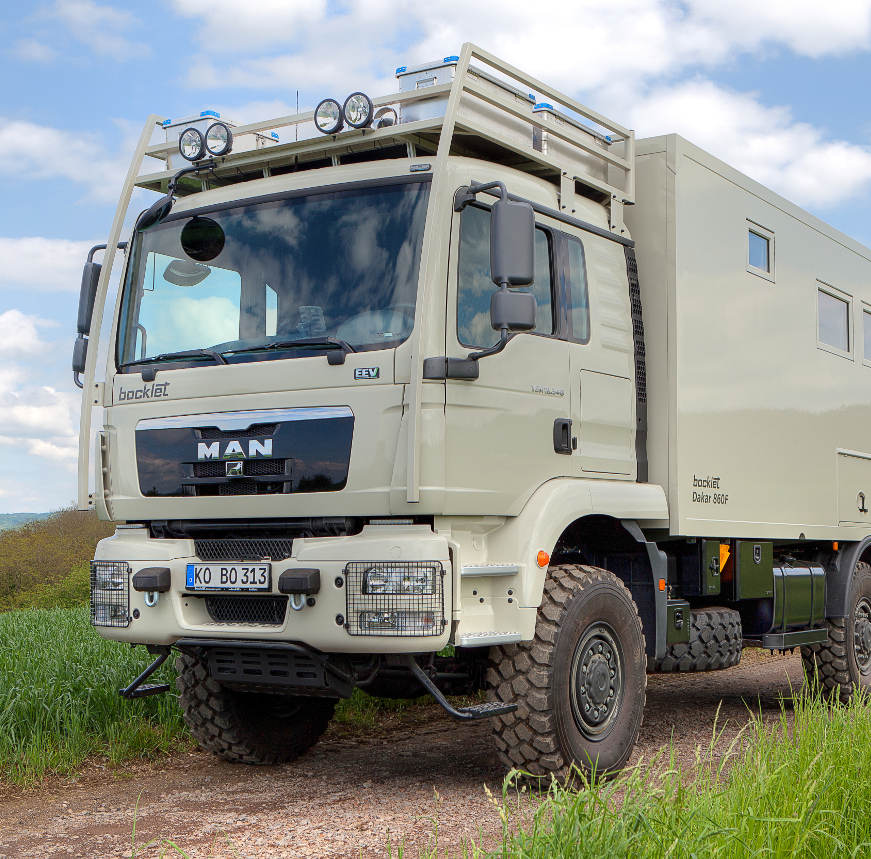

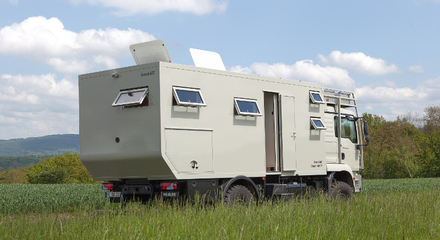

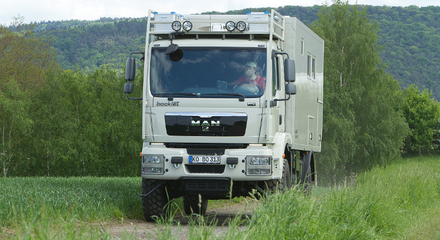

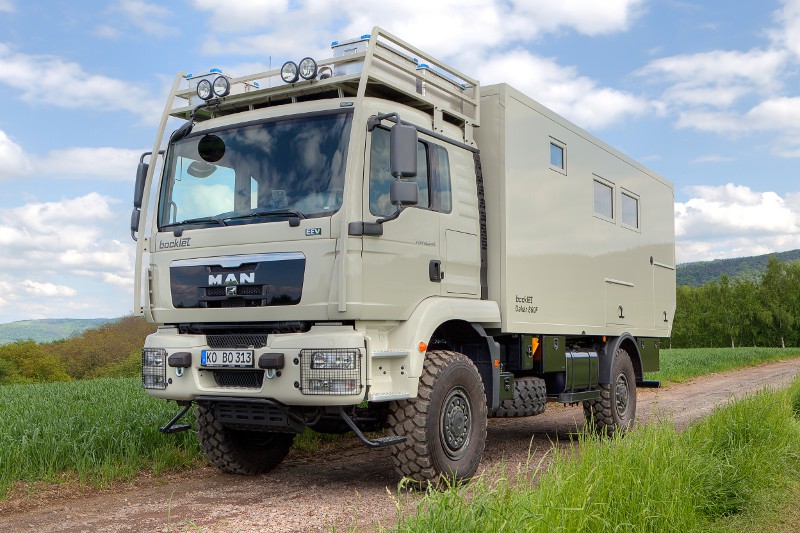

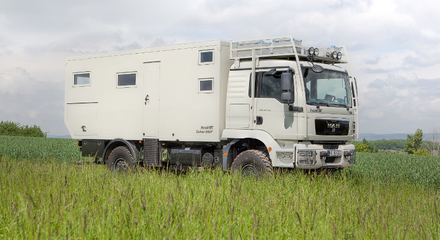

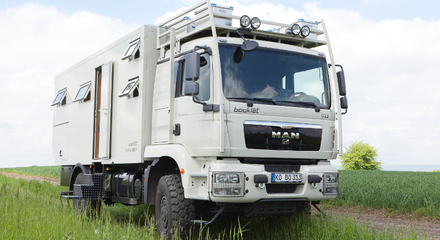

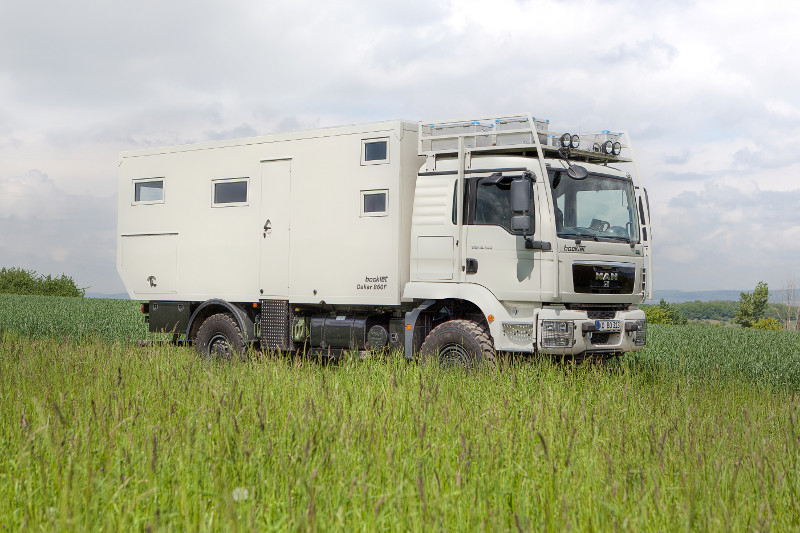

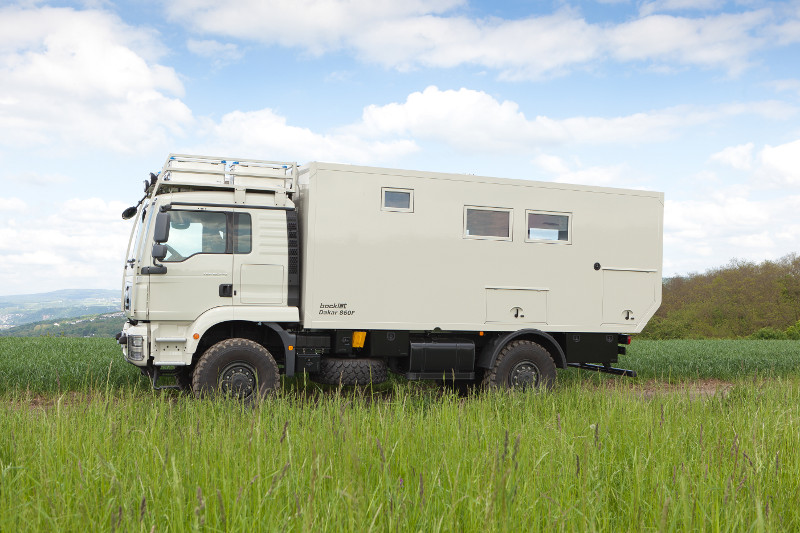

Dakar 860F

Chassis MAN TGM 18.340
Wheelbase 4500 mm
GVW 18.000 kg
L x W x H 8600 mm x 2500 mm x 3750 mm





Technical Data

Chassis

Chassis MAN TGM 18.340
Wheelbase 4500 mm
GVW 18.000 kg
Engine 6 Cylinder Turbodiesel
Capacity 6871 ccm
Engine power 250 kW / 340 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 51 mm
Roof thickness 51 mm
Bottom thickness 60 mm

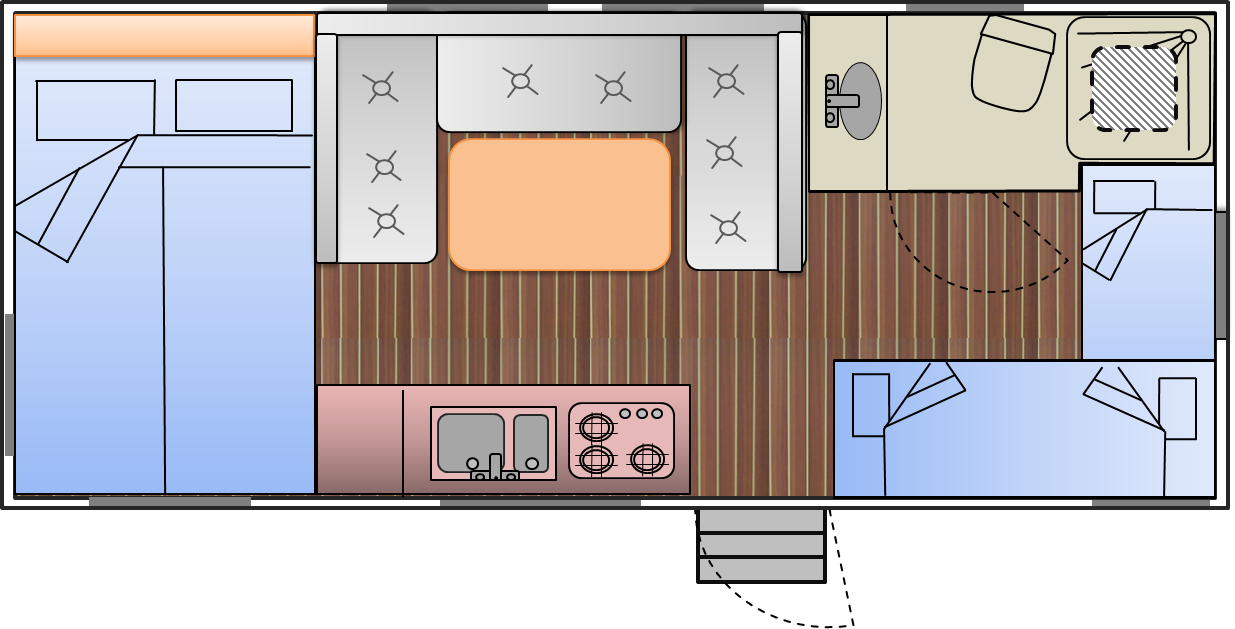

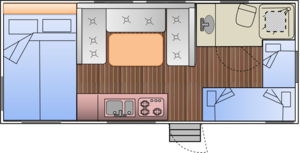

Interior

Length 6000 mm
Width 2400 mm
Height 2200 mm
Seats with belt 5 mit Dreipunktgurt
Front bed -

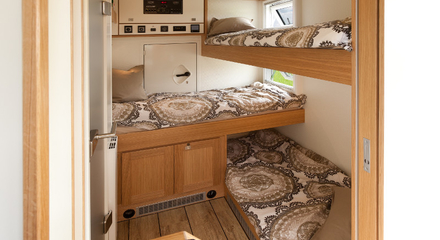

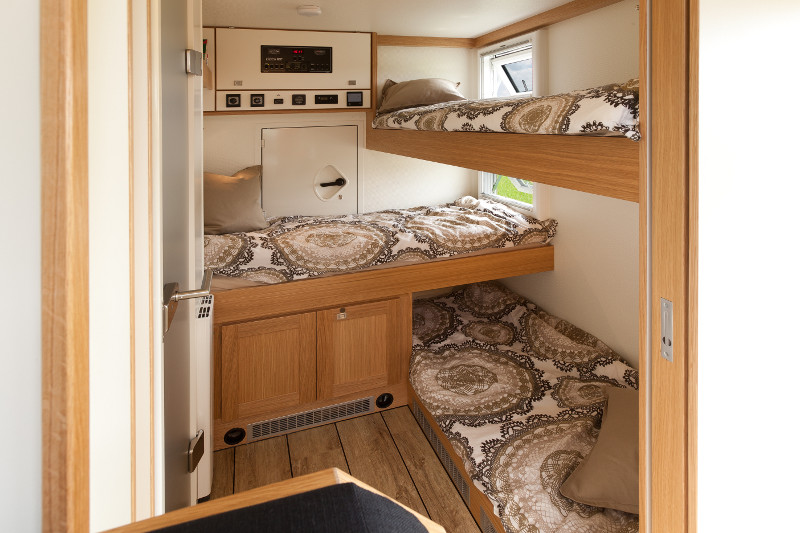

Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • all-wheel-drive
  • diff-lock rear axle
  • diff-lock front axle
  • fuel tank 600 l
  • comfort seats
  • radio CD / navigation
  • rear view camera
  • air conditoner
  • automatic
  • free of thermal bridges
  • cover layer 3 mm
  • bocklet doors and hatches, free of thermal bridges
  • Au├čenstauraum unter Heckbett, Staukisten
  • electric and automatic staircase
  • KCT hardglas swing-out windows
  • skylights Heki 1
  • skylight Gebo
  • pass to driver cab with lockable door

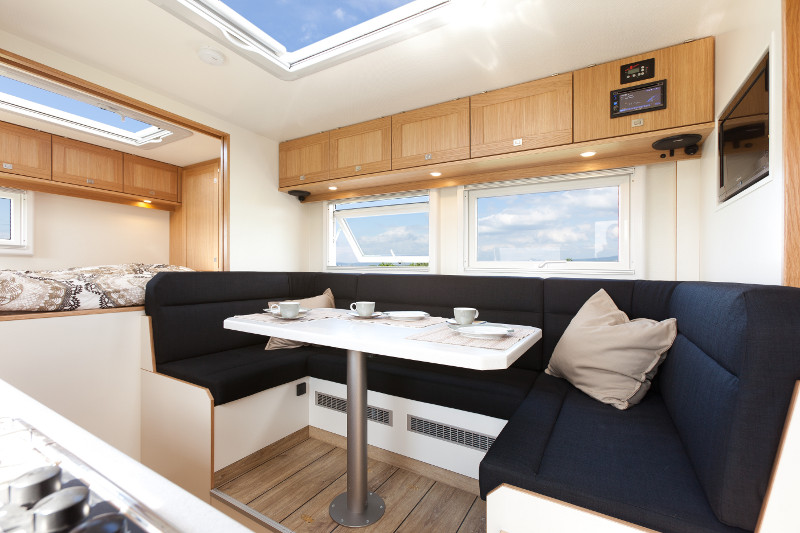

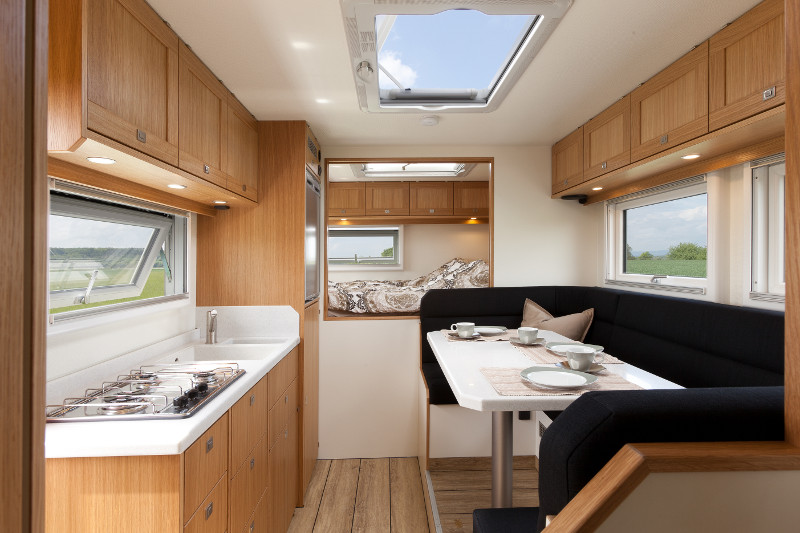

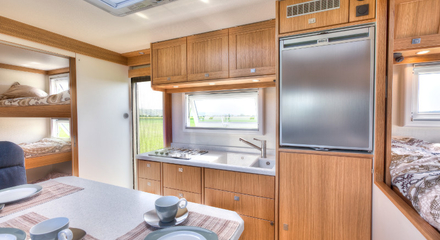

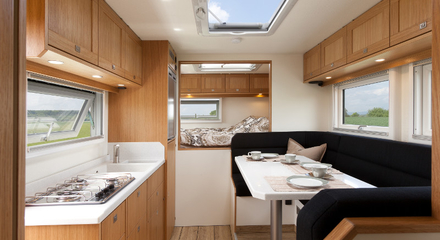

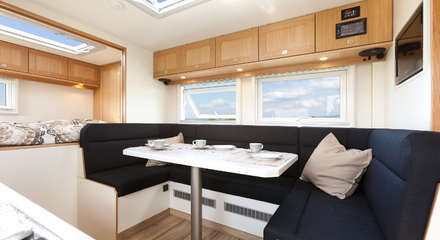

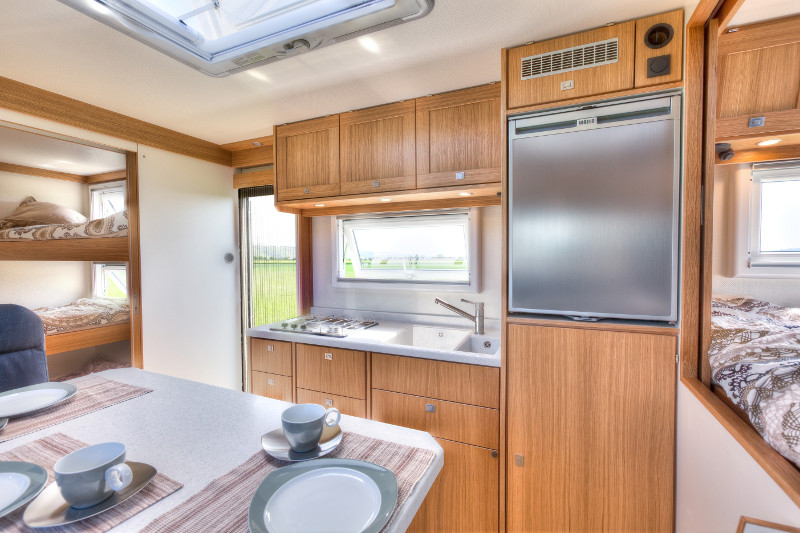

Interior and options

  • furniture made of 16mm wood, veneer oak
  • seat cushion cap material
  • gas powered- water heating system
  • diesel powered air heating system
  • battery capacity 440Ah
  • automatic charger 24 V / 70 A
  • inverter 3000 W
  • solar panels 540 W
  • control panel
  • energy saving spot lights, LED-spot lights
  • vacuum toilett
  • white-armature with single-lever
  • 3-flame stove
  • dish-washer
  • compressor fridge 110 l

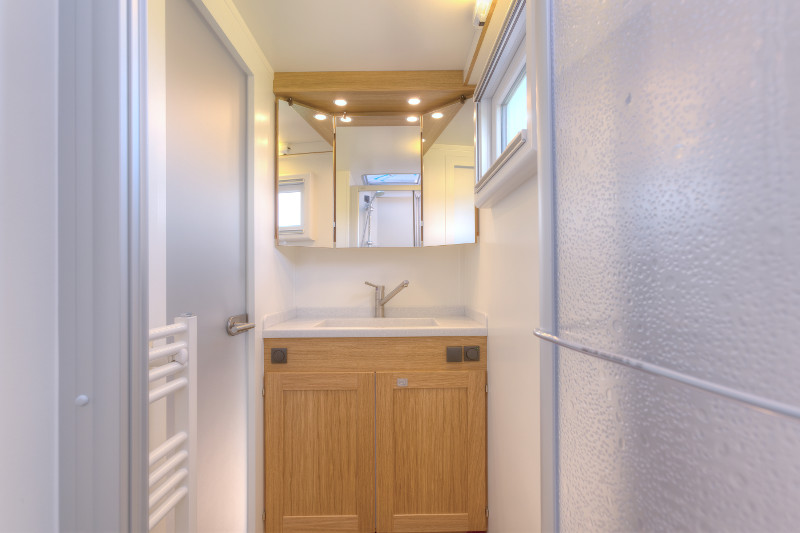

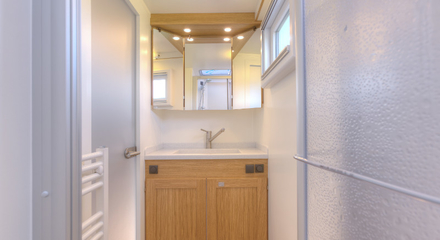

  • countertop kitchen and bath in mineral stone
  • table top mineralstone
  • all tanks inside and heated:
    - freshwater 500l
    - waste water 350l
    - retention water 150l
