Bocklet
Dakar 830F

Chassis MAN TGM 13.290
Wheelbase 4250 mm
GVW 13.000 kg
L x W x H 8300 mm x 2500 mm x 3650 mm




Technical Data

Chassis

Chassis MAN TGM 13.290
Wheelbase 4250 mm
GVW 13.000 kg
Engine 6 Cylinder Turbodiesel
Capacity 6871 ccm
Engine power 213 kW / 290 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 51 mm
Roof thickness 51 mm
Bottom thickness 60 mm

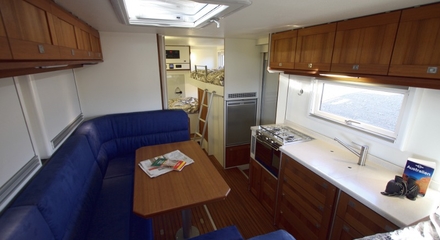

Interior

Length 5800 mm
Width 2400 mm
Height 2100 mm
Seats with belt 4 with 3-point belt
Front bed -
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • all-wheel-drive
  • diff-lock rear axle
  • diff-lock front axle
  • fuel tank 600 l
  • comfort seats
  • radio CD / navigation
  • rear view camera
  • air conditoner
  • automatic
  • free of thermal bridges
  • cover layer 3 mm
  • bocklet doors and hatches, free of thermal bridges
  • electric and automatic staircase
  • KCT hardglas swing-out windows
  • skylight Heki 1
  • skylight Gebo
  • pass to driver cab with lockable door


Interior and options

  • furniture made of 16mm wood, veneer teak
  • seat cushion cover alcantara
  • water heater
  • battery capacity 440Ah
  • automatic charger 24 V / 70 A
  • inverter 3000 W
  • solar panels 500 W
  • control panel
  • energy saving spot lights, LED-spot lights
  • vacuum toilett
  • white-armature with single-lever
  • 3-flame stove
  • oven
  • compressor fridge 110 l
  • mineral stone washing stand and kitchen work top
  • all tanks inside and heated:
  • freshwater 500l
  • waste water 250
  • black water 150l
