Bocklet

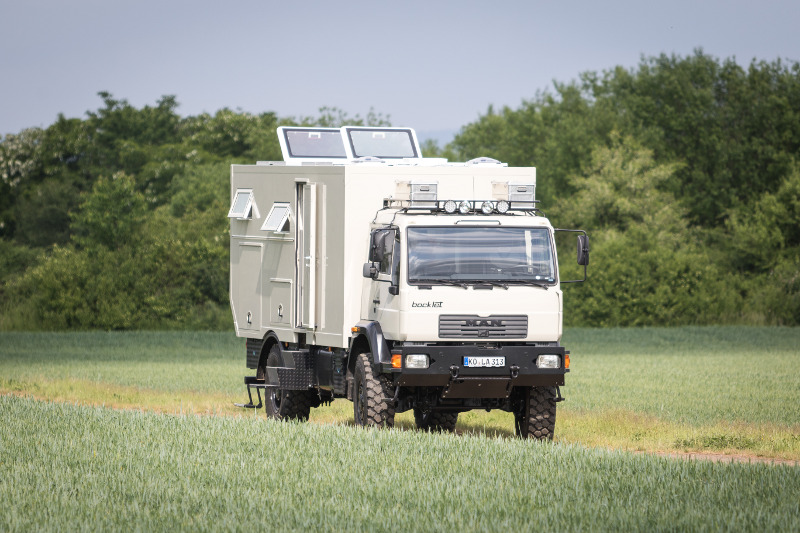

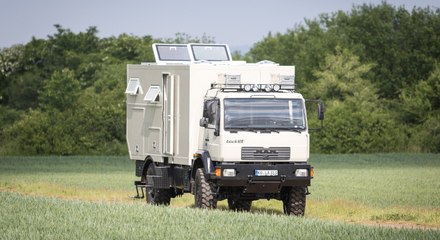

Dakar 815

Chassis MAN TGM 18.225 4x4
Wheelbase 4500 mm
GVW 11.900 kg
L x W x H 8150 mm x 2550 mm x 3750 mm





Technical Data

Chassis

Chassis MAN TGM 18.225 4x4
Wheelbase 4500 mm
GVW 11.900 kg
Engine 6 Cylinder Turbodiesel
Capacity 6871 ccm
Engine power 166 kW / 245 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 51 mm
Roof thickness 51 mm
Bottom thickness 60 mm

Interior

Length 5950 mm
Width 2400 mm
Height 2050 mm
Seats with belt 2 mit Dreipunktgurt
Front bed -
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • all-wheel-drive
  • diff-lock rear axle
  • diff-lock front axle
  • fuel tank 600 l
  • comfort seats
  • radio CD / navigation
  • rear view camera
  • air conditoner
  • automatic
  • free of thermal bridges
  • cover layer 3 mm
  • bocklet doors and hatches, free of thermal bridges
  • Au├čenstauraum unter Heckbett, Staukisten
  • electric and automatic staircase
  • hardglas swing-out windows
  • skylights glas
  • Fan skylights in bath and shower
  • shower an bathroom separated in GRP construction
  • pass to driver cab with lockable door
  • roof carrier with storage boxes
  • storage boxes chassis mounted


Interior and options

  • furniture made of 16mm wood, veneer teak
  • seat cushion cap material
  • gas powered heating and water heater
  • diesel powered air heating
  • air conditioning
  • battery capacity 440Ah
  • automatic charger 24 V / 70 A
  • inverter 3000 W
  • solar panels 760 W
  • control panel
  • energy saving spot lights, LED-spot lights
  • vacuum toilett
  • white-armature with single-lever
  • tv and satelite tv installation
  • 3-flame stove with oven
  • compressor fridge 110 l
  • countertop kitchen and bath formica
  • gastank 60l
  • gas bottle 11kg
  • table top formica
  • all tanks inside and heated:
    - freshwater 400l
    - waste water 200l
    - retention water 170l
