Bocklet
Dakar 805
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4250 |
| GVW | 13000kg |
| L x W x H | 8050mm x 2550mm x 3750mm |

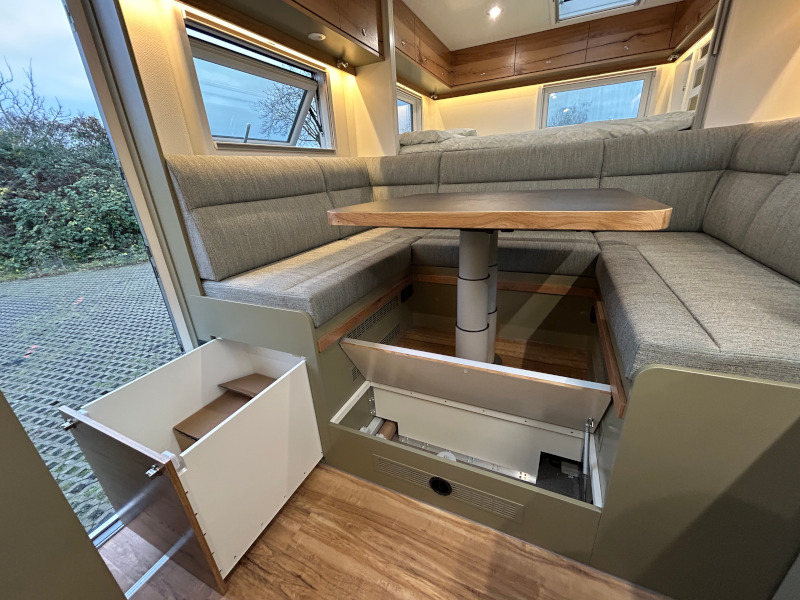

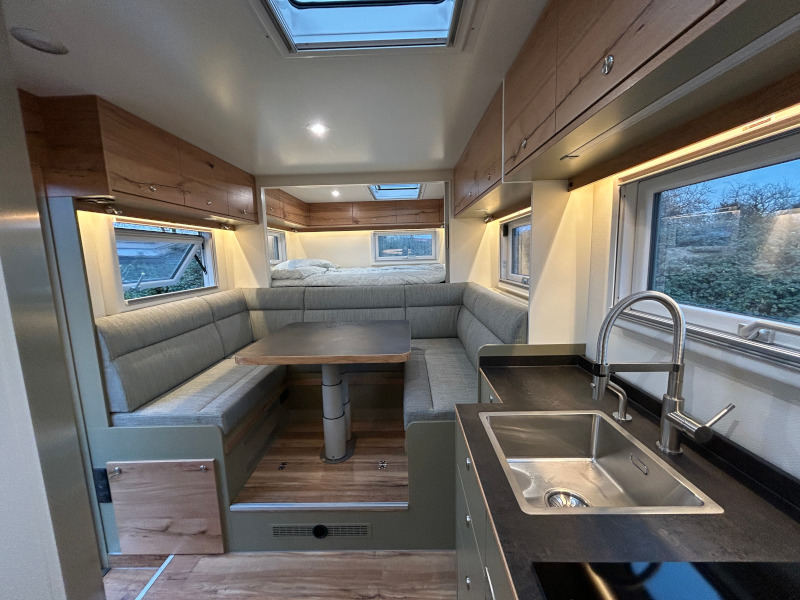

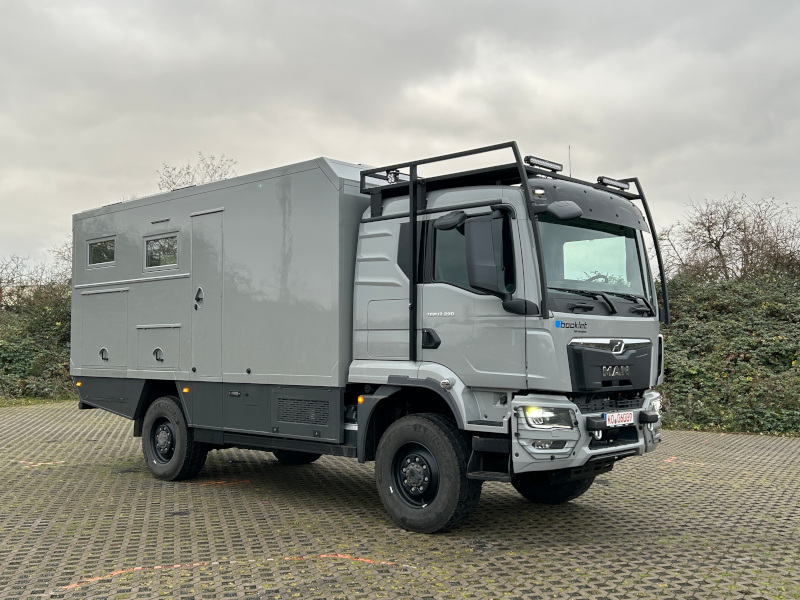

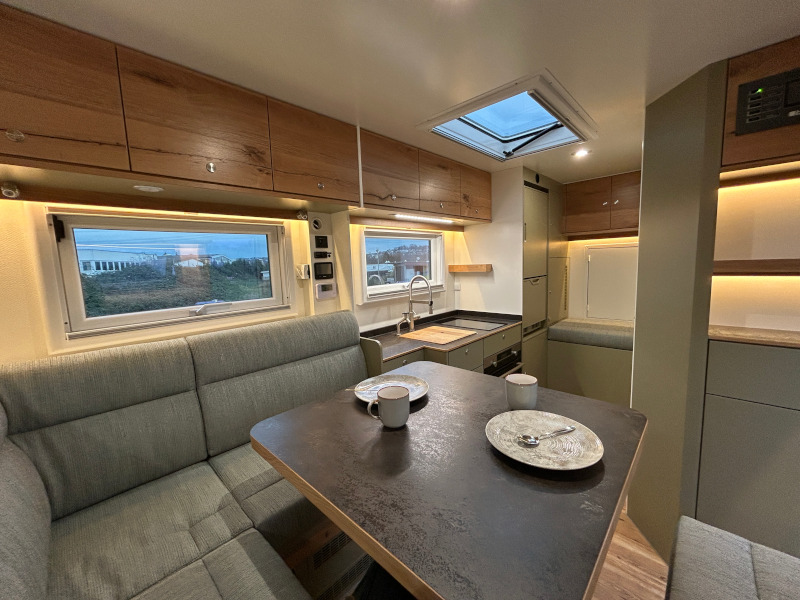

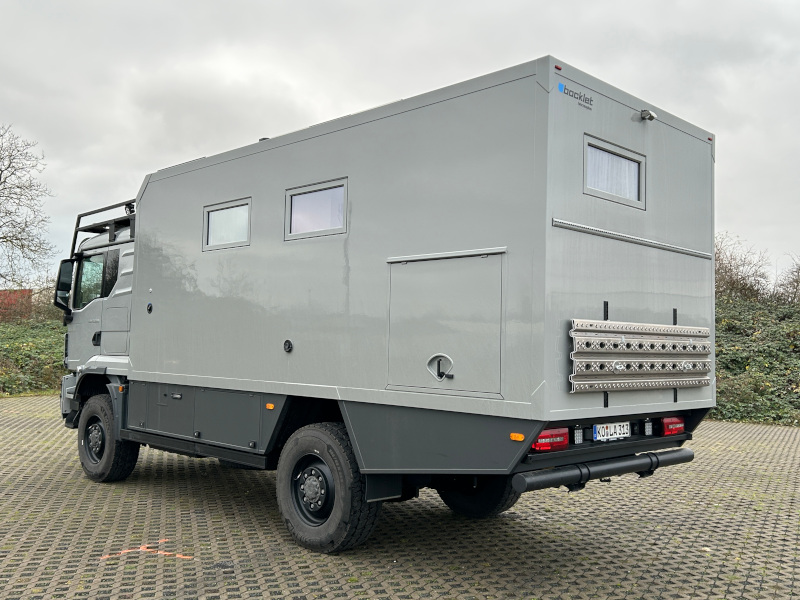

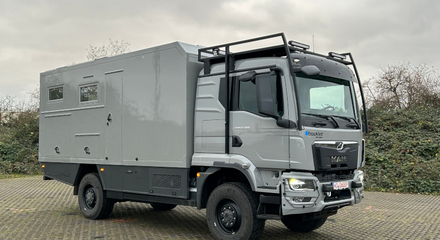

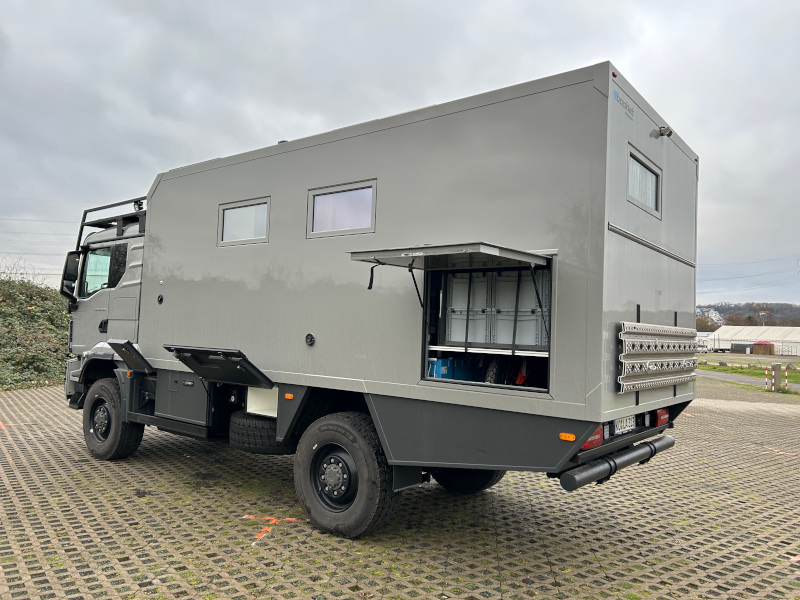

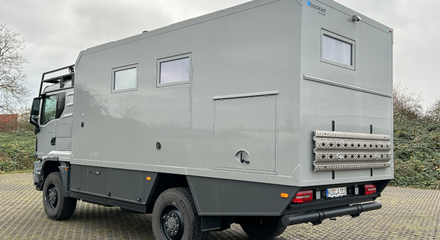

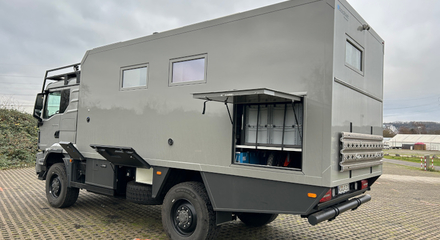

Based on a MAN TGM 4X4, this is a modern motorhome designed for world travel with lots of great details. The interior is a mix of light-colored lacquered surfaces and real wood-clad furniture fronts in wild oak. The rear garage is equipped with an electric winch and a pull-in system for the motorcycle you are carrying. The built-in washing machine, air conditioning, generous fresh water tank and integrated solar technology allow travelers to be almost self-sufficient on the road. This Bocklet long-distance motorhome is manufactured and equipped to the highest technical and craftsmanship standards.
Technical Data
Chassis
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4250 |
| GVW | 13000kg |
| Engine | 6-Zylinder-Diesel |
| Capacity | 6900 |
| Engine power | 213 |
Body
| cold bridge-free GRP sandwich construction | |
| Wall thickness | 51mm |
| Roof thickness | 51mm |
| Bottom thickness | 60mm |

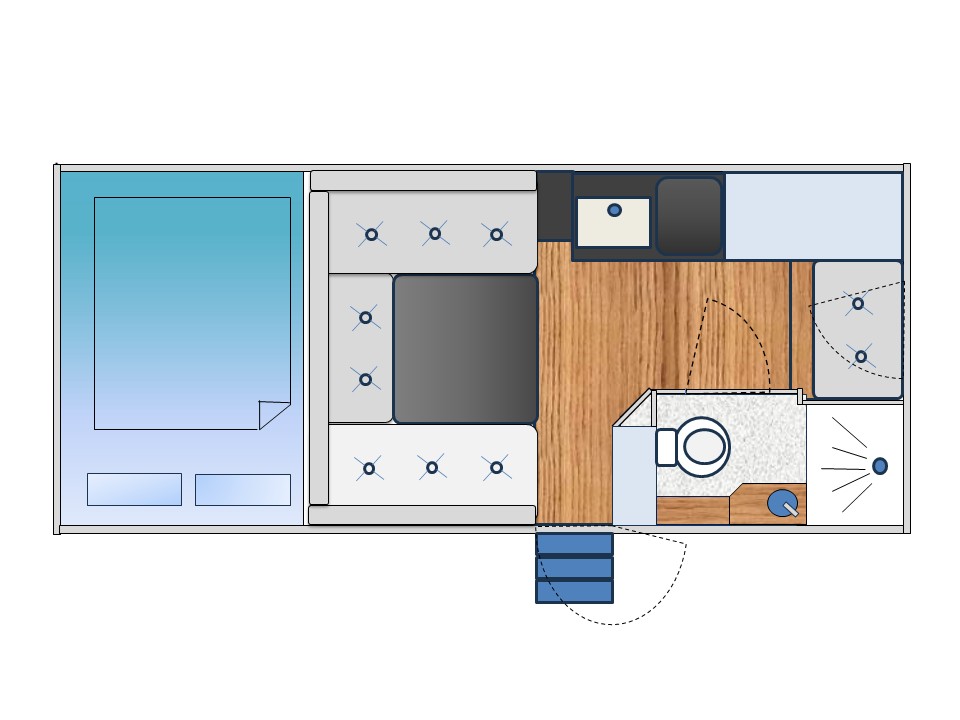

Interior
| Length | 5560 |
| Width | 2350 |
| Height | 2200 |
| Seats with belt | 2 |
| Front bed | |
| Rear bed | 2 |
Specifications
Chassis and body
- All-wheel drive
- Differential lock rear axle
- Differential lock front axle
- Additional fuel tank, total 520 l
- Comfort seats
- Radio CD / navigation
- Rear view camera, heated
- Air conditioning
- Cold bridge-free GRP sandwich body
- Top layer 3 mm, fabric-reinforced
- Cold bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multi-point locking system

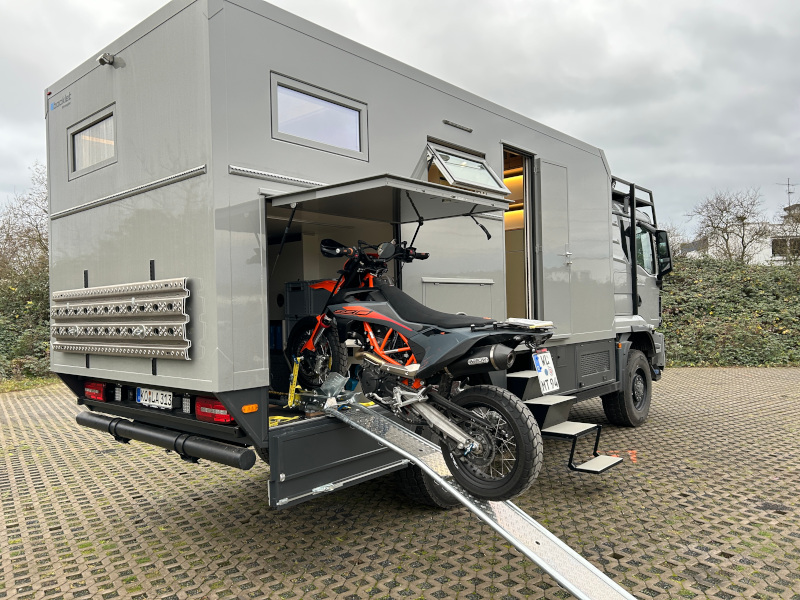

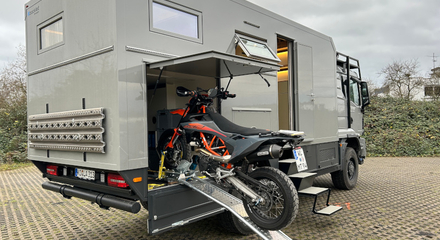

- External garage under rear bed, motorcycle retraction system with electric winch
- Electric access step with automatic control
- KCT Real glass vent windows
- KCT Real glass roof windows

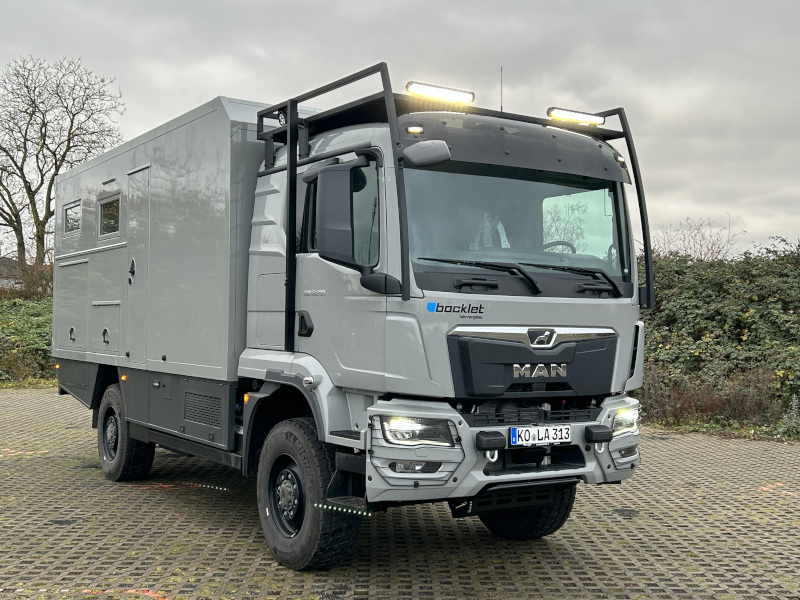

- Roof rack cab with LED bars
Interior and options

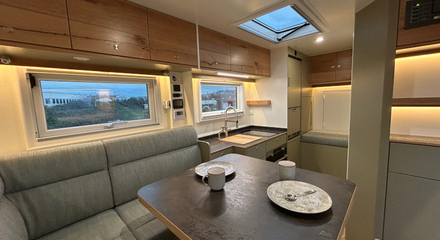

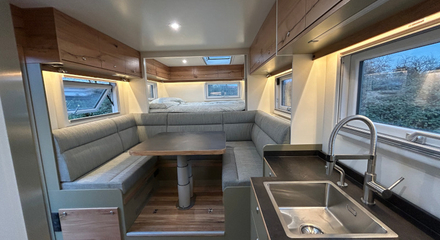

- Furniture construction with wild oak real wood veneer and lacquered surfaces

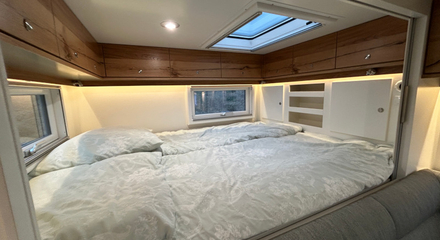

- Rear bed with sliding roller shutter to seating group

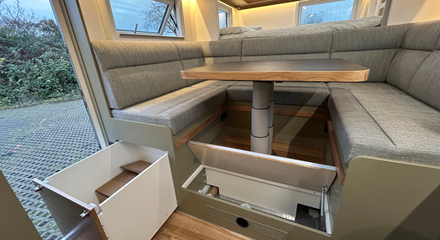

- Seat cushions with fabric cover
- Gas-powered hot water heating with E cartridge
- Diesel hot air heating
- Underfloor air conditioning
- Battery capacity 600 Ah 24V
- Automatic charger 24 V / 70 A
- Sine wave inverter 5 kW
- Solar system 1500 WP with MPPT control
- Control panel with ampere-hour meter
- Energy-saving lights and LED spotlights
- Porcelain vacuum toilette

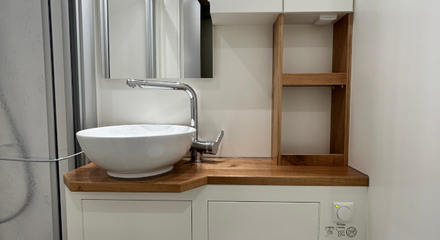

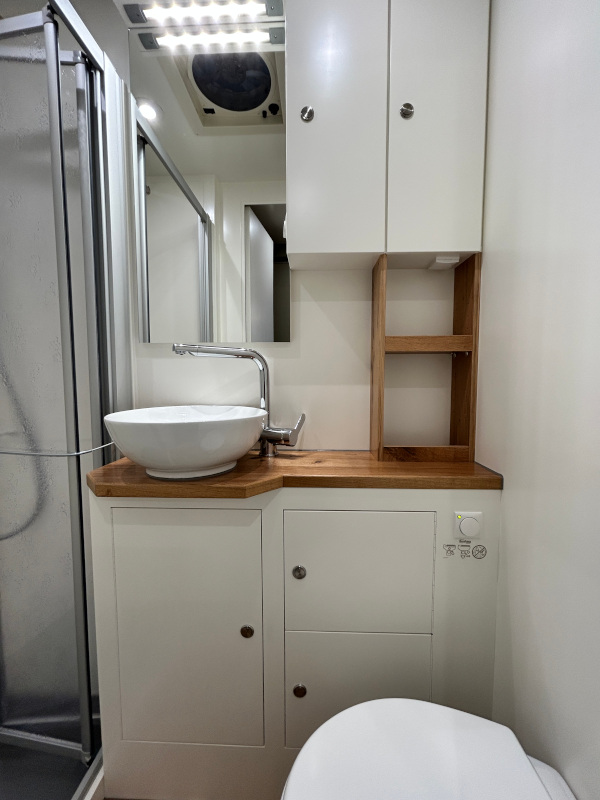

- Bathroom in 30mm GRP sandwich construction, Washbasin with attached washbasin, separate shower with folding shower door
- Shower suction pump
- 140 l compressor refrigerator with 30 l freezer compartment

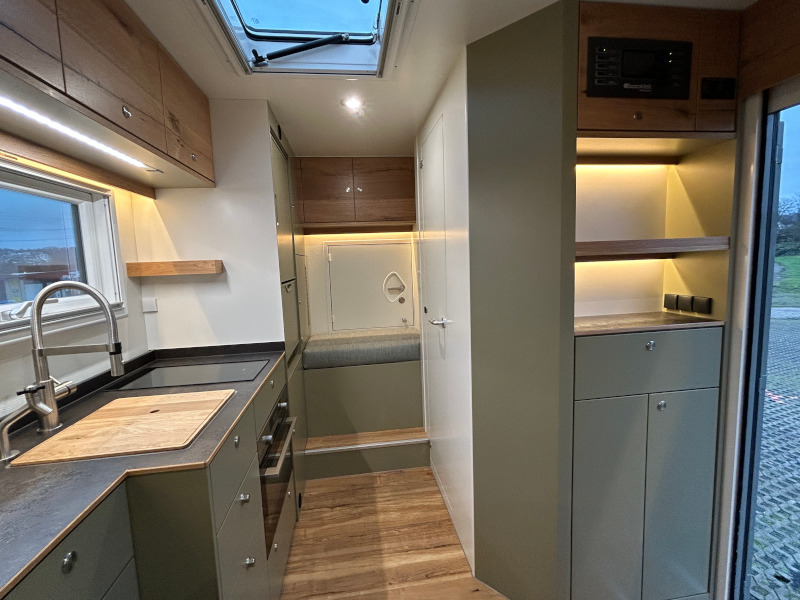

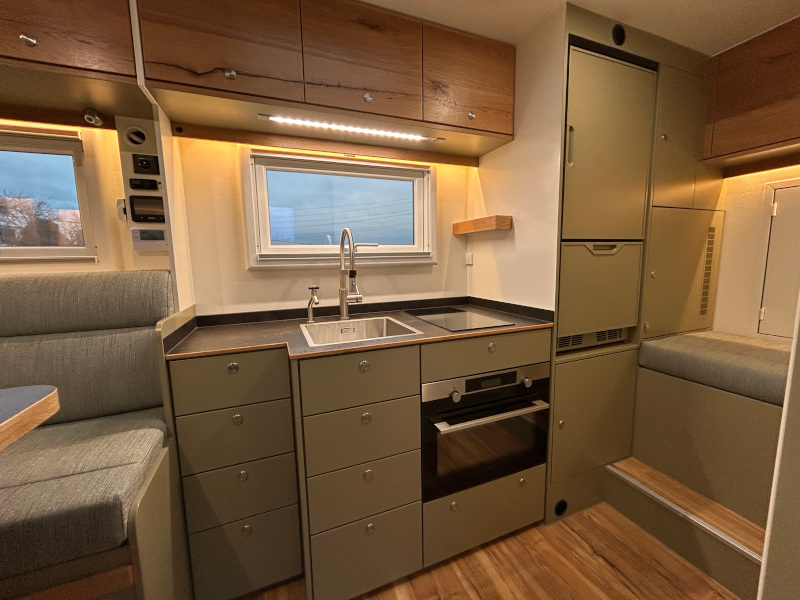

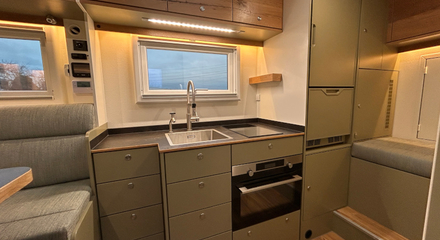

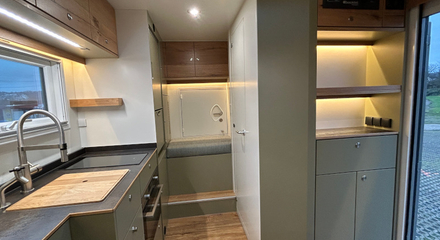

- Kitchen worktop with flush-mounted sink and cover
- Resopal-coated worktop
- Tanks inside and heated:
- - Fresh water tank approx. 400l
- - Waste water tank approx. 250l
- - Holding tank 200l
