Bocklet

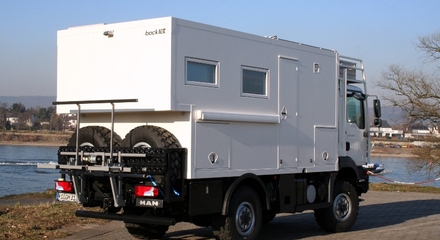

Dakar 730

Chassis MAN TGM 13.280
Wheelbase 3650 mm
GVW 11.900 kg
L x W x H 7300 mm x 2450 mm x 3850 mm




Technical Data

Chassis

Chassis MAN TGM 13.280
Wheelbase 3650 mm
GVW 11.900 kg
Engine 6 Cylinder Turbodiesel
Capacity 6871 ccm
Engine power 206/280 kW/PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 51 mm
Roof thickness 51 mm
Bottom thickness 60 mm

Interior

Length 5150 mm
Width 2300 mm
Height 2200 mm
Seats with belt -
Front bed -
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • all-wheel-drive
  • diff-lock rear axle
  • diff-lock front axle
  • fuel tank 760 l
  • comfort seats
  • radio CD / navigation
  • rear view camera
  • air conditoner
  • free of thermal bridges
  • cover layer 3 mm
  • bocklet doors and hatches, free of thermal bridges
  • outer storrage space on the side
  • outer storrage space beneath rear-bed
  • electric and automatic staircase
  • KCT hardglas swing-out windows
  • skylight Heki 1
  • skylight Fan Tastic Vent
  • pass to driver cab with lockable door
  • roof carrier


Interior and options

  • furniture made of 16mm wood, veneer teak
  • seat cushion cover alcantara
  • diesel heater
  • water heater
  • battery capacity 440Ah
  • automatic charger 24 V / 70 A
  • inverter 3000 W
  • solar panels 480 W
  • control panel
  • energy saving spot lights with dimmer
  • cassette toilett
  • white-armature with single-lever
  • 3-flame stove
  • oven
  • compressor fridge 115 l
  • air conditoner
  • all tanks inside and heated:
  • freshwater 430l
  • waste water 320l
