Bocklet
Dakar 730

Chassis Steyr (Excap mod.) 12M23
Wheelbase 3500 mm
GVW 11.500kg
L x W x H 7300 x 2500mm x 3700 mm

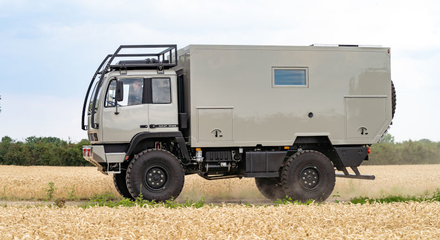

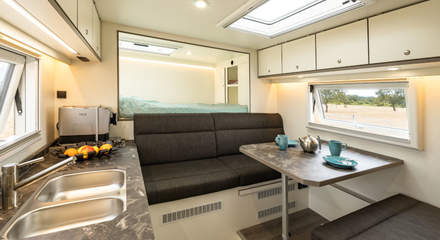

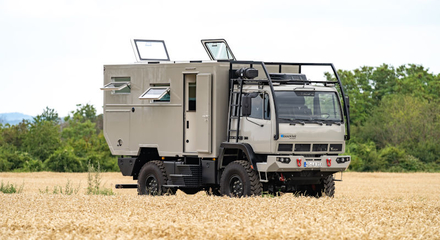

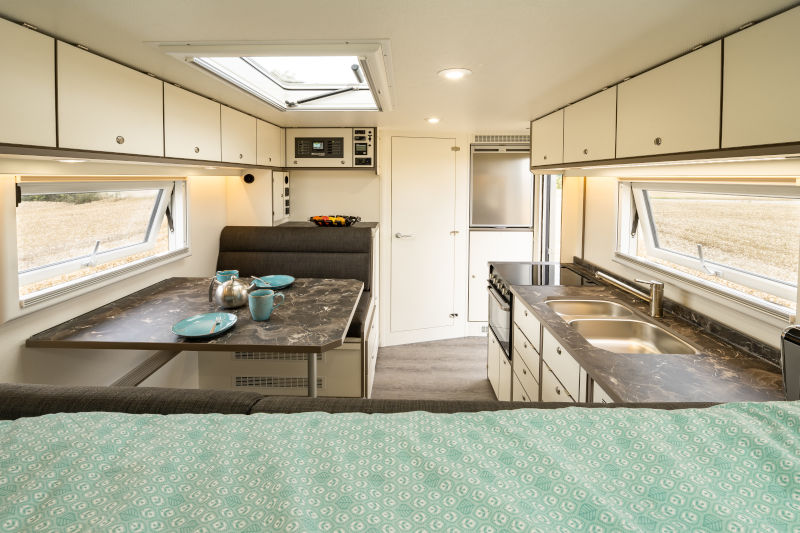

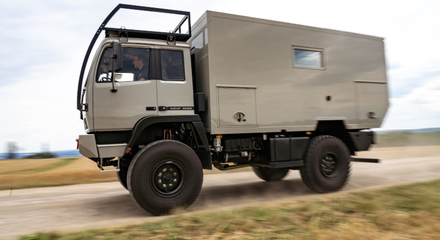

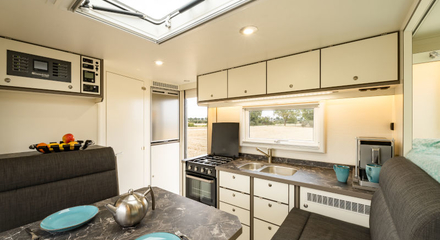

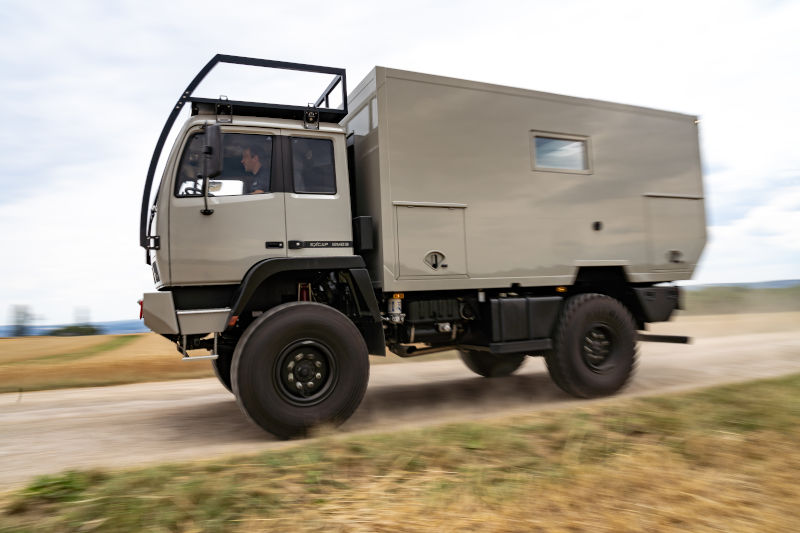

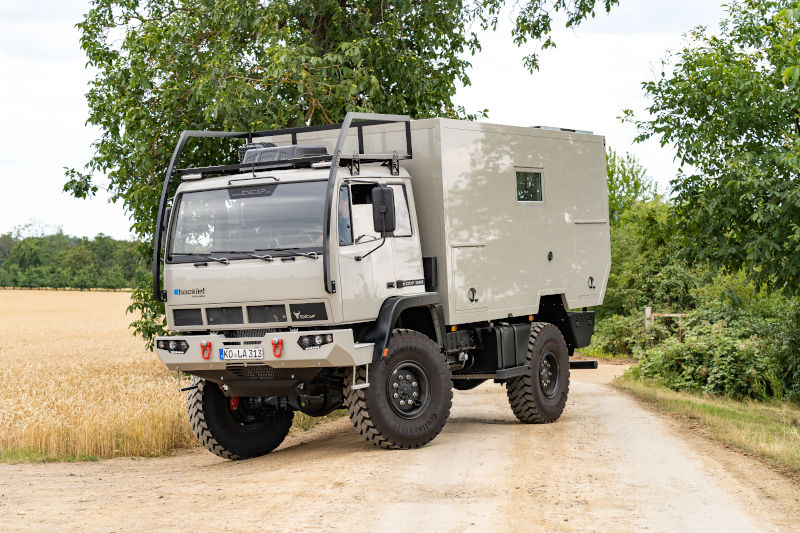

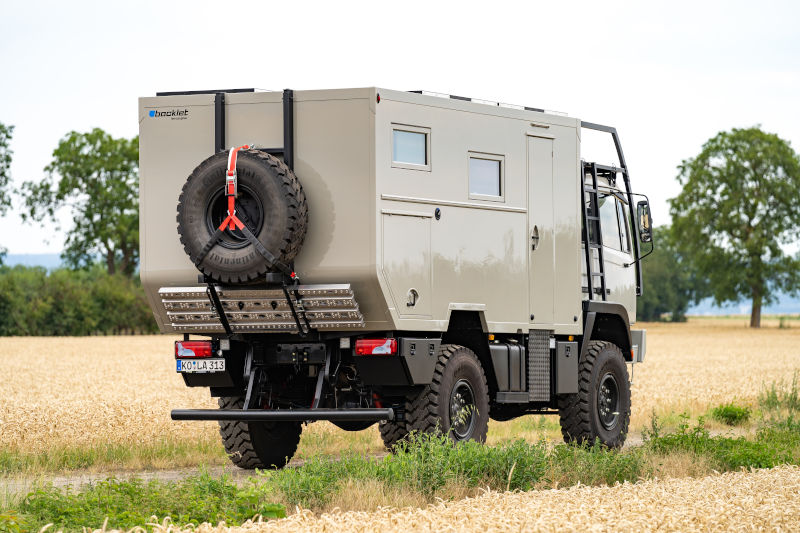

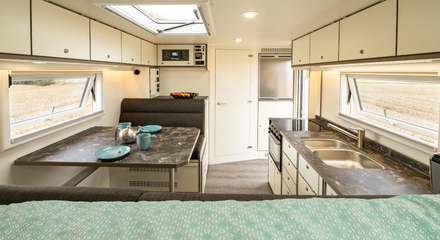

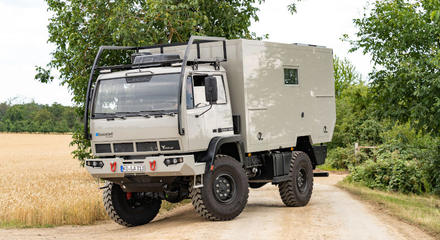

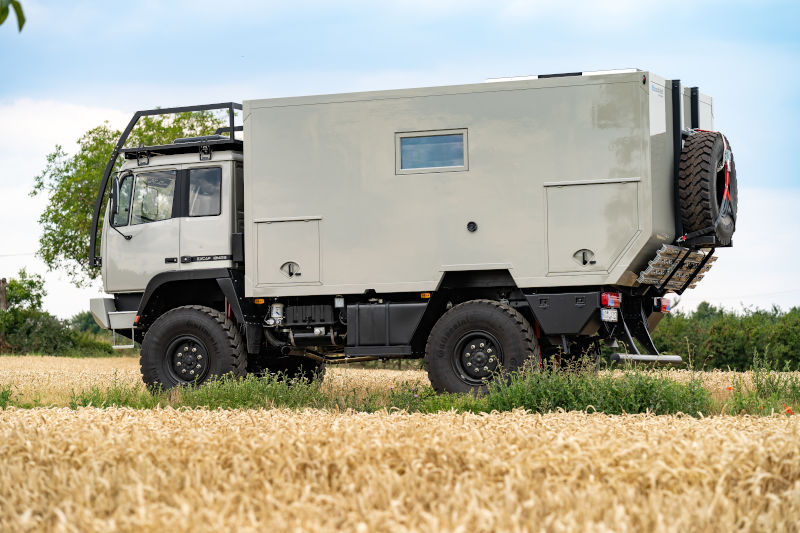

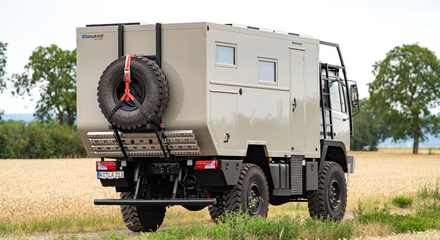

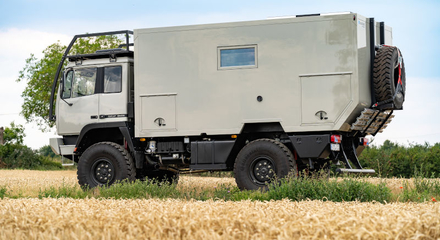

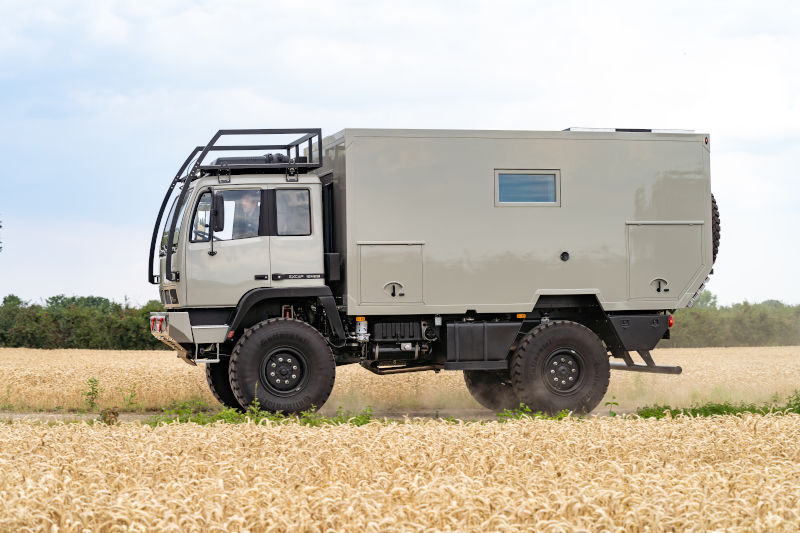

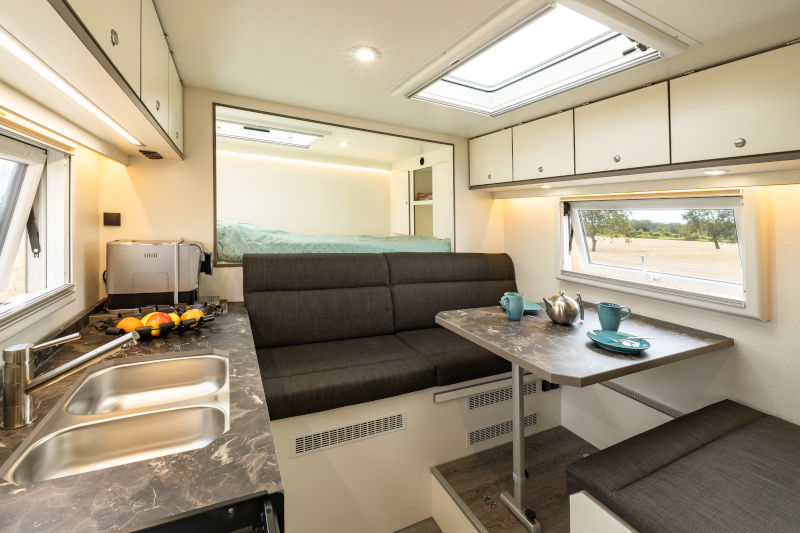

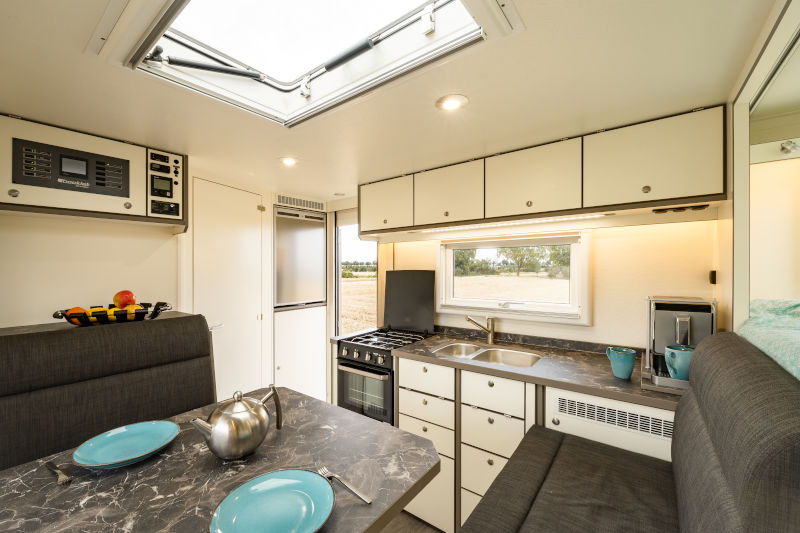

A completely refurbished and optimized Steyr 12M18 is the base vehicle for our long-distance travel vehicle Dakar 730. With a body length of 4600mm, it offers a beautiful living space. In the rear a large transverse bed with outside storage space underneath, in front of it a seating area and a kitchenette on the passenger side. The bathroom




Technical Data

Chassis

Chassis Steyr (Excap mod.) 12M23
Wheelbase 3500 mm
GVW 11.500kg
Engine 6-Cylinder Turbodiesel
Capacity 6000
Engine power app. 170/230

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 51 mm
Roof thickness 50 mm
Bottom thickness 60 mm

Interior

Length 4600
Width 2400 mm
Height 2040 mm
Seats with belt 3
Front bed seating area convertable
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • Steyr 12M18 4x4
  • All-wheel drive
  • Diff-lock rear axle
  • Diff-lock front axle
  • Fuel tank app. 450l
  • comfort seats
  • air condition
  • rear view camera
  • 2 seats in cab
  • GRP body construction
  • Cover layer 3 mm, rowing mesh
  • frostbridge free bocklet doors and hatches
  • storage compartment under bed, full width
  • glas windows
  • glas skylights, marine skylights
  • electric and automatic staircase
  • pass to driver cab with lockable door
  • roof carrier with storage boxes

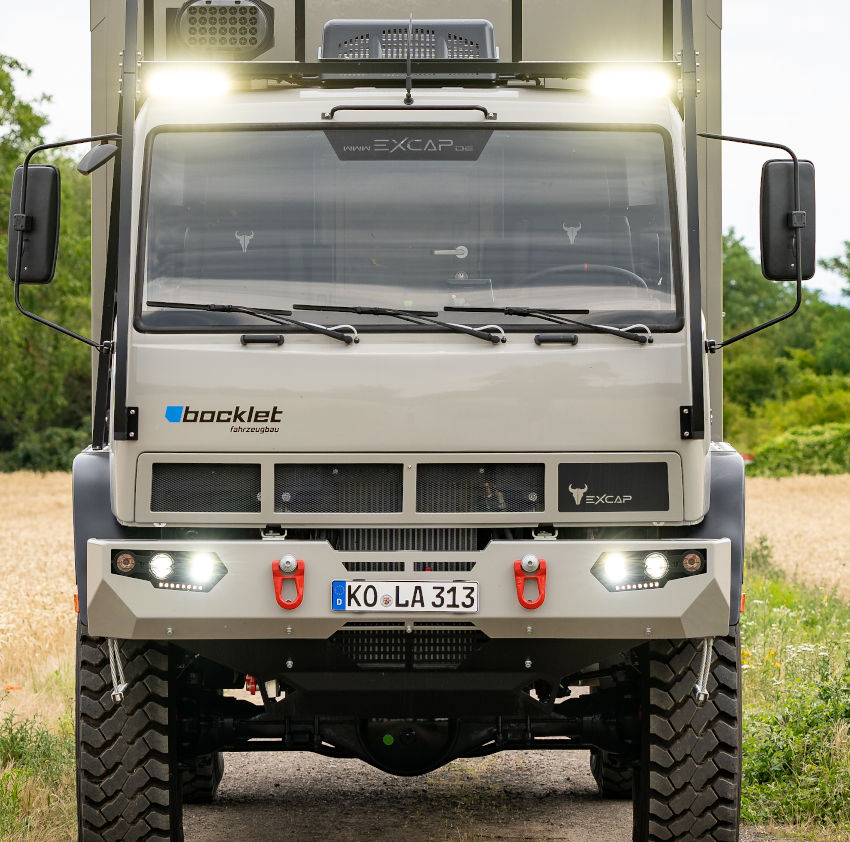

  • Light carrier with LED Bars on cab
  • Spare wheel carrier with airco
  • tyre inflation system

Interior and options

  • furniture made of 16mm wood, CPL coveres
  • drawers with Soft Slide-In
  • fabric cover seating area
  • double floor in seating area
  • Diesel -  air heating
  • Gas- warm water heating with electric power option
  • Batteriecapacity 10kwh Lithium
  • Automaticharger 24 V / 50 A
  • Inverter 2 kW
  • photovoltaik installation of 1080WP
  • control panel
  • LED lightning
  • Separation toilette
  • white-armature with single-leve
  • 3-flams stove with oven
  • Fridge 140l
  • Countertops mineral stone
  • Radio CD / Bluetooth
  • Tanks inside and frost free:
  • freshwater 300l
  • grey water 150l
