Bocklet
Dakar 825
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4250 mm |
| GVW | 13.000kg |
| L x W x H | 8250 mm x 2400mm x 3610 mm |

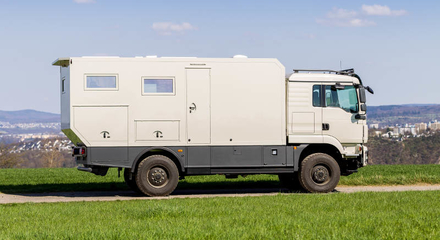

Based on a MAN TGM 4x4 chassis, a sporty, family-friendly long-distance motorhome with a spacious rear garage and many great details has been created. The cot can optionally be extended into the shower to become a full-size third bed, or in a two-person configuration this space is available for additional cupboards.
Technical Data
Chassis
| Chassis | MAN TGM 13.290 4x4 |
| Wheelbase | 4250 mm |
| GVW | 13.000kg |
| Engine | 6-Zylinder Turbodiesel |
| Capacity | 6871 |
| Engine power | 231/290 |
Body
| cold bridge-free GRP sandwich construction | |
| Wall thickness | 51 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 5400 mm |
| Width | 2360 mm |
| Height | 2100 mm |
| Seats with belt | 4 |
| Front bed | 650x1500 mm |
| Rear bed | 2000 x 1400 mm |
Specifications
Chassis and body
- MAN 13.290 4x4
- Selectable all-wheel drive
- Differential lock rear axle
- Differential lock front axle
- Fuel tanks approx. 600l
- Comfort seats
- Rear view camera
- 4 seats in the driver's cab
- cold bridge free GFK-sandwich construction
- wall / floor thickness 51 / 60 mm
- Top layer 3 mm, fabric-reinforced
- cold-bridge-free bocklet doors and flaps with GRP step profile, KSD hollow rubber seal and multiple locking system
- Rear lowering with large storage garage for bicycles or motorbike / scooter
- Side skirts
- Electric entrance step with automatic control
- Real glass hinged windows
- Genuine glass roof hatches
- Roof vent
- Cab passage with lockable door
- Lamp holder with LED bars on driver's cab
Interior and options
- Furniture combination white with real wood smoked oak
Drawer pulls with soft slide-in, stainless steel push-buttons
Seat upholstery fabric cover
Double floor in bench area
Diesel hot air heating
Gas hot-water heating with boiler and electric cartridge
Battery capacity 4x220Ah AGM
Automatic charger 24 V / 50 A
Inverter 2 kW
Solar panel 780W
Control panel with ampere-hour meter
Lighting LED lights
Household fittings with single-lever mixer
Vacuum tank toilet
3-burner cooker with oven
Compressor fridge 140 l
Compressor cooler 30l
Kitchen worktop and sideboard in mineral stone
Radio CD / Bluetooth
Tanks inside and heated
Fresh water tank 500
Waste water tank 250l
Black water 210l
Automatic SAT system and LED TV
Air conditioner in the superstructure
