Bocklet

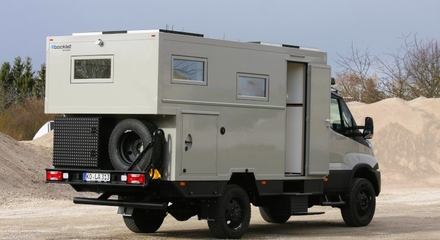

Dakar 695

Chassis Iveco Daily 70S18HA8WX
Wheelbase 3780mm
GVW 7000 kg
L x W x H 6950 mm x 2200 mm x 3200 mm

A clever concept with compact external dimensions is our Daka693E. With the rear slide out, first built in this form in 2009, the feeling of space is noticeably increased when the vehicle is extended and stationary. The fixed rear bed invites you to linger, as does the spacious seating area of this expedition camper. Another highlight: the wardrobe from the shower can be moved to enlarge the front cabin area to a small bathroom.




Technical Data

Chassis

Chassis Iveco Daily 70S18HA8WX
Wheelbase 3780mm
GVW 7000 kg
Engine 4 Cylinder Turbodiesel
Capacity 2998 ccm
Engine power 132 kW / 180 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

Interior

Length 4300 mm
Width 2100 mm
Height 2000 mm
Seats with belt -
Front bed -
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • All wheel drive
  • gear reduction
  • automatic gearbox
  • Fuel tank 250 l
  • Comfort seats
  • Radio bluetooh
  • Rear view camera
  • GRP body construction
  • Cover layer 2 mm, rowing mesh
  • frostbridge free bocklet doors and hatches
  • fully insulated rear slide-out
  • Rear storage compartment under bed
  • spare wheel carrier
  • electric and automatic staircase
  • pass to driver cab with lockable door
  • glas windows
  • glas skylights
  • roof carrier with LED light bar

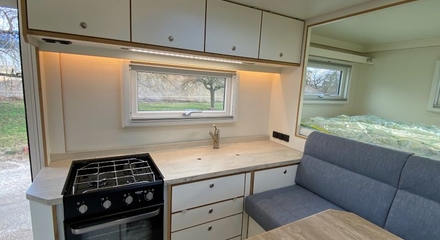

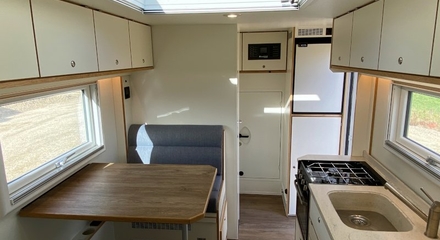

Interior and options

  • Furniture in oak veneer
    combined with white surfaces
  • Seat cover fabric
  • Double floor in seating area
  • Gas-powerd-airheating with hot water device
  • Battery capacity 210Ah Lithium
  • Automatic charger 12 V / 50 A
  • Inverter 2 kW
  • Solar installation 720 W
  • control panel
  • LED lightning
  • composting  toilet
  • white-armature with single-leve
  • 3-flams stove with oven
  • Fridge 90 l
  • Tanks inside and heated:
  • Freshwater 220l
  • Greywater 110l
  • Gasbottles 2x11 kg
