Bocklet
Dakar 650
| Chassis | MB Sprinter Iglhaut |
| Wheelbase | 3665 mm |
| GVW | 5.300 kg |
| L x W x H | 6500 mm x 2180 mm x 3100 mm |
Technical Data
Chassis
| Chassis | MB Sprinter Iglhaut |
| Wheelbase | 3665 mm |
| GVW | 5.300 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | 2987 ccm |
| Engine power | 140/190 kW/PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

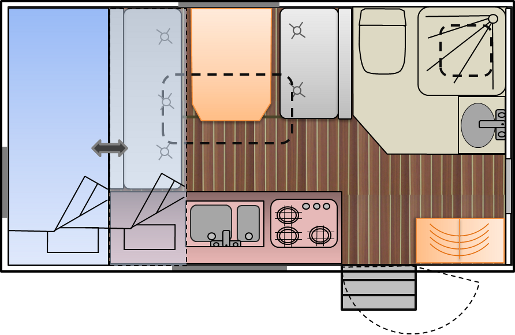

Interior
| Length | 3900 mm |
| Width | 2050 mm |
| Height | 2000 mm |
| Seats with belt | 2 with 3-point belt |
| Front bed | - |

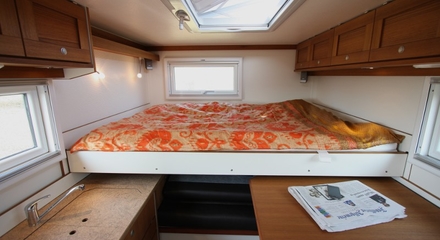

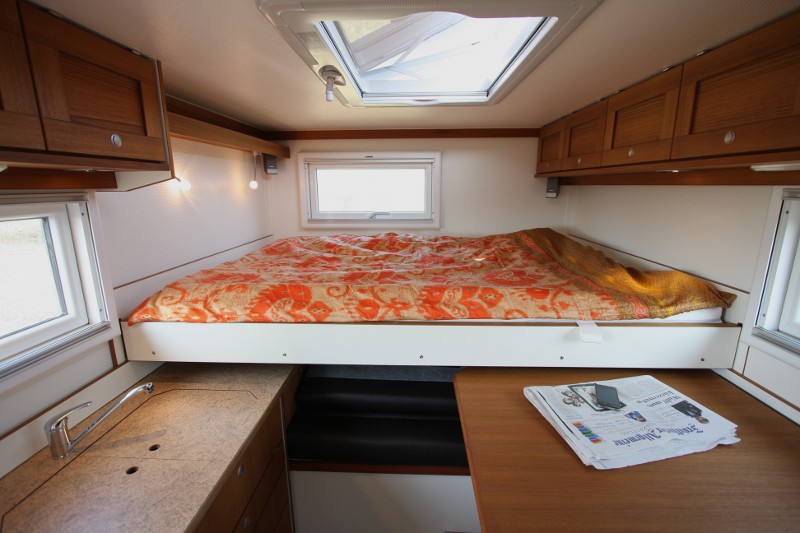

| Rear bed | 2000 x 1400 mm (sliding) |
Specifications
Chassis and body
- MB Sprinter Iglhaut 4x4
- all-wheel-drive
- diff-lock rear-/ front axle
- fuel tank 180 l
- metallic painting
- comfort seats
- radio CD
- rear view camera
- free of thermal bridges
- cover layer 2mm
- bocklet doors and hatches, free of thermal bridges
- outer storrage space on the side
- outer storrage space beneath rear bed
- electric and automatic stair case
- KCT hardglas swing-out windows
- skylight seitz Heki 1
- skylight Gebo
- pass to driver cab with lockable door
- roof carrier with swing-out

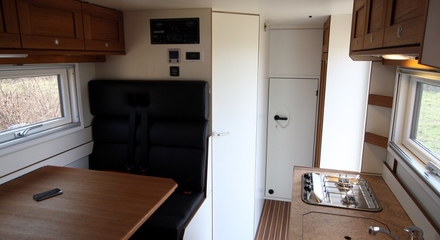

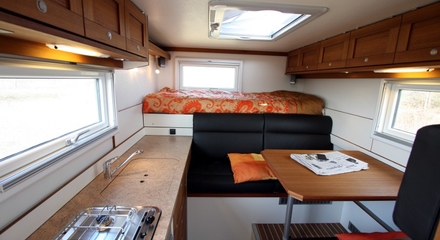

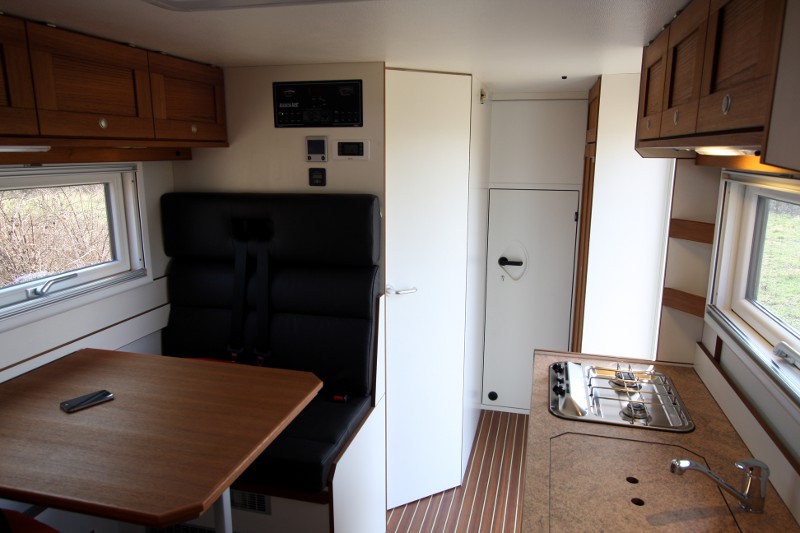

Interior and options
- furniture made of 16mm wood, veneer teak

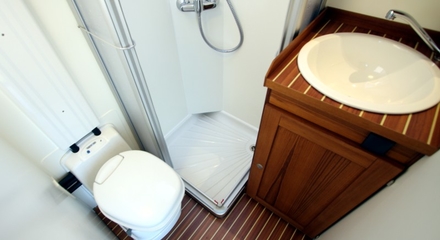

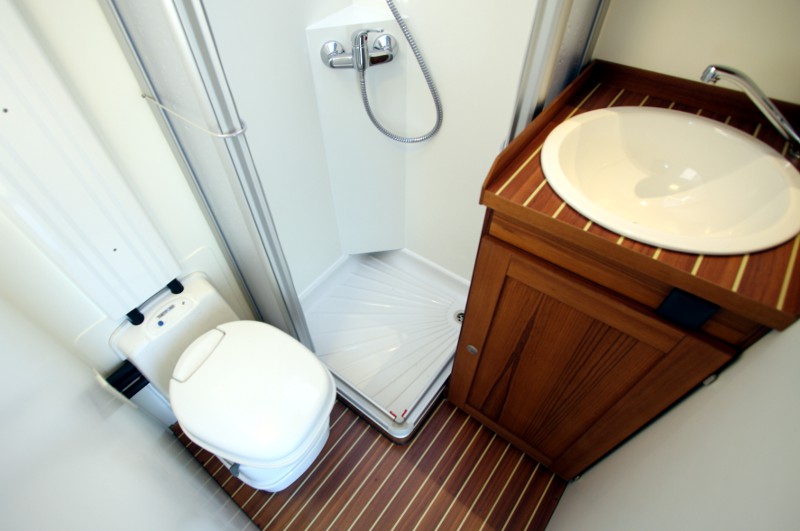

- bathroom in GRP sandwich-construction with separated shower
- seat cushion cover leather grizzly
- double-floor in seating area
- water heater
- heat exchange with chassis
- floor heating engine
- battery capacity 220Ah
- automatic charger 12 V / 50 A
- inverter 1200 W
- solarpanels 360 W
- control panel
- energy saving spot lights, LED lights
- cassette toilett
- white-armature with single-lever
- 3-flame stove
- compressor fridge 80 l
- all tanks inside and heated
- freshwater 230l
- wastewater 130l
