Bocklet
Dakar 737/2
| Chassis | Iveco Daily 70S18HA8WX |
| Wheelbase | 4175 |
| GVW | 7000 kg |
| L x W x H | 7360 mm x 2340 mm x 3270 mm |

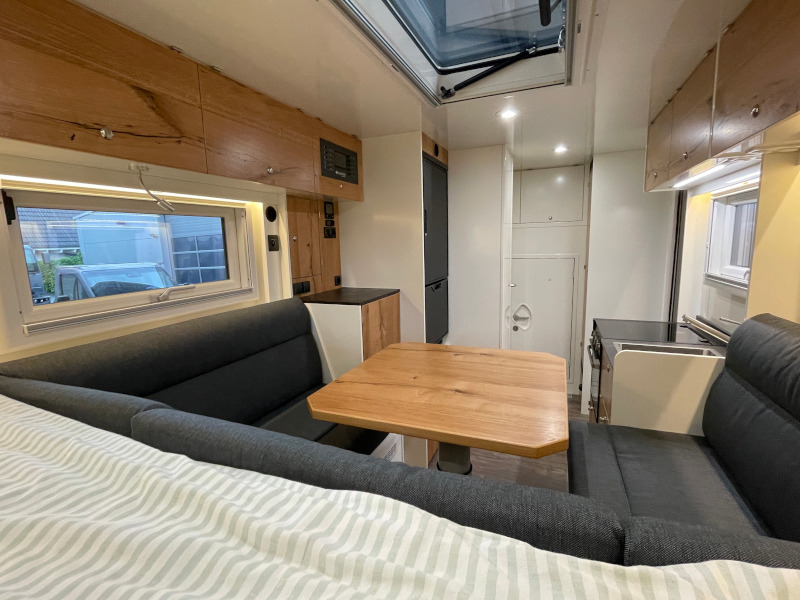

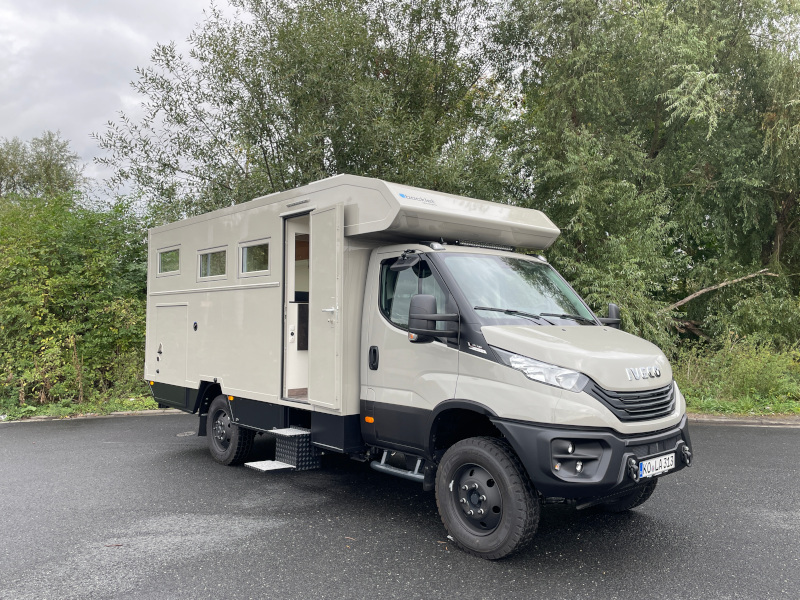

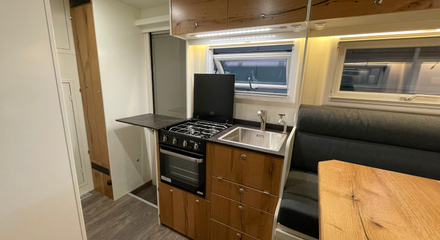

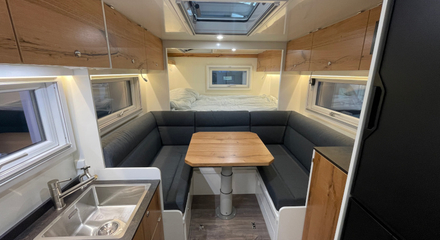

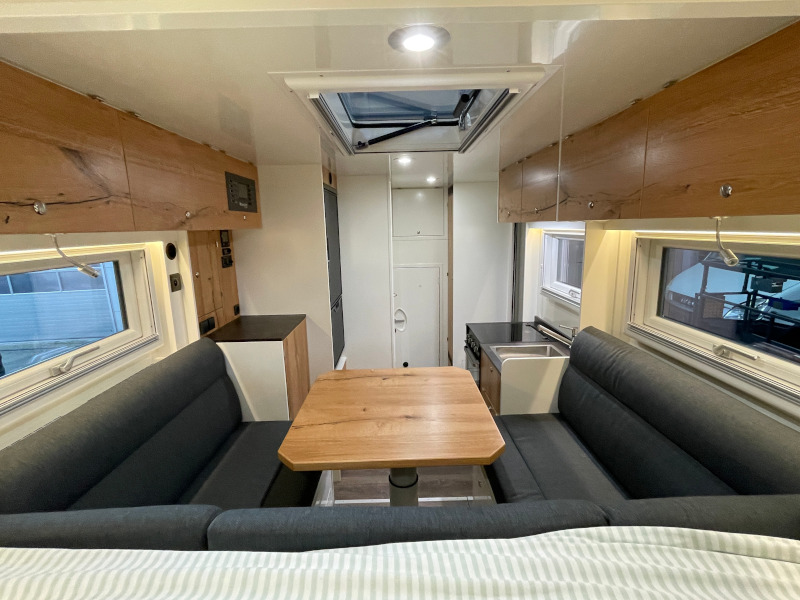

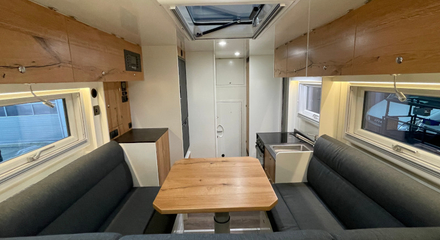

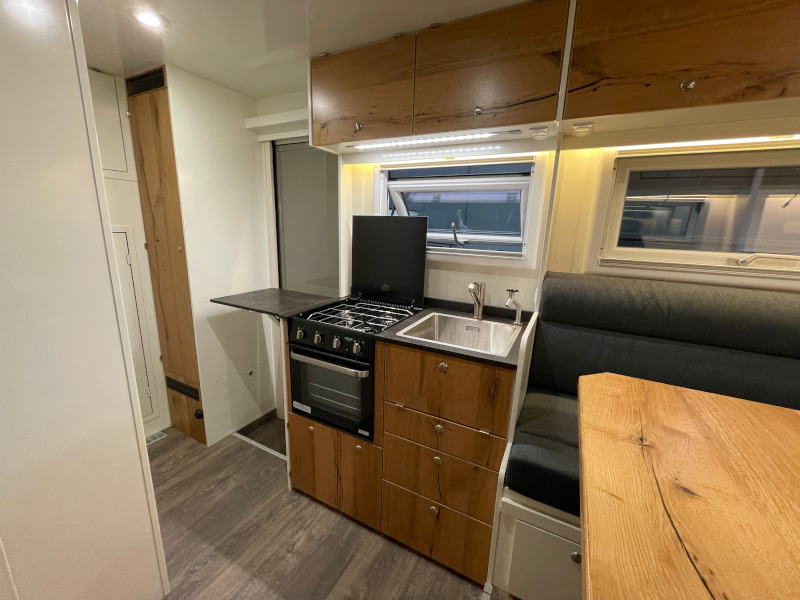

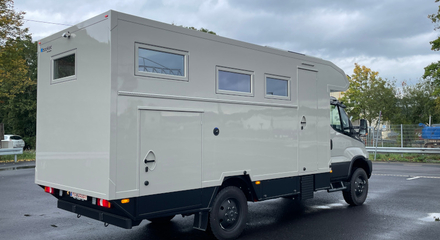

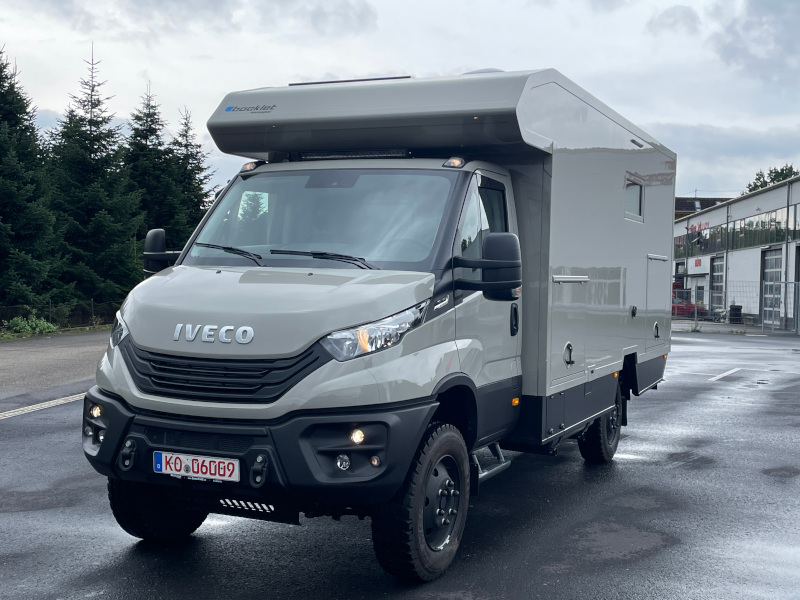

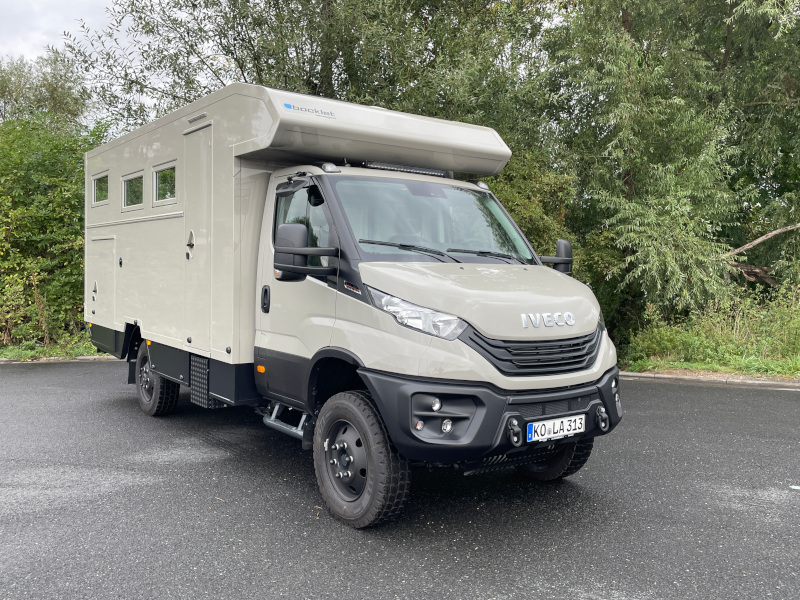

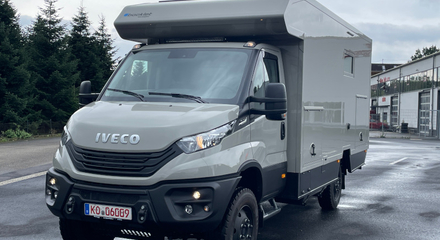

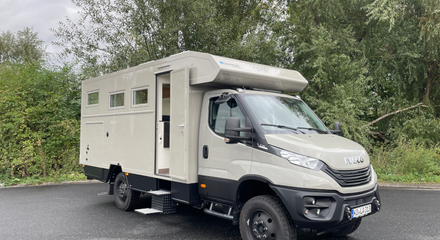

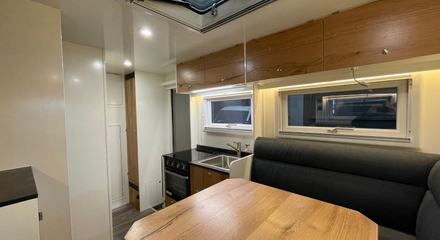

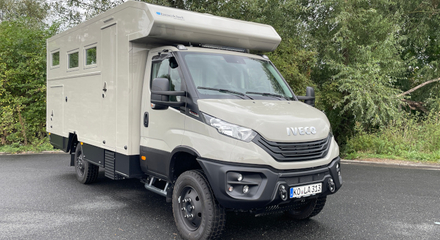

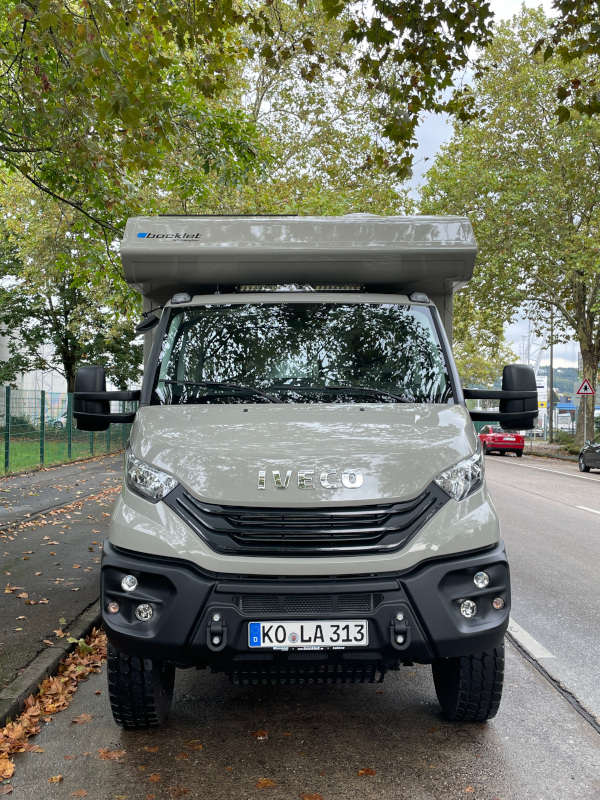

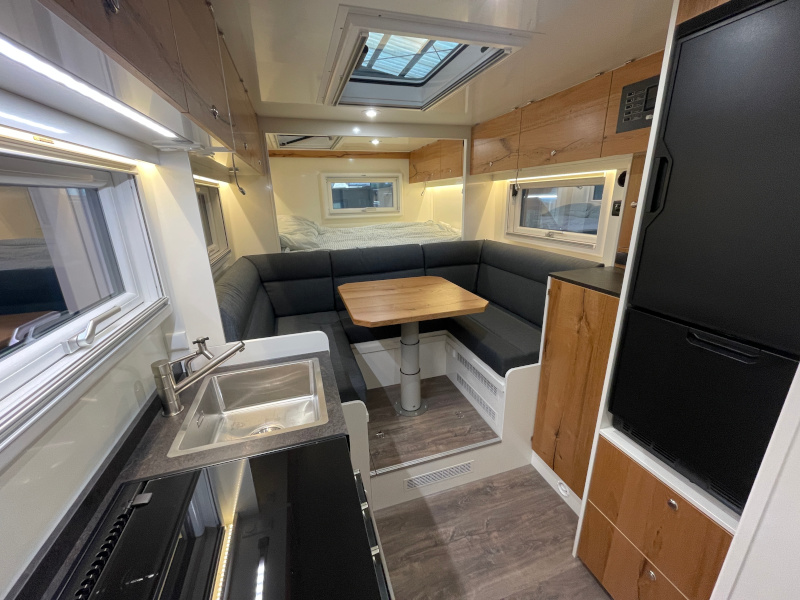

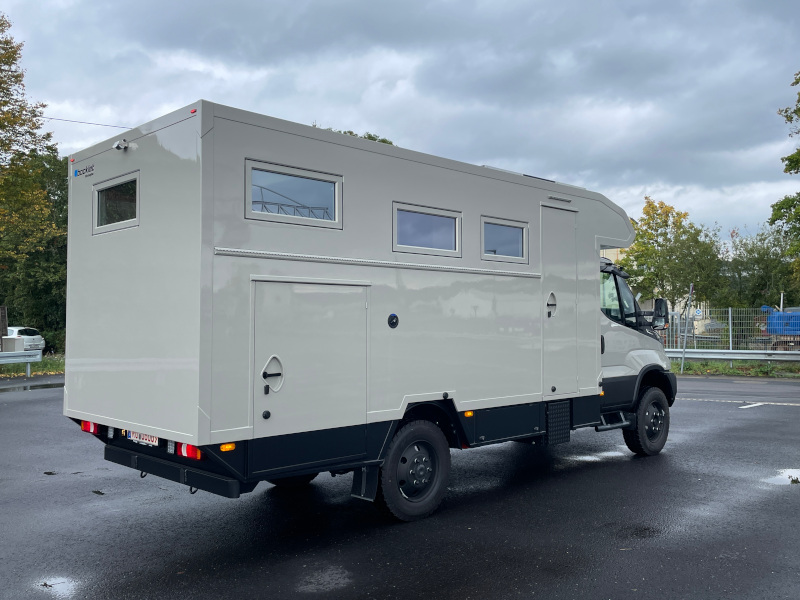

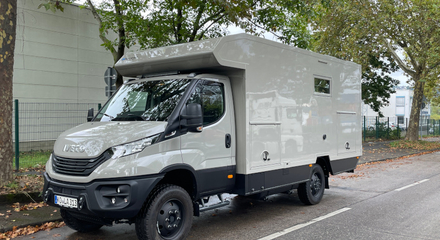

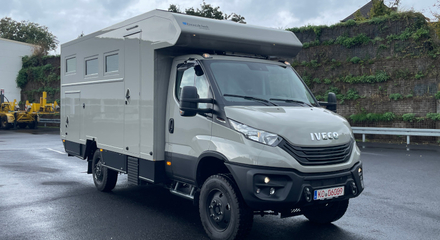

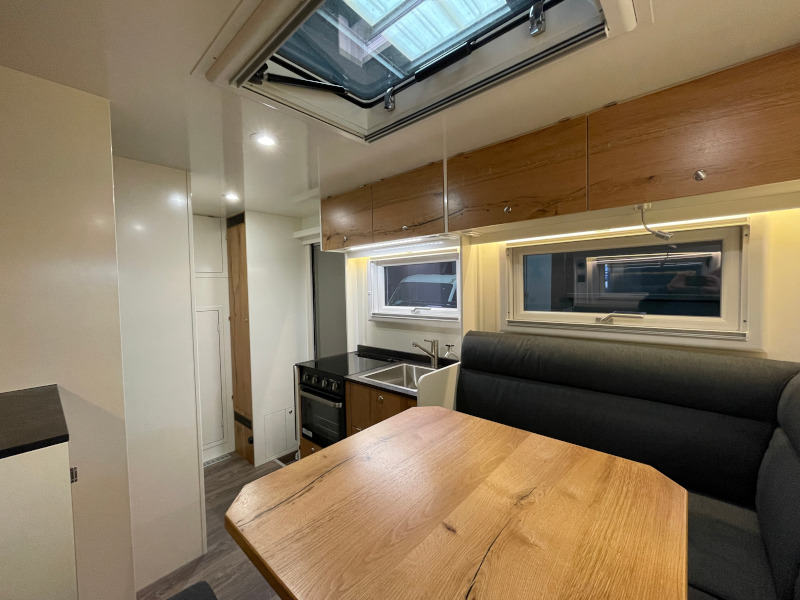

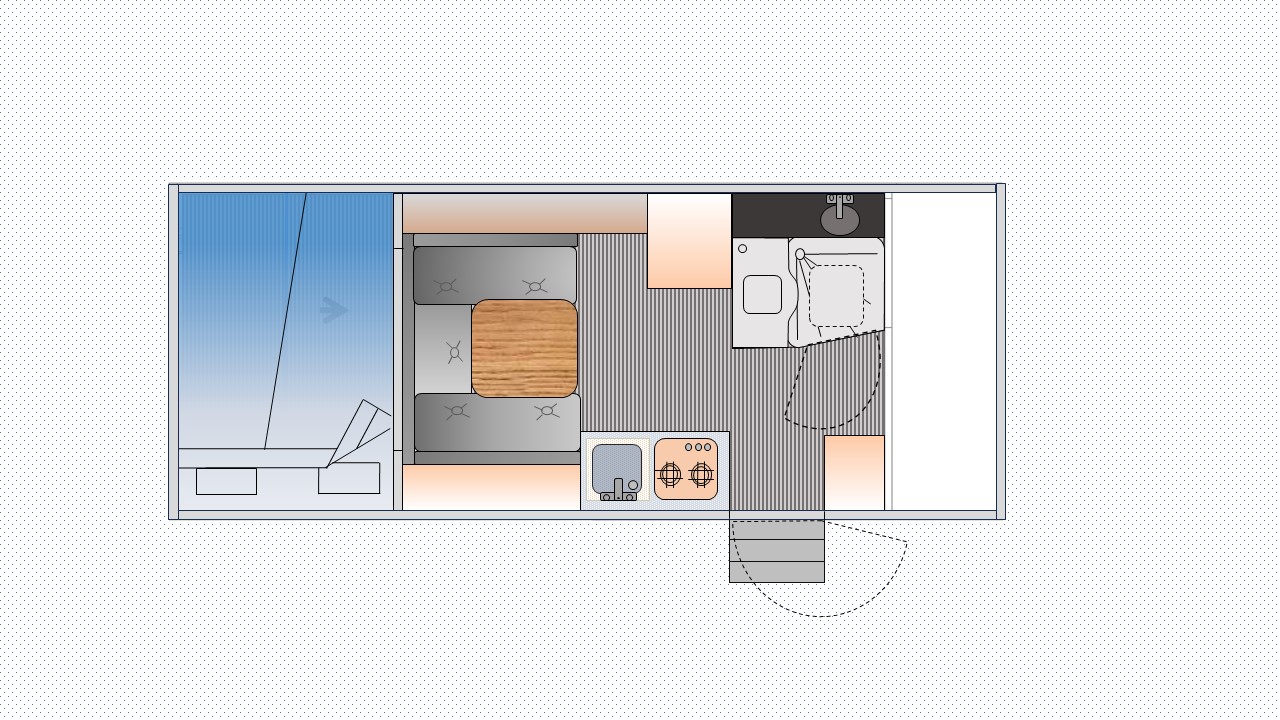

The Dakar 737/2 is a Bocklet long-distance motorhome on the chassis of an Iveco Daily 4x4 with a long wheelbase. The long body length creates an attractive living concept. There is a large lowered garage at the rear for carrying a motorbike, scooter or bicycles. Above this is a transverse sleeper bed with windows to the side and rear. The cosy seating area is located towards the front in the direction of travel. The wet room with integrated shower and the kitchenette are located at the front of the superstructure. The storage alcove above the cab offers additional space for equipment and supplies. A vehicle that invites you to go on extended trips around the world thanks to its handling and practicality...
Technical Data
Chassis
| Chassis | Iveco Daily 70S18HA8WX |
| Wheelbase | 4175 |
| GVW | 7000 kg |
| Engine | 4-cylinder Turbodiesel |
| Capacity | 2998 ccm |
| Engine power | 132 kW/180PS |
Body
| cold bridge-free GRP sandwich construction | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 4175 mm |
| Width | 2150 mm |
| Height | 2100 |
| Seats with belt | 2 |
| Front bed | |
| Rear bed | 2 |
Specifications
Chassis and body
- All-wheel drive
- Differential lock rear axle
- Differential lock front axle
- Fuel tank 250 litres
- Comfort seats
- Bluetooth radio
- reversing camera
- Cold-bridge-free GRP sandwich construction
- 2 mm top layer, fabric-reinforced
- cold bridge-free bocklet doors and flaps with GRP step profile,
- KSD hollow rubber seal and multi- point locking system
- Electric access step with automatic control
- Real glass hinged windows
- Real glass roof hatches
- Cab access with lockable door
- Lowered rear garage full vehicle width
- Spare wheel attachment on the inside
- Bicycle pull-out with transverse displacement in the rear garage
- LED ambient lighting
Interior and options
- Furniture construction in white CPL with wild oak fronts and real wood edging
- Seat upholstery with fabric cover
- Double floor in the bench area
- Gas-fuelled hot water heating with integrated boiler and electric cartridge
- Additional diesel heater 2 kW hot air
- Battery capacity 2x 330Ah Lithium/ 12V
- Automatic charger 12V /80 A
- Charging booster 70A
- Inverter 3000W
- PV system 760WP
- Control panel with ampere-hour counter
- LED lighting spots, ceiling spots, indirect
- Separating toilet
- Household taps with single-lever mixer
- 3-burner hob
- Gas oven with grill
- Compressor fridge with separate ice compartment
- Tanks inside and heated:
- Fresh water tank approx. 240 litres
- Waste water tank approx. 120 litres
- Gas tank 60 litres
- Thermal floor in entrance area
