Bocklet

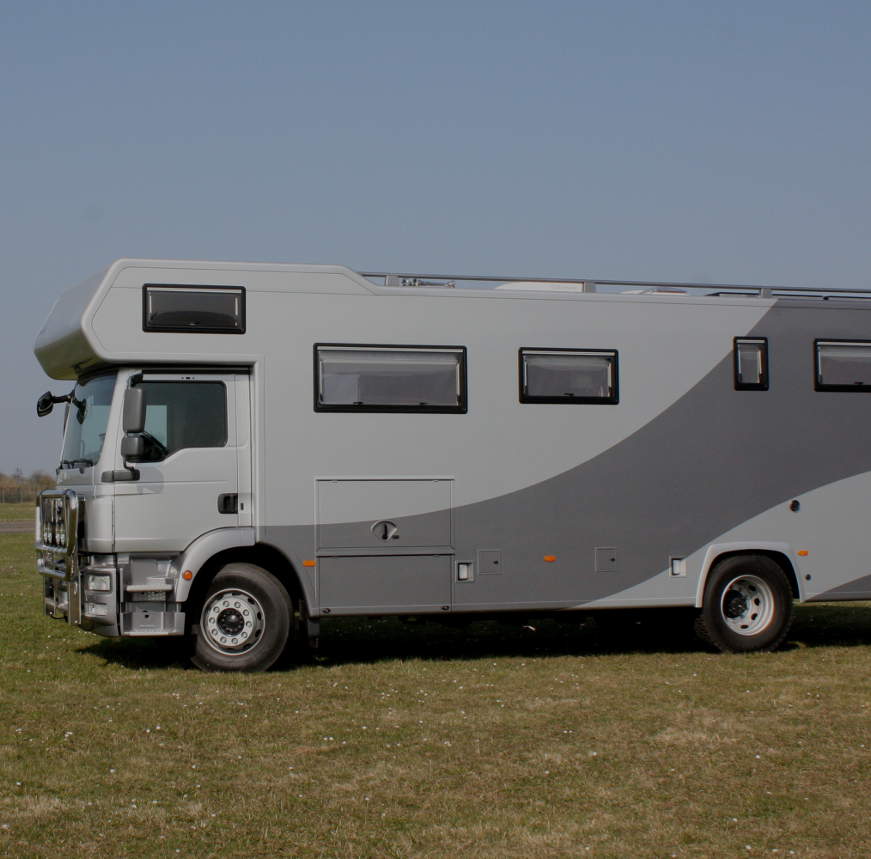

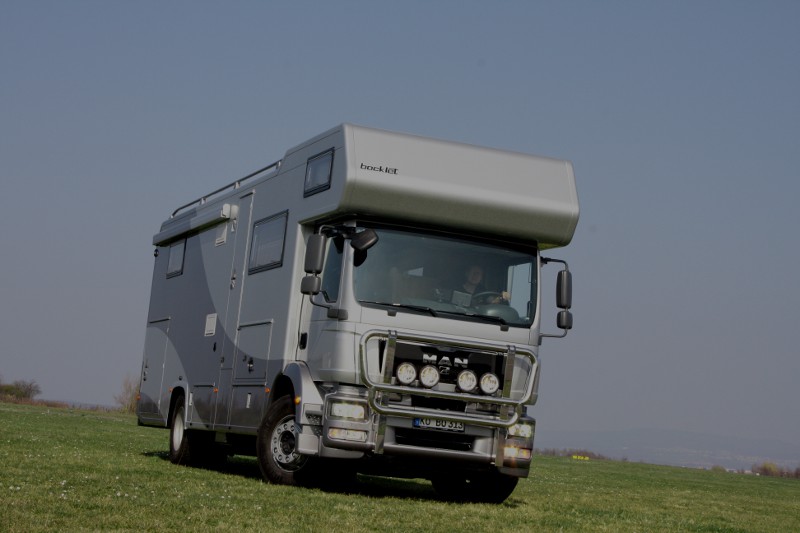

Ando 945HG
| Chassis | MAN TGM 18.250 |
| Wheelbase | 5075 mm |
| GVW | 11.900 kg |
| L x W x H | 9450 mm x 2500 mm x 3800 mm |
Technical Data
Chassis
| Chassis | MAN TGM 18.250 |
| Wheelbase | 5075 mm |
| GVW | 11.900 kg |
| Engine | 6 Cylinder Turbodiesel |
| Capacity | 6871 ccm |
| Engine power | 184 kW / 250 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

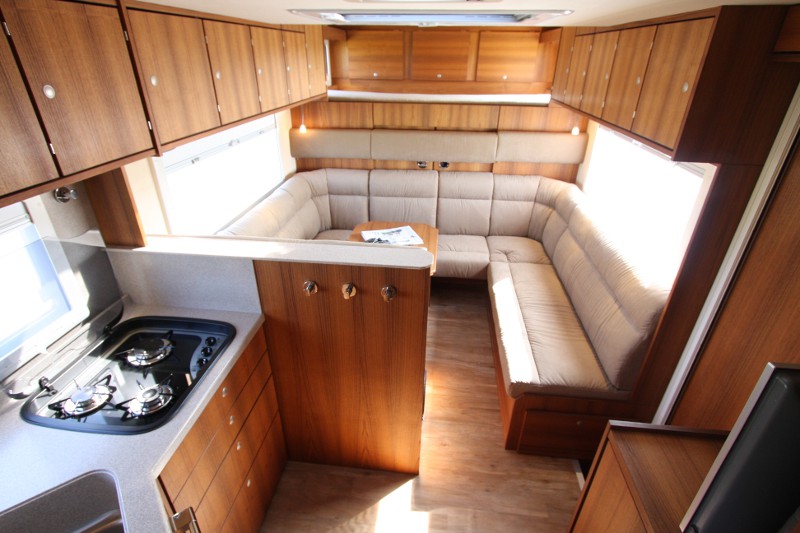

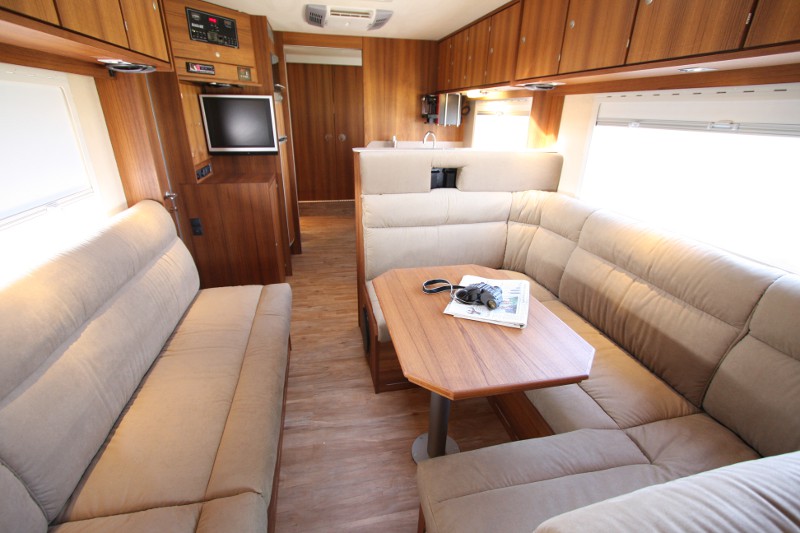

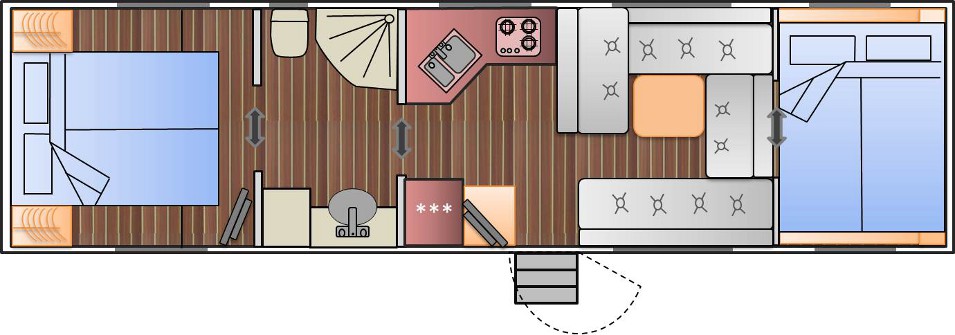

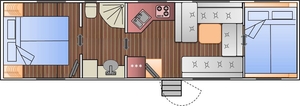

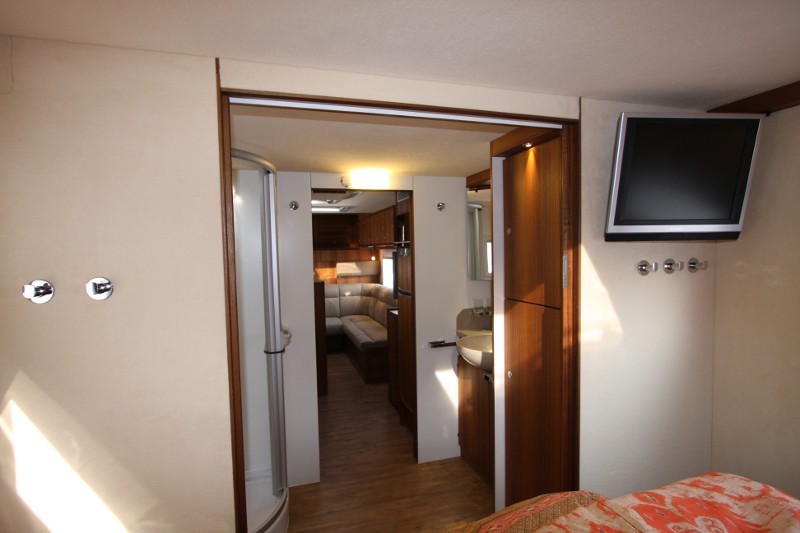

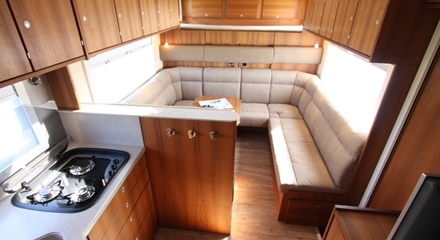

Interior
| Length | 7470 |
| Width | 2400 mm |
| Height | 2000 mm |
| Seats with belt | 2 with 3-point belt |
| Front bed | 2000 x 1300 mm |
| Rear bed | 2000 x 1500 mm |
Specifications
Chassis and body
- towing device
- diff-lock rear axle
- ABS
- fuel tank 600 l
- comfort seats
- radio CD / navigationssystem
- rear view camera
- air conditioner
- free of thermal bridges
- cover layer 3 mm
- bocklet doors and hatches, free of thermal bridges
- electric and automatic staircase and remote control
- seitz swing-out windows
- skylight Heki 1
- skylight Fan Tastic Vent
- outer storrage space on the side
- quadgarage beneath rear-bed
- pass to driver cab with lockable door

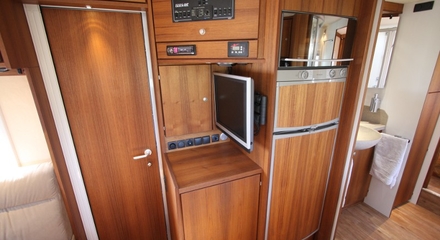

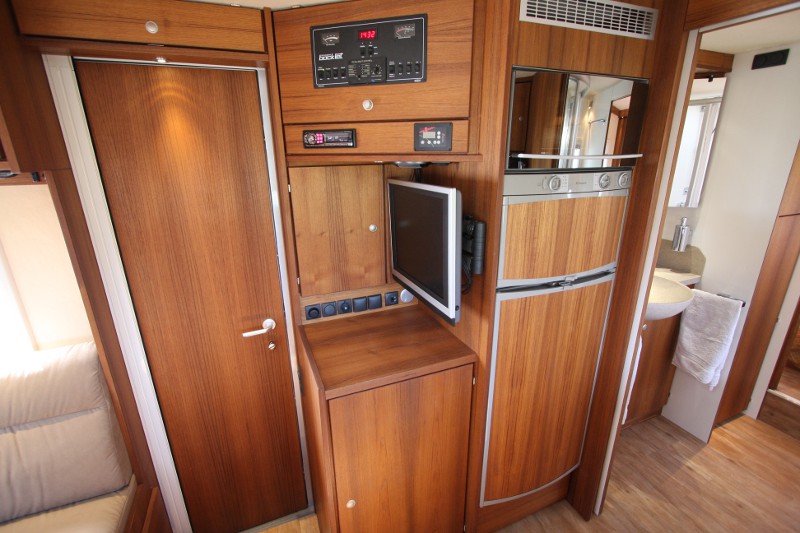

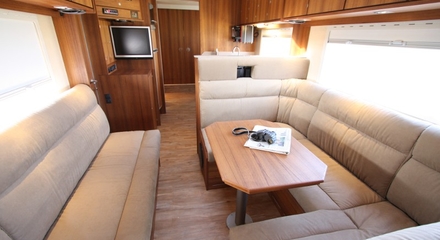

Interior and options
- furniture made of 16mm/19mm wood, veneer teak
- seat cushion cover alcantara
- double-floor
- diesel heater
- gas heater
- engine heat exchanger
- battery capacity 2x 220 Ah
- automatic charger 24 V / 70 A
- inverter 3000 W
- solar panels 360 W
- control panel
- energy saving spot lights, LED spot lights
- porcelain chopping toilett
- 3-flame stove
- absorber fridge 175 l with oven
- gastank 110 l
- Sat TV with 2 LCD screen
- corean washing stand and kitchen work top
- all tanks inside and heated:
- freshwater 400l
- waste water 300l
- retention tank 200l
