Bocklet

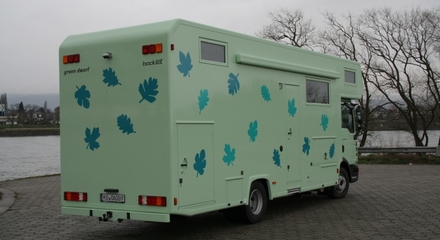

Ando 830K

Chassis MAN TGL 10.210
Wheelbase 4220 mm
GVW 10.000 kg
L x W x H 8300 mm x 2500 mm x 3600 mm





Technical Data

Chassis

Chassis MAN TGL 10.210
Wheelbase 4220 mm
GVW 10.000 kg
Engine 4 Cylinder Turbodiesel
Capacity 4580 ccm
Engine power 151 kW / 205 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

Interior

Length 6200 mm
Width 2300 mm
Height 2100 mm
Seats with belt 4 with 3-point belt
Front bed 2000 x 1400 mm
Rear bed 4x 1700 x 600/700 mm



Specifications

Chassis and body

  • ABS
  • diff-lock rear axle
  • fuel tank 400 l
  • comfort seats
  • radio CD
  • rear view camera
  • air conditioner
  • free of thermal bridges
  • bocklet doors and hatches, free of thermal bridges
  • electric and automatic staircase
  • KCT hardglas
  • skylight Heki 1
  • skylight Fan Tastic Vent
  • outer storrage space on the side
  • double-floor
  • pass to driver cab with lockable door


Interior and options

  • furniture made of 16mm wood, veneer birch
  • seat cushion cover alcantara
  • bottom cover PVC
  • Ebersp├Ącher Diesel heater
  • Alde Gas heater
  • engine heat exchanger
  • battery capacity 880Ah, Gel
  • automatic charger 24 V / 50 A
  • inverter 3000 W
  • solar panels 330 W
  • control panel
  • energy saving spot lights with dimmer
  • porcelain vacuum toilett
  • white-armature with single-lever
  • 3-flame stove
  • microwave
  • compressor fridge 110 l
  • cooler 50 l
  • all tanks inside and heated:
  • freshwater 400l
  • waste water 300l
  • retention tank 150l
