Ando 680

Chassis Iveco Daily 70C21 All Road
Wheelbase 3750 mm
GVW 70000
L x W x H 6800 x 2370 x 3550 mm

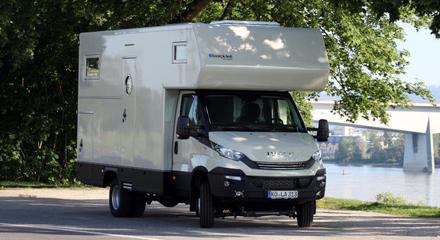

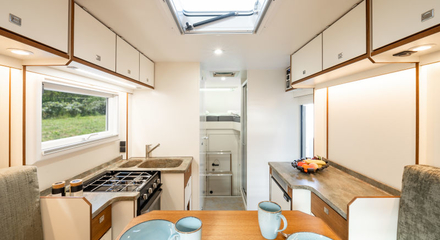

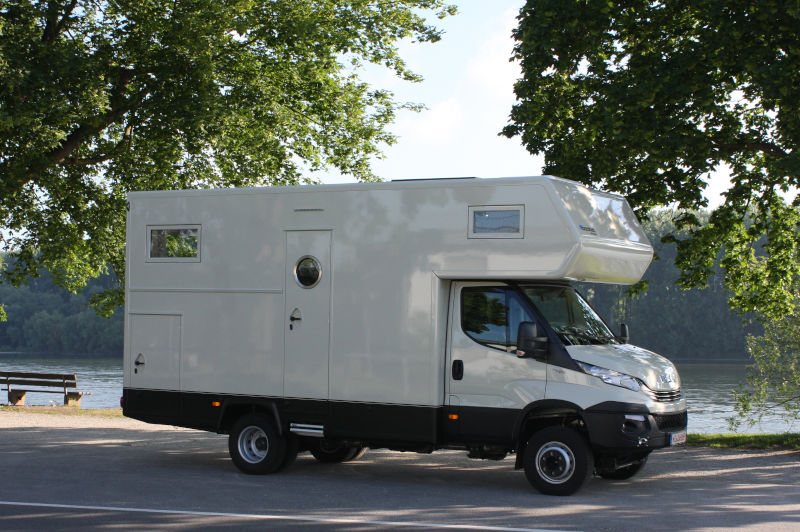

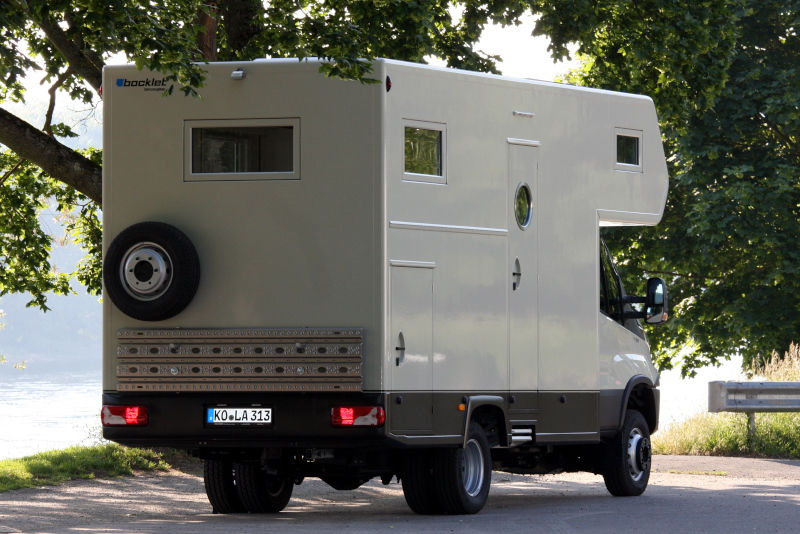

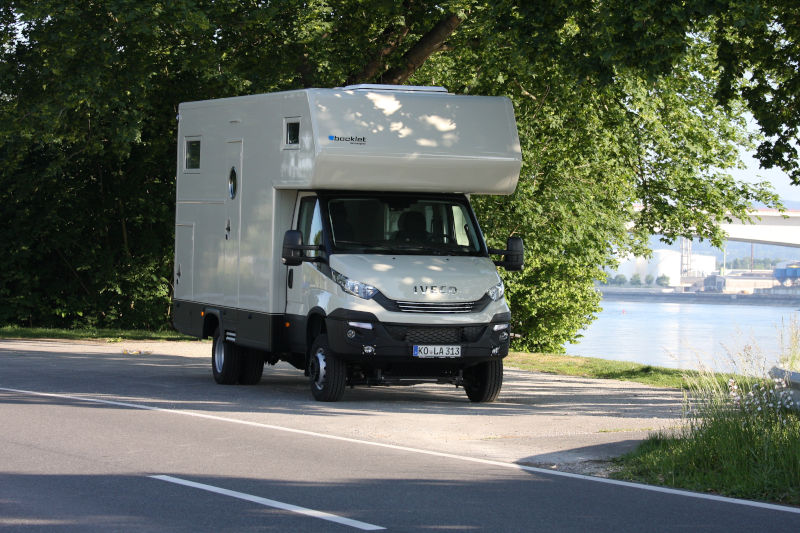

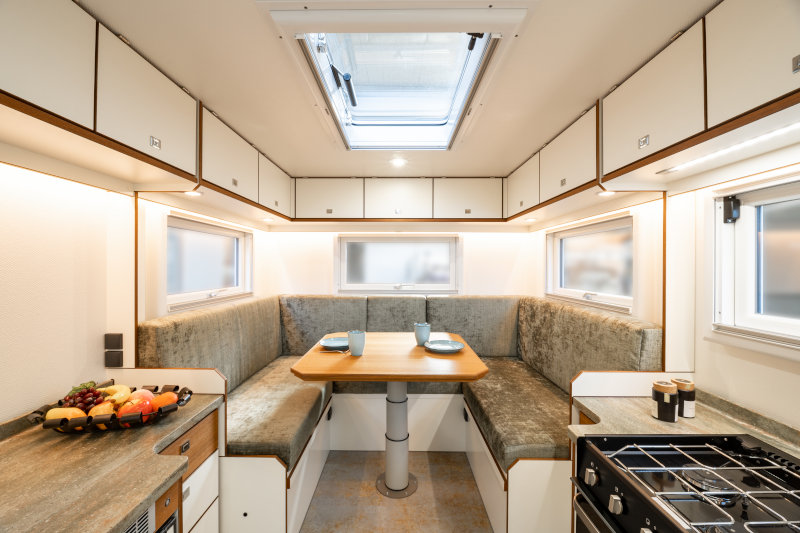

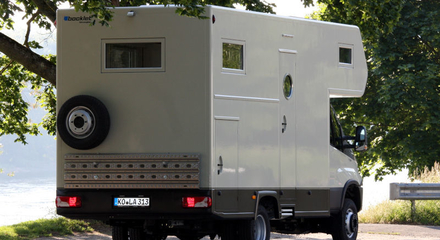

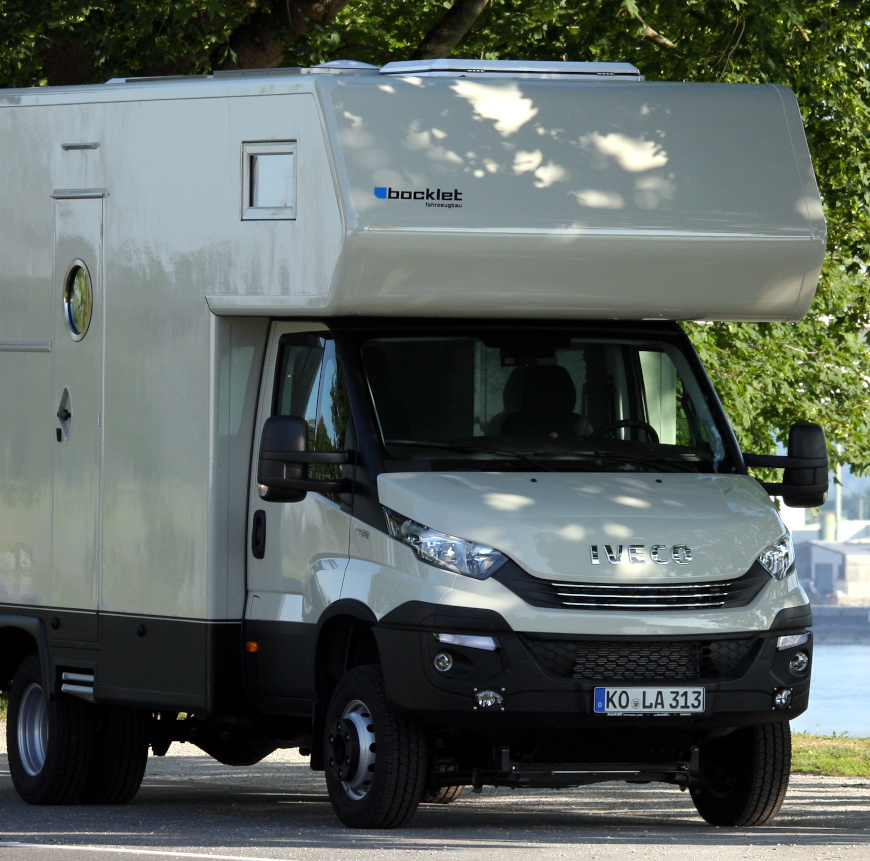

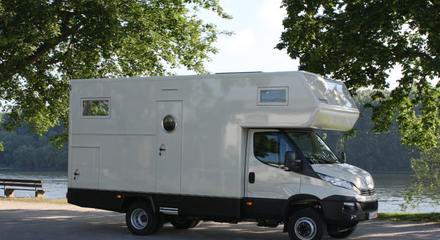

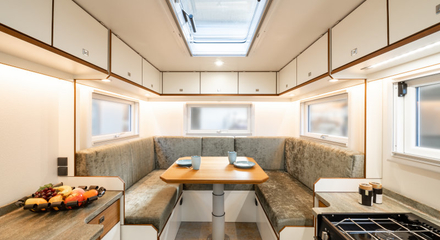

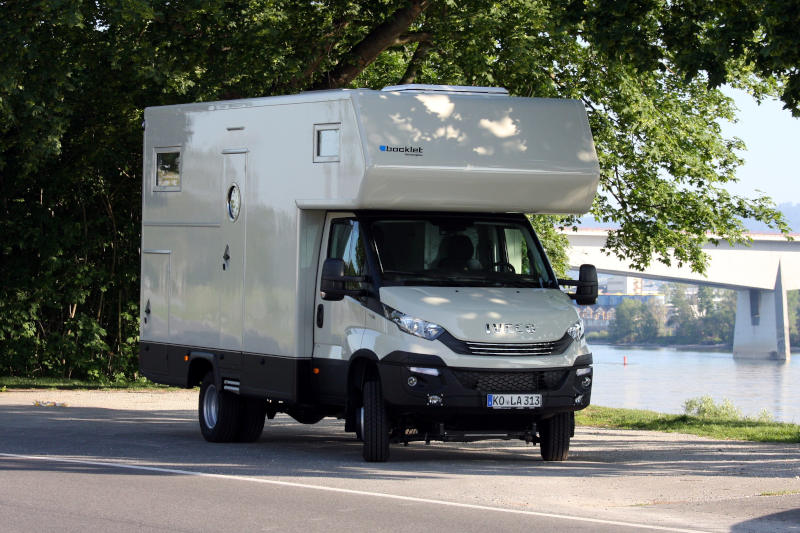

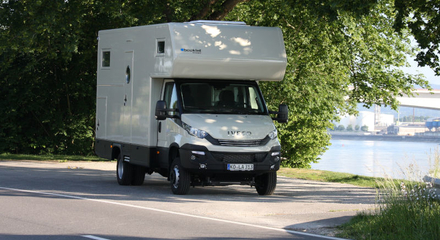

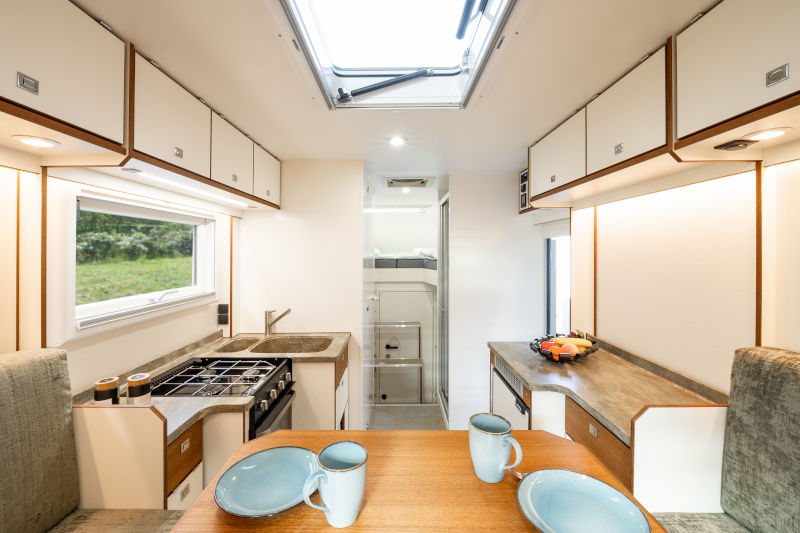

Iveco Daily, here in the all-road 4x4 version with the medium-long wheelbase: the classic layout with rear round seating area and longitudinal beds in the alcove. The kitchen block on the driver's side and a sideboard with a refrigerator on the opposite side. The separate washbasin and toilet area with the shower opposite can be separated from the rest of the living room by a swing door.


Technical Data


Chassis Iveco Daily 70C21 All Road
Wheelbase 3750 mm
GVW 70000
Engine 4 Zylinder Turbodiesel
Capacity 2998 ccm
Engine power 150 kW / 205 PS


GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm


Length 4220 mm
Width 2200 mm
Height 2400 mm
Seats with belt 2
Front bed 2100 x 2000 mm
Rear bed -


Chassis and body

  • All-wheel drive
  • Fuel tank 170 l
  • Automatic gear
  • Diff-Lock rear axle
  • Comfort seats
  • Rear view camera
  • Air condition
  • GRP body construction
  • Cover layer 3 mm, rowing mesh
  • frostbridge free bocklet doors and hatches
  • lockable pass through Door
  • electric and automatic staircase
  • glas windows
  • glas skylights
  • electric vent
  • Storage compartments underneath body floor
  • heated storage garage

Interior and options

  • All furniture white CPL covered
  • Partly teak wood surface for drawers
  • beds in driving direction with stairs
  • Seat cover cushion
  • floor coverin vynil
  • Double floor
  • Gas Warmwater heating
  • Diesel powered air heating
  • Battery capacity 420Ah, Lithium Ionen
  • Inverter 2000VA
  • Charger 80A
  • Booster
  • Solar installation 700WP
  • control panel
  • LED lightning
  • Separation toilet with electric vent
  • Bathroom in GRP sandwich construction
  • white-armature with single-lever
  • 3-flame stove and oven
  • Gastank 70l
  • Fridge 140 l
  • Tanks inside and heated:
  • Fresh water 280l
  • Grey water 1180l
