Bocklet
Ando 645
| Chassis | Mercedes Benz Sprinter 519CDI 4x4 |
| Wheelbase | 3665 mm |
| GVW | 5.300 kg |
| L x W x H | 6450 mm x 2260 mm x 3200 mm |

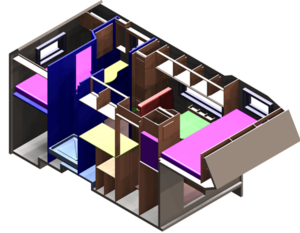

Small and compact is the Ando 645 model. Seperated bed in the rear with huge storage underneath. Bathroom with separated shower divides the layout in two sections.
Technical Data
Chassis
| Chassis | Mercedes Benz Sprinter 519CDI 4x4 |
| Wheelbase | 3665 mm |
| GVW | 5.300 kg |
| Engine | 6 Zylinder Turbodiesel |
| Capacity | 2998 ccm |
| Engine power | 140 kW / 190 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |
Interior
| Length | 3865 mm |
| Width | 2100 mm |
| Height | 2300 mm |
| Seats with belt | 2 |
| Front bed | 2000 x 1400 mm |
| Rear bed | 2000x900 |
Specifications
Chassis and body
- All-wheel drive
- Fuel tank 10 l
- Automatic gear
- Comfort seats
- Rear view camera
- Air condition
- GRP body construction
- Cover layer rowing mesh
- frostbridge free bocklet doors and hatches
- lockable pass through Door
- electric and automatic staircase
- glas windows
- glas skylights
- electric vent
- Storage compartments underneath body floor
- heated garage
Interior and options
- All furniture with with wooden edges
- bunk bed and rear bed
- Seat cover cushion
- floor coverin vynil
- Double floor
- Air heating system
- Battery capacity 420Ah AGM
- Inverter 2000VA
- Charger 80A
- Ladebooster
- Solar installation 400W
- control panel
- LED lightning
- Cassette toilet with SOG system
- Bathroom in GRP sandwich construction
- white-armature with single-lever
- 3-flame stove and oven
- Gastank 90l
- Fridge 110 l
- Tanks inside and heated:
- Fresh water 230l
- Grey water 100l
