Bocklet

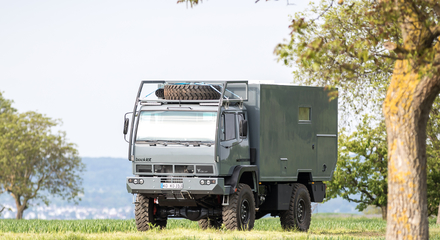

Dakar 700

Chassis Steyr 12M18
Wheelbase 3500 mm
GVW 11.500kg
L x W x H 7000 mm x 2460mm x 3550 mm








Technical Data

Chassis

Chassis Steyr 12M18
Wheelbase 3500 mm
GVW 11.500kg
Engine 6 Cylinder Turbo Diesel
Capacity 6000ccm
Engine power ca. 210 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

Interior

Length 4700 mm
Width 2360 mm
Height 2000 mm
Seats with belt -
Front bed -
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • GRP body construction
  • Cover layer 3 mm, rowing mesh
  • frostbridge free bocklet doors and hatches
  • storage compartment under bed, full width
  • KCT glas windows
  • KCT skyight over seating area
  • All wheel drive
  • Diff Lock Front and Rear
  • Fueltank app. 600l
  • Radio /CD /
  • Comfort seats, heated
  • Observation cam rear side
  • Roof carrier and spare wheel carrier
  • Storage boxes





Interior and options

  • Furniture in white/oak combination
  • Drawers with Soft Slide-In, Push Locks Inox
  • Doublelfloor with storage in seating area
  • Diesel powered  - air heating
  • Gas- powered water heating with boiler
  • Batteriecapazity 2x220Ah AGM Batteries
  • Automaticlcharger 24 V / 50 A
  • Inverter 2 kW
  • Controllpanel
  • Lightning LED-powered
  • Cassette toilette with SOG
  • Kocher 2-flames with oven
  • fridge 110 l
  • countertop in HPL
  • Radio CD / Bluetooth
  • Tanks inside and heated:
     - fresh water 365l
     - grey water 190l
  • aircondition
  • TV and automatic SAT
