Bocklet

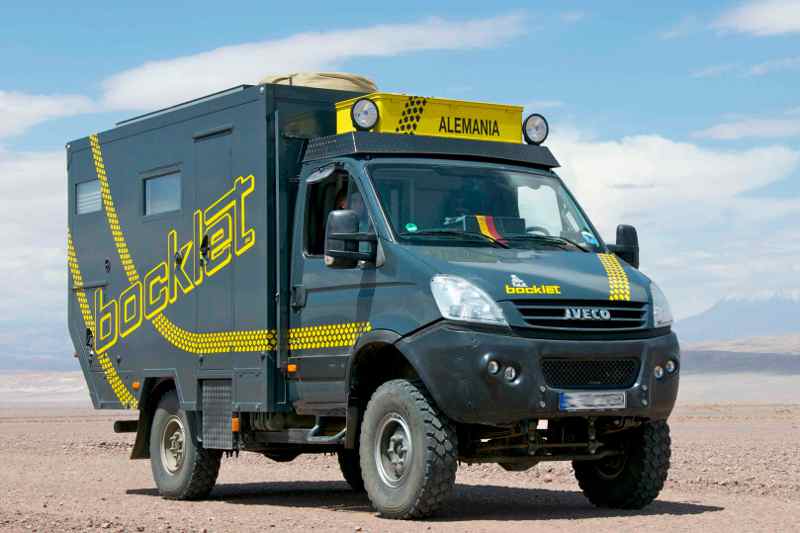

Dakar 630E

Chassis Iveco 55 S 18 W
Wheelbase 3400 mm
GVW 5500 kg
L x W x H 6300 mm x 2180 mm x 3200 mm




Technical Data

Chassis

Chassis Iveco 55 S 18 W
Wheelbase 3400 mm
GVW 5500 kg
Engine 4 Cylinder Turbodiesel
Capacity 2998 ccm
Engine power 130/176 kW/PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

Interior

Length 3700/4450 mm
Width 2050 mm
Height 1950 mm
Seats with belt 2
Front bed -
Rear bed 2000 x 1450 mm



Specifications

Chassis and body

  • all-wheel-drive
  • diff-lock front-/rear axle
  • fuel tank 205 l
  • comfort seats
  • radio CD
  • rear view camera
  • free of thermal bridges
  • reinforced GRP cover layer 2 mm
  • bocklet doors and hatches, free of thermal bridges
  • eletric wheel away Heck-Slide-out
  • outer storrage space on the side
  • outer storrage space beneath rear bed
  • electric and automatic staircase
  • KCT hardglas swing-out windows
  • skylight with isolation cover
  • skylight Gebo
  • pass to driver cab with lockable door
  • roof carrier with head lights and swing out
  • sand plate
  • storrage box on roof carrier

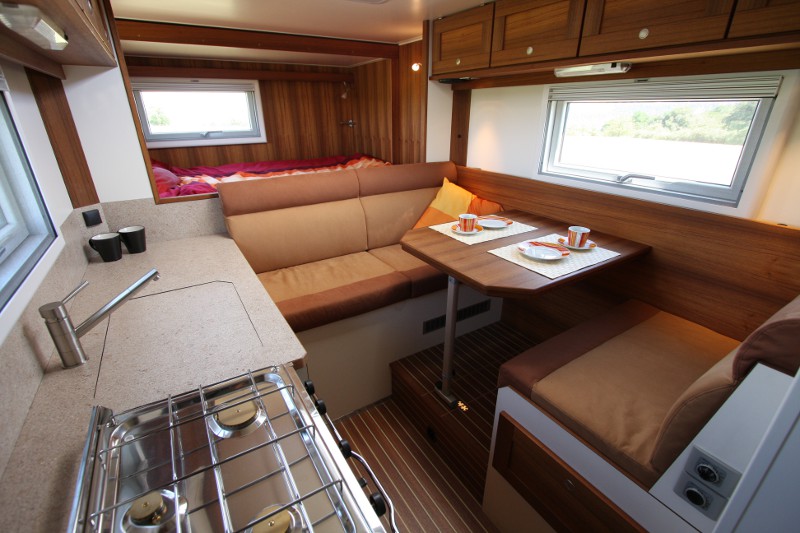

Interior and options



  • furniture made of 16mm wood, veneer teak
  • seat cushion cover Alcantara
  • double-floor in seating area
  • gas heater Truma Combi C4E
  • battery capacity 220Ah
  • automatic charger 12 V / 50 A
  • inverter 1200 W
  • solar panels 330 W
  • control panel
  • energy saving lights and LED lights
  • cassette toilett
  • white-armature with single-lever
  • 3-flame stove
  • oven
  • compressor fridge 90 l
  • all tanks inside and heated:
  • freshwater 230l
  • waste water 130l
