Bocklet

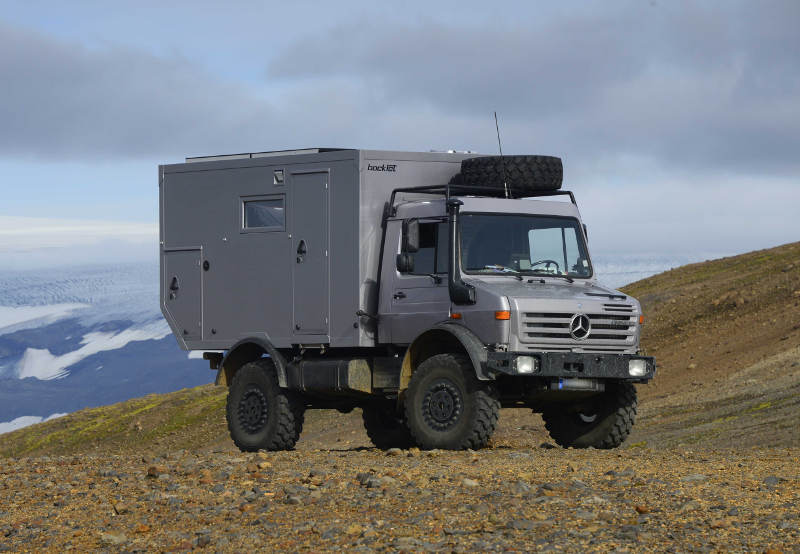

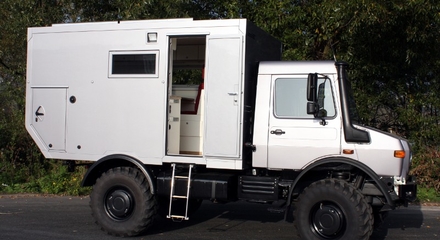

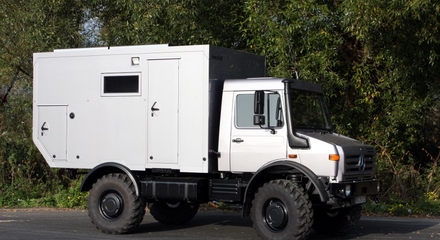

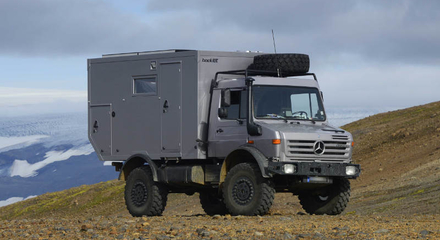

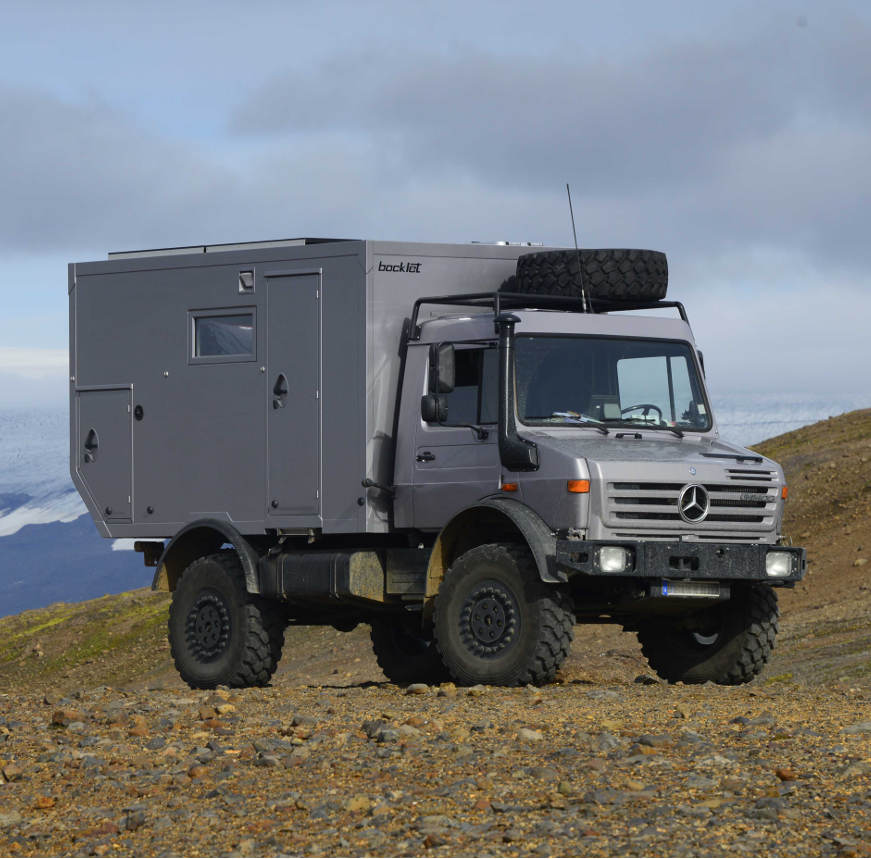

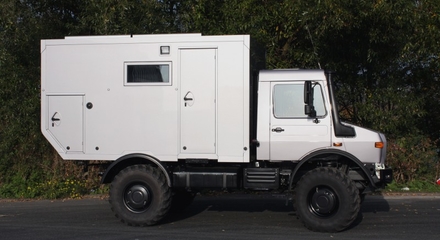

Dakar 600

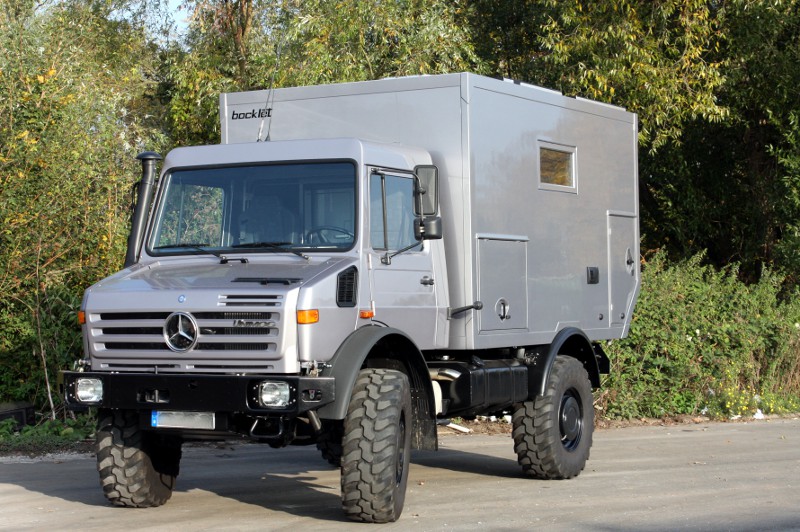

Chassis Mercedes-Benz Unimog U435
Wheelbase 3250 mm
GVW 7.500 kg
L x W x H 5950 mm x 2350 mm x 3340 mm




Technical Data

Chassis

Chassis Mercedes-Benz Unimog U435
Wheelbase 3250 mm
GVW 7.500 kg
Engine
Capacity
Engine power

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

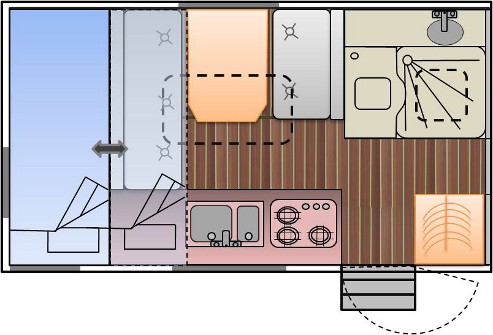

Interior

Length 3600 mm
Width 2150 mm
Height 1950 mm
Seats with belt 2 with 3-point belt
Front bed -
Rear bed 2000 x 1400 mm



Specifications

Chassis and body

  • all-wheel-drive
  • diff-lock rear-/ front axle
  • fuel tank 180 l
  • metallic painting
  • comfort seats
  • radio CD
  • free of thermal bridges
  • reinforced GRP cover layer 2mm
  • bocklet doors and hatches, free of thermal bridges
  • outer storrage space beneath rear bed
  • KCT hardglas swing-out windows
  • skylight Heki 1
  • skylight Gebo
  • pass to driver cab with lockable door

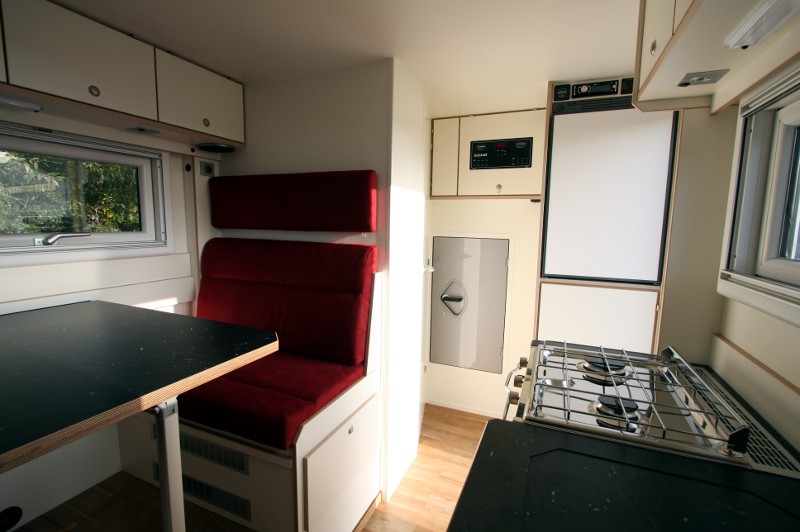

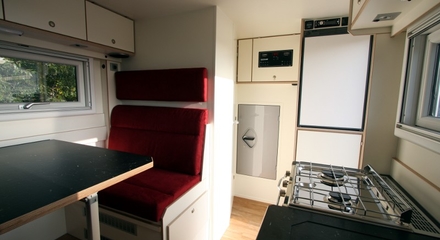

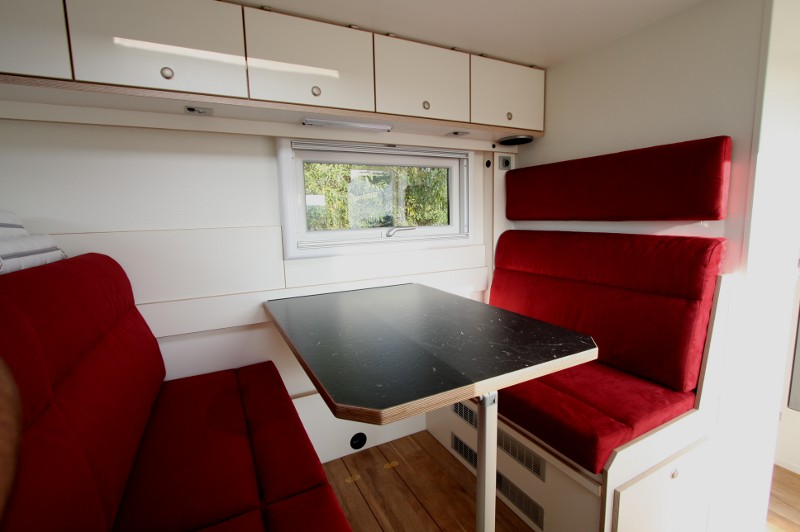

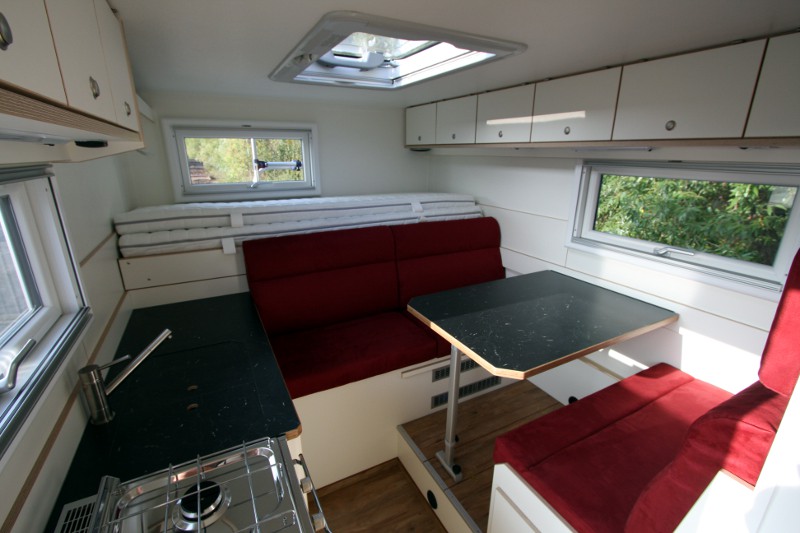

Interior and options

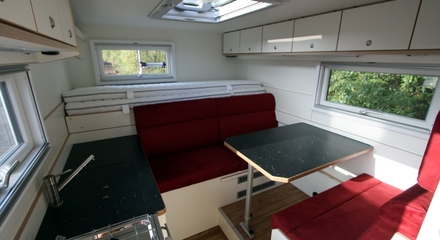

  • furniture made of 16mm laminate white

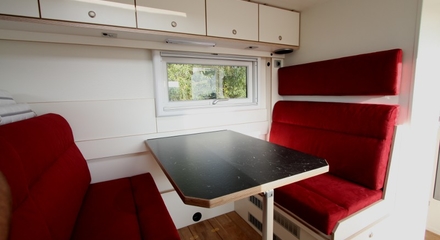

  • seat cushion cover alcantara
  • double-floor in seating area
  • Truma heater
  • battery capacity 220Ah
  • automatic charger 24 V / 50 A
  • inverter 2000 W
  • control panel
  • energy saving LED lights

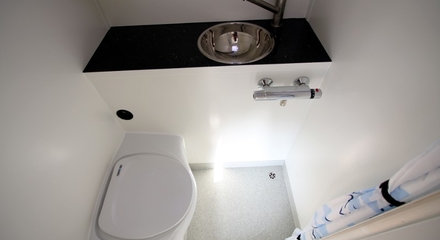

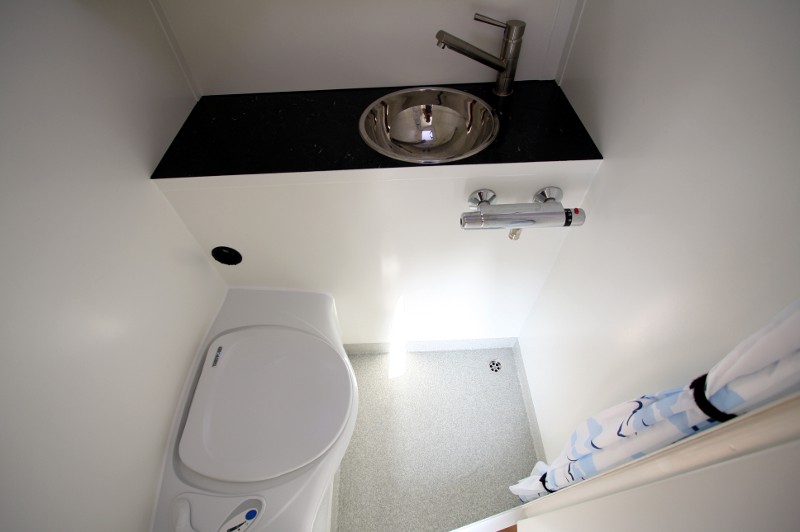

  • cassette toilett
  • white-armature with single-lever
  • 2-flame stove
  • compressor frídge 90 l
  • all tanks inside and heated:
  • freshwater 300l
  • waste water 60l
