Bocklet
Ando 950HG
| Chassis |
MAN TGM 18.290 |
| Wheelbase |
5075 |
| GVW |
18.000kg |
| L x W x H |
9530 x 2550 mm x 3800mm |
Technical Data
Chassis
| Chassis |
MAN TGM 18.290 |
| Wheelbase |
5075 |
| GVW |
18.000kg |
| Engine |
6 Zylinder Turbodiesel |
| Capacity |
6400 ccm |
| Engine power |
205 kW / 294 PS |
Body
| GRP body construction |
| Wall thickness |
50 mm |
| Roof thickness |
50 mm |
| Bottom thickness |
60 mm |
Interior
| Length |
7800 mm |
| Width |
2400 mm |
| Height |
2040 mm |
|
| Seats with belt |
4 mit seat belts |
| Front bed |
2000 x 1600 mm |
| Rear bed |
2000 x 2200 mm |
Specifications
Chassis and body
- MAN Truck chassis 4x2
- Rear towing device
- Diff lock rear axle
- Air suspension front /rear
- Fuel tank 600 l
- Comfort seats
- Radio CD / navigation systems
- Rear view camera
- Aircondition
- GRP body construction
- Cover layer 3 mm, rowing mesh
- frostbridge free bocklet doors and hatches
- storage compartment under bed, full width
- electric and automatic staircase
- glas windows
- glas skylights
- electric vents
- outer storage compartments

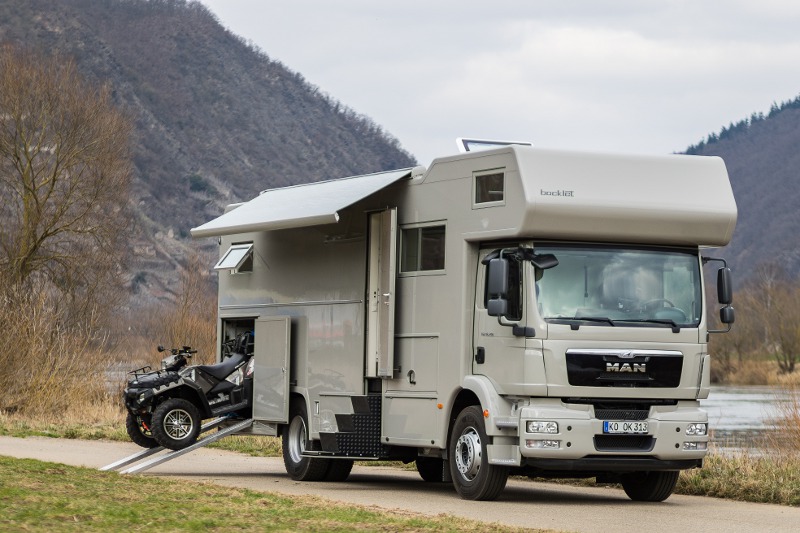

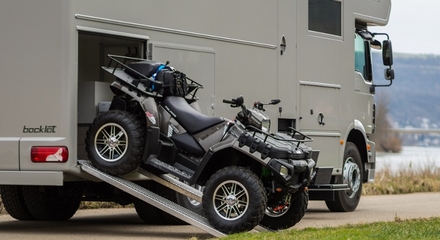

- Quad garage underneath bed
- pass to driver cab with lockable door
Interior and options
- Furniture white painted
- Teak floor
- Seat cover micro fibre
- Double floor with storage options
- Gas Warmwaterheating
- Heat exchanger
- Battery capacity 880 Ah /12V
- Automatic charger 24 V / 100 A
- Inverter 3 KW
- Solar installation 570 W
- 2 Air condition for body
- control panel
- LED lightning
- Vacuum toilet
- 3-flams stove with oven
- Fridge 170l with 40l freezer
- Dish washer
- Washing machine
- Tanks inside and heated:
- Fresh water 450l
- Grey water 300l
- Black water 150l
