Bocklet

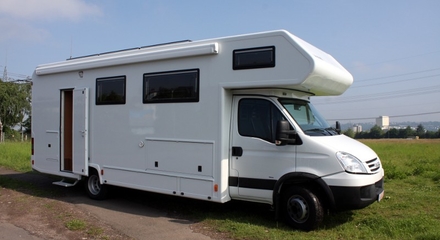

Ando 834
| Chassis | Iveco 65C18 |
| Wheelbase | 4750 mm |
| GVW | 6.500 kg |
| L x W x H | 8340 mm x 2400 mm x 3530 mm |
Technical Data
Chassis
| Chassis | Iveco 65C18 |
| Wheelbase | 4750 mm |
| GVW | 6.500 kg |
| Engine | 4 Cylinder Turbodiesel |
| Capacity | 2998 ccm |
| Engine power | 130 kW / 176 PS |
Body
| GRP sandwich-construction, free of thermal bridges | |
| Wall thickness | 50 mm |
| Roof thickness | 50 mm |
| Bottom thickness | 60 mm |

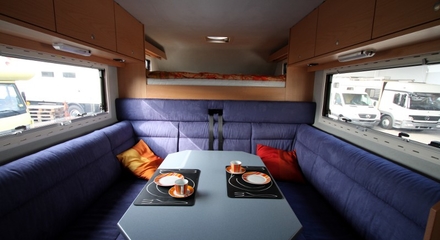

Interior
| Length | 5800 mm |
| Width | 2250 mm |
| Height | 2300 mm |
| Seats with belt | 2 |
| Front bed | 2000 x 1500 mm |
| Rear bed | Bunkbeds: 2x700 x 2000 mm |
Specifications
Chassis and body
- ABS
- fuel tank 100 l
- comfort seats
- radio CD
- rear view camera
- air conditioner
- free of thermal bridges
- bocklet doors and hatches, free of thermal bridges
- electric and automatic staircase
- seitz swing-out windows
- skylight Fan Tastic Vent
- outer storrage space on the side
- double-floor
Interior and options
- furniture made of 16mm wood, veneer beech
- seat cushion cover alcantara
- bottom cover teak laminat
- Alde Gas heater
- engine heat exchanger
- battery capacity 440Ah, Gel
- automatic charger 12 V / 70 A
- inverter 3000 W
- solar panels 255 W
- control panel
- energy saving spot lights with dimmer
- TFT 19" with DVD Player
- Sat TV Oyster digital
- Thetford porcelain toilet
- white-armature with single-lever
- 3-flame stove
- microwave
- oven
- Fridge 150 l
- corean kitchen work top
- cooler 50 l
- all tanks inside and heated:
- freshwater 300l
- waste water 300l
- retention tank 150l
- gastank 110 l
