Bocklet
Ando 650

Chassis Mercedes-Benz Sprinter 519 CDI
Wheelbase 3665 mm
GVW 5.300 kg
L x W x H 6550 mm x 2240 mm x 3350 mm




Technical Data

Chassis

Chassis Mercedes-Benz Sprinter 519 CDI
Wheelbase 3665 mm
GVW 5.300 kg
Engine 6 Cylinder Turbodiesel
Capacity 2987 ccm
Engine power 140 kW / 190 PS

Body

GRP sandwich-construction, free of thermal bridges
Wall thickness 50 mm
Roof thickness 50 mm
Bottom thickness 60 mm

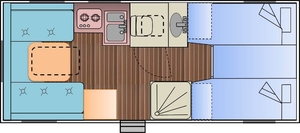

Interior

Length 3850 mm
Width 2100 mm
Height 2255 mm
Seats with belt 2 with 3-point belt
Front bed 2000 x 1950 mm
Rear bed



Specifications

Chassis and body

  • permanent MB Sprinter 4WDfuel tank 140 lcomfort seatsrear view cameraair conditioner
  • free of thermal bridges
  • bocklet doors and hatches, free of thermal bridges
  • frontwall in 50mm GRP sandwich-construction with lockable door
  • electric and automatic staircase
  • KCT hardglas swing-out windows
  • skylight Seitz Heki 1
  • skylight Fan Tastic Vent
  • outer storrage space on the side
  • double-floor
  • heated rear storage


Interior and options

  • furniture made of 16mm wood, veener birch
  • seat cushion cover alcantara
  • Alde Gas heater
  • battery capacity 220Ah
  • automatic charger 12 V / 50 A
  • inverter 2000 W
  • solar panels 330 W
  • control panel
  • energy saving LED spot lights
  • porcelain cassette toilet
  • bathroom in GRP sandwich-construction with separated shower
  • white-armature with single-lever
  • 2-flame stove
  • compressor fridge 110 l
  • LCD TFT 22" and device
  • all tanks inside and heated:
  • freshwater 230l
  • waste water 130l
